Schneider Electric TSXP57303MR PLC Processor Module

Product Details

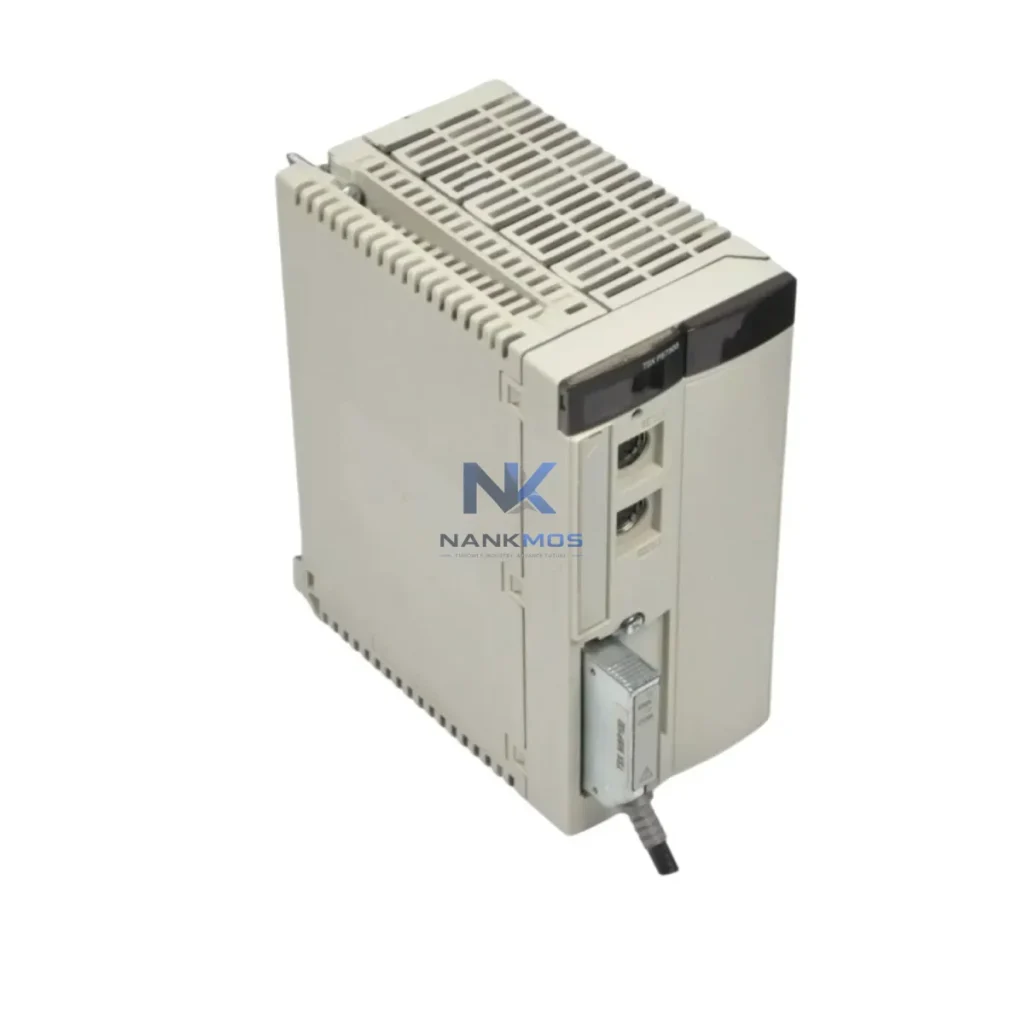

TSXP57303MR Product Description

The Schneider Electric TSXP57303MR is a high-performance PLC processor module engineered for the Modicon Premium platform, delivering robust Modbus Plus network connectivity that forms the backbone of modern smart factory data architectures. Designed for demanding industrial environments — including power generation, water treatment, petrochemical processing, and discrete manufacturing — the TSXP57303MR bridges field-level devices and upper-level control systems through a reliable, deterministic communication layer. With native Modbus Plus protocol support, this processor enables seamless data exchange between PLCs, remote I/O stations, HMI panels, SCADA servers, and edge gateways, eliminating data silos and enabling real-time production visibility across the entire automation network.

In a connected factory architecture, the TSXP57303MR acts as the central intelligence node within the Modicon Premium rack. Field signals from proximity sensors, vibration transducers, pressure transmitters, and flow meters are collected through distributed TSX ETY 110 Ethernet modules or TSX SAY 1000 analog input modules, then processed locally before being transmitted upstream via Modbus Plus to SCADA platforms such as Wonderware InTouch or Aveva System Platform. The processor's deterministic scan cycle ensures that time-critical data — including alarm states, setpoint deviations, and equipment status — reaches the HMI and historian layers with minimal latency, supporting real-time decision-making on the plant floor.

The TSXP57303MR integrates natively with the TSX RKY 12EX rack infrastructure, supporting modular expansion through communication modules such as the TSX SCY 21601 serial link module for legacy RS-485 device integration and the TSX ETY 5103 Ethernet TCP/IP module for plant-wide LAN connectivity. This multi-protocol capability allows the TSXP57303MR to serve as a protocol gateway, translating between Modbus RTU devices on the serial bus and Modbus TCP/IP clients on the Ethernet backbone — a critical function in brownfield automation sites where legacy instrumentation must coexist with modern IIoT infrastructure. Variable frequency drives, motor protection relays, and intelligent field devices connected via Modbus RTU can be polled and monitored through the TSXP57303MR without requiring hardware replacement, protecting existing capital investments while enabling digital transformation.

For remote diagnostics and predictive maintenance, the TSXP57303MR supports Unity Pro XL programming software, which provides online monitoring, forced variable control, and diagnostic buffer access over the Modbus Plus network. Maintenance engineers can connect remotely through a TSX 1722 Modbus Plus PC adapter or via an OPC-UA gateway to retrieve real-time register values, fault logs, and communication statistics without interrupting production. This capability is essential for multi-site operations where on-site intervention is costly and response time is critical. Integration with MES and ERP systems is achieved through OPC-DA or OPC-UA server middleware, enabling the TSXP57303MR's process data to feed directly into production scheduling, quality management, and energy monitoring applications.

The TSXP57303MR is pre-shipment tested and verified against Schneider Electric factory acceptance criteria before dispatch. Each unit is supplied with a 12-month warranty covering hardware defects and communication interface integrity. In-stock availability ensures rapid deployment for both planned system expansions and emergency replacement scenarios. The module is compatible with the full Modicon Premium product family, including TSX P57 series processors, TSX ETY Ethernet modules, TSX SAY analog I/O modules, and TSX ASY motion control modules, providing a scalable platform that grows with your automation requirements.

A typical smart factory deployment built around the TSXP57303MR begins at the field device layer, where sensors and actuators — including inductive proximity switches, thermocouple input modules connected via TSX SAY 1000 analog cards, and Modbus RTU variable frequency drives — feed process data into the Modicon Premium rack. The TSXP57303MR processes this data at the PLC scan level, executing control logic and generating setpoint commands in real time. Simultaneously, the processor publishes live register data onto the Modbus Plus network, where TSX ETY 5103 Ethernet TCP/IP modules bridge the Modbus Plus segment to the plant Ethernet LAN.

At the network layer, industrial managed switches — such as those in the Hirschmann MACH or Moxa EDS series — provide VLAN segmentation and redundant ring topology, ensuring that PLC-to-SCADA communication remains uninterrupted even during network maintenance or partial link failure. The TSXP57303MR's Modbus Plus data is made available to SCADA clients through an OPC-UA server running on a dedicated gateway PC or edge computing node, enabling Wonderware InTouch or Aveva System Platform to display real-time trends, alarm states, and production KPIs on operator HMI screens.

For remote I/O expansion, TSX ETY 110 distributed I/O modules extend the TSXP57303MR's reach to remote field panels without additional PLC hardware, reducing wiring costs and simplifying network topology. Motor protection relays and intelligent circuit breakers connected via Modbus RTU through the TSX SCY 21601 serial link module provide energy consumption data that feeds into the plant's energy management system, supporting ISO 50001 compliance and carbon footprint reporting. Edge gateways equipped with MQTT or REST API connectors can subscribe to the OPC-UA data stream from the TSXP57303MR and forward selected tags to cloud-based analytics platforms, enabling predictive maintenance models based on historical trend analysis.

Many industrial sites operating Modicon Premium systems face persistent challenges: protocol fragmentation between legacy Modbus RTU devices and modern Ethernet-based systems, data islands created by standalone PLCs with no network connectivity, and limited visibility into remote or unmanned substations. The TSXP57303MR directly addresses these issues through its multi-protocol architecture and native Modbus Plus integration.

Protocol unification is achieved by pairing the TSXP57303MR with TSX SCY serial modules for RS-485 Modbus RTU devices and TSX ETY Ethernet modules for TCP/IP connectivity, creating a unified data namespace accessible from a single OPC-UA endpoint. Data islands are eliminated by connecting previously isolated PLCs to the Modbus Plus network, allowing the TSXP57303MR to act as a master station that polls subordinate devices and aggregates their data into a centralized historian. Remote monitoring is enabled through Unity Pro's online diagnostic tools and third-party OPC-UA clients, giving engineers full register-level visibility without physical site access. Production line transparency is achieved through real-time KPI dashboards fed by the TSXP57303MR's live data, while alarm tracking is managed through SCADA alarm management modules that log, timestamp, and route alerts to responsible personnel via email or SMS. System expansion is straightforward: additional TSX rack modules, remote I/O drops, or new Modbus Plus nodes can be added without modifying the core TSXP57303MR configuration, protecting the existing software investment.

Q1: What is the communication latency of the TSXP57303MR on a Modbus Plus network? Modbus Plus is a deterministic token-passing network operating at 1 Mbit/s, with typical end-to-end latency of 1–5 ms for register read/write transactions between nodes. The TSXP57303MR's scan cycle time is configurable in Unity Pro, and Modbus Plus transactions are handled asynchronously to avoid blocking the PLC scan, ensuring consistent response times even under high network load.

Q2: Is the TSXP57303MR compatible with Modbus TCP/IP SCADA systems? Yes. While the TSXP57303MR's native protocol is Modbus Plus, compatibility with Modbus TCP/IP SCADA systems is achieved by installing a TSX ETY 5103 Ethernet TCP/IP module in the same Premium rack. This module acts as a Modbus TCP/IP server, exposing the TSXP57303MR's data registers to any Modbus TCP/IP client, including Wonderware, Vijeo Citect, and WinCC. OPC-UA gateway software can further translate this data for IIoT and cloud integration.

Q3: Can the TSXP57303MR support remote diagnostics without interrupting production? Yes. Unity Pro XL supports online connection to the TSXP57303MR via Modbus Plus or Ethernet (through a TSX ETY module), allowing engineers to monitor variables, read diagnostic buffers, and adjust parameters in run mode without stopping the PLC. This non-intrusive diagnostic capability is critical for continuous process industries where unplanned downtime is unacceptable.

Q4: What warranty and quality assurance does the TSXP57303MR come with? Each TSXP57303MR unit supplied by NANKMOS is covered by a 12-month warranty against hardware defects and communication interface failures. All units are pre-shipment tested to verify Modbus Plus port functionality, processor boot integrity, and rack bus communication before dispatch. In-stock availability supports both planned project timelines and urgent replacement requirements, with fast global shipping to minimize site downtime.
