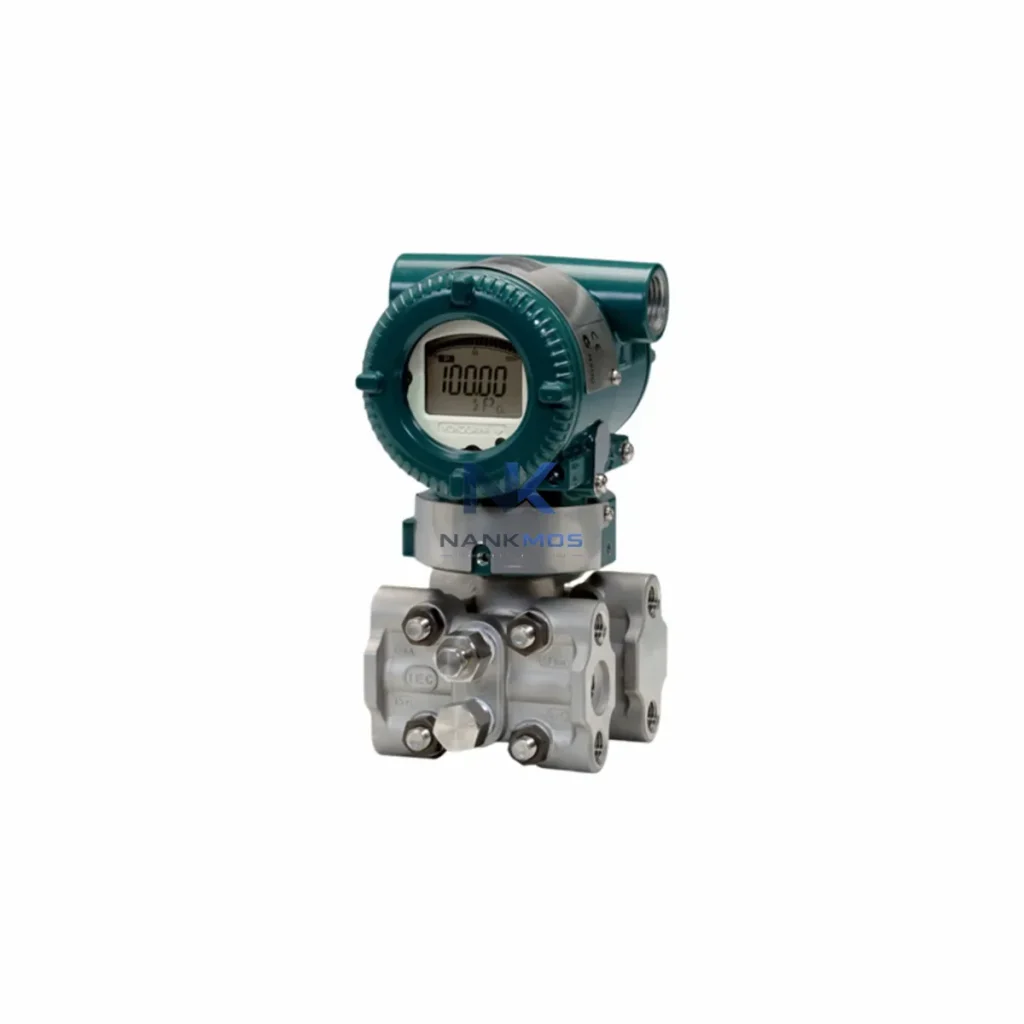

Yokogawa EJA110A Differential Pressure Transmitter

Product Details

EJA110A Product Description

The Yokogawa EJA110A is a high-performance differential pressure transmitter engineered for seamless integration within multi-layer industrial control architectures. Designed as a core sensing element in the field instrumentation layer, the EJA110A delivers precise differential pressure measurement for flow, level, and pressure monitoring across demanding process environments. Its silicon resonant sensor technology ensures long-term stability, minimal drift, and high repeatability — qualities that are essential when the transmitter must operate as a trusted data source feeding upstream controllers, DCS platforms, and SCADA systems.

In a complete automation architecture, the EJA110A does not function in isolation. It is the field-level signal originator that anchors the measurement layer, providing calibrated process data to the control layer above. When paired with Yokogawa CENTUM VP DCS controllers or STARDOM network-based controllers, the EJA110A's HART or FOUNDATION Fieldbus output integrates directly into the process control loop without signal conditioning intermediaries, reducing latency and improving loop response. This tight coupling between the field device and the control platform is what defines a system-consistent architecture — one where every component is selected for protocol alignment, electrical compatibility, and long-term maintainability.

The EJA110A is most effective when deployed as part of a coherent, multi-layer automation platform. In a typical process plant architecture, the transmitter occupies the field instrumentation layer and communicates upward through marshalling cabinets or remote I/O nodes to the control layer. When the plant runs on a Yokogawa CENTUM VP DCS, the EJA110A's FOUNDATION Fieldbus output connects directly to an AFV10 or AFV40 Fieldbus interface module, eliminating the need for analogue-to-digital conversion at the I/O level and preserving signal fidelity across the entire loop.

For plants using HART-based infrastructure, the EJA110A integrates with Yokogawa's HART multiplexer systems or third-party asset management platforms via the HART pass-through capability of standard analogue input modules. This makes the transmitter compatible with Yokogawa STARDOM FCN/FCJ controllers, which accept 4–20 mA HART signals through their analogue I/O modules and pass device diagnostics to the FAST/TOOLS SCADA layer for real-time asset health monitoring.

At the power layer, the EJA110A operates reliably on standard 24 V DC field instrument power supplies, including Yokogawa's own power conditioner units or third-party DIN-rail mounted SITOP or Phoenix Contact QUINT series PSUs. Proper power distribution design — with individual fusing per loop and surge protection at the marshalling cabinet — ensures that a single field fault does not propagate to adjacent measurement loops.

In redundant architecture designs, the EJA110A can be deployed in a 1oo2 (one-out-of-two) or 2oo3 voting configuration alongside additional EJA110A or EJA118W transmitters on the same process tap, feeding a Yokogawa ProSafe-RS Safety Instrumented System (SIS) controller. The SIS layer evaluates the voted signal and triggers the appropriate safety function — valve closure, pump trip, or alarm escalation — without relying on the basic process control system. This separation of BPCS and SIS layers, with the EJA110A serving both, is a hallmark of IEC 61511-compliant architecture.

At the HMI and visualisation layer, process values from the EJA110A are trended and alarmed within Yokogawa's FAST/TOOLS or Exaquantum historian, giving operators and process engineers access to long-term performance data. When combined with Yokogawa's PRM (Plant Resource Manager) asset management software, the EJA110A's self-diagnostic data — including sensor status, loop integrity, and configuration parameters — is surfaced automatically, reducing the need for manual field checks and enabling condition-based maintenance scheduling.

Related components that are commonly deployed alongside the EJA110A in a complete system include: the Yokogawa EJA118W (remote diaphragm seal DP transmitter for high-viscosity or corrosive media), Yokogawa EJX110A (high-performance DP transmitter with enhanced diagnostics), Yokogawa YTA710 (temperature transmitter for multi-variable loop integration), Yokogawa CENTUM VP AFV10 Fieldbus Interface Module, Yokogawa ProSafe-RS SIS Controller, Yokogawa STARDOM FCN Controller, Yokogawa PRM Asset Management Software, standard 24 V DC DIN-rail power supplies, HART multiplexer units, and stainless-steel 2-inch pipe mounting brackets with 5-valve manifolds.

Oil & Gas / Petrochemical: The EJA110A is widely deployed in upstream and downstream oil and gas facilities for wellhead pressure monitoring, separator level measurement, and pipeline differential flow calculation. Its ATEX/IECEx certification makes it suitable for Zone 1 and Zone 2 hazardous areas, and its Hastelloy C-276 wetted parts option handles H₂S-rich or chloride-containing process fluids without corrosion-related drift.

Power Generation: In thermal and combined-cycle power plants, the EJA110A measures feedwater flow, steam drum level, and condenser vacuum. Its high static pressure rating (up to 14 MPa) and wide ambient temperature tolerance make it suitable for high-pressure steam circuits. Integration with the plant DCS via FOUNDATION Fieldbus enables loop diagnostics without process interruption.

Water & Wastewater Treatment: Municipal and industrial water treatment plants use the EJA110A for filter differential pressure monitoring, pump head measurement, and chemical dosing flow control. Its IP67 enclosure and corrosion-resistant materials ensure reliable operation in wet, chemically aggressive environments. HART communication allows remote zero and span adjustment from the control room without field access.

Pulp & Paper / Chemical Processing: In continuous process industries, the EJA110A's low-drift silicon resonant sensor reduces the frequency of field calibration visits, lowering maintenance costs over the asset lifecycle. Its compatibility with Yokogawa's PRM software enables predictive maintenance scheduling based on actual device health data rather than fixed time intervals.

Mining & Metallurgy: Slurry pipeline differential pressure measurement, flotation cell level control, and compressed air flow monitoring are typical applications in mining environments. The EJA110A's robust construction and wide operating temperature range support reliable measurement in dusty, vibration-prone installations.

Q1: Is the EJA110A compatible with third-party DCS platforms such as Emerson DeltaV or Honeywell Experion? Yes. The EJA110A's 4–20 mA HART output is universally compatible with any DCS or PLC analogue input module that accepts standard HART signals. FOUNDATION Fieldbus variants require an FF-compatible I/O module (H1 segment). While the transmitter is optimised for Yokogawa CENTUM VP and STARDOM platforms — where full device description (DD) files are pre-loaded — it operates correctly on any HART Rev. 5/7 or FF H1 compliant host system. DD files for third-party hosts are available from Yokogawa's device library.

Q2: What is the recommended maintenance interval, and how does the EJA110A support long-term reliability in a 12-Month Warranty context? Yokogawa recommends a calibration verification interval of 12–24 months for the EJA110A under normal process conditions, supported by the transmitter's ±0.04% reference accuracy and long-term stability specification of ±0.1% per 10 years. All units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment, including functional testing, loop calibration verification, and configuration backup. During the warranty period, any confirmed measurement deviation beyond specification is addressed through replacement or recalibration at no additional cost.

Q3: How should the EJA110A be installed in a high-static-pressure differential flow application to ensure measurement accuracy? For high-static-pressure applications (e.g., steam flow measurement at 10 MPa), select the appropriate high-pressure capsule (e.g., H or J range) and specify the correct wetted material for the process fluid. Mount the transmitter below the process tap for liquid service (to prevent gas pockets) or above for gas/steam service (to prevent condensate accumulation). Use a 5-valve manifold to allow in-situ zero verification without process isolation. Commission the transmitter with the manifold equalising valve open to perform a live zero check, then close the equalising valve and open the high/low side valves for normal operation. HART or FF configuration tools should be used to set the LRV/URV, damping, and engineering units before loop commissioning.
