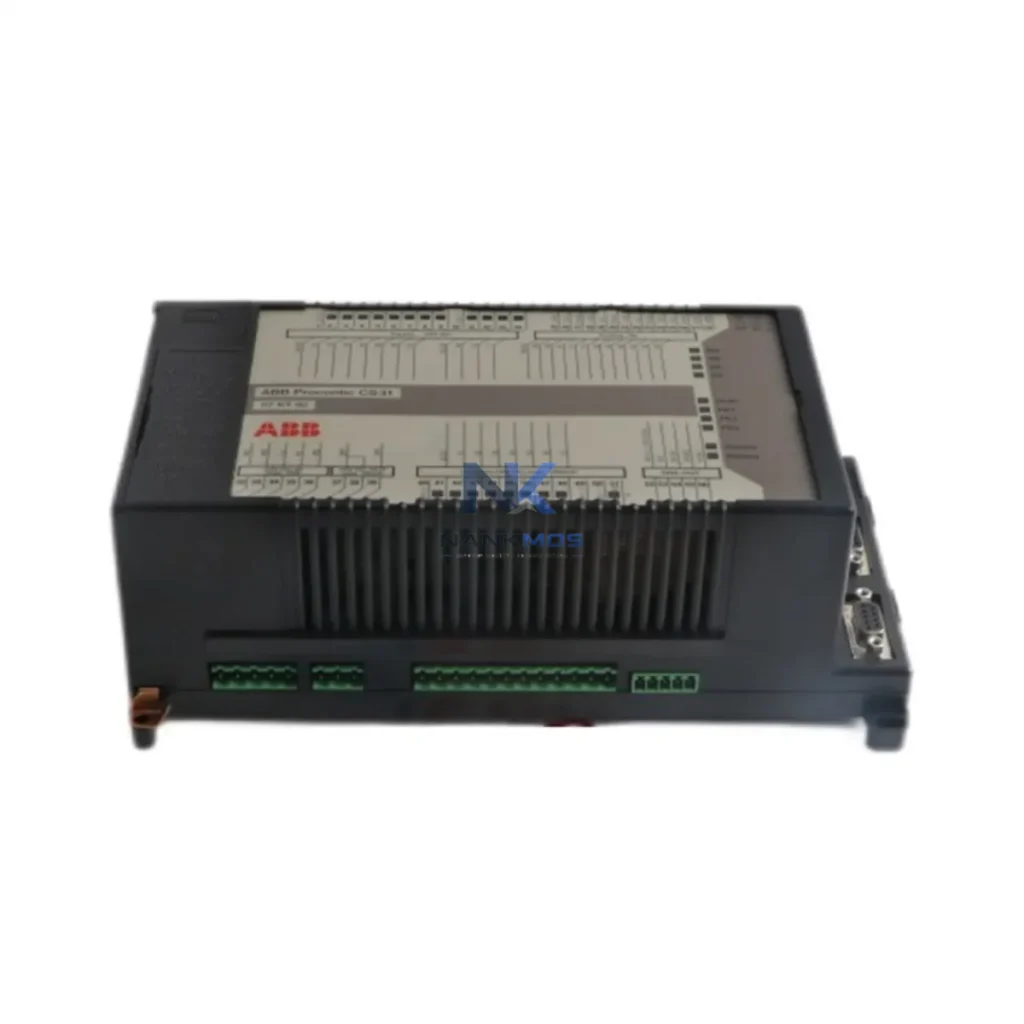

ABB 07KT92 GJR5250500R0202 CPU Module

Product Details

07KT92 GJR5250500R0202 Product Description

The ABB 07KT92 (part number GJR5250500R0202) is a high-performance central processing unit designed for the ABB Advant OCS (Open Control System) distributed control architecture. As the computational core of the Advant OCS platform, this CPU module orchestrates real-time process data acquisition, ladder logic execution, function block processing, and inter-module communication across the full control hierarchy. Engineered for continuous industrial operation, the 07KT92 delivers deterministic scan cycle performance, robust memory management, and seamless integration with ABB's modular I/O and communication subsystems — making it a foundational component in manufacturing, power generation, petrochemical, water treatment, and process automation environments.

Within the Advant OCS architecture, the 07KT92 CPU sits at the control layer, interfacing directly with the system backplane to coordinate signal flow between the I/O layer, communication layer, and HMI layer. Its architecture supports structured program partitioning, enabling engineers to segment control tasks by priority and scan rate — a critical capability for mixed-speed process loops common in energy and chemical plant applications. The module's onboard diagnostics continuously monitor rack health, I/O module status, and communication link integrity, reducing unplanned downtime and simplifying fault isolation during commissioning and long-term maintenance cycles.

The 07KT92 is fully compatible with the ABB Advant OCS rack system, operating alongside companion modules such as the ABB DSQC 503 communication processor, ABB DSDP 150 pulse counter I/O, ABB DSDI 110A digital input modules, ABB DSDO 115A digital output modules, and ABB DSDP 170 positioning modules. In redundant control configurations, the 07KT92 pairs with ABB DSCS 140 communication supervisors and ABB DSTC 190 redundancy controllers to deliver hot-standby CPU failover — ensuring zero-interruption control continuity for critical process loops. Power integrity for the CPU rack is maintained through ABB DSPU 110 power supply units, which provide regulated DC bus voltage with built-in overcurrent protection and status signaling back to the CPU's diagnostic registers.

At the communication layer, the 07KT92 supports MasterBus 300 (MB300) — ABB's proprietary high-speed fieldbus — enabling deterministic data exchange with remote I/O stations, operator workstations running ABB Advant Station 500 Series HMIs, and engineering tools such as ABB Master View 850. This communication architecture allows the CPU to manage distributed I/O nodes across large plant footprints without sacrificing scan cycle consistency. For plants integrating legacy MODBUS RTU or PROFIBUS DP devices, the 07KT92 works in conjunction with ABB CI522A or CI532V communication interface modules to bridge protocol boundaries within the same control cabinet.

From a signal flow perspective, the 07KT92 processes analog and digital inputs from field instruments — including pressure transmitters, flow meters, temperature sensors, and valve position feedback — through the Advant OCS I/O bus, executes the configured control strategy, and drives output signals to final control elements such as variable frequency drives, control valves, and motor starters. This end-to-end signal chain, from field device through I/O module to CPU and back to actuator, is managed with millisecond-level determinism, supporting tight PID loop control and sequence-of-events recording for regulatory compliance in power and petrochemical sectors.

Modular expansion is a core design principle of the Advant OCS platform. The 07KT92 CPU supports multi-rack configurations via the Advant OCS S100 I/O bus extender system, allowing engineers to add I/O capacity without architectural redesign. This scalability is particularly valuable during plant expansions or production line reconfigurations, where incremental I/O additions must integrate seamlessly with the existing control program without requiring CPU replacement or full system re-engineering.

For long-term maintenance efficiency, the 07KT92's onboard memory retains the control program and configuration data through power cycles via battery-backed SRAM, eliminating the need for full program reload after planned shutdowns or power interruptions. Diagnostic LEDs on the module faceplate provide immediate visual status for CPU run state, I/O bus activity, and fault conditions — enabling maintenance technicians to perform first-level fault assessment without connecting a programming terminal. All NANKMOS-supplied 07KT92 units undergo pre-shipment functional testing, including power-on self-test verification, memory integrity checks, and communication port validation, before dispatch.

The 07KT92 CPU achieves its full operational potential when deployed within a complete Advant OCS automation platform. A typical system architecture integrating this CPU includes the following layers and components:

Control Layer: The 07KT92 CPU executes the master control program, managing all process logic, alarm handling, and inter-module coordination. In redundant configurations, a secondary 07KT92 unit operates in hot-standby mode under the supervision of the ABB DSTC 190 redundancy controller, ensuring seamless CPU failover with no process interruption.

Power Layer: The ABB DSPU 110 power supply module provides stable 24 VDC to the CPU rack backplane, with built-in voltage monitoring and fault signaling. Dual power supply configurations are recommended for critical process applications to eliminate single-point power failure risk.

I/O Layer: Digital inputs from field devices are collected via ABB DSDI 110A modules, while digital outputs to actuators and relays are driven through ABB DSDO 115A modules. Analog process variables — including 4–20 mA signals from pressure and flow transmitters — are processed through ABB DSDP 150 and DSDP 170 analog I/O modules, all connected to the 07KT92 via the S100 I/O bus.

Communication Layer: The ABB DSQC 503 communication processor extends the 07KT92's connectivity to external networks, while ABB CI522A and CI532V interface modules bridge MODBUS RTU and PROFIBUS DP field devices into the Advant OCS architecture. MasterBus 300 links remote I/O stations and operator workstations across the plant network.

HMI Layer: Operators interact with the control system through ABB Advant Station 500 Series HMI workstations, which receive real-time process data from the 07KT92 via MasterBus 300. Engineering and configuration tasks are performed using ABB Master View 850 software, connected directly to the CPU's programming port.

Protection Layer: Signal isolation between field instruments and the CPU I/O bus is maintained through DIN-rail mounted signal isolators and surge protection modules installed at the cabinet entry points, protecting the 07KT92 from transient overvoltages common in industrial field wiring environments.

Power Generation & Energy: The 07KT92 CPU is widely deployed in thermal power plant auxiliary systems, including boiler feedwater control, turbine governor interfaces, and generator excitation monitoring. Its deterministic scan cycle and hot-standby redundancy capability meet the high-availability requirements of grid-connected generation assets.

Petrochemical & Refining: In refinery process units, the 07KT92 manages continuous process loops for distillation column control, heat exchanger bypass regulation, and compressor surge protection. Its compatibility with PROFIBUS DP field devices via CI532V modules enables seamless integration with smart valve positioners and field transmitters.

Water & Wastewater Treatment: Municipal water treatment plants use the 07KT92 to automate dosing pump sequencing, filtration backwash cycles, and effluent quality monitoring. The module's battery-backed memory ensures control program retention through planned power outages during maintenance windows.

Mining & Metallurgy: Ore processing facilities deploy the 07KT92 for conveyor belt sequencing, crusher load management, and flotation cell control. The module's robust operating temperature range and vibration tolerance support installation in harsh mining environment control rooms.

Packaging & Discrete Manufacturing: High-speed packaging lines use the 07KT92's fast scan cycle capability to coordinate multi-axis motion sequences, reject gate control, and production count tracking — integrating with ABB drives and servo systems via the Advant OCS communication architecture.

Q1: Is the ABB 07KT92 GJR5250500R0202 compatible with existing Advant OCS S100 racks and backplanes? Yes. The 07KT92 is designed for direct installation into standard ABB Advant OCS S100 rack systems. It is compatible with all S100 backplane variants and can coexist with existing I/O modules, communication processors, and power supply units in the same rack without hardware modification. No firmware upgrade is required for standard rack integration.

Q2: Can the 07KT92 be configured for CPU redundancy, and what additional modules are required? Yes. Hot-standby CPU redundancy is supported using a second 07KT92 unit paired with the ABB DSTC 190 redundancy controller. The redundancy controller monitors both CPUs continuously and executes automatic switchover in the event of a primary CPU fault, with switchover times typically under 100 milliseconds. This configuration is recommended for all critical process control applications where unplanned downtime carries significant operational or safety risk.

Q3: What warranty and post-shipment support does NANKMOS provide for the 07KT92? All ABB 07KT92 GJR5250500R0202 units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing including power-on self-test, memory integrity verification, and communication port validation. In-stock units ship within 3–5 business days. For technical support, system compatibility consultation, or bulk procurement inquiries, contact NANKMOS at [email protected] or +86 18359268345.
