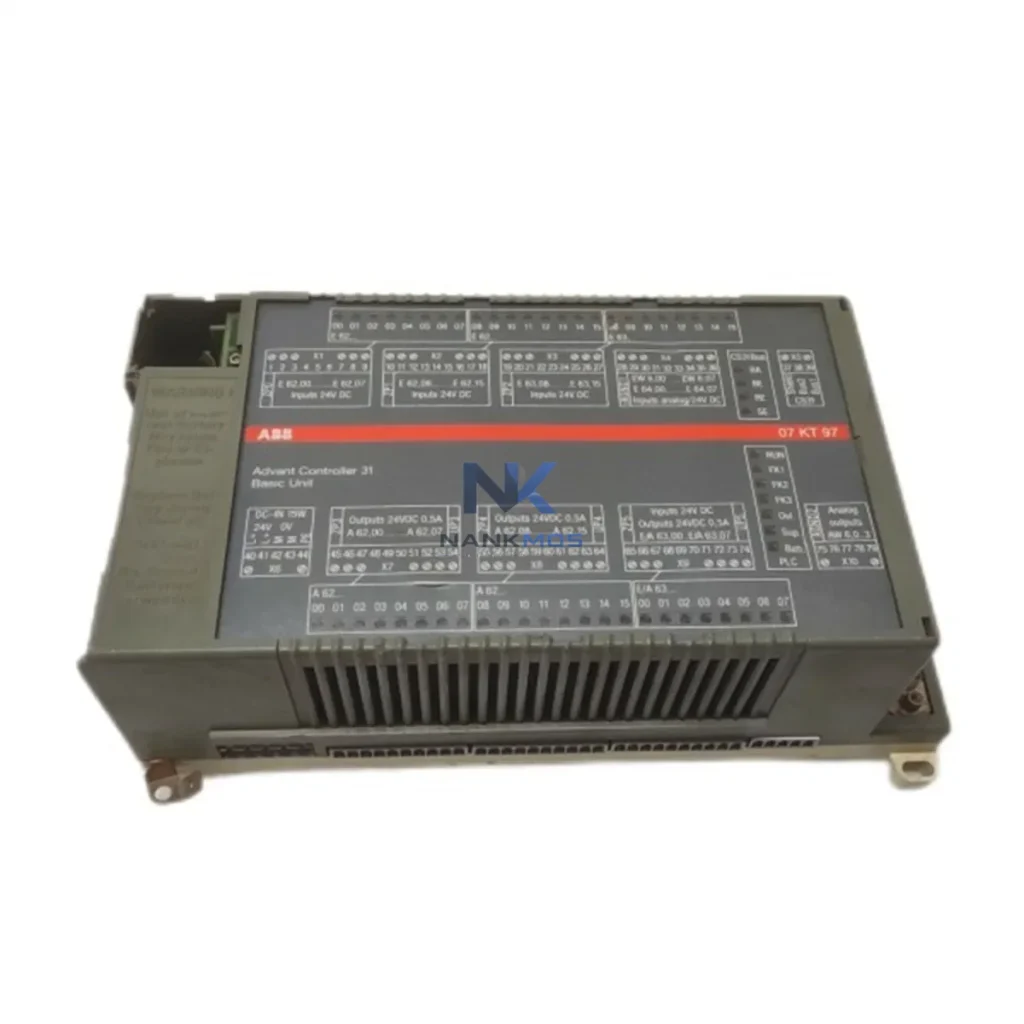

ABB 07KT97 PLC CPU Module

Product Details

07KT97 Product Description

The ABB 07KT97 is a high-performance CPU module engineered for the Advant Controller 31 (AC31) platform — ABB's proven mid-range programmable logic controller series designed for demanding industrial automation environments. As the central processing unit of the AC31 rack architecture, the 07KT97 governs program execution, I/O coordination, communication scheduling, and real-time diagnostic reporting across the entire control system. Its role extends far beyond standalone computation: it serves as the architectural anchor that determines system throughput, scan cycle consistency, and long-term maintainability across multi-layer industrial deployments.

In modern industrial control architecture, the CPU module is the convergence point for every layer of the automation hierarchy. The 07KT97 interfaces directly with ABB's AC31 backplane bus, enabling seamless coordination with digital and analog I/O modules such as the 07AI91 analog input module and 07DI92 digital input module, which feed real-time process signals into the CPU's execution environment. On the output side, modules like the 07DO91 digital output module and 07AO91 analog output module translate CPU-generated control decisions into field-level actuator commands — closing the loop between process measurement and physical response.

Communication architecture is a defining strength of the 07KT97 within the AC31 platform. The CPU supports PROFIBUS-DP master/slave configurations, enabling high-speed, deterministic fieldbus communication with distributed I/O stations, variable-frequency drives, and intelligent field devices across the plant floor. Integration with ABB's CS31 system bus further extends the I/O network reach, allowing remote I/O modules to be distributed across large physical installations without compromising scan cycle integrity. For supervisory connectivity, the 07KT97 supports serial communication interfaces compatible with SCADA systems, historian platforms, and HMI terminals such as the ABB CP600 operator panel series, enabling operators to monitor and interact with the control system in real time.

Power architecture stability is a prerequisite for reliable CPU operation. The 07KT97 is designed to operate within the AC31 rack powered by ABB's dedicated power supply modules, which provide regulated DC bus voltage with built-in overload protection and diagnostic signaling. Pairing the CPU with a correctly rated power supply — such as the 07AC91 power supply module — ensures that voltage transients, inrush currents, and load fluctuations do not propagate into the CPU's logic circuits, preserving program execution integrity during dynamic load conditions.

Redundancy and fault tolerance are critical considerations in high-availability process environments. While the 07KT97 operates as a standalone CPU in standard configurations, its architecture supports hot-standby redundancy schemes when paired with appropriate communication and synchronization modules within the AC31 platform. This capability is particularly relevant in power generation, water treatment, and petrochemical applications where unplanned downtime carries significant operational and safety consequences. The CPU's onboard diagnostic registers provide real-time fault detection, enabling maintenance teams to identify hardware anomalies, communication errors, and I/O faults before they escalate into process interruptions.

Engineering commissioning with the 07KT97 is supported through ABB's Advant Builder and compatible IEC 61131-3 programming environments, which provide structured text, function block diagram, and ladder logic programming modes. The CPU's memory architecture supports modular program organization, allowing control engineers to partition application code into functional blocks aligned with process units — simplifying both initial commissioning and ongoing program maintenance. Firmware version management and online program modification capabilities reduce the need for full system shutdowns during software updates, a significant advantage in continuous-process industries.

Long-term maintenance efficiency is a core value proposition of the 07KT97 in established AC31 installations. As a direct drop-in replacement for aging CPU modules within existing AC31 racks, the 07KT97 preserves backplane compatibility, I/O module assignments, and communication configurations — eliminating the need for rack redesign or rewiring during module replacement. This compatibility extends the operational lifespan of installed AC31 systems, deferring costly platform migrations while maintaining system performance and reliability. Every 07KT97 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify CPU initialization, memory integrity, communication port operation, and I/O bus handshake — ensuring that replacement modules arrive ready for immediate installation.

The 07KT97 CPU achieves its full architectural potential when deployed within a complete AC31 automation platform. A typical integrated system begins with the 07AC91 power supply module providing stable 24 V DC to the rack, followed by the 07KT97 CPU occupying the master slot and managing all downstream module communication via the AC31 backplane bus. Digital process signals are acquired through 07DI92 digital input modules and 07DO91 digital output modules, while analog process variables — temperature, pressure, flow — are handled by 07AI91 analog input modules and 07AO91 analog output modules, delivering 4–20 mA or 0–10 V signals with high-resolution conversion.

For distributed I/O architectures, the 07KT97's PROFIBUS-DP master port connects to remote I/O stations and intelligent field devices across the plant, including ABB frequency converters such as the ACS550 or ACS800 series drives, which participate in the PROFIBUS network as slave devices for coordinated motor speed and torque control. Operator interaction is facilitated through ABB CP600 series HMI panels connected via serial or Ethernet interfaces, providing process visualization, alarm management, and parameter adjustment without interrupting CPU scan cycles. Communication gateways — such as PROFIBUS-to-Modbus or PROFIBUS-to-Ethernet/IP converters — extend the 07KT97's connectivity to legacy systems and enterprise-level SCADA platforms, ensuring the AC31 architecture integrates cleanly into heterogeneous plant networks.

The ABB 07KT97 CPU is deployed across a broad spectrum of industrial sectors where the AC31 platform's reliability, modularity, and communication flexibility are valued. In power generation and distribution facilities, the 07KT97 manages turbine auxiliary systems, transformer protection interlocks, and switchgear sequencing — applications where deterministic scan cycles and robust fault diagnostics are non-negotiable. In water and wastewater treatment plants, the CPU coordinates pump station control, chemical dosing sequences, and telemetry reporting to remote SCADA systems, often operating in distributed architectures spanning multiple physical sites connected via PROFIBUS or serial links.

In petrochemical and refinery environments, the 07KT97 supports process unit control, compressor management, and safety interlock logic within SIL-assessed control architectures. Mining and minerals processing operations rely on the AC31 platform for conveyor control, crusher sequencing, and ore-handling automation, where the CPU's rugged operating temperature range and vibration tolerance support reliable operation in harsh physical environments. Packaging and discrete manufacturing lines use the 07KT97 for machine sequencing, reject handling, and production counting — leveraging the CPU's fast scan cycle and I/O response time to maintain line throughput. In marine and offshore applications, the AC31 platform's compact rack format and wide operating temperature range make the 07KT97 suitable for vessel automation, ballast control, and engine room monitoring systems.

Q1: Is the ABB 07KT97 a direct replacement for other AC31 CPU modules in an existing rack installation? Yes. The 07KT97 is designed for direct backplane compatibility within the AC31 rack system. It preserves existing I/O module slot assignments and communication configurations, making it a drop-in replacement for aging or failed CPU modules without requiring rack rewiring or I/O reconfiguration. NANKMOS recommends verifying firmware version compatibility with your existing application program before installation and performing a cold-start initialization sequence to confirm memory integrity after module swap.

Q2: What communication protocols does the 07KT97 support for SCADA and HMI integration? The 07KT97 supports PROFIBUS-DP (master and slave modes) for fieldbus-level device integration, CS31 system bus for distributed I/O expansion, and RS-232/RS-485 serial interfaces for SCADA historian and HMI connectivity using Modbus RTU or proprietary ABB protocols. For Ethernet-based SCADA integration, a PROFIBUS-to-Ethernet gateway module can be added to the architecture without modifying the CPU configuration, preserving existing program logic while extending network reach.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for 07KT97 availability? NANKMOS provides a 12-Month Warranty on all 07KT97 units covering manufacturing defects, component failures, and functional non-conformance identified under normal operating conditions. Each unit undergoes pre-shipment functional testing including CPU boot verification, memory read/write integrity, and communication port handshake testing before dispatch. Stock availability is maintained for rapid fulfillment, with standard lead times of 3–7 business days for international shipments. For urgent replacement requirements, expedited shipping options are available — contact [email protected] or +86 18359268345 for availability confirmation.
