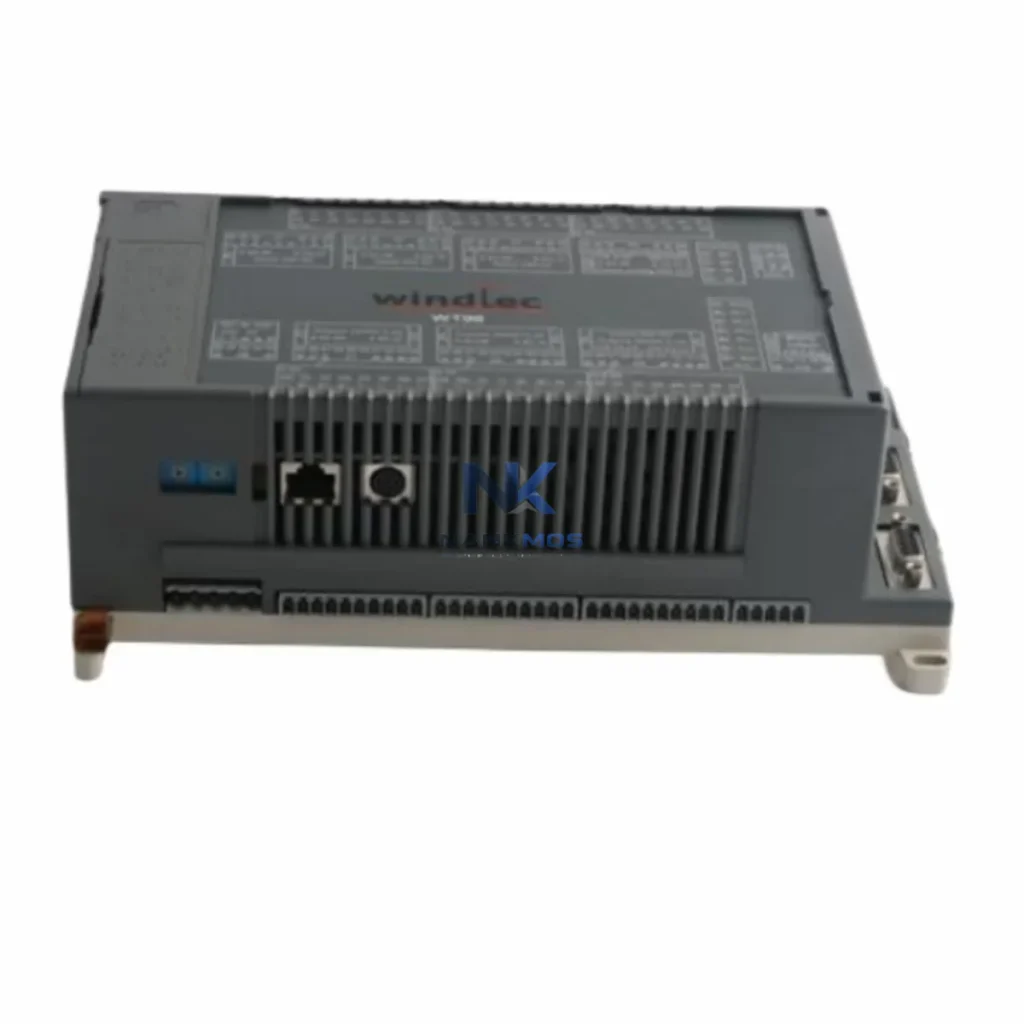

ABB 07KT98 WT98 GJR5253100R0270 Communication Gateway

Product Details

07KT98 WT98 GJR5253100R0270 Product Description

The ABB 07KT98 WT98 (GJR5253100R0270) is a high-performance Ethernet Communication Gateway engineered for the AC500 PLC platform, purpose-built to bridge field-level devices and upper-layer control systems across modern smart factory environments. As industrial sites demand tighter integration between sensors, controllers, and enterprise data systems, this gateway delivers the protocol conversion, network stability, and real-time data throughput required to eliminate communication bottlenecks and data silos on the plant floor.

Designed and manufactured in Germany to ABB's stringent engineering standards, the 07KT98 WT98 supports seamless Ethernet-based connectivity within the AC500 ecosystem, enabling deterministic data exchange between PLCs, remote I/O modules, HMI panels, SCADA platforms, and edge computing nodes. Whether deployed in discrete manufacturing, process automation, or utility infrastructure, this gateway provides the backbone for transparent, scalable, and diagnostics-ready industrial networks.

In a fully connected smart factory, the ABB 07KT98 WT98 gateway sits at the intersection of field instrumentation and supervisory control — orchestrating data flow from signal acquisition through to enterprise-level visualization. The data chain begins at the sensor and actuator layer, where field devices such as pressure transmitters, flow meters, and proximity switches feed raw process values into the AC500 I/O subsystem via TB5xx bus terminals and distributed remote I/O racks.

These signals are aggregated by AC500 PM5xx series CPU modules, which execute the control logic and pass structured process data to the 07KT98 WT98 Ethernet gateway. The gateway then encapsulates this data into Ethernet frames — using Modbus TCP or native ABB communication protocols — and transmits it upstream to SCADA servers, historian databases, and MES platforms. This architecture ensures that every field event, from a conveyor fault to a temperature excursion, is captured, timestamped, and made available for real-time monitoring and historical trending.

For HMI integration, the gateway feeds live process variables directly to ABB CP600 series operator panels, enabling plant operators to visualize production KPIs, acknowledge alarms, and issue setpoint changes without leaving the control room. In parallel, edge computing nodes — such as ABB-compatible industrial PCs or third-party edge gateways — can subscribe to the same Ethernet data stream to run local analytics, predictive maintenance algorithms, and OEE calculations without burdening the PLC CPU.

The 07KT98 WT98 also supports integration with variable frequency drives (VFDs) and soft starters connected via Ethernet-capable drive communication modules, enabling closed-loop speed and torque feedback to be incorporated into the SCADA data model. Industrial Ethernet switches — managed Layer 2 or Layer 3 devices — provide the network infrastructure to segment traffic, prioritize control packets, and maintain sub-millisecond latency across the automation backbone. When paired with AC500 redundancy modules and ring topology switches, the gateway supports fault-tolerant network designs that meet the uptime requirements of continuous process industries.

For remote diagnostics, the gateway's Ethernet port enables secure remote access to AC500 PLC diagnostics via ABB Automation Builder engineering software, allowing maintenance engineers to interrogate controller status, download updated programs, and review fault logs without physical site visits — a critical capability for geographically distributed assets and multi-site manufacturing groups.

Many industrial sites operate with a patchwork of legacy fieldbus systems — PROFIBUS DP, Modbus RTU, DeviceNet — alongside newer Ethernet-based architectures. This heterogeneity creates protocol islands where data cannot flow freely between subsystems, resulting in blind spots in SCADA dashboards, delayed alarm responses, and manual data entry between systems. The ABB 07KT98 WT98 addresses this challenge by acting as a protocol bridge within the AC500 platform, normalizing data from diverse field devices into a unified Ethernet data stream that SCADA and MES systems can consume directly.

Production line transparency is another persistent challenge. Without reliable real-time data from every node in the automation network, production managers cannot accurately track OEE, identify bottlenecks, or respond to quality deviations in time. By ensuring continuous, low-latency data delivery from the AC500 controller to upper-layer systems, the 07KT98 WT98 enables the kind of granular, real-time visibility that underpins lean manufacturing and continuous improvement programs.

Alarm management and traceability are also significantly improved. When every field event is captured and timestamped at the gateway level, alarm historians can reconstruct the exact sequence of events leading to a process upset — enabling root cause analysis, regulatory compliance reporting, and maintenance planning based on actual failure data rather than operator recollection.

System scalability is built into the AC500 architecture. As production capacity grows or new process lines are added, additional PM5xx CPUs, TB5xx I/O modules, and communication gateways can be integrated into the existing Ethernet backbone without redesigning the network. The 07KT98 WT98 supports this modular expansion model, ensuring that the communication infrastructure scales in step with the physical plant.

Q1: What communication protocols does the ABB 07KT98 WT98 GJR5253100R0270 support?The 07KT98 WT98 is an Ethernet Communication Gateway for the AC500 PLC platform, supporting Ethernet TCP/IP-based communication including Modbus TCP and ABB's native AC500 Ethernet protocols. It enables real-time data exchange between AC500 CPUs, remote I/O, HMI panels, and SCADA systems over standard industrial Ethernet infrastructure.

Q2: Is the 07KT98 WT98 compatible with third-party SCADA and HMI systems?Yes. Because the gateway communicates over standard Ethernet using open protocols such as Modbus TCP, it is compatible with a wide range of SCADA platforms (including Wonderware, Ignition, and WinCC) and HMI systems that support Ethernet-based driver connectivity. ABB CP600 HMI panels offer native integration within the AC500 ecosystem.

Q3: How does the gateway support remote diagnostics and predictive maintenance?The 07KT98 WT98's Ethernet interface allows remote access to AC500 controller diagnostics via ABB Automation Builder. Engineers can monitor controller health, review fault logs, update firmware, and download revised control programs remotely — reducing unplanned downtime and eliminating the need for on-site visits for routine diagnostic tasks.

Q4: What warranty and quality assurance does NANKMOS provide for this gateway?Every ABB 07KT98 WT98 GJR5253100R0270 unit supplied by NANKMOS is covered by a 12-month warranty. Units are sourced from verified supply channels, functionally tested prior to shipment, and shipped from in-stock inventory to support urgent project timelines. Contact [email protected] for availability, lead time, and volume pricing.
