ABB 07NG63R1 GJV3074313R1 Power Supply Module

Product Details

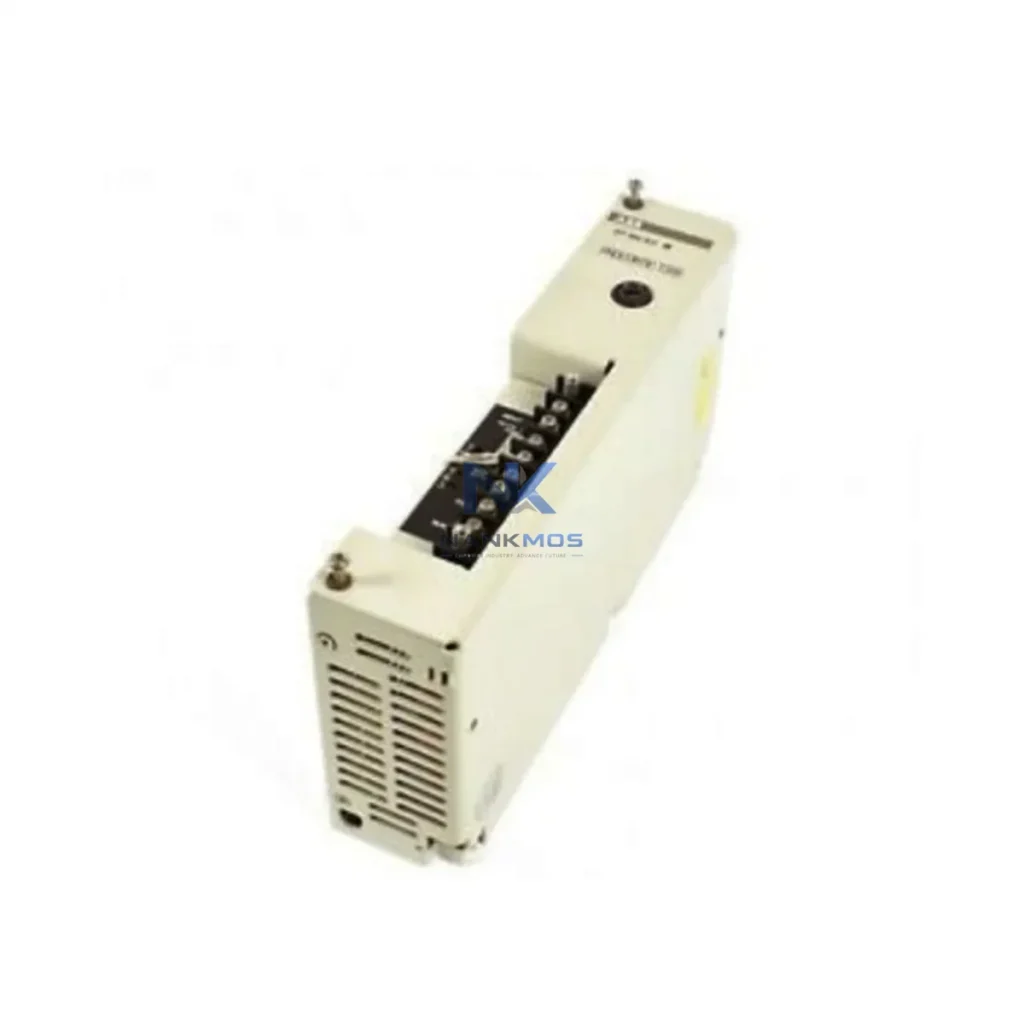

07NG63R1 GJV3074313R1 Product Description

The ABB 07NG63R1 (catalog reference GJV3074313R1) is a dedicated power supply module engineered for the ABB Advant Controller and MOD 300 distributed control system platform. Within a fully integrated automation architecture, the power supply layer is not a peripheral component — it is the electrical foundation upon which every control, I/O, communication, and HMI layer depends. The 07NG63R1 is designed to deliver stable, regulated DC power to the Advant backplane, ensuring that CPU modules, I/O sub-modules, and communication interfaces operate within their specified voltage and current envelopes at all times. Its role in the control hierarchy directly influences system uptime, signal integrity, and the long-term reliability of the entire process automation platform.

In MOD 300 and Advant OCS architectures, the power supply module occupies a critical position in the rack assembly. It interfaces directly with the backplane bus, distributing conditioned power to processor boards such as the PM511 and PM510 CPU modules, as well as to I/O boards including the AI810, AO810, DI810, and DO810 series. The 07NG63R1 supports the electrical demands of these modules under full I/O load, maintaining output stability even during transient events such as inrush current from newly inserted modules or load steps caused by field device switching. This makes it an essential component for engineers designing high-availability control cabinets in continuous process industries.

The 07NG63R1 power supply module achieves its full value when evaluated within the context of the complete Advant and MOD 300 automation platform. In a typical Advant OCS control cabinet, the power supply module feeds the backplane shared by the PM511 or PM510 controller CPU, which executes the real-time control logic for the process loop. Alongside the CPU, the rack typically hosts AI810 analog input modules for 4–20 mA process variable acquisition, AO810 analog output modules for control signal transmission to final control elements, and DI810/DO810 digital I/O modules for discrete status and command signals.

Communication integrity across the plant network is maintained through the MB300 MasterBus 300 communication interface, which connects the Advant controller to operator stations and peer controllers. The CI522A or CI532 communication interface modules installed in the same rack rely on the stable power rail provided by the 07NG63R1 to sustain uninterrupted data exchange across the control network. In redundant power configurations, a second power supply module can be installed in parallel to provide N+1 redundancy, eliminating the power supply as a single point of failure in critical process applications.

At the HMI layer, ABB Operate IT or legacy MOD 300 operator consoles connect to the controller via the MasterBus 300 network, with the controller's communication performance directly dependent on the quality of the power supply rail. Field termination assemblies and S800 I/O modules in remote I/O drops are powered through their own supply chains, but the central rack power supply remains the reference point for system-wide electrical stability. Signal isolators and surge protection devices installed at the cabinet entry points further protect the power supply from field-induced transients, extending the operational life of the 07NG63R1 in harsh industrial environments.

The ABB 07NG63R1 power supply module is deployed across a broad range of process industries where the Advant and MOD 300 platforms have established long operational histories. In oil and gas processing facilities, the module sustains the power requirements of Advant controllers managing separator control, compressor sequencing, and emergency shutdown logic. The stable DC output ensures that safety-critical I/O modules maintain signal integrity during process upsets, supporting reliable trip function execution.

In power generation and utility applications, the 07NG63R1 supports Advant controllers used in boiler management, turbine control, and grid synchronization systems. The module's wide AC input range accommodates the variable power quality conditions common in utility substations and generating stations, where voltage sags and harmonic distortion are routine challenges. Chemical and petrochemical plants rely on the module to power Advant controllers managing reactor temperature loops, distillation column control, and batch sequencing, where continuous power availability is directly linked to product quality and process safety.

Water and wastewater treatment facilities use the Advant platform for pump station control, filtration process management, and SCADA integration, with the 07NG63R1 providing the foundational power layer for these distributed control nodes. In mining and minerals processing, the module supports Advant controllers in conveyor control, crusher management, and flotation circuit automation, where the rugged operating environment demands reliable power supply performance over extended maintenance intervals. Pulp and paper mills, steel plants, and marine automation systems similarly depend on the 07NG63R1 to maintain Advant controller availability across multi-year operational cycles.

Q1: Is the ABB 07NG63R1 compatible with both Advant OCS and MOD 300 rack configurations? Yes. The 07NG63R1 (GJV3074313R1) is designed for the ABB Advant Controller family, which encompasses both the Advant OCS and MOD 300 distributed control system variants. It is mechanically and electrically compatible with the standard Advant rack backplane, supporting the full range of CPU, I/O, and communication modules used in these platforms. Engineers integrating the module into an existing MOD 300 installation should verify rack slot assignment and backplane connector compatibility with the site-specific rack configuration drawing.

Q2: Can the 07NG63R1 be used in a redundant power supply configuration, and what are the installation requirements? The Advant platform supports redundant power supply configurations in racks equipped with dual power supply slots. When two 07NG63R1 modules are installed in a redundant pair, the backplane load-sharing circuitry distributes the output current between both modules, and the failure of one module does not interrupt power to the rack. Installation requires that both modules are connected to independent AC feed circuits to achieve true power path redundancy. Commissioning engineers should verify output voltage balance between the two modules using a calibrated DC voltmeter before placing the rack in service.

Q3: What is the warranty coverage and supply chain support for the 07NG63R1, and how is long-term maintenance managed? All 07NG63R1 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify output voltage regulation, protection circuit operation, and backplane connector integrity. For long-term maintenance planning, NANKMOS maintains inventory of the 07NG63R1 and related Advant platform components to support scheduled preventive maintenance, emergency replacement, and system expansion projects. Customers requiring multi-unit procurement for spare parts programs or system upgrades are encouraged to contact the NANKMOS technical team for availability confirmation and lead time scheduling.
