0YPP110A 3ASD573001A1 YPK112A 3ASD573001A13 Product Description

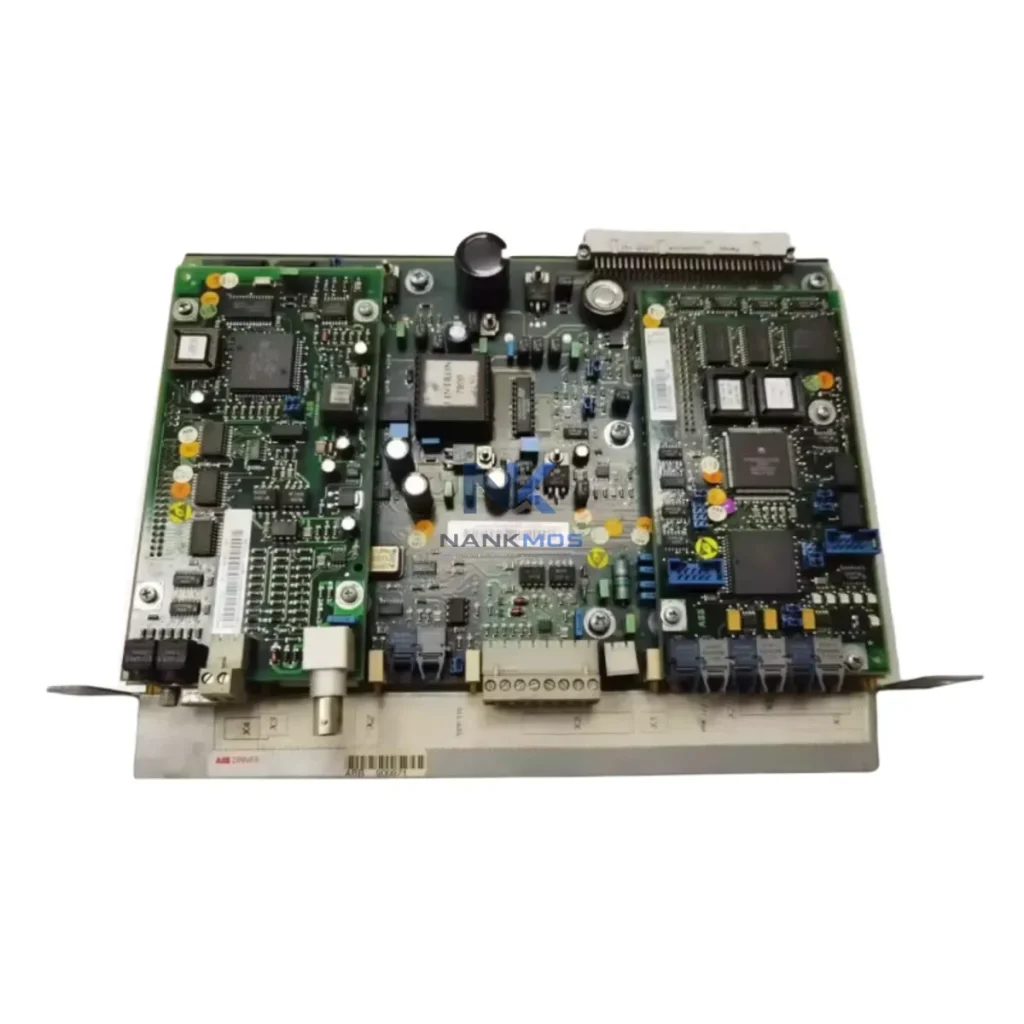

The ABB 0YPP110A (3ASD573001A1 / YPK112A / 3ASD573001A13) is a factory-engineered control board designed for the ABB DCS800 series DC drive platform. As a core component within the DCS800 control architecture, this board governs the drive's closed-loop regulation, firing pulse generation, field excitation sequencing, and diagnostic communication — functions that are inseparable from the broader automation system in which the drive operates. Whether deployed in a standalone motor drive cabinet or integrated into a multi-drive DCS800 line-up with shared DC bus, the 0YPP110A delivers the signal integrity and processing consistency that industrial control engineers depend on for long-term, uninterrupted operation.

In modern industrial control architecture, no component functions in isolation. The DCS800 drive — and by extension the 0YPP110A control board — sits at the intersection of the control layer, power conversion layer, and field communication layer. Its role is to translate high-level process commands from the PLC or DCS into precise firing angle control for the thyristor bridge, while simultaneously feeding real-time status, fault codes, and diagnostic data back upstream. This bidirectional signal flow is what makes the 0YPP110A a system-critical module rather than a simple replacement part.

The 0YPP110A control board achieves its full value only when understood within the complete DCS800 automation platform. In a typical DC drive system, the DCS800 power unit — comprising the thyristor bridge, field supply section, and AC input fusing — provides the electrical backbone, while the 0YPP110A serves as the intelligence layer that governs every aspect of motor control. Engineers integrating this board into a new or replacement installation should consider the following system-level components to ensure full architectural coherence:

The RDCO-02 DDCS Communication Adapter connects the DCS800 to ABB's Drive-to-Drive Communication System, enabling high-speed peer-to-peer data exchange between multiple DCS800 drives in a coordinated multi-motor line. When the 0YPP110A is paired with the RDCO-02, the control board gains access to real-time torque reference sharing and master-follower speed synchronization — critical for winder, unwinder, and draw-roll applications in paper, metal, and textile industries.

For fieldbus integration, the RPBA-01 PROFIBUS-DP Adapter or RMBA-01 Modbus Adapter slots into the DCS800 option slot and interfaces directly with the 0YPP110A's parameter and control word registers. This allows a Siemens S7-300/400 PLC, ABB AC500, or Yokogawa CENTUM VP DCS to issue speed references, read actual values, and monitor fault status over a standardized fieldbus — eliminating the need for hardwired analog signal chains and reducing cabinet wiring complexity significantly.

At the I/O layer, the DCS800's onboard analog and digital I/O — managed through the 0YPP110A — can be extended using the RAIO-01 Analog I/O Extension Module, which adds differential analog inputs for encoder feedback, tachometer signals, or process variable references. In high-precision tension control or position-regulated winding applications, this extension is essential for maintaining sub-1% speed regulation accuracy across the full torque range.

Power supply integrity is a foundational requirement for control board longevity. The DCS800's internal 24 VDC SMPS section feeds the 0YPP110A directly, but in installations where supply quality is marginal or where the drive cabinet shares a bus with high-inrush loads, an external ABB CP-E 24/5.0 DIN-rail power supply or equivalent industrial SMPS should be considered as a supplementary logic supply buffer. This prevents control board brownout events during motor starting transients — a common root cause of unexplained control board failures in older DC drive installations.

For HMI integration, the ABB DCS800 Panel (ACS-CP-C or ACS-CP-D) connects to the control board's panel bus port, providing local parameter access, fault history review, and drive commissioning without requiring a laptop or fieldbus connection. In remote or unmanned pump stations, compressor rooms, or mine hoist installations, this local panel interface is a critical maintenance tool that reduces mean time to repair (MTTR) significantly.

In redundant drive architectures — common in critical process industries such as petrochemical, power generation, and water treatment — a standby DCS800 drive with a pre-configured 0YPP110A control board is maintained in hot-standby or cold-standby mode. The DCS800 Bypass Contactor Assembly and associated interlock logic allow seamless switchover from the duty drive to the standby unit, with the 0YPP110A in the standby drive pre-loaded with identical parameter sets to eliminate re-commissioning delays during emergency changeover.

Terminal modules such as the ABB NTAI05 or NKTU01 signal terminal units are commonly used in marshalling cabinets to interface the DCS800's I/O signals with the plant DCS or safety system. Proper signal segregation between the 0YPP110A's analog reference inputs and the plant's 4–20 mA process loops is essential to prevent ground loop interference — a detail that is frequently overlooked during initial commissioning but becomes a persistent source of speed instability in long-term operation.

Steel and Metal Processing: In rolling mill and wire drawing applications, the DCS800 with 0YPP110A control board provides the precise torque regulation required for tension control between mill stands. The board's fast current loop response — typically less than 5 ms — ensures that inter-stand tension variations are corrected before they propagate downstream, preventing strip breaks and surface defects. Multi-drive coordination via DDCS allows the 0YPP110A in each stand drive to share torque reference data in real time, enabling true cascade tension control across a 6- to 12-stand continuous mill.

Paper and Pulp Industry: Winder and rewinder drives in paper machines demand exceptional speed regulation stability across a wide inertia range as roll diameter changes from core to full reel. The 0YPP110A's adaptive flux control and field weakening management allow the DCS800 to maintain constant surface speed throughout the winding cycle, while the DDCS communication link synchronizes the winder drive with the parent machine drive — ensuring zero-tension breaks during reel changes.

Mining and Hoisting: Mine hoist applications impose some of the most demanding requirements on DC drive control boards. The 0YPP110A must manage regenerative braking energy during descent, maintain precise speed control during creep approach to shaft stations, and execute controlled emergency stops within defined deceleration ramps. The board's dual-channel encoder input and redundant speed feedback processing make it suitable for SIL 2-rated hoist control systems when combined with appropriate safety relay modules and overspeed governors.

Water and Wastewater Treatment: Large DC-driven pump and blower applications in water treatment plants benefit from the DCS800's soft-start and energy optimization capabilities, managed through the 0YPP110A's flux optimization algorithm. By reducing field current during light-load operation, the board extends motor insulation life and reduces energy consumption — a measurable operational benefit in 24/7 continuous-duty pump applications.

Marine and Offshore: Thruster drives, anchor windlass drives, and deck machinery on offshore vessels and naval ships frequently use DC drive technology for its robustness in variable-frequency generator environments. The 0YPP110A's ability to operate across a wide AC supply frequency range (45–65 Hz) makes the DCS800 suitable for shipboard applications where generator frequency varies with engine load — a condition that would cause instability in less robust control architectures.

Q1: Is the ABB 0YPP110A (3ASD573001A1) directly interchangeable with the YPK112A (3ASD573001A13), and will it retain existing drive parameters after replacement?

Yes. The 0YPP110A and YPK112A are functionally equivalent control boards within the DCS800 platform — the differing part numbers reflect ABB's internal revision and regional ordering codes rather than hardware differences. After physical replacement, the drive's parameter set must be reloaded from a backup file using the ABB DCS800 commissioning tool (DriveWindow Light or DriveWindow 2) or re-entered manually via the control panel. Parameters are stored in the control board's non-volatile memory, so they are lost when the board is replaced. We recommend maintaining a current parameter backup file as part of standard maintenance practice. Our 12-Month Warranty covers the replacement board against manufacturing defects and functional failure under normal operating conditions.

Q2: What fieldbus adapters are compatible with the 0YPP110A, and how does fieldbus integration affect the control architecture?

The 0YPP110A supports all standard DCS800 option slot adapters, including RPBA-01 (PROFIBUS-DP), RMBA-01 (Modbus RTU), RDNA-01 (DeviceNet), and RCAN-01 (CANopen). Fieldbus integration routes speed reference, torque reference, and control word signals through the adapter directly to the 0YPP110A's parameter interface, replacing or supplementing hardwired analog and digital I/O. In PROFIBUS-DP configurations, the drive appears as a standard DP slave with a configurable GSD file, allowing integration into Siemens TIA Portal, Yokogawa CENTUM, or ABB 800xA DCS environments without custom programming. The 0YPP110A processes fieldbus commands at the drive's internal task cycle rate (typically 4–8 ms), ensuring deterministic response times compatible with most process control loop requirements.

Q3: What is the recommended procedure for long-term spare parts management of the 0YPP110A, and what does the 12-Month Warranty cover?

For critical DC drive installations, we recommend maintaining at least one spare 0YPP110A control board per site, stored in anti-static packaging in a climate-controlled environment (10–40°C, <95% RH non-condensing). Each board supplied by NANKMOS undergoes pre-shipment functional testing on a live DCS800 test rig, verifying firing pulse output, analog I/O calibration, communication interface integrity, and parameter memory retention before dispatch. Our 12-Month Warranty covers confirmed manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are supported by our technical team with failure analysis documentation and expedited replacement dispatch to minimize plant downtime.
