IRB12003HAC049653-001 3HAC061403-001 IRB12003HAC044514-001 IRB12003HAC061403-001 Product Description

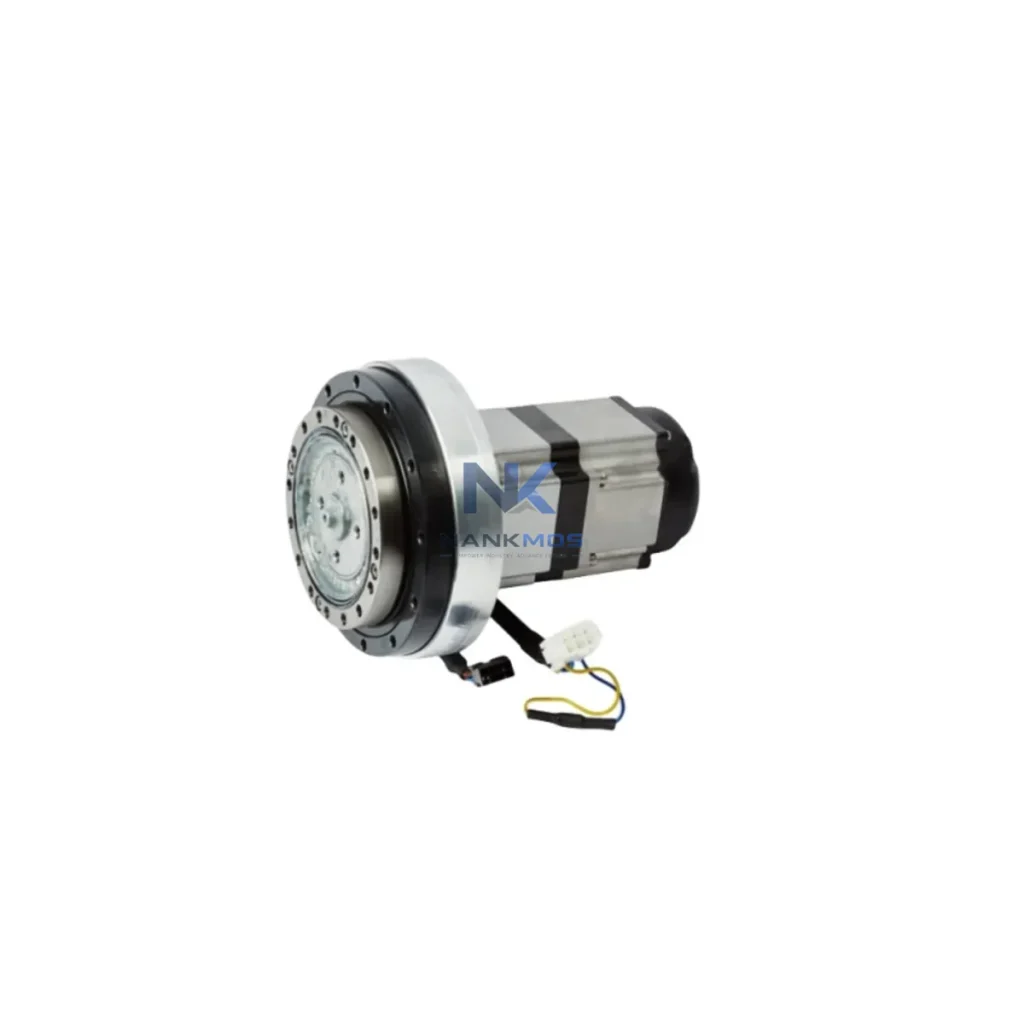

The ABB 3HAC049653-001 is a precision-engineered Drive Train Unit designed for the IRB 1200 industrial robot series, serving as a critical mechanical transmission component within ABB's modular robot control architecture. In multi-axis robotic systems, the drive train unit bridges the gap between the servo drive electronics and the physical joint mechanism, ensuring accurate torque transmission, positional repeatability, and long-term mechanical integrity across demanding production environments. Whether deployed in semiconductor assembly, automotive sub-assembly, electronics manufacturing, or precision packaging lines, the 3HAC049653-001 delivers the mechanical consistency that modern control architectures demand.

Within ABB's layered automation platform, this drive train unit does not operate in isolation. It is an integral node in a tightly coupled system that spans the control layer, drive layer, mechanical execution layer, and diagnostic layer. Its performance directly influences the quality of motion profiles generated by the IRC5 controller, the accuracy of axis feedback loops managed by the DSQC series drive units, and the overall system throughput of the IRB 1200 robot cell. Understanding its role within this broader architecture is essential for engineers responsible for system commissioning, preventive maintenance scheduling, and long-term spare parts planning.

The 3HAC049653-001 Drive Train Unit achieves its full performance potential when integrated within a complete ABB robotic automation platform. At the control layer, the IRC5 Single Cabinet Controller or IRC5 Compact Controller generates the motion trajectories and axis commands that flow through the drive layer. The DSQC1018 and DSQC1000 drive units translate these digital commands into precise servo currents, which are then delivered to the axis motors. The 3HAC049653-001 receives this mechanical energy at the joint level, converting rotational motor output into the controlled, repeatable joint motion that defines the IRB 1200's positioning accuracy.

At the I/O and signal layer, the DSQC652 digital I/O module and DSQC651 analog I/O module manage process signals from end-effectors, vision systems, and safety interlocks, ensuring that the robot's motion commands are always synchronized with the broader production cell. The 3HAC061403-001 and 3HAC044514-001 — closely related mechanical components within the IRB 1200 spare parts ecosystem — are often replaced or inspected alongside the 3HAC049653-001 during scheduled maintenance windows, as they share the same mechanical interface standards and torque transmission architecture.

For communication and network integration, the IRC5 controller supports PROFINET, EtherNet/IP, and DeviceNet fieldbus protocols via the DSQC688 fieldbus adapter, enabling seamless integration with Siemens S7, Allen-Bradley ControlLogix, and Mitsubishi MELSEC PLC platforms in mixed-vendor automation environments. The FlexPendant (DSQC679) provides the HMI layer for on-site commissioning, axis jogging, and diagnostic readout, while the RobotStudio offline programming environment enables virtual commissioning and motion simulation before physical deployment.

At the power layer, the DSQC609 power supply unit ensures stable DC bus voltage across all drive channels, and the integrated SafeMove2 safety module provides speed monitoring, zone supervision, and safe stop functions that comply with ISO 10218-1 and IEC 62061 safety standards. This layered architecture — from controller to drive to mechanical joint — ensures that the 3HAC049653-001 operates within a fully validated, diagnostically transparent, and maintainable system environment.

Electronics & Semiconductor Manufacturing: In cleanroom-grade assembly lines, the IRB 1200 equipped with the 3HAC049653-001 performs high-precision pick-and-place, soldering, and inspection tasks where positional repeatability of ±0.01 mm is non-negotiable. The drive train unit's low backlash and high torsional stiffness are critical for maintaining process quality across multi-shift production schedules.

Automotive Sub-Assembly: In body-in-white and powertrain assembly cells, the IRB 1200 handles fastening, dispensing, and quality inspection tasks. The 3HAC049653-001 ensures consistent joint stiffness under cyclic loading, reducing axis drift and maintaining weld or adhesive placement accuracy over millions of production cycles.

Pharmaceutical & Food Packaging: In hygienic production environments, the IRB 1200's compact footprint and the drive train unit's sealed mechanical design support high-speed packaging, kitting, and labeling operations. The 12-Month Warranty and pre-shipment functional testing provide the supply chain assurance that regulated industries require.

Petrochemical & Process Control: In hazardous area applications where robot cells are integrated with DCS platforms such as Emerson DeltaV or Honeywell Experion, the IRC5 controller's fieldbus connectivity ensures that the IRB 1200 responds to process interlocks and safety shutdowns with deterministic timing. The mechanical reliability of the 3HAC049653-001 reduces unplanned downtime in environments where maintenance access is restricted.

Metal Fabrication & Welding: In arc welding and laser cutting cells, the drive train unit's thermal stability and resistance to vibration-induced wear ensure consistent torch positioning and seam tracking accuracy, even in high-duty-cycle operations running 20+ hours per day.

Q1: Is the 3HAC049653-001 compatible with both IRC5 Single Cabinet and IRC5 Compact controllers, and does it require any firmware configuration during replacement? Yes, the 3HAC049653-001 is mechanically and electrically compatible with all IRC5 controller variants paired with the IRB 1200 platform. After physical replacement, the IRC5 controller's axis calibration routine must be executed via the FlexPendant or RobotStudio to re-establish the fine calibration offset for the affected axis. No firmware update is required unless the RobotWare version is below 6.08; in that case, an update is recommended to ensure full SafeMove2 compatibility.

Q2: Can this drive train unit be installed in an IRB 1200 operating in a redundant or multi-robot cell configuration, and how does it affect system availability? The 3HAC049653-001 is fully compatible with multi-robot cell configurations managed by a single IRC5 controller with MultiMove functionality or by distributed IRC5 controllers networked via PROFINET or EtherNet/IP. In redundant cell designs where a backup robot is on standby, replacing the drive train unit on the primary robot does not affect the standby robot's readiness. Planned replacement during scheduled maintenance windows — supported by NANKMOS's in-stock availability and 12-Month Warranty — minimizes cell downtime to the calibration window only.

Q3: What is the recommended inspection and replacement interval for the 3HAC049653-001, and what does the 12-Month Warranty cover? ABB recommends mechanical inspection of drive train components at 20,000-hour intervals or as indicated by the IRC5 controller's predictive maintenance alerts, which monitor axis load torque trends and joint temperature via the DSQC series drive diagnostics. The 12-Month Warranty provided by NANKMOS covers manufacturing defects, premature mechanical failure, and functional non-conformance identified during the pre-shipment test. Warranty claims are processed with priority logistics support to minimize production impact. For high-duty-cycle applications, NANKMOS recommends maintaining one spare unit on-site to eliminate lead-time risk during unplanned replacement events.
