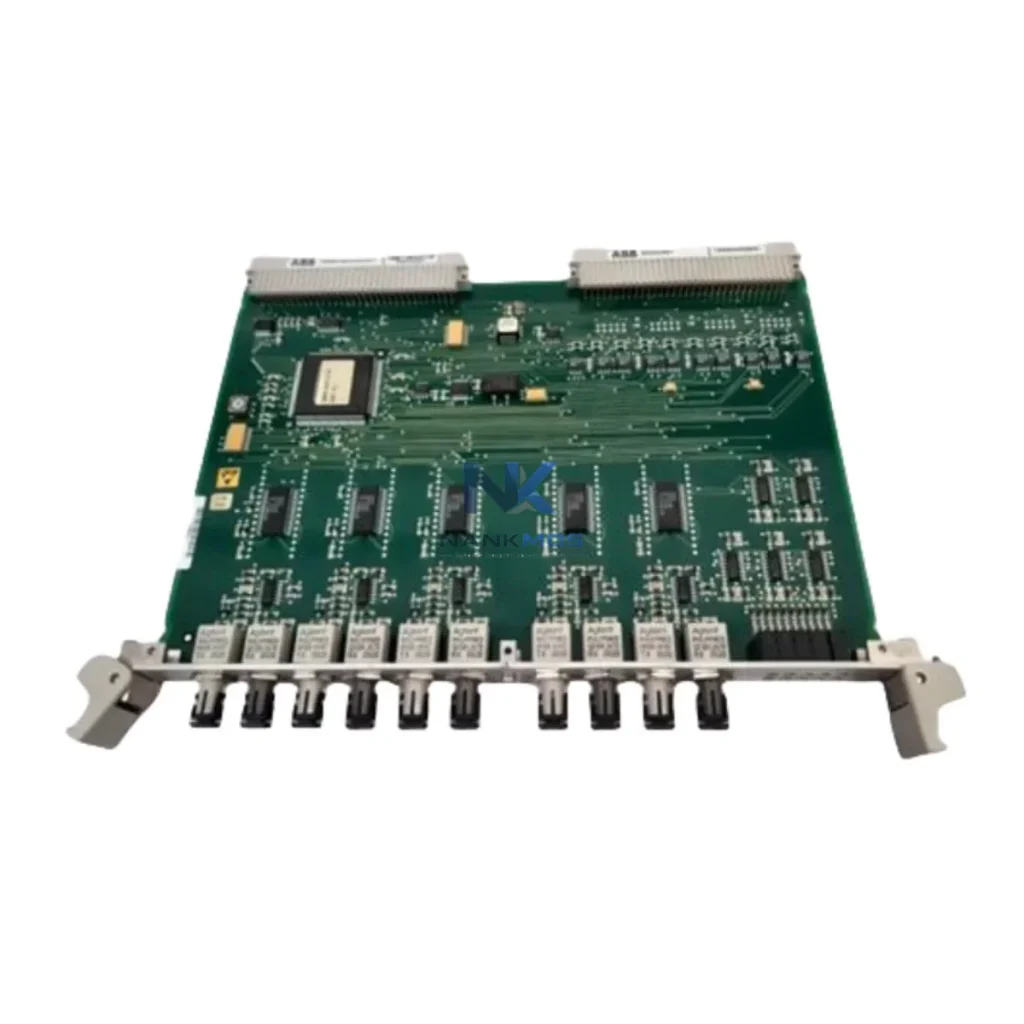

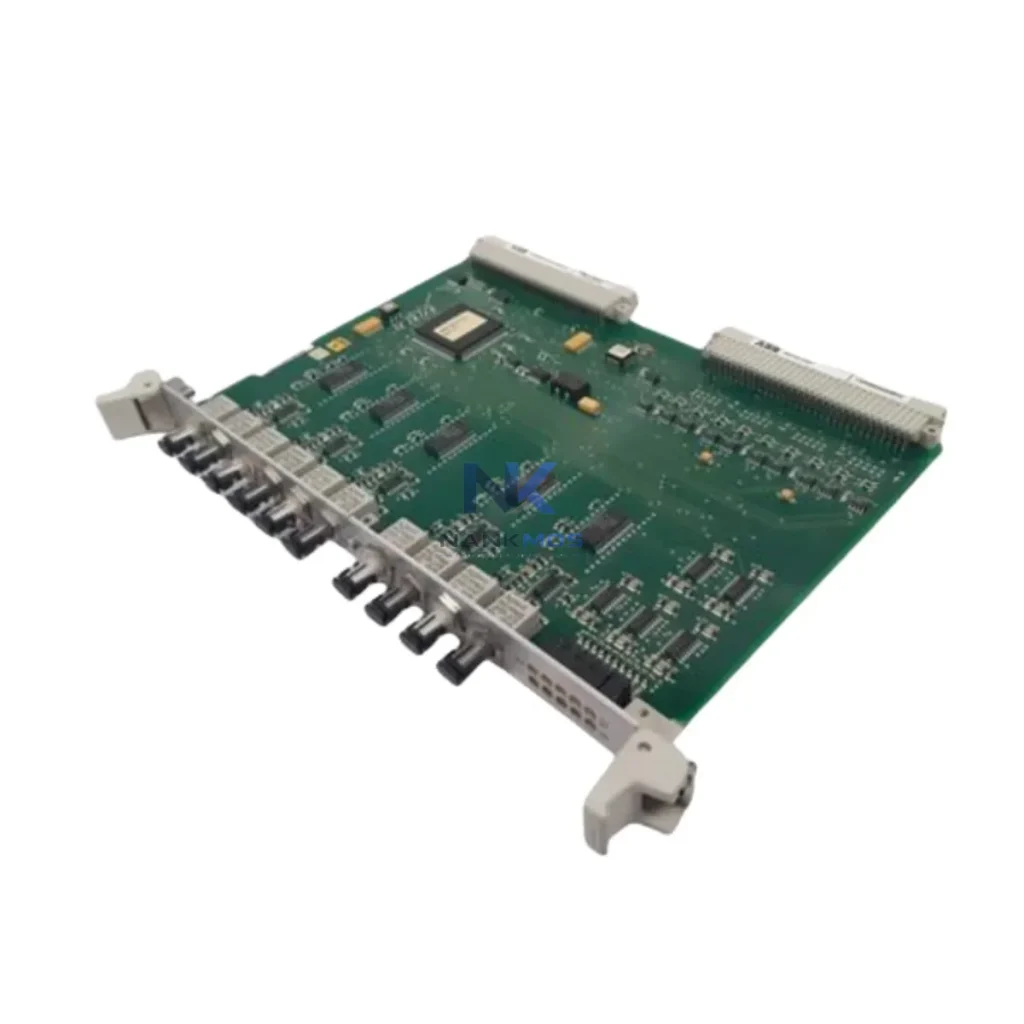

ABB 1HDF700003R5122 500CPU03 PLC Processor Module

Product Details

1HDF700003R5122 500CPU03 Product Description

The ABB 1HDF700003R5122 500CPU03 is a high-performance central processing unit engineered for the ABB AC500 programmable logic controller platform. Designed to serve as the computational core of layered industrial control architectures, this processor module delivers deterministic scan-cycle execution, robust memory management, and seamless contextual integration across multi-tier automation systems. Whether deployed in power generation substations, petrochemical process lines, water treatment facilities, or marine propulsion control cabinets, the 500CPU03 provides the processing backbone that unifies control, I/O, communications, and diagnostics into a coherent, scalable automation platform.

The 500CPU03 processor is not a standalone component — it is the orchestration hub of a fully integrated AC500 automation platform. In a typical control cabinet deployment, the processor mounts directly onto an ABB TB5600 or TB5650 terminal base, which provides the backplane interconnect for distributed I/O modules. Power is supplied by the ABB PM5630 or PM5650 power supply module, which delivers regulated 24 V DC with built-in diagnostics and load monitoring to ensure stable operation across the entire rack.

At the I/O layer, the 500CPU03 interfaces with ABB DA501 digital input modules, DA502 digital output modules, and AX501 analog input/output modules, enabling precise signal acquisition from field instruments including pressure transmitters, flow meters, temperature sensors, and valve positioners. For applications requiring high-speed counter inputs or pulse-width modulation outputs, the DC532 high-speed digital I/O module integrates seamlessly into the same terminal base architecture.

At the communications layer, the 500CPU03 supports PROFINET IO as a controller, enabling real-time cyclic data exchange with distributed I/O stations, variable-speed drives, and intelligent field devices across the plant network. Modbus TCP connectivity allows contextual integration with SCADA systems, historian servers, and OPC-UA gateways, bridging the AC500 platform into broader Industry 4.0 data architectures. For legacy serial networks, the built-in CS31 bus and RS-485 port maintain backward compatibility with existing field installations.

HMI integration is achieved through the ABB CP600 operator panel series, which connects to the 500CPU03 via Ethernet and provides real-time visualization of process variables, alarm management, and operator control functions. For remote monitoring and diagnostics, the ABB CM589-PNIO PROFINET communication module extends network reach to geographically distributed control nodes.

In redundancy-critical applications such as power generation or continuous process industries, the AC500 platform supports hot-standby CPU redundancy configurations, where a secondary 500CPU03 unit mirrors the primary processor state in real time. Switchover occurs within one scan cycle, ensuring uninterrupted process control during planned maintenance or unexpected hardware events. This redundancy architecture is further supported by redundant power supply modules and dual-ring Ethernet topologies using industrial managed switches compatible with the PROFINET MRP (Media Redundancy Protocol) standard.

Power Generation: In gas turbine and steam turbine control systems, the 500CPU03 manages turbine sequencing, load control, and protective relay coordination. Its deterministic scan cycle and PROFINET IO connectivity enable tight synchronization with generator excitation systems and grid protection relays, supporting both island-mode and grid-connected operation profiles.

Petrochemical & Oil and Gas: Deployed in compressor control panels and wellhead automation units, the 500CPU03 handles PID loop control for pressure regulation, flow metering, and emergency shutdown (ESD) logic. Integration with ABB AX501 analog modules and HART-capable field instruments ensures accurate process variable acquisition across hazardous area installations.

Water and Wastewater Treatment: In municipal water treatment plants, the 500CPU03 coordinates pump sequencing, chemical dosing control, and filtration cycle management. Modbus TCP connectivity links the AC500 platform to central SCADA systems for remote monitoring of distributed pump stations and reservoir level control.

Mining and Metallurgy: For conveyor drive control and ore processing automation, the 500CPU03 interfaces with ABB ACS880 variable-speed drives via PROFINET, enabling coordinated speed control, load balancing, and regenerative braking across multi-drive conveyor systems. Diagnostic data from each drive is aggregated at the CPU level for predictive maintenance analysis.

Marine Propulsion and Vessel Automation: In ship automation systems compliant with DNV and Lloyd's Register classification requirements, the 500CPU03 manages propulsion control, auxiliary machinery monitoring, and alarm management systems. Its wide operating temperature range and vibration-resistant design ensure reliable operation in marine environments.

Packaging and Discrete Manufacturing: On high-speed packaging lines, the 500CPU03 executes motion coordination logic, vision system integration, and reject handling routines. IEC 61131-3 structured text programming enables complex state machine logic for multi-axis synchronization with servo drives and robotic pick-and-place systems.

Q1: Is the ABB 1HDF700003R5122 500CPU03 compatible with existing AC500 V2 and V3 I/O modules and terminal bases? Yes. The 500CPU03 is designed for full backward and forward compatibility within the ABB AC500 ecosystem. It operates with TB5xx series terminal bases and is compatible with the full range of AC500 digital, analog, and specialty I/O modules. Firmware updates via the Automation Builder engineering tool ensure ongoing compatibility as the platform evolves. For mixed V2/V3 installations, verify terminal base revision codes against the ABB AC500 system compatibility matrix prior to commissioning.

Q2: How does the 500CPU03 support redundant control architectures, and what is the failover behavior? The 500CPU03 supports hot-standby redundancy when paired with a second identical CPU unit and a dedicated redundancy link module. In normal operation, the primary CPU executes the control program while continuously synchronizing process image data to the standby unit. Upon detection of a primary CPU fault — whether hardware failure, communication loss, or watchdog timeout — the standby unit assumes control within one program scan cycle. This seamless switchover preserves all process variable states, timer values, and counter data, ensuring zero-disruption operation for continuous process applications. Redundant power supply modules and dual Ethernet paths further eliminate single points of failure at the infrastructure level.

Q3: What are the long-term supply assurance and warranty terms for the ABB 1HDF700003R5122 500CPU03? All ABB 1HDF700003R5122 500CPU03 units supplied by NANKMOS are sourced from verified distribution channels and undergo pre-shipment functional testing to confirm processor initialization, communication port integrity, and memory module recognition. Each unit is covered by a 12-Month Warranty against manufacturing defects and operational failures under normal operating conditions. NANKMOS maintains in-stock inventory of the 500CPU03 and associated AC500 platform components to support rapid deployment, emergency replacement, and planned maintenance schedules. For volume procurement, long-term supply agreements, and technical pre-sales consultation, contact our engineering team directly.
