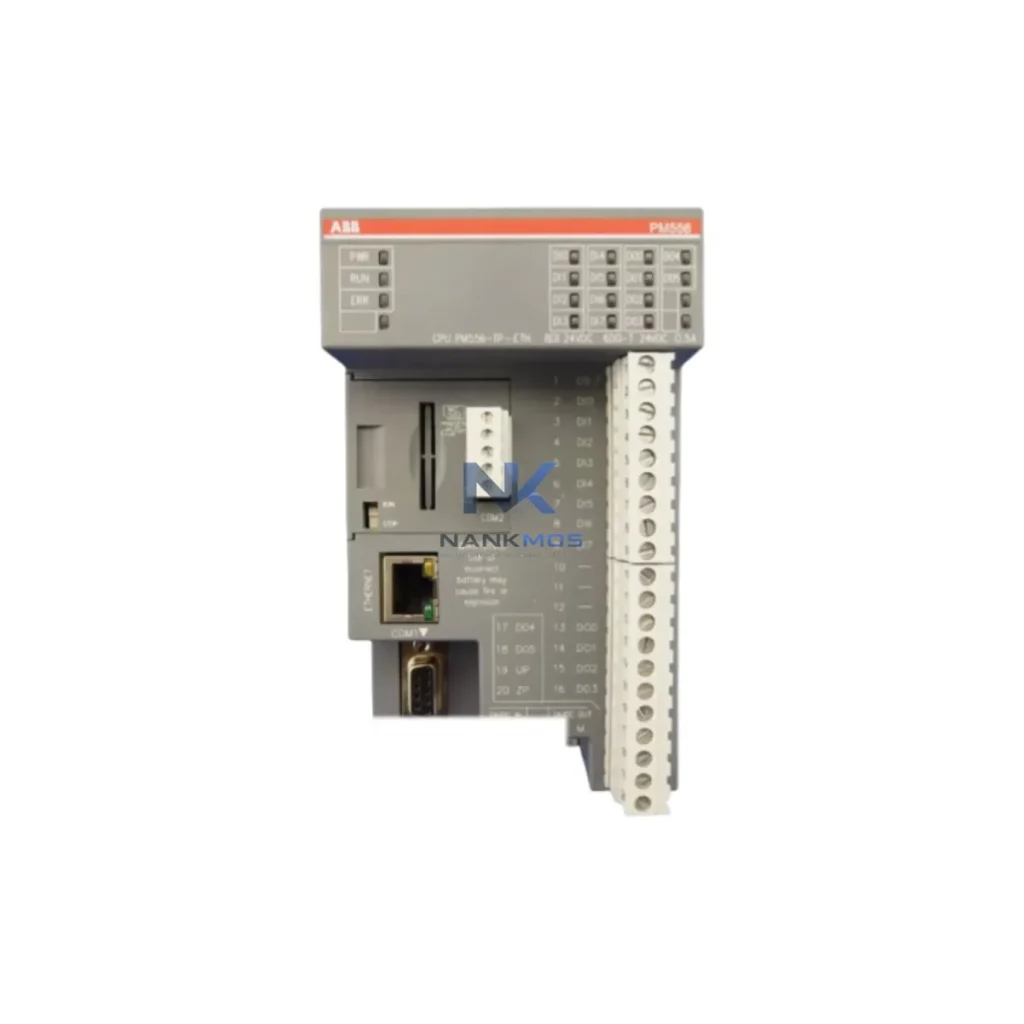

ABB 1SAP121200R0071 PM556-TP-ETH PLC CPU Module

Product Details

1SAP121200R0071 PM556-TP-ETH Product Description

The ABB 1SAP121200R0071 PM556-TP-ETH is a high-performance CPU module from the ABB AC500 series, engineered to deliver precise energy control and load management across demanding industrial production environments. Designed for smart manufacturing lines in power generation, petrochemical processing, water treatment, and discrete manufacturing, this PLC CPU integrates seamlessly into energy management architectures where reducing idle consumption, stabilizing production rhythm, and maximizing equipment utilization are operational priorities.

With its onboard Ethernet TCP/IP interface, the PM556-TP-ETH enables direct integration with SCADA systems, MES platforms, and OPC-UA data gateways, allowing real-time energy data to flow from field devices to supervisory layers without protocol conversion overhead. This connectivity eliminates communication latency that would otherwise delay load-shedding commands or frequency setpoint adjustments, directly contributing to measurable reductions in peak demand charges and thermal load on downstream equipment.

In a fully integrated energy-aware production cell, the ABB 1SAP121200R0071 PM556-TP-ETH acts as the central decision node coordinating multiple subsystems to minimize unnecessary energy draw. When paired with ABB ACS880 variable frequency drives, the CPU issues real-time speed reference commands based on actual load demand rather than fixed setpoints, eliminating the energy waste associated with constant-speed motor operation. The PM556-TP-ETH communicates with ABB ACS580 drives over Modbus TCP, enabling coordinated ramp-up and ramp-down sequences that reduce inrush current spikes and protect upstream transformer capacity.

On the I/O side, the CPU interfaces with ABB AC500 SM560 expansion modules to aggregate analog signals from current transformers, power transducers, and temperature sensors distributed across the production floor. These inputs feed the CPU's energy management logic blocks, which calculate real-time power factor, identify reactive load contributors, and trigger corrective actions — such as capacitor bank switching or drive derating — before thermal thresholds are breached.

The PM556-TP-ETH also connects to ABB CP600 HMI panels, providing operators with live energy dashboards that display kWh consumption per production batch, motor load trends, and alarm states for overcurrent or overtemperature conditions. This visibility enables shift supervisors to make informed decisions about production scheduling that align with energy tariff windows, reducing peak-hour consumption without sacrificing throughput.

For facilities running ABB System pro M compact circuit protection alongside the AC500 platform, the CPU can receive trip signals and integrate them into the fault management logic, automatically rerouting control to redundant circuits and logging the event for predictive maintenance analysis. Integration with ABB Ability Energy Manager or third-party SCADA platforms via OPC-UA ensures that all energy data captured at the field level is available for enterprise-wide reporting and ISO 50001 compliance documentation.

The 1SAP121200R0071 PM556-TP-ETH is purpose-built for production environments where energy efficiency is a measurable KPI rather than an afterthought. Its deterministic scan cycle — typically under one millisecond for energy control task classes — ensures that load management commands reach actuators, drives, and contactors within the timing windows required to prevent energy spikes during production transitions such as conveyor starts, press cycles, or injection mold clamping sequences.

By implementing demand-response logic directly in the PLC program, plant engineers can configure the PM556-TP-ETH to automatically shed non-critical loads — such as auxiliary ventilation fans, lighting circuits, or standby heating elements — when total facility demand approaches contracted capacity limits. This active load management strategy reduces demand charges on utility bills and extends the service life of switchgear and distribution transformers by reducing thermal cycling.

The CPU's support for structured data logging enables continuous recording of energy consumption per machine, per shift, and per product SKU. When this data is fed into a manufacturing execution system or energy management platform, it becomes the foundation for production scheduling optimization — aligning energy-intensive operations with off-peak tariff periods and identifying equipment that consumes disproportionate energy relative to its output contribution.

Predictive maintenance integration is another key energy optimization lever enabled by the PM556-TP-ETH. By monitoring motor current signatures, vibration sensor outputs from connected condition monitoring modules, and drive fault registers over Modbus TCP, the CPU can detect early-stage bearing wear, rotor imbalance, or insulation degradation — all of which cause motors to draw excess current and generate unnecessary heat. Early detection and scheduled maintenance prevent unplanned downtime, which is itself a major source of energy waste due to restart inrush currents and production catch-up overtime.

All units supplied by NANKMOS are pre-shipment tested against ABB factory acceptance criteria, verified for communication integrity on Ethernet and serial interfaces, and covered by a 12-month warranty. In-stock availability ensures minimal lead time for replacement or expansion projects, supporting continuous production without extended procurement delays.

Q1: What measurable energy savings can the ABB 1SAP121200R0071 PM556-TP-ETH deliver in a typical production line? Actual savings depend on baseline conditions, but facilities implementing demand-response logic and drive coordination through the PM556-TP-ETH typically report 10–20% reductions in peak demand charges and 5–15% reductions in total motor energy consumption. The CPU's ability to coordinate ABB ACS880 and ACS580 drives in real time eliminates constant-speed operation waste and reduces reactive power draw.

Q2: Is the PM556-TP-ETH compatible with existing SCADA systems and third-party HMI platforms? Yes. The onboard Ethernet interface supports Modbus TCP natively, and OPC-UA connectivity is achievable through ABB AC500 communication firmware or gateway modules. This makes the PM556-TP-ETH compatible with Siemens WinCC, Ignition SCADA, Wonderware, and other major supervisory platforms without requiring proprietary middleware.

Q3: Can this CPU replace an older ABB AC500 PM554 or PM564 module without full system redesign? The PM556-TP-ETH is designed within the ABB AC500 platform architecture, sharing the same backplane connector standard and IEC 61131-3 programming environment (Automation Builder). Migration from PM554 or PM564 typically requires program review and I/O mapping verification but does not require hardware redesign of the control cabinet or field wiring.

Q4: What does the 12-month warranty cover, and how does NANKMOS handle warranty claims? The 12-month warranty covers manufacturing defects, communication interface failures, and firmware-related malfunctions under normal operating conditions as specified in the ABB AC500 technical datasheet. NANKMOS handles warranty claims directly — contact [email protected] with the unit serial number and fault description. Replacement or repair is coordinated to minimize production downtime.
