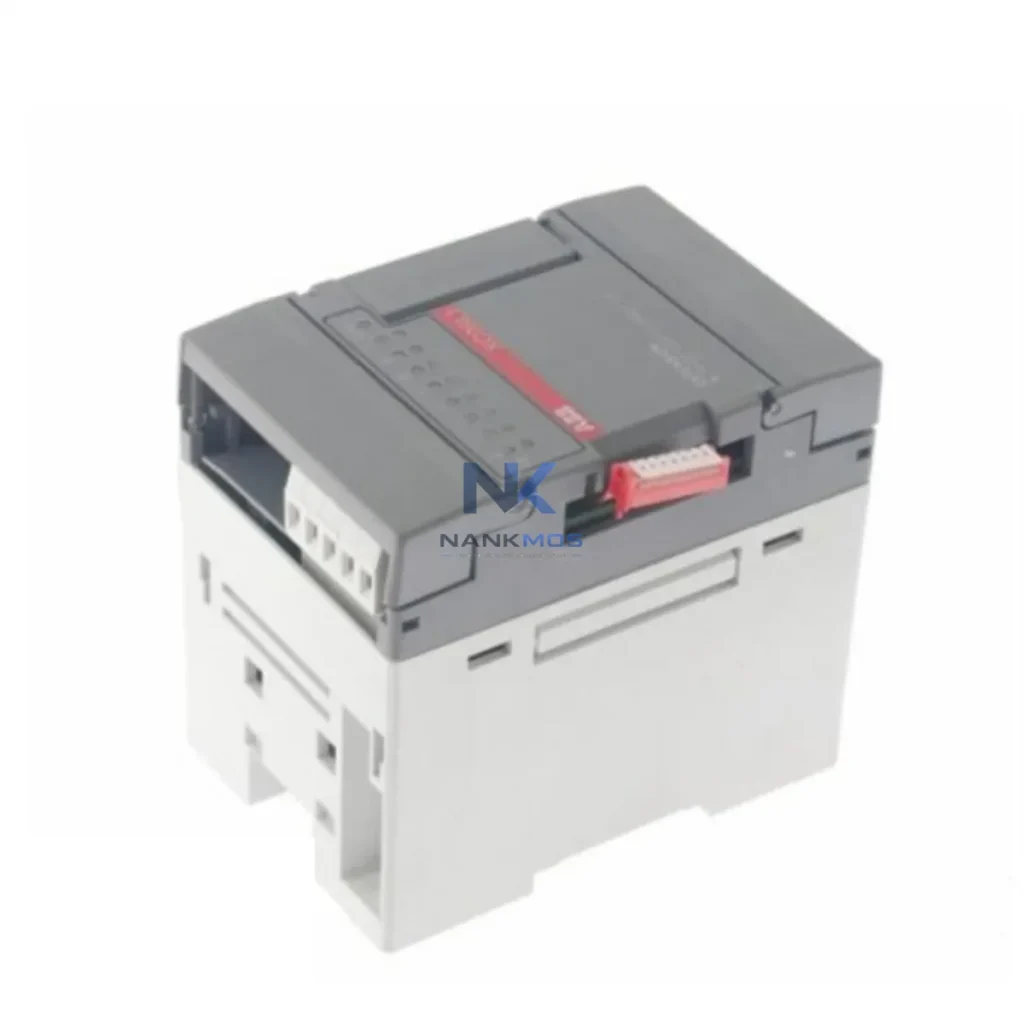

ABB 1SBP260102R1001 XC08L1 Industrial Digital I/O Module

Product Details

1SBP260102R1001 XC08L1 Product Description

The ABB 1SBP260102R1001 XC08L1 is a high-performance digital I/O expansion module engineered for the ABB AC500 PLC platform, delivering reliable 8-channel digital input and 8-channel digital output capability in demanding industrial environments. Designed to serve as a critical data link between field devices and upper-level control systems, the XC08L1 enables seamless signal acquisition, real-time process monitoring, and deterministic command execution across smart factory architectures. Whether deployed in discrete manufacturing, process automation, or infrastructure control, this module provides the connectivity backbone that modern industrial data pipelines depend on.

In a connected factory environment, the 1SBP260102R1001 XC08L1 sits at the intersection of physical field signals and digital control logic. Sensors, actuators, and field instruments feed their status directly into the module's 24 VDC digital inputs, where the AC500 CPU — such as the PM573 or PM591 — processes the data and issues output commands in real time. This tight integration between field layer and control layer eliminates latency bottlenecks that can compromise production quality or safety response times. The module's support for PROFIBUS DP and Modbus RTU protocols ensures it can communicate upstream with SCADA platforms, MES systems, and HMI terminals without requiring protocol conversion gateways, reducing system complexity and potential failure points.

The data flow architecture enabled by the XC08L1 extends well beyond simple on/off signaling. When paired with ABB's CP600 HMI series or third-party SCADA software via the AC500's communication interfaces, operators gain live visibility into machine states, alarm conditions, and cycle counts from any networked workstation. Remote diagnostic sessions become practical: maintenance engineers can interrogate I/O status, verify wiring integrity, and trace fault conditions without physical access to the panel. This capability is especially valuable in distributed plant layouts where travel time between control rooms and field equipment represents a significant operational cost.

For installations requiring expanded I/O density, the XC08L1 integrates naturally alongside other AC500 expansion modules such as the DC532 (32-channel digital I/O) and the AI523 (analog input module), allowing engineers to build modular control architectures that scale with production requirements. Communication modules like the CM572-DP PROFIBUS master or the CM589-PNIO PROFINET interface can be added to the same AC500 rack, enabling the XC08L1's field data to flow into Ethernet-based industrial networks and reach edge gateways or cloud analytics platforms. This layered connectivity model — from sensor to PLC to network to cloud — is the foundation of IIoT-ready smart factory design.

In variable-speed drive applications, the XC08L1 provides the discrete control signals that govern ABB ACS880 or ACS580 drive start/stop, fault reset, and speed reference switching. The module's 24 VDC output channels deliver the switching commands that drive control terminals expect, while the input channels capture drive status feedback — run confirmation, fault indication, and ready signals — closing the control loop within the AC500 program. This bidirectional signal exchange ensures that the SCADA layer always reflects the true operational state of the drive system, supporting accurate energy monitoring and predictive maintenance workflows.

Industrial Ethernet switches such as the Hirschmann RS20 or Phoenix Contact FL SWITCH series can be used to segment the network traffic between the AC500 controller, remote I/O stations, and the plant's supervisory layer, ensuring that the high-frequency polling cycles of PROFIBUS do not interfere with the broader Ethernet backbone. When remote I/O expansion is required beyond the local rack, the XC08L1's data can be aggregated through distributed I/O heads connected via PROFIBUS DP, extending the module's reach to remote field panels without additional cabling infrastructure.

Every 1SBP260102R1001 XC08L1 unit supplied by NANKMOS undergoes pre-shipment functional verification, confirming channel-by-channel I/O response, bus communication integrity, and power supply compatibility before dispatch. Stock is maintained for immediate fulfillment, supporting both project-phase procurement and urgent replacement scenarios. All units are covered by a 12-month warranty, providing assurance of product quality and long-term supply reliability for system integrators and end users alike.

A typical smart factory deployment of the 1SBP260102R1001 XC08L1 begins at the field layer, where proximity sensors, limit switches, and photoelectric detectors feed 24 VDC signals into the module's eight digital input channels. The AC500 CPU — commonly a PM573-ETH or PM591-ETH — scans these inputs at millisecond cycle times, executing ladder logic or function block programs that govern conveyor sequencing, robotic cell interlocking, and safety zone monitoring. Output commands are issued through the XC08L1's eight digital output channels to solenoid valves, motor contactors, indicator lamps, and relay coils, completing the field-level control loop.

Upstream, the AC500 communicates with an ABB CP635 HMI touchpanel via Modbus TCP, presenting operators with real-time I/O status dashboards, alarm lists, and trend displays. Simultaneously, a CM572-DP PROFIBUS master module in the same AC500 rack connects to remote I/O stations — such as Phoenix Contact Inline or Wago 750 series nodes — extending the XC08L1's logical I/O space to field panels located up to 1,200 meters away. A PROFINET interface module (CM589-PNIO) bridges the AC500 to the plant's Gigabit Ethernet backbone, where a Hirschmann MACH1000 managed switch routes data to the SCADA server running Wonderware InTouch or Ignition by Inductive Automation.

At the edge layer, an ABB Edge Controller or third-party edge gateway aggregates time-series I/O data from multiple AC500 stations, applying local analytics before forwarding compressed datasets to cloud platforms for long-term trend analysis and OEE calculation. ABB ACS880 variable-speed drives connected to the same PROFIBUS segment report energy consumption and fault codes alongside the XC08L1's discrete signals, giving the SCADA layer a unified view of both digital control states and drive performance metrics. This integrated data architecture eliminates the information silos that traditionally separate electrical, mechanical, and process data streams in industrial plants.

Many industrial sites operate with fragmented control architectures where PLCs from different generations use incompatible protocols, creating data islands that prevent plant-wide visibility. The ABB AC500 platform, with the 1SBP260102R1001 XC08L1 as its I/O foundation, addresses this challenge by supporting both legacy serial protocols (Modbus RTU, PROFIBUS DP) and modern Ethernet-based standards through interchangeable communication modules. This protocol flexibility allows the AC500 to act as a protocol bridge, collecting data from older field devices and republishing it in formats compatible with contemporary SCADA and MES platforms.

Remote monitoring gaps — where operators lack real-time visibility into remote field panels — are resolved through the AC500's built-in Ethernet port and the XC08L1's deterministic I/O scanning. Alarm conditions detected at the field level are propagated to the SCADA layer within a single PLC scan cycle, enabling sub-second alarm response times that support both safety compliance and production quality objectives. For sites undergoing digital transformation, the XC08L1 provides a cost-effective path to production line transparency: existing field wiring can be connected directly to the module's terminals without rewiring, preserving capital investment while adding network-accessible data collection.

System expansion is handled through the AC500's modular rack architecture. Additional XC08L1 modules, analog input cards, and communication interfaces can be added to the same CPU rack as production requirements grow, without replacing the base controller or reprogramming the communication infrastructure. This scalability protects the initial system investment and reduces the engineering cost of capacity expansions.

Q: What communication protocols does the ABB 1SBP260102R1001 XC08L1 support? A: The XC08L1 operates on the ABB AC500 local expansion bus and communicates with upper-level systems via the AC500 CPU's protocol interfaces, which include PROFIBUS DP, Modbus RTU, Modbus TCP, and PROFINET depending on the communication module installed. This makes it compatible with a wide range of SCADA, HMI, and industrial network environments.

Q: Can the XC08L1 be used for remote diagnostics and fault tracing? A: Yes. When the AC500 CPU is connected to an Ethernet network, maintenance engineers can access I/O status, channel diagnostics, and program variables remotely using ABB Automation Builder software or via SCADA OPC-UA data feeds. This eliminates the need for on-site panel access during routine fault investigations.

Q: How does the XC08L1 integrate with existing SCADA and HMI systems? A: The module's data is exposed through the AC500 CPU's communication interfaces. SCADA systems supporting Modbus TCP, PROFIBUS DP, or OPC-UA can poll I/O states directly from the AC500 without additional middleware. HMI terminals from ABB's CP600 series or third-party suppliers connect via the same communication channels, providing operator-level visibility into all XC08L1 channel states.

Q: What warranty and pre-shipment testing does NANKMOS provide for this module? A: All ABB 1SBP260102R1001 XC08L1 units are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-dispatch functional testing to verify digital I/O channel response, bus communication integrity, and power supply compatibility. Stock is maintained for immediate dispatch, supporting both planned project procurement and urgent replacement requirements.
