ABB 1VCR000993G00051 Power Supply Board

Product Details

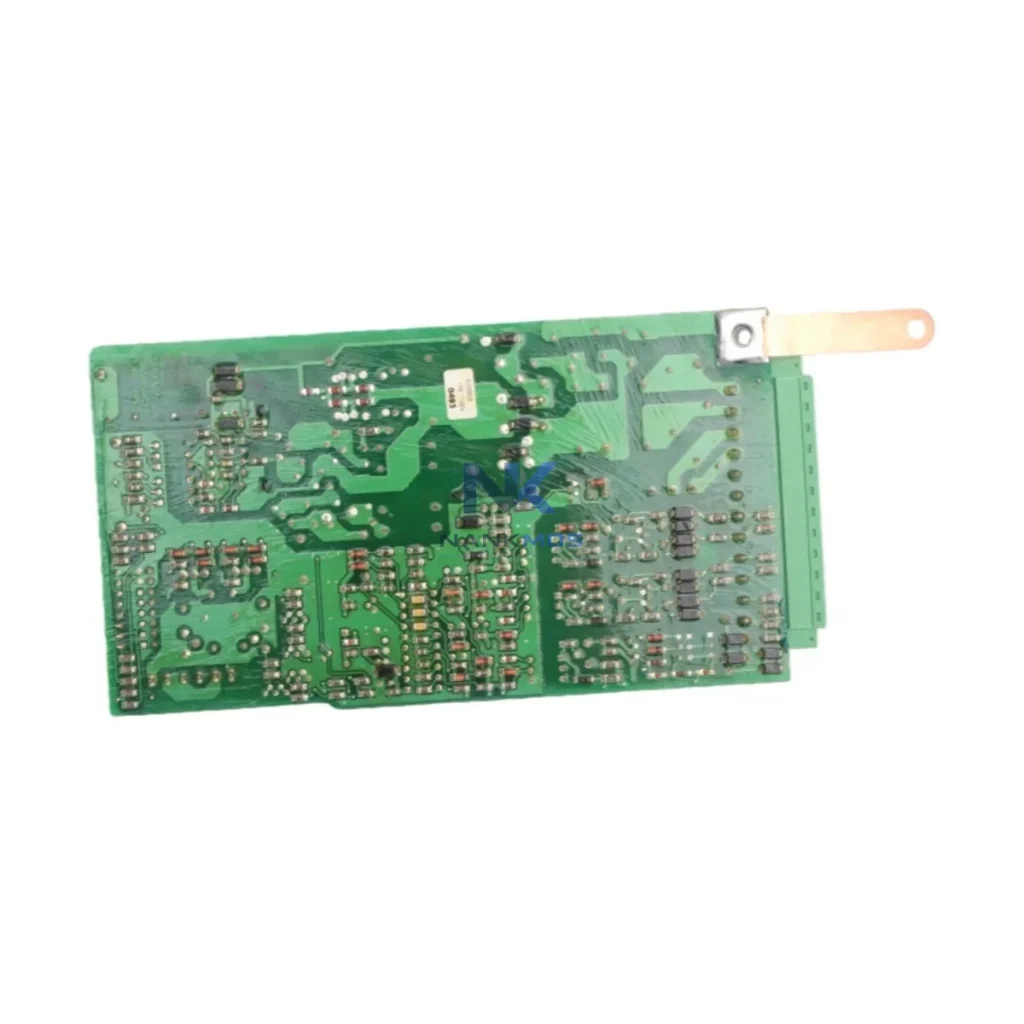

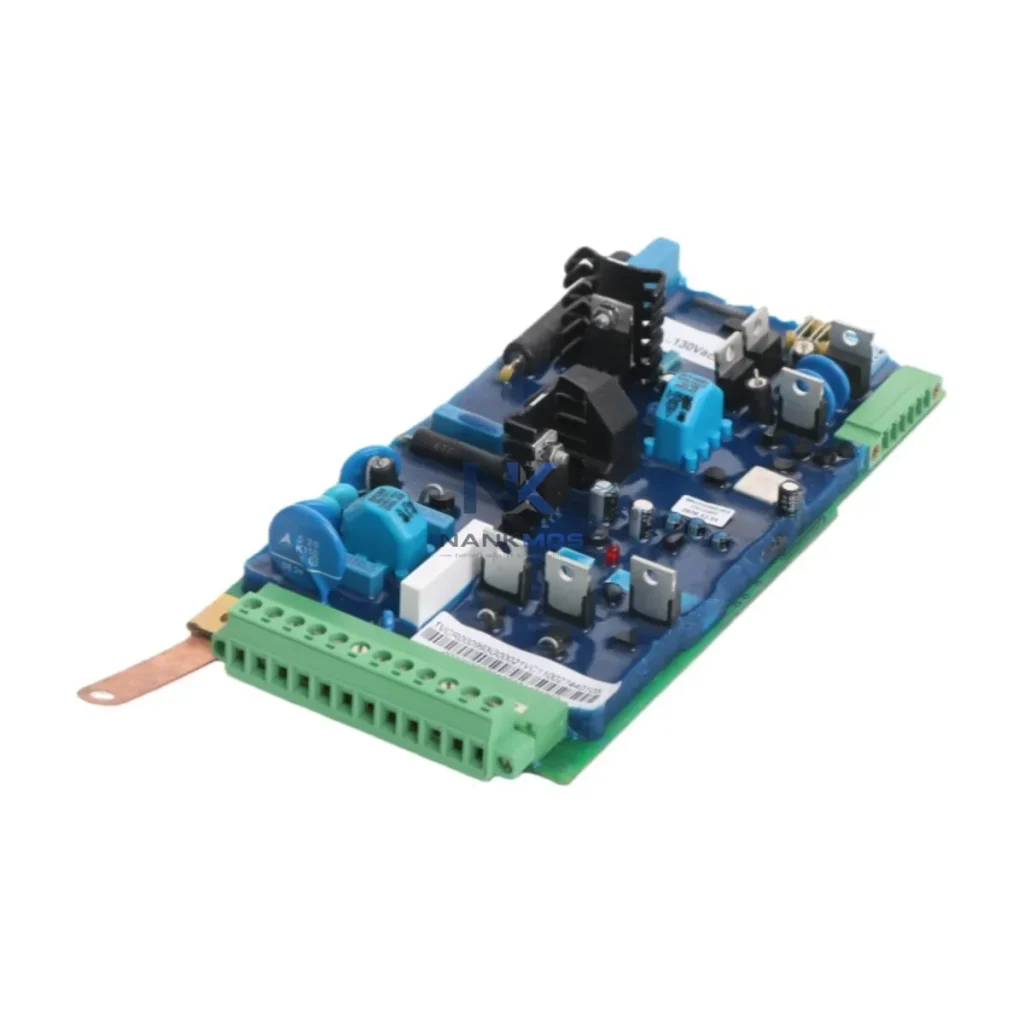

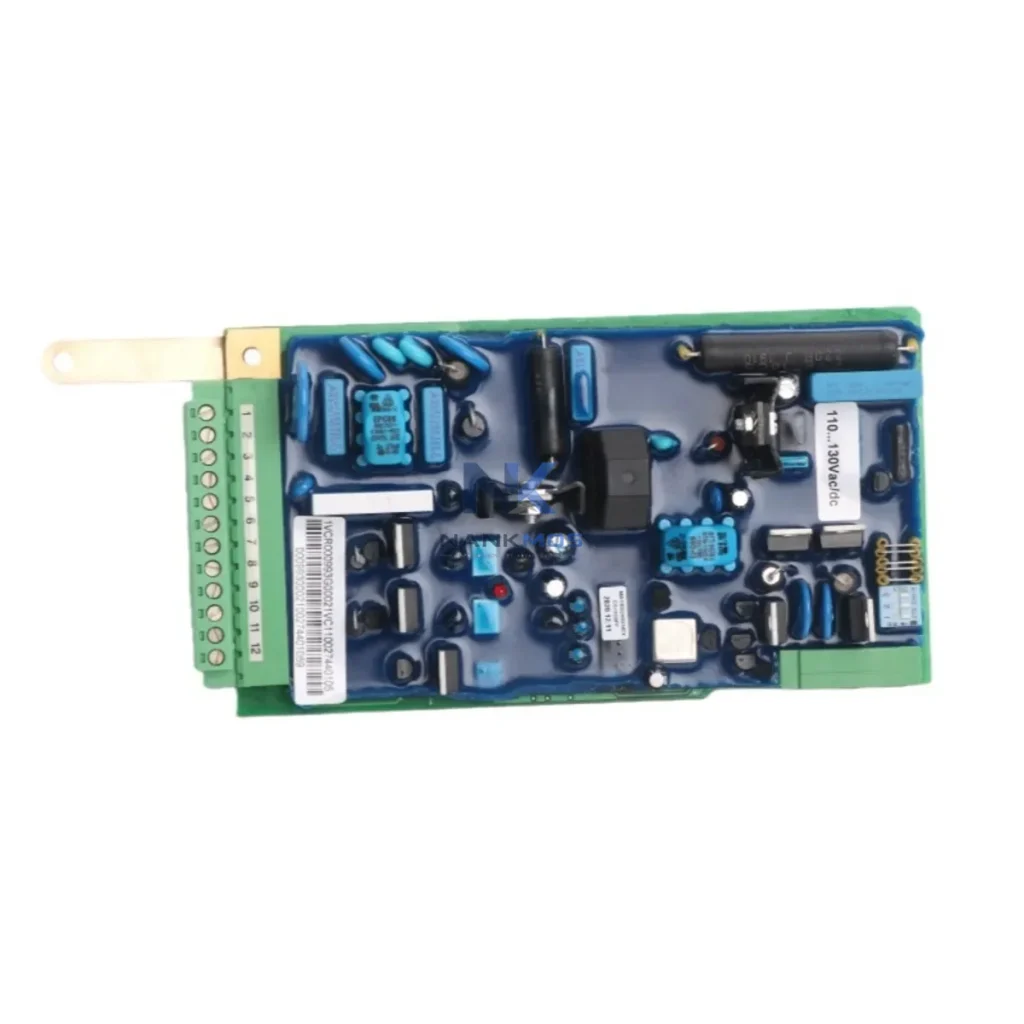

1VCR000993G00051 Product Description

The ABB 1VCR000993G00051 is a dedicated power supply board engineered for seamless integration within the ABB Unitrol 1000 automatic voltage regulator (AVR) and excitation control architecture. Designed to deliver stable, conditioned DC power to the core control modules of the Unitrol 1000 platform, this board plays a foundational role in maintaining system-wide voltage regulation consistency, signal integrity, and operational continuity across generator excitation systems deployed in power generation, industrial drives, and utility-grade applications.

In modern industrial control architecture, the power supply layer is not merely a utility component — it is a critical enabler of system coherence. The 1VCR000993G00051 is purpose-built to interface directly with the Unitrol 1000 control chassis, ensuring that the AVR's processing modules, I/O interface boards, communication gateways, and feedback signal circuits all receive clean, regulated power within the voltage tolerances required for precision excitation control. Any instability at the power supply layer propagates immediately into signal noise, regulation drift, and potential system faults — making the selection of a system-matched board like the 1VCR000993G00051 a non-negotiable engineering decision.

Within the Unitrol 1000 platform architecture, the 1VCR000993G00051 operates in close coordination with the main CPU and regulation board (such as the 1VCR000991G0001 or equivalent core processing module), the analog and digital I/O interface boards responsible for generator terminal voltage sensing, field current feedback, and reactive power measurement, as well as the PROFIBUS DP or Modbus communication interface modules that link the AVR to the plant DCS or SCADA system. The power supply board ensures that these interdependent layers maintain synchronized operation without voltage sag, ripple interference, or thermal-induced drift — conditions that are especially critical during generator startup transients, load rejection events, and parallel operation sequences.

From a system integration perspective, the 1VCR000993G00051 supports the broader Unitrol 1000 modular design philosophy, which allows engineers to configure single-channel or redundant dual-channel excitation architectures depending on the criticality of the generating unit. In redundant configurations, the power supply board must deliver identical electrical characteristics to both the active and standby regulation channels, ensuring seamless bumpless transfer during channel switchover. This requirement places stringent demands on output voltage stability, transient response, and thermal performance — all of which the 1VCR000993G00051 is rated to meet within the Unitrol 1000 system envelope.

For power plant engineers and system integrators working with ABB excitation platforms, the 1VCR000993G00051 also plays a role in long-term maintenance planning. Because the Unitrol 1000 is deployed across a wide range of generator sizes and applications — from hydro and thermal power stations to industrial cogeneration and marine propulsion systems — maintaining a verified stock of critical power supply boards is essential for minimizing unplanned outage duration. The board's standardized form factor and connector interface simplify field replacement procedures, reducing mean time to repair (MTTR) and supporting the plant's overall reliability and availability targets.

Beyond the Unitrol 1000 platform itself, the 1VCR000993G00051 is relevant to engineers managing mixed ABB excitation fleets that may include the Unitrol 5000, Unitrol 6000, or legacy Unitrol 1020 systems, where cross-platform power supply compatibility and spare parts rationalization are ongoing operational concerns. Understanding the role of the power supply board within each platform's architecture allows maintenance teams to develop more effective inventory strategies and reduce the risk of extended lead times for critical components.

At NANKMOS, every 1VCR000993G00051 unit is sourced from verified supply channels, subjected to incoming inspection, and dispatched with a 12-Month Warranty covering manufacturing defects and functional performance. Our engineering support team is available to assist with system compatibility verification, installation guidance, and integration into existing Unitrol 1000 control architectures.

The 1VCR000993G00051 power supply board is most effectively understood within the context of the complete Unitrol 1000 automation platform. A fully configured Unitrol 1000 excitation system typically integrates the following layers and components, each of which depends on stable power delivery from the supply board:

Control Layer: The Unitrol 1000 main regulation board (e.g., 1VCR000991G0001) serves as the central processing unit for voltage regulation algorithms, PID control loops, and excitation current setpoint management. The 1VCR000993G00051 provides the regulated DC rail that powers this module's logic circuits and analog processing stages.

I/O Layer: Analog input boards for generator terminal voltage (PT signals), field current measurement, and reactive power feedback (e.g., 1VCR000992G0001 or equivalent I/O interface modules) rely on the power supply board for consistent reference voltage, directly affecting measurement accuracy and regulation stability.

Communication Layer: PROFIBUS DP interface modules or Modbus RTU gateways integrated into the Unitrol 1000 chassis connect the AVR to the plant DCS (e.g., ABB System 800xA, ABB AC500 PLC, or third-party SCADA platforms). Clean power from the 1VCR000993G00051 ensures communication timing integrity and prevents data frame errors caused by power rail noise.

HMI Layer: Local operator panels or remote HMI terminals (such as ABB CP600 series or equivalent panel PCs) connected to the Unitrol 1000 system display real-time excitation parameters, alarm states, and regulation mode status. Stable power supply operation is prerequisite to reliable HMI data refresh and alarm logging.

Protection Layer: Overvoltage protection relays, field suppression circuits, and loss-of-excitation detection modules integrated within the excitation cabinet depend on the control power supply for their own logic power. The 1VCR000993G00051 supports the protection layer's continuous availability, including during generator fault conditions.

Redundancy Layer: In dual-channel Unitrol 1000 configurations, a second power supply board (identical 1VCR000993G00051) is installed in the standby channel. Matched electrical characteristics between the two boards are essential for bumpless channel transfer and redundancy validation during commissioning.

Power Layer: The excitation transformer, thyristor bridge (SCR bridge), and field flashing circuit form the high-power excitation path, while the 1VCR000993G00051 operates exclusively in the low-voltage control power domain — isolating sensitive control electronics from the high-current excitation power path.

Maintenance Layer: Spare board availability, standardized replacement procedures, and compatibility with Unitrol 1000 diagnostic tools (including ABB's UNITROL Service Tool software) make the 1VCR000993G00051 a maintainable, field-replaceable component that supports long-term plant reliability programs.

Power Generation (Hydro & Thermal): In hydroelectric and thermal power stations, the Unitrol 1000 AVR with 1VCR000993G00051 power supply board manages generator terminal voltage and reactive power output in coordination with the plant's energy management system. Stable excitation control is critical for grid synchronization, power factor correction, and compliance with grid code requirements.

Industrial Cogeneration: Combined heat and power (CHP) plants and industrial cogeneration facilities use the Unitrol 1000 platform to regulate generator excitation during parallel operation with the utility grid. The power supply board's reliability directly impacts the plant's ability to maintain continuous parallel operation without excitation-related trips.

Marine Propulsion & Offshore: Marine diesel generator sets and offshore platform power systems equipped with ABB Unitrol 1000 AVRs require excitation control components rated for vibration, humidity, and temperature variations. The 1VCR000993G00051 supports these demanding environments as part of a fully qualified excitation system.

Mining & Metallurgy: Large synchronous motors and generators in mining hoists, ball mills, and smelting facilities use excitation control systems to manage reactive power and motor starting performance. The Unitrol 1000 platform, supported by the 1VCR000993G00051, provides the control architecture backbone for these high-demand applications.

Water & Wastewater Treatment: Pumping stations and water treatment facilities with on-site generation or large synchronous pump drives benefit from the Unitrol 1000's precise voltage regulation, with the power supply board ensuring uninterrupted control system operation during extended continuous-duty cycles.

Q1: Is the 1VCR000993G00051 compatible with all Unitrol 1000 hardware revisions?The 1VCR000993G00051 is designed as a system-matched power supply board for the ABB Unitrol 1000 platform. Compatibility with specific hardware revisions should be verified against the Unitrol 1000 system documentation and the unit's serial number / firmware version. NANKMOS engineering support can assist with compatibility verification prior to order placement, ensuring the correct board revision is supplied for your specific system configuration.

Q2: Can this board be used in a redundant dual-channel Unitrol 1000 configuration?Yes. In dual-channel redundant Unitrol 1000 architectures, two power supply boards are required — one per channel. Both boards must be of identical part number and revision to ensure matched electrical characteristics for bumpless channel transfer. NANKMOS maintains stock of matched pairs and can supply quantity requirements for redundant system builds or spare parts programs.

Q3: What does the 12-Month Warranty cover, and what is the replacement process?The 12-Month Warranty provided by NANKMOS covers manufacturing defects and functional performance failures under normal operating conditions consistent with the Unitrol 1000 system specifications. In the event of a warranty claim, NANKMOS will arrange replacement or repair of the affected unit. Our team supports the full warranty process including failure documentation, return logistics, and expedited replacement dispatch to minimize system downtime. Contact [email protected] or +86 18359268345 for warranty support.
