ABB 200-APB12 200APB12 Fieldbus Communication Adapter

Product Details

200-APB12 200APB12 Product Description

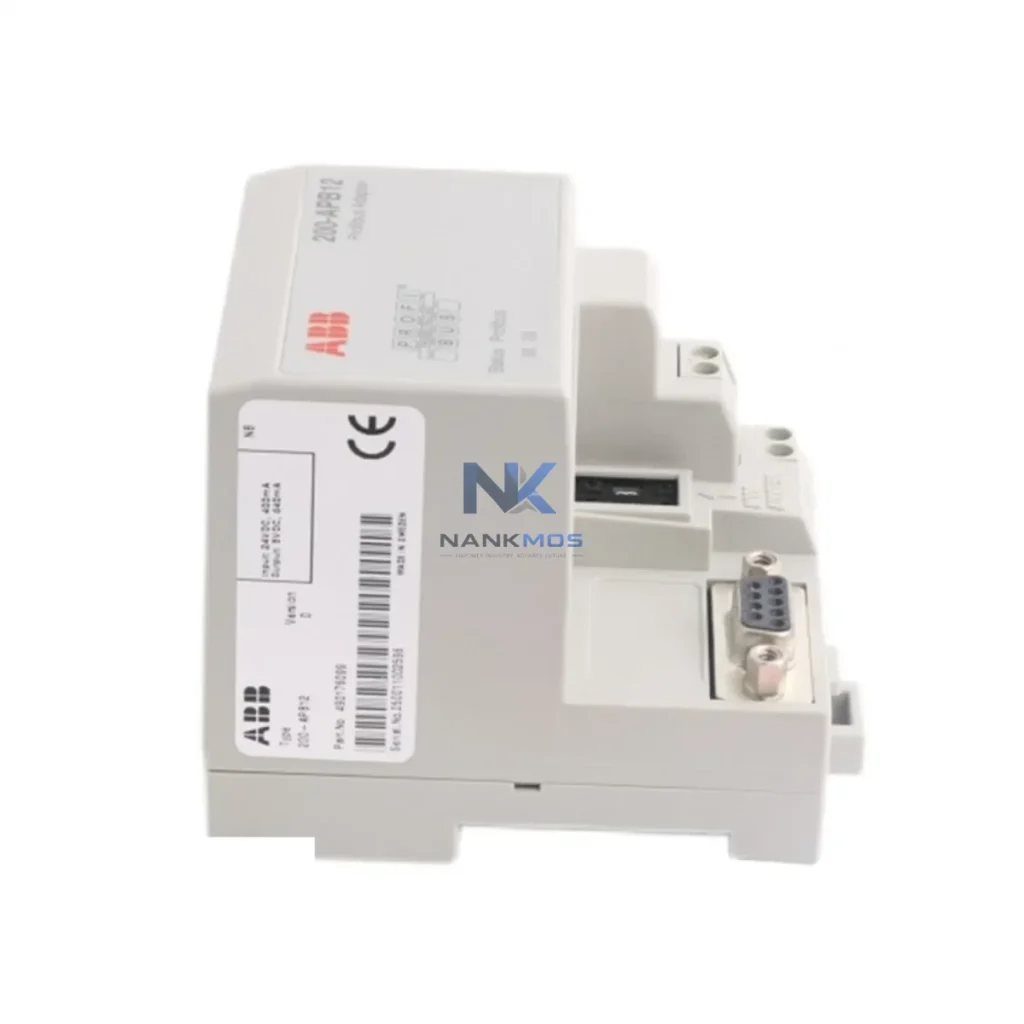

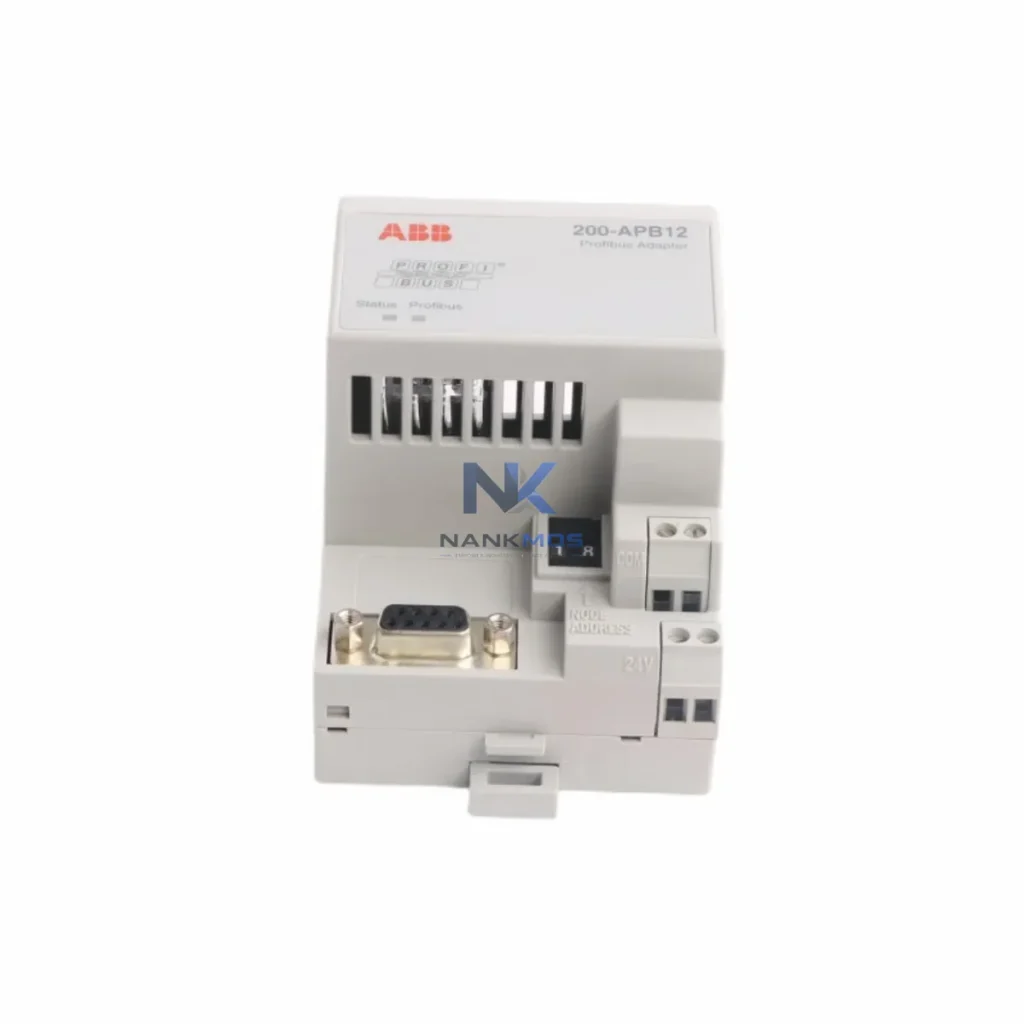

The ABB RPBA-01 200-APB12 is a high-performance Profibus DP fieldbus communication adapter engineered for seamless integration of ABB ACS series variable frequency drives into industrial automation networks. As manufacturing environments evolve toward fully connected smart factory architectures, the demand for reliable, protocol-transparent communication between field devices and supervisory systems has never been greater. The RPBA-01 200-APB12 answers this demand by bridging the gap between drive-level control and plant-wide data infrastructure, enabling real-time parameter exchange, remote diagnostics, and centralized monitoring across complex automation topologies.

Designed to mount directly onto compatible ABB ACS drives — including the ACS550, ACS800, and ACS880 series — the RPBA-01 200-APB12 converts the drive's internal communication bus into a fully compliant Profibus DP interface. This allows the drive to participate as a standard Profibus slave node on the fieldbus segment, exchanging cyclic process data and acyclic parameter data with Profibus DP masters such as Siemens S7-300/S7-400 PLCs, ABB AC500 controllers, and third-party DCS platforms. The adapter supports data rates up to 12 Mbit/s, ensuring low-latency command delivery and high-frequency status feedback even in bandwidth-intensive automation environments.

In a typical smart factory deployment, the ABB RPBA-01 200-APB12 sits at the intersection of field-level drive control and plant-level data management. The data flow begins at the sensor and actuator layer, where process variables such as motor speed, torque feedback, output current, and fault status are generated continuously by the ACS880 drive. The RPBA-01 200-APB12 captures these values and transmits them cyclically over the Profibus DP segment to the PLC master — for example, an ABB AC500 PM595 or a Siemens S7-400 — which executes the control logic and issues speed references or control word commands back to the drive in real time.

From the PLC, process data flows upward through an industrial Ethernet switch — such as an ABB EKS or a managed Layer 2 switch with PROFINET/Profibus gateway capability — into the SCADA layer. Supervisory platforms including Siemens WinCC, Rockwell FactoryTalk View, or AVEVA InTouch receive structured drive data via OPC-UA or Modbus TCP bridges, enabling operators to visualize motor performance trends, energy consumption curves, and alarm histories on HMI panels. Remote I/O modules such as the ABB CI854 or Siemens ET 200S can extend the Profibus segment to distributed field cabinets, allowing the RPBA-01 200-APB12 to participate in geographically distributed drive networks without additional protocol conversion hardware.

For edge computing and IIoT integration, an edge gateway — such as the ABB Ability Edge or a Moxa MGate Profibus-to-Ethernet gateway — can tap into the Profibus segment and forward drive telemetry to cloud analytics platforms or MES systems. This enables predictive maintenance algorithms to analyze vibration signatures, thermal trends, and load profiles from the ACS drive, triggering proactive service alerts before unplanned downtime occurs. Variable frequency drives equipped with the RPBA-01 200-APB12 can also exchange data with upstream power meters, soft starters, and motor protection relays on the same Profibus network, creating a unified energy monitoring architecture that feeds directly into plant-level energy management dashboards.

The RPBA-01 200-APB12 also supports acyclic DP-V1 communication, which allows SCADA systems and engineering tools such as ABB Drive Composer or Siemens STEP 7 to read and write individual drive parameters without interrupting cyclic process data exchange. This capability is essential for remote commissioning, parameter backup, and firmware-level diagnostics — tasks that previously required a technician on-site with a laptop connected directly to the drive's local panel port. With the RPBA-01 200-APB12 in place, these operations can be performed from the control room or even remotely over a VPN-secured industrial network.

Many industrial sites operate with a fragmented communication landscape: legacy drives running proprietary serial protocols, newer PLCs expecting Profibus or PROFINET connectivity, and SCADA systems unable to reach field devices without manual data entry or OPC bridging workarounds. The ABB RPBA-01 200-APB12 directly resolves the most common of these data gaps by standardizing ACS drive communication onto the Profibus DP protocol — one of the most widely supported fieldbus standards in process and discrete manufacturing.

Protocol fragmentation is eliminated because the RPBA-01 200-APB12 presents a fully GSD-file-compliant Profibus slave identity to the network master, requiring no custom driver development. Data silos between the drive layer and the SCADA layer are broken down as cyclic process data — speed, current, power, fault codes — becomes continuously available to all network participants. Remote monitoring challenges are addressed through DP-V1 acyclic access, which enables parameter-level interrogation of the drive from any Profibus master without physical access to the drive cabinet.

Production line transparency improves significantly when every ACS drive on the Profibus segment reports its operational state in real time. Alarm tracking becomes systematic rather than reactive: fault codes from the drive are transmitted immediately to the PLC and forwarded to the SCADA alarm management system, where they are timestamped, logged, and routed to the appropriate maintenance team via email or SMS notification. System expansion is straightforward because additional ACS drives equipped with RPBA-01 200-APB12 adapters can be added to the Profibus segment up to the maximum node count, with each new drive automatically recognized by the PLC master upon GSD file import and network scan.

Q1: What is the maximum communication latency of the RPBA-01 200-APB12 on a Profibus DP network? At the maximum data rate of 12 Mbit/s, Profibus DP cycle times are typically in the range of 1–5 ms for networks with up to 32 nodes, making the RPBA-01 200-APB12 suitable for time-critical speed and torque control applications. Actual latency depends on the number of nodes, data volume per cycle, and PLC scan time configuration.

Q2: Is the RPBA-01 200-APB12 compatible with third-party PLCs and SCADA systems beyond ABB's own product range? Yes. Because the RPBA-01 200-APB12 implements the standard Profibus DP slave protocol with a published GSD file, it is compatible with any Profibus DP master, including Siemens S7-300/400/1500, Schneider Modicon M340/M580, Rockwell ControlLogix with Profibus scanner cards, and DCS platforms from Emerson, Honeywell, and Yokogawa. SCADA integration is achieved through standard OPC-DA/UA servers connected to the PLC master.

Q3: How does the RPBA-01 200-APB12 support remote diagnostics and predictive maintenance? The adapter's DP-V1 acyclic channel allows engineering tools and SCADA systems to read all drive parameters — including fault history logs, running hour counters, thermal load indices, and energy consumption data — without interrupting normal cyclic operation. This data can be forwarded via an edge gateway to cloud-based analytics platforms for trend analysis, anomaly detection, and predictive maintenance scheduling, reducing unplanned downtime and extending drive service intervals.

Q4: What warranty and pre-shipment testing does the RPBA-01 200-APB12 include? Every ABB RPBA-01 200-APB12 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and communication failures. Prior to dispatch, each unit undergoes functional verification including Profibus DP communication handshake testing, GSD file validation, and physical interface inspection. Units are held in climate-controlled storage and shipped with full traceability documentation. In-stock units are available for same-week dispatch to support urgent automation project timelines.
