2400 3HAC021722-001 3HAC057551-003 3hac031937-001 Product Description

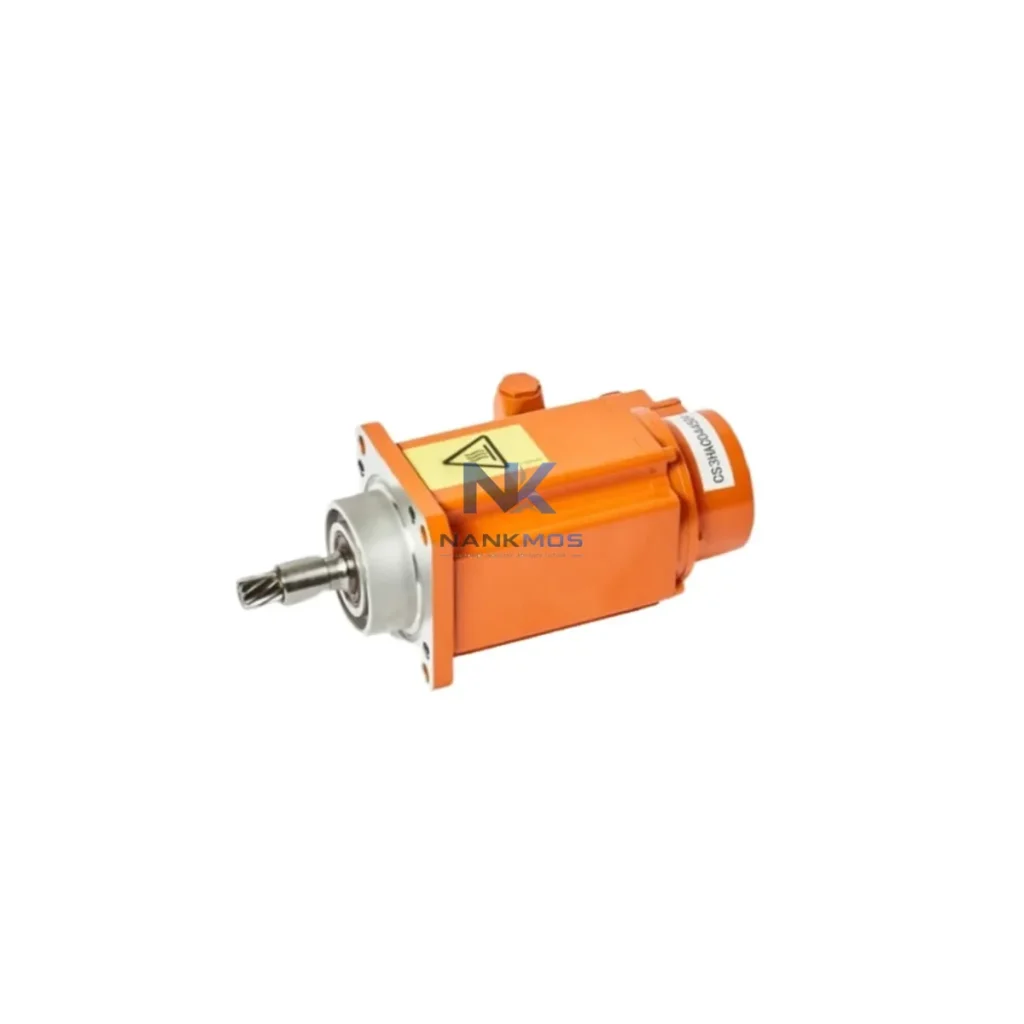

The ABB 3HAC021722-001 is a precision drive motor unit engineered for the IRB 2400 series industrial robot, delivering reliable servo control and motion coordination across high-demand manufacturing environments. As smart factories evolve toward fully connected production architectures, the role of the drive motor unit extends beyond mechanical actuation — it becomes a critical node in the industrial data chain, bridging real-time motion feedback with supervisory control systems, SCADA platforms, and edge intelligence layers. Whether deployed in automotive body welding, semiconductor handling, food-grade pick-and-place, or petrochemical process automation, the 3HAC021722-001 provides the servo drive backbone that keeps production data flowing accurately and continuously.

Cross-reference part numbers for this unit include 3HAC057551-003 and 3HAC031937-001, ensuring compatibility across multiple IRB 2400 build revisions and regional service configurations. All units supplied by NANKMOS are pre-shipment tested and covered by a 12-month warranty, with global logistics via DHL and FedEx for rapid deployment to any automation site.

In a fully integrated smart factory cell, the ABB 3HAC021722-001 drive motor unit operates as the servo actuation endpoint within a layered data architecture. At the field level, encoder signals and torque feedback from the IRB 2400 robot axes are captured in real time by the ABB IRC5 controller — the central motion coordinator that manages axis interpolation, path planning, and safety interlocks. The IRC5 controller communicates upstream via DeviceNet or PROFIBUS-DP to the plant-level PLC, such as a Siemens S7-1500 or Allen-Bradley ControlLogix, which aggregates motion status alongside I/O data from remote I/O modules, safety relays, and field sensors.

From the PLC layer, process data is forwarded via Industrial Ethernet — typically PROFINET or EtherNet/IP — to the SCADA server or DCS platform, where operators monitor robot cycle times, axis load curves, and fault histories through HMI dashboards. In advanced deployments, an edge gateway such as the Moxa MGate or Advantech ADAM-3600 sits between the robot controller and the cloud analytics platform, performing protocol conversion from proprietary ABB drive bus signals to MQTT or OPC-UA for upstream transmission. This edge layer enables real-time anomaly detection, predictive maintenance alerts, and remote diagnostics without interrupting production cycles.

The 3HAC021722-001 drive motor unit's feedback data — including axis position, velocity, current draw, and thermal status — feeds directly into this data pipeline. When integrated with ABB RobotStudio's OPC-UA server, these parameters become accessible to SCADA systems like Wonderware InTouch or Ignition SCADA, enabling plant engineers to visualize robot health metrics alongside conveyor speeds, vision system outputs, and variable frequency drive (VFD) status from peripheral equipment. Industrial managed switches, such as the Hirschmann RS20 or Cisco IE-3300, provide the deterministic Ethernet backbone that ensures low-latency, high-reliability data transport across the factory floor network.

For multi-robot cells, the IRC5 controller's FlexPendant interface and RobotWare software stack allow coordinated motion sequencing across multiple IRB 2400 units, with each drive motor unit reporting individual axis health back to the central controller. This architecture supports seamless integration with MES (Manufacturing Execution Systems) and ERP platforms, closing the loop between physical production output and digital business intelligence. NANKMOS maintains ready stock of the 3HAC021722-001 alongside complementary ABB spare parts including the DSQC679 teach pendant, DSQC663 I/O module, and 3HAC026254-001 axis computer board, enabling complete cell restoration from a single supplier.

One of the most persistent challenges in industrial automation is the fragmentation of data across heterogeneous control systems. When a drive motor unit fails or degrades silently, the resulting data gap — missing axis feedback, erratic torque readings, or intermittent encoder faults — can propagate upstream through the PLC and SCADA layers, triggering false alarms, production stoppages, and costly diagnostic delays. The ABB 3HAC021722-001, when sourced as a verified OEM-equivalent replacement from NANKMOS, eliminates this uncertainty by restoring the servo drive's full data reporting capability from the moment of installation.

Protocol inconsistency is another common barrier to factory transparency. Legacy IRB 2400 installations may use older PROFIBUS-DP fieldbus architectures, while newer plant expansions operate on PROFINET or EtherNet/IP. The ABB IRC5 controller's modular communication board design — supporting DSQC688 PROFIBUS, DSQC690 DeviceNet, and DSQC1006 EtherNet/IP options — allows the 3HAC021722-001 to operate seamlessly within mixed-protocol environments without requiring a full controller upgrade. This flexibility is essential for phased smart factory migrations where legacy and modern systems must coexist and share data reliably.

Remote monitoring and alarm traceability are further strengthened when the drive motor unit operates within a properly configured data chain. By exposing axis fault codes and drive status through the IRC5's OPC-UA interface, maintenance teams can receive push notifications via SCADA alarm management systems the moment a drive anomaly is detected — enabling remote diagnostics and pre-positioning of spare parts before a full failure occurs. NANKMOS's 12-month warranty and in-stock availability policy directly support this proactive maintenance model, minimizing mean time to repair (MTTR) and protecting production uptime commitments.

Q1: What communication protocols does the ABB 3HAC021722-001 support for SCADA integration? The 3HAC021722-001 drive motor unit interfaces with the ABB IRC5 controller, which supports DeviceNet, PROFIBUS-DP, and EtherNet/IP communication boards. For SCADA integration, the IRC5 controller's OPC-UA server (via RobotWare) exposes real-time axis data — including position, velocity, torque, and fault status — to platforms such as Ignition SCADA, Wonderware, or Siemens WinCC. This enables full supervisory visibility without additional protocol converters in most standard deployments.

Q2: How is network stability maintained when the drive motor unit is replaced in a live production cell? The 3HAC021722-001 is a direct OEM-equivalent replacement for the IRB 2400 series. Upon installation, the IRC5 controller automatically re-establishes drive bus communication and resumes axis feedback reporting within the standard startup sequence. No fieldbus reconfiguration is required for like-for-like replacements. NANKMOS recommends performing a controlled axis calibration routine post-installation to verify encoder alignment and restore full motion accuracy before resuming production.

Q3: Can the system be expanded to support remote diagnostics and predictive maintenance? Yes. When the IRC5 controller is connected to an edge gateway — such as a Moxa MGate 5109 or Advantech ECU-1251 — drive motor unit telemetry can be forwarded via MQTT or OPC-UA to cloud analytics platforms or on-premise MES systems. This enables continuous monitoring of axis load trends, thermal profiles, and fault frequency, supporting predictive maintenance workflows that reduce unplanned downtime. NANKMOS can advise on compatible gateway configurations for your specific network architecture.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 3HAC021722-001? All ABB 3HAC021722-001 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes pre-shipment functional testing to verify drive bus communication, encoder interface integrity, and mechanical condition before dispatch. Units are shipped via DHL or FedEx with full tracking, and NANKMOS maintains in-stock inventory to support urgent replacement requirements globally. For volume orders or project-based procurement, contact [email protected] or call +86 18359268345 for a dedicated RFQ response.
