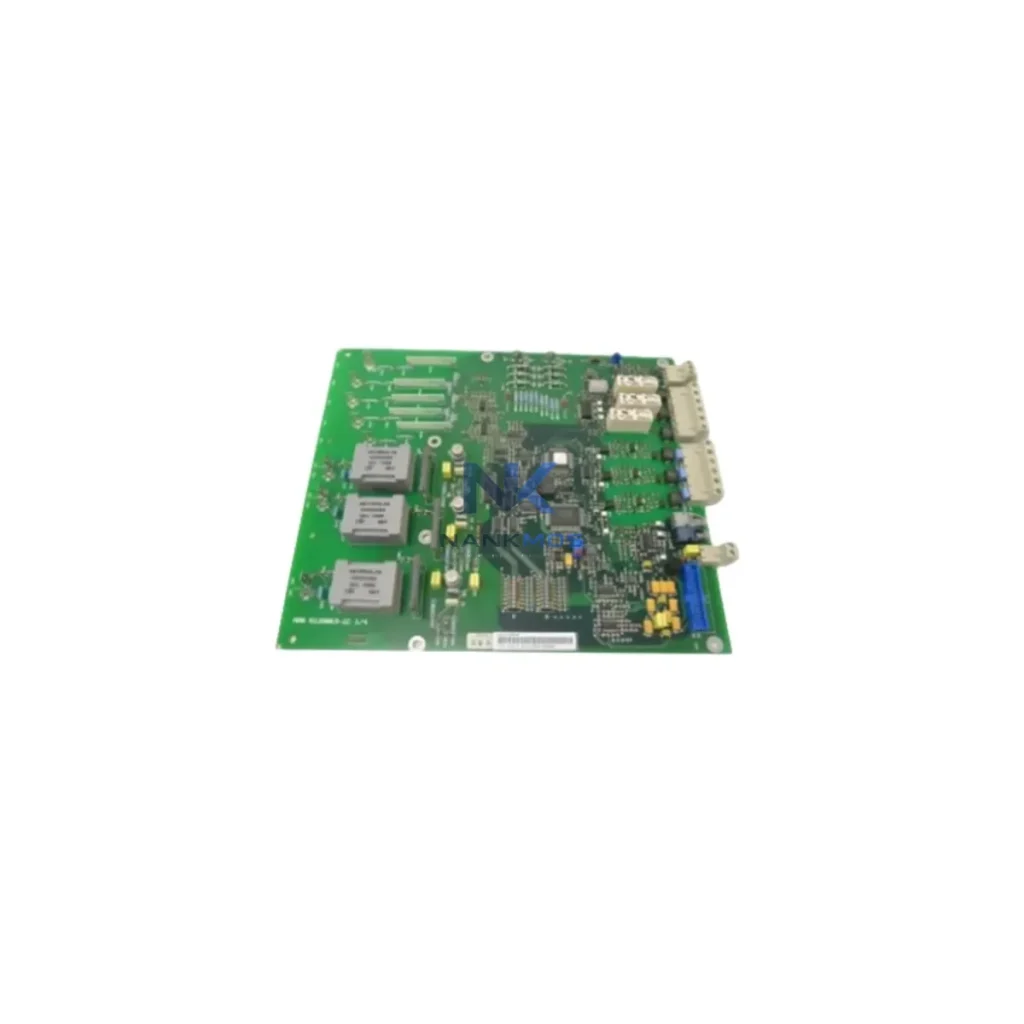

ABB 3ADT220090R0010 NDSC-01-COAT Drive Control Board

Product Details

3ADT220090R0010 NDSC-01-COAT Product Description

The ABB 3ADT220090R0010 NDSC-01-COAT is a conformal-coated control board engineered for ABB ACS series variable frequency drives, delivering reliable motor control, reduced energy consumption, and stable production line throughput in demanding industrial environments. Designed for continuous-duty automation applications, this board serves as the intelligence layer between the drive's power stage and the broader control architecture — enabling precise load management, real-time feedback, and energy-aware motor operation across manufacturing, process, and utility installations.

With its conformal coating, the NDSC-01-COAT variant provides enhanced resistance to humidity, dust, and corrosive atmospheres, making it the preferred choice for food processing, chemical handling, water treatment, and heavy industrial facilities where standard boards would degrade prematurely. The result is lower maintenance frequency, reduced unplanned downtime, and a longer operational service life — all of which directly contribute to improved equipment utilization and lower total cost of ownership.

The ABB 3ADT220090R0010 NDSC-01-COAT does not operate in isolation — it functions as a critical node within a layered automation and energy management architecture. In a typical smart production line, this control board interfaces directly with the ACS drive's gate driver and feedback circuits, translating commands from upstream controllers into precise motor speed and torque outputs.

At the supervisory level, a Siemens S7-1500 PLC or ABB AC500 PLC issues speed references and operational commands via PROFIBUS-DP or PROFINET, which are received and executed by the ACS drive under the governance of this control board. The NDSC-01-COAT manages the drive's internal state machine, ensuring smooth acceleration ramps, controlled deceleration, and fault-safe shutdown sequences that protect both the motor and the mechanical load.

For energy monitoring, the control board works in conjunction with ABB B23 or B24 energy meters and power monitoring modules such as the ABB PSTX soft starter monitoring interface or third-party power quality analyzers connected via Modbus RTU. Real-time power consumption data is fed back to the SCADA system — such as Wonderware InTouch or Ignition SCADA — enabling operators to track kWh consumption per production cycle, identify inefficient operating windows, and schedule high-load operations during off-peak tariff periods.

On the I/O side, the NDSC-01-COAT integrates with ABB CI854 PROFIBUS adapter modules and FENA-21 Ethernet adapter boards, extending the drive's communication reach to EtherNet/IP and Modbus TCP networks. This connectivity allows the drive to participate in plant-wide energy management systems (EMS) and MES platforms, where production throughput targets are balanced against real-time energy cost signals.

HMI panels — such as the ABB CP600 series or Siemens TP1200 Comfort — display drive status, motor current, output frequency, and fault codes sourced from the ACS drive via the control board's diagnostic outputs. Maintenance teams can monitor thermal load trends, bearing vibration signatures from connected vibration sensors, and insulation resistance readings from motor condition monitoring modules, enabling predictive maintenance scheduling before failures occur.

In servo-driven production cells, the NDSC-01-COAT-equipped ACS drive often operates alongside ABB MicroFlex e190 servo drives or Yaskawa Sigma-7 servo amplifiers, with coordinated motion profiles managed by a central motion controller. The ACS drive handles bulk material transport or pump/fan loads while servo drives manage precision positioning — together forming a balanced energy consumption profile that avoids simultaneous peak current draws and reduces transformer loading.

Variable frequency drives controlled by the ABB 3ADT220090R0010 NDSC-01-COAT board are among the most effective tools available for reducing industrial energy consumption. By matching motor speed precisely to the actual process demand — rather than running at fixed full speed with mechanical throttling — the ACS drive can reduce motor energy consumption by 30 to 50 percent on variable-torque loads such as pumps, fans, and compressors.

In conveyor and material handling applications, the NDSC-01-COAT enables smooth start/stop cycles that eliminate inrush current spikes, reducing peak demand charges on the facility's electricity bill. Controlled deceleration with regenerative braking capability (where supported by the ACS drive model) feeds kinetic energy back into the DC bus, further reducing net energy consumption during high-cycle-rate production runs.

Thermal load management is another key benefit. By running motors at optimized speeds rather than full load, heat generation in both the motor windings and the drive's power modules is significantly reduced. This lowers cooling system demand in the control cabinet and motor enclosure, reducing HVAC energy consumption and extending insulation life. The conformal coating on the NDSC-01-COAT board itself contributes to thermal stability by preventing moisture-induced leakage currents that can cause erratic control behavior and premature component failure.

From a production line rhythm (takt time) perspective, the precise speed control enabled by this board allows production managers to fine-tune conveyor speeds, mixer rates, and pump flows to match downstream process requirements exactly — eliminating buffer overflows, reducing material waste, and maintaining consistent product quality without energy-intensive overcapacity operation.

Predictive maintenance integration further enhances uptime. By monitoring drive output current waveforms and comparing them against baseline motor signatures, the control system can detect developing motor faults — such as rotor bar damage or bearing wear — weeks before they cause unplanned shutdowns. This allows maintenance to be scheduled during planned downtime windows, maximizing equipment utilization and avoiding the energy and productivity losses associated with emergency repairs.

Every ABB 3ADT220090R0010 NDSC-01-COAT board shipped from NANKMOS inventory undergoes pre-shipment functional testing to verify control signal integrity, communication interface operation, and protection circuit response. Stock is maintained for rapid dispatch, supporting maintenance teams that require fast turnaround on critical drive repairs to minimize production line downtime.

Q1: What energy savings can I expect by replacing a faulty control board with the ABB 3ADT220090R0010 NDSC-01-COAT? Restoring the ACS drive to full variable-speed operation recovers the energy efficiency that is lost when a drive runs in bypass mode or at degraded performance. On variable-torque loads, this typically means recovering 20–50% energy savings compared to fixed-speed motor operation. The exact savings depend on your load profile, motor size, and operating hours.

Q2: Is the NDSC-01-COAT compatible with all ACS drive models, and can it replace a non-coated NDSC-01 board? The 3ADT220090R0010 NDSC-01-COAT is designed for specific ACS series drives. Please verify compatibility against your drive's nameplate and service manual before installation. In many cases, the coated variant is a direct functional replacement for the standard NDSC-01 board, with the added benefit of environmental protection — but confirmation against the drive's BOM is recommended.

Q3: What does the pre-shipment testing process cover? Each board is tested for control signal output integrity, communication interface functionality, and protection circuit response prior to dispatch. This ensures the board is operational on arrival and reduces commissioning time. Test records are available on request for quality-critical installations.

Q4: What warranty and supply support does NANKMOS provide? All ABB 3ADT220090R0010 NDSC-01-COAT boards supplied by NANKMOS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. We maintain inventory stock for rapid dispatch to minimize your production line downtime. For volume requirements, scheduled supply agreements, or technical pre-sales support, contact our team directly.
