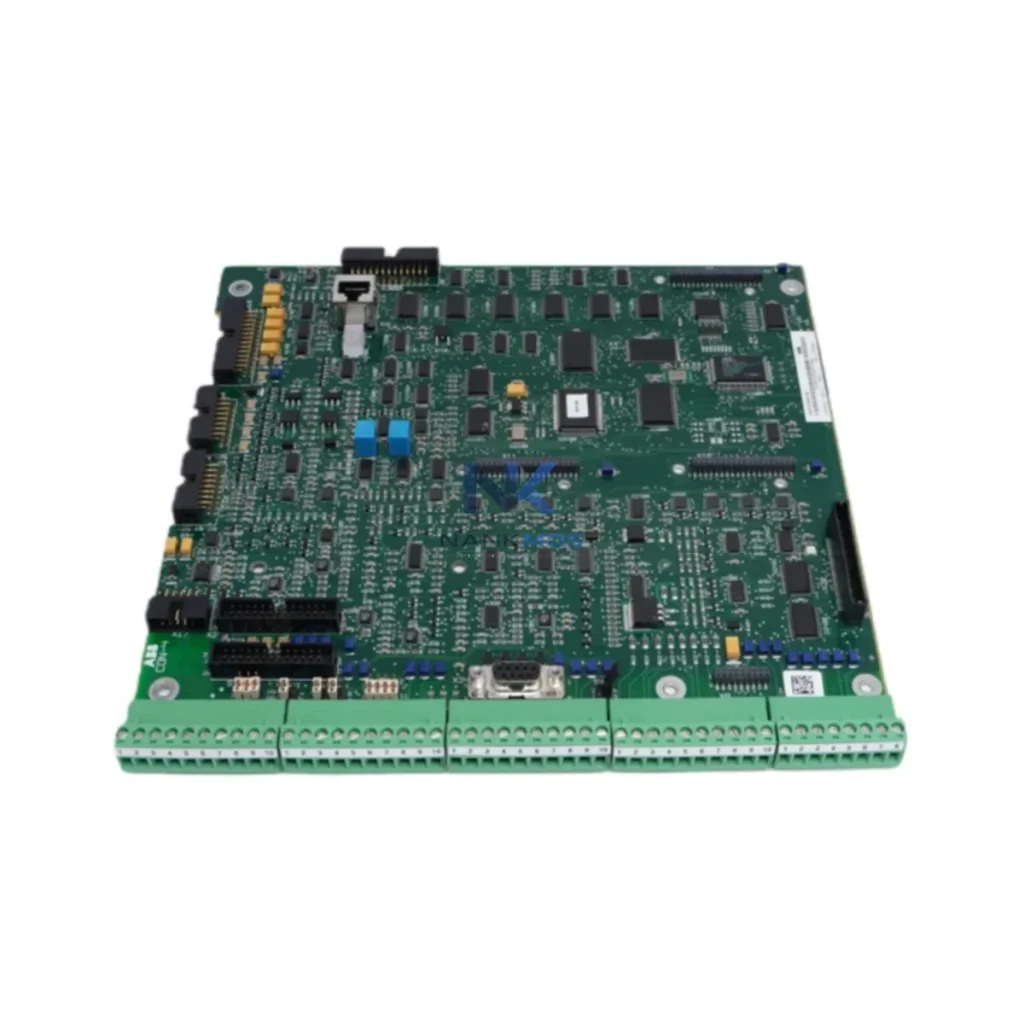

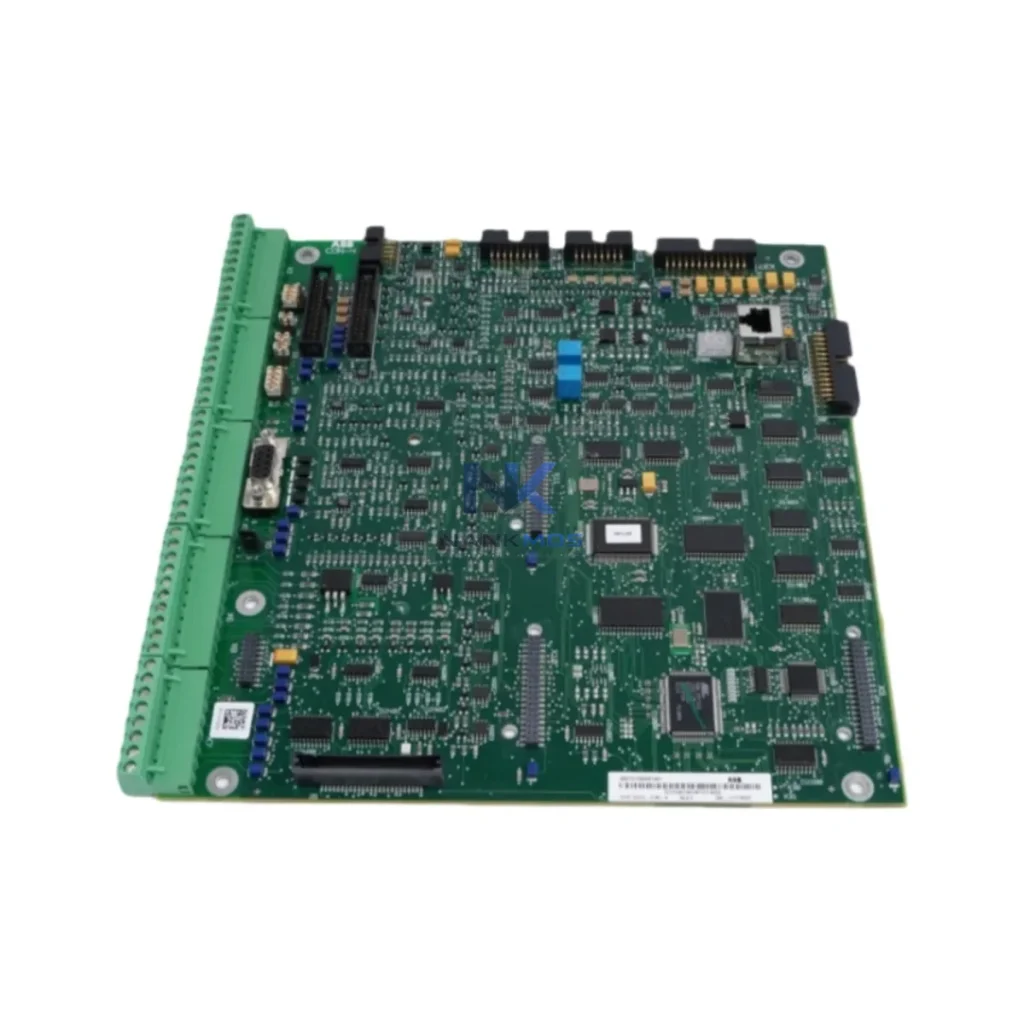

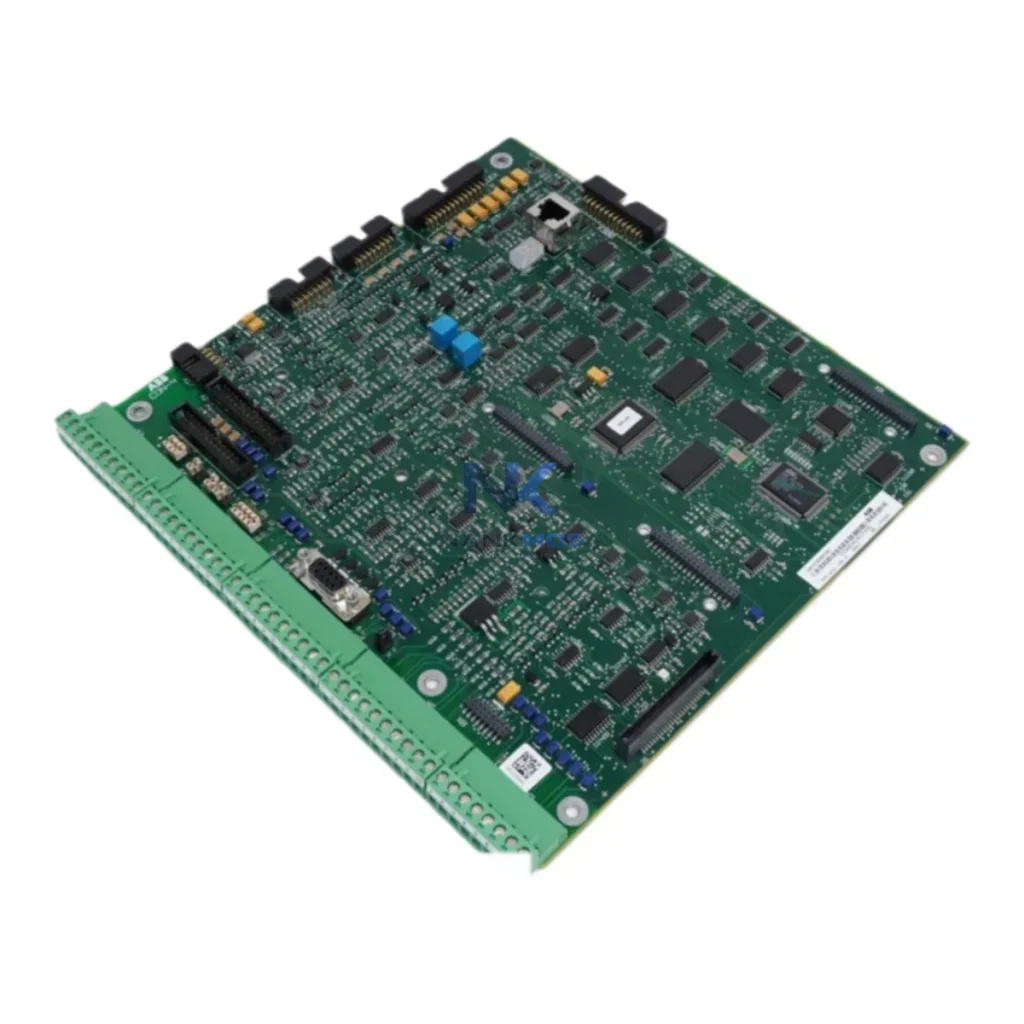

ABB 3ADT313900R1001 SDCS-CON-4 DC Drive Control Board

Product Details

3ADT313900R1001 SDCS-CON-4 Product Description

The ABB SDCS-CON-4 (part number 3ADT313900R1001) is a dedicated DC drive control board engineered for seamless deployment within the ABB DCS800 series DC drive architecture. As a core component of the control layer, the SDCS-CON-4 governs speed regulation, current loop management, field excitation control, and real-time diagnostic feedback — functions that are indispensable to the stability and responsiveness of any high-performance DC drive system. Designed to operate within ABB's modular drive ecosystem, this board ensures that every signal path, every feedback loop, and every protection sequence functions with the precision demanded by continuous industrial processes.

In modern industrial control architecture, no component operates in isolation. The SDCS-CON-4 is positioned at the intersection of the control layer and the I/O layer, receiving setpoint commands from upstream PLCs or DCS controllers — such as the ABB AC500 series or ABB Symphony Plus DCS — and translating them into precise armature current and field current commands delivered to the DCS800 power stage. This bidirectional signal flow is the backbone of closed-loop DC drive control, and the SDCS-CON-4 executes it with the deterministic timing required for demanding applications in metals processing, paper mills, and heavy-duty winding systems.

The SDCS-CON-4 achieves its full potential when deployed as part of a coherent, layered automation architecture. At the control layer, it interfaces directly with the DCS800 power electronics, but its upstream connectivity extends to ABB AC500 PLCs or third-party Siemens S7-300/S7-400 controllers via PROFIBUS DP — enabled through the SDCS-COM-8 fieldbus adapter mounted on the control board's expansion slot. This communication pathway allows the SDCS-CON-4 to receive speed references, torque limits, and operational mode commands in real time, while simultaneously reporting drive status, fault codes, and process variables back to the supervisory control layer.

At the I/O layer, the SDCS-IOB-3 or SDCS-IOB-31 I/O expansion boards extend the analog and digital signal capacity of the SDCS-CON-4, enabling connection to field instruments such as tachogenerators, encoders, temperature sensors, and process feedback transducers. This modular I/O architecture ensures that the control board can be adapted to a wide range of process requirements without hardware redesign, supporting both retrofit projects and new installations.

For HMI integration, the DCS800 system — governed by the SDCS-CON-4 — communicates with ABB CP600 operator panels or third-party SCADA systems via OPC-UA or Modbus TCP gateways, providing operators with real-time visibility into drive performance, alarm states, and energy consumption. At the power layer, the SDCS-POW-4 power supply board provides the regulated DC voltages required by the SDCS-CON-4 and associated I/O boards, ensuring stable operation even under fluctuating mains conditions.

In redundant architecture designs, the SDCS-CON-4 can be paired with a hot-standby control board configuration, where a secondary SDCS-CON-4 monitors the primary board's health via the DDCS fiber optic link. Upon detection of a primary board fault, the standby board assumes control within milliseconds, maintaining process continuity in critical applications such as continuous casting lines or paper machine drives. This redundancy capability, combined with the DCS800's built-in diagnostic functions, significantly reduces unplanned downtime and simplifies root-cause analysis during maintenance windows.

At the protection layer, the SDCS-CON-4 coordinates with the DCS800's thyristor bridge and field excitation unit to enforce overcurrent limits, field loss protection, and thermal derating curves. These protection functions are configurable via ABB's DriveWindow or DriveStudio commissioning software, allowing engineers to tailor protection thresholds to the specific requirements of each application — whether a 200 kW rolling mill drive or a 2 MW mine hoist system.

Metals and Steel Processing: In continuous rolling mills and wire drawing lines, the SDCS-CON-4 provides the precise speed and tension control required to maintain product quality across multiple drive stands. Its fast current loop response — typically less than 5 ms — ensures that speed deviations caused by material thickness variations are corrected before they propagate downstream, protecting both product quality and mechanical equipment.

Paper and Pulp Manufacturing: Paper machine drives demand exceptional speed synchronization across dozens of drive sections. The SDCS-CON-4's DDCS fiber optic communication enables master-follower speed control architectures where all drive sections track a common speed reference with microsecond-level synchronization, eliminating web breaks and reducing waste.

Mining and Mineral Processing: Mine hoist and conveyor applications require drives capable of sustained high-torque operation under variable load conditions. The SDCS-CON-4's field weakening control and regenerative braking coordination make it well-suited for hoist applications where energy recovery during lowering cycles reduces operating costs.

Power Generation and Utilities: In power plant auxiliary systems — including induced draft fans, boiler feed pumps, and coal handling conveyors — the SDCS-CON-4 provides the reliable, continuous-duty performance required for 24/7 operation. Its diagnostic capabilities allow maintenance teams to monitor drive health remotely via SCADA integration, scheduling preventive maintenance before failures occur.

Marine and Offshore: Shipboard DC drive systems for anchor winches, mooring winches, and deck machinery benefit from the SDCS-CON-4's robust design and wide operating temperature range. Its compatibility with marine-grade DCS800 drive configurations ensures compliance with classification society requirements for shipboard electrical systems.

Chemical and Petrochemical Processing: In hazardous area applications, the DCS800 drive system — controlled by the SDCS-CON-4 — can be installed in pressurized control rooms or Ex-rated enclosures, with field wiring routed through appropriate cable glands and barriers. The board's stable analog signal processing ensures accurate speed control for compressors, extruders, and agitators operating under variable process conditions.

Q1: Is the SDCS-CON-4 (3ADT313900R1001) compatible with all DCS800 drive frame sizes, and can it be used as a direct replacement for earlier SDCS-CON-3 boards?

The SDCS-CON-4 is the standard control board for the ABB DCS800 series and is compatible across all DCS800 frame sizes (D1 through D8). It is not a direct plug-in replacement for the earlier SDCS-CON-3 used in DCS500 drives, as the connector layout and firmware architecture differ between generations. When retrofitting from DCS500 to DCS800, a full control board replacement with updated parameter configuration via DriveWindow software is required. Our technical team can assist with parameter migration and commissioning support as part of the 12-Month Warranty service package.

Q2: What fieldbus communication options are available with the SDCS-CON-4, and how does it integrate with existing PLC or DCS architectures?

The SDCS-CON-4 supports fieldbus communication through optional adapter modules mounted in its expansion slot. Available adapters include the SDCS-COM-8 (PROFIBUS DP), SDCS-COM-81 (DeviceNet, Modbus RTU, CANopen), and RDNA-01 (EtherNet/IP). These adapters enable Contextual Integration with ABB AC500 PLCs, Siemens S7 series controllers, Rockwell ControlLogix systems, and ABB Symphony Plus DCS platforms. The DDCS fiber optic interface provides a high-speed, noise-immune link for master-follower drive configurations and connection to ABB's NDBU-95 branching units in multi-drive systems.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time and testing process for SDCS-CON-4 boards supplied by NANKMOS?

Every SDCS-CON-4 (3ADT313900R1001) supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failure under normal operating conditions. Prior to shipment, each board undergoes a functional test protocol that verifies analog I/O signal integrity, digital I/O response, DDCS communication link integrity, and power supply rail voltages. Boards are shipped in anti-static packaging with individual test records. Standard lead time from confirmed order to dispatch is 3–7 business days for in-stock units. For urgent requirements, expedited shipping options are available. Post-installation technical support is provided throughout the warranty period at no additional charge.
