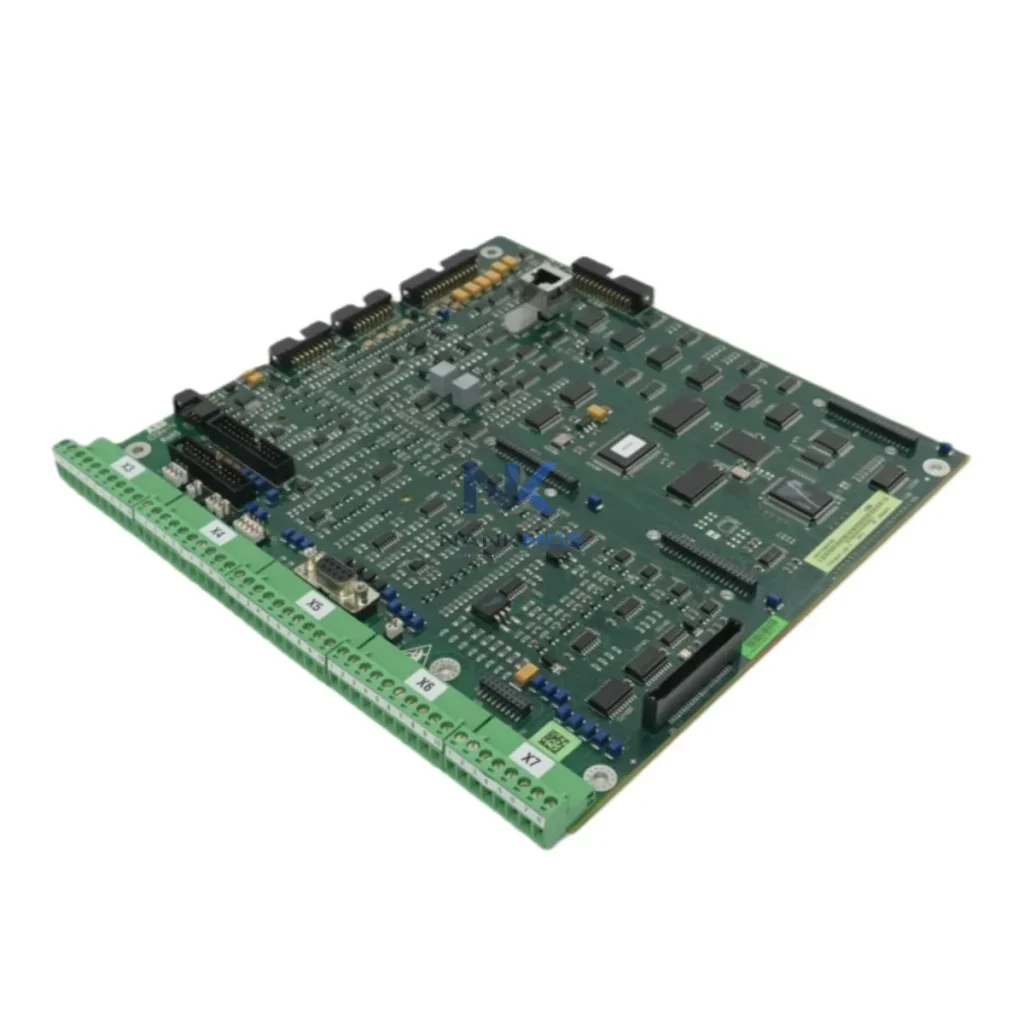

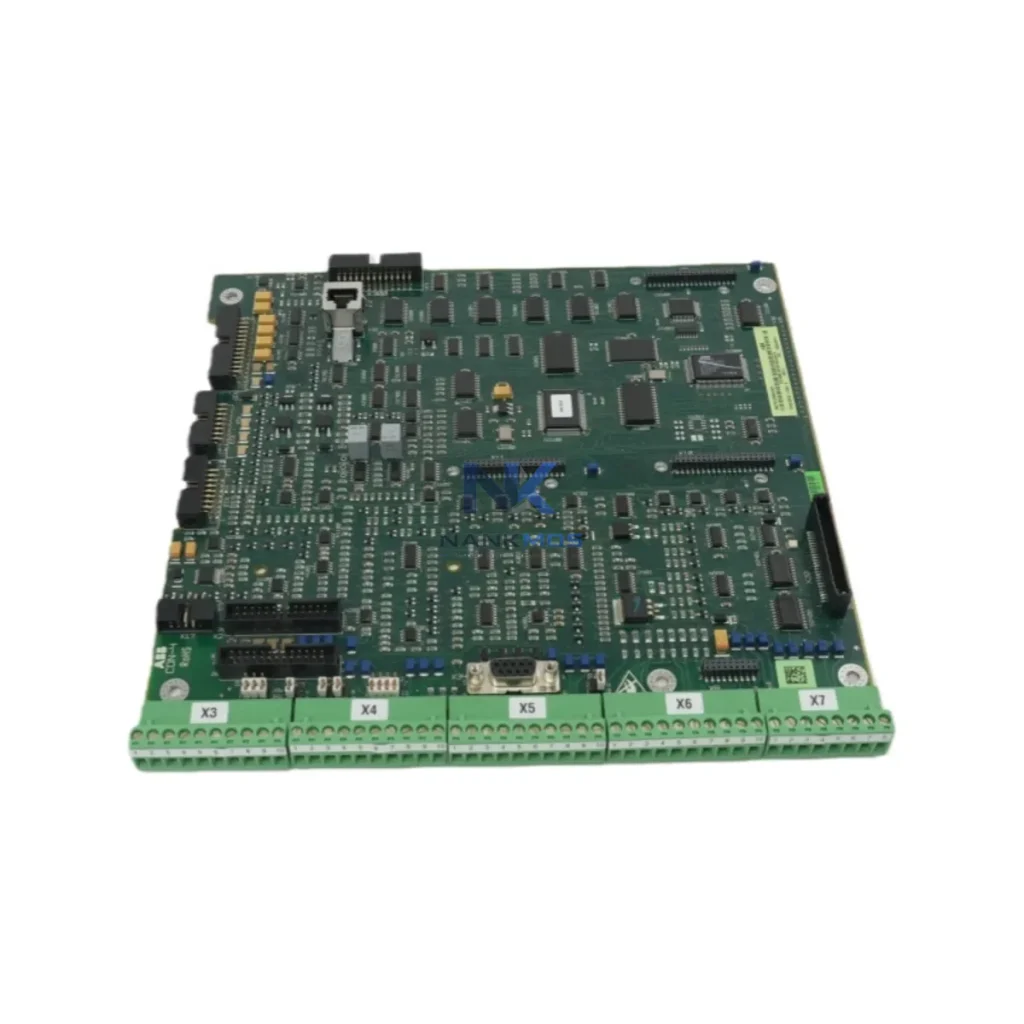

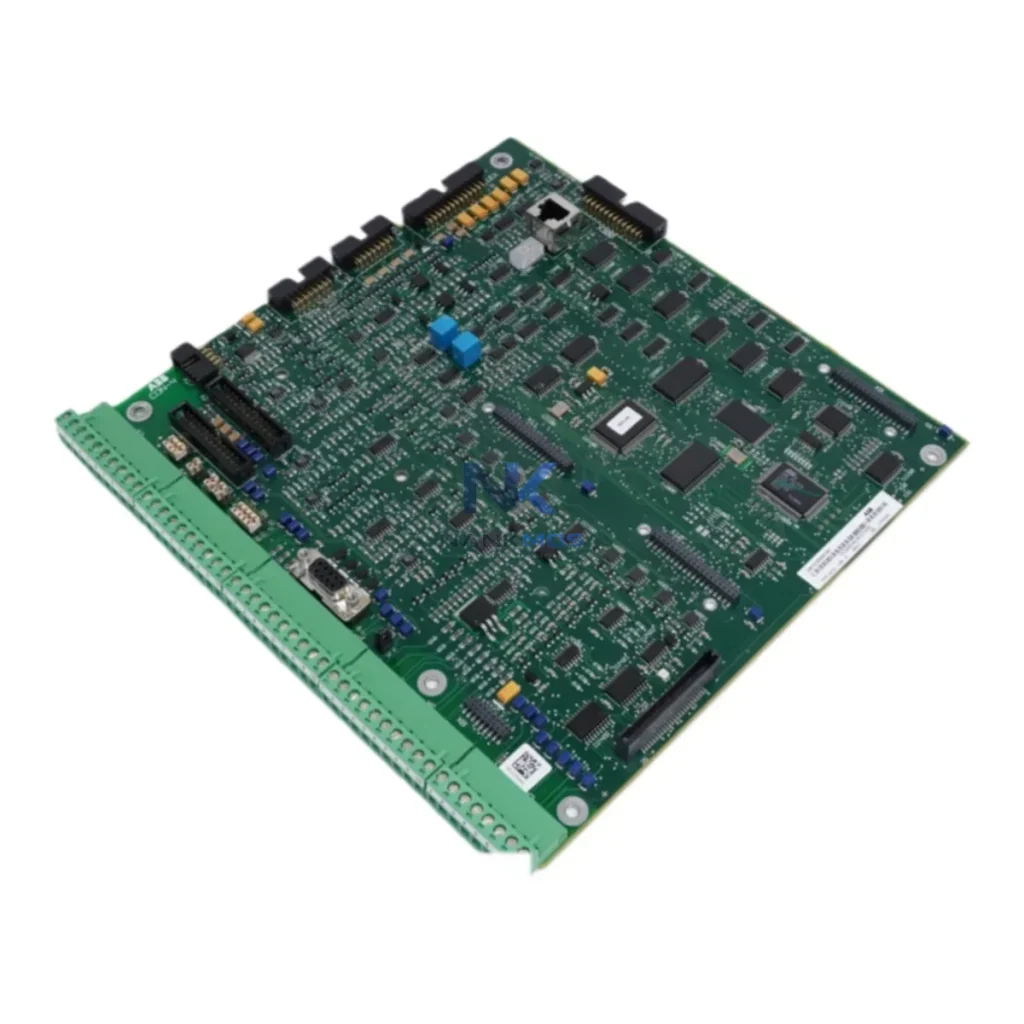

ABB 3ADT313900R1501 SDCS-CON-4 Control Board

Product Details

3ADT313900R1501 SDCS-CON-4 Product Description

The ABB SDCS-CON-4 (3ADT313900R1501) is a high-performance DC drive control board engineered for the DCS800 series, purpose-built to deliver precise energy control, intelligent load management, and sustained motor efficiency across demanding industrial production environments. As a core component of ABB's SDCS drive control architecture, this board governs the firing pulse generation, current regulation, and speed feedback loops that determine how efficiently a DC motor converts electrical energy into mechanical output — making it a critical asset in any energy-aware automation strategy.

Sourced directly from verified supply channels and fully tested prior to shipment, each SDCS-CON-4 unit is backed by a 12-month warranty, ensuring operational confidence for plant engineers and procurement teams managing long-cycle industrial assets.

In modern industrial facilities, energy efficiency is not a single-component achievement — it is a system-level discipline. The SDCS-CON-4 sits at the heart of the DCS800 DC drive platform, coordinating with the SDCS-POW-4 power board to regulate thyristor firing angles with high precision, ensuring that only the energy required for the actual mechanical load is drawn from the supply network. This load-adaptive behavior directly reduces reactive power consumption and minimizes harmonic distortion on the plant bus.

When integrated with the SDCS-IOB-3 I/O expansion board, the SDCS-CON-4 gains access to additional analog and digital feedback channels — enabling real-time monitoring of motor current, armature voltage, and tachometer signals. This data feeds directly into the drive's closed-loop control algorithms, allowing the system to respond dynamically to load changes without overshooting energy draw. In winding and unwinding applications, for example, this translates to consistent tension control with minimal energy waste during acceleration and deceleration cycles.

For facilities running ABB's DCS800 drives alongside AC variable-speed systems such as the ACS880 or ACS580 series, the SDCS-CON-4 enables a unified DC motor control strategy that complements broader plant-wide energy management. When connected to a PROFIBUS DP or Modbus RTU network via the SDCS-COM-8 communication module, the drive's operating parameters — including speed reference, torque limit, and energy consumption data — become fully accessible to the plant's SCADA system or DCS platform, enabling centralized energy monitoring and demand-side load scheduling.

At the field level, integration with ABB AC500 PLCs or third-party Siemens S7-series controllers allows the SDCS-CON-4 to participate in coordinated production sequencing. The PLC can issue speed ramp commands, enable/disable drive outputs, and read fault status — all of which contribute to optimized production line pacing and reduced idle-state energy consumption. Paired with an ABB CP600 HMI or equivalent operator panel, plant personnel gain real-time visibility into drive status, energy draw, and fault history without requiring direct access to the drive cabinet.

Power quality monitoring tools such as the ABB M2M Power Meter or compatible third-party power analyzers can be deployed alongside the DCS800 system to benchmark energy consumption before and after drive optimization, providing quantifiable data for energy audits and ISO 50001 compliance reporting. The SDCS-CON-4's precise current regulation also reduces thermal stress on motor windings, extending motor service life and reducing the frequency of unplanned maintenance interventions.

Production line energy efficiency depends on the ability to match motor output precisely to process demand — and the SDCS-CON-4 is engineered to do exactly that. By continuously regulating the DC motor's armature current and field excitation in response to real-time load feedback, the board eliminates the energy waste associated with fixed-speed or poorly tuned drive systems. In high-inertia applications such as metal rolling mills, paper machine drives, or large extruder lines, this translates to measurable reductions in peak demand charges and overall kWh consumption per production cycle.

Thermal load management is another key benefit. Because the SDCS-CON-4 optimizes thyristor firing timing and current waveform quality, the heat generated within the drive cabinet is reduced — lowering the burden on cooling systems and extending the operational lifespan of adjacent components including capacitors, gate drivers, and bus bars. In facilities where cooling energy represents a significant portion of total plant consumption, this secondary efficiency gain compounds the direct motor control savings.

From a production continuity perspective, the SDCS-CON-4 supports predictive maintenance strategies by providing detailed fault logging and diagnostic data accessible via the drive's keypad or fieldbus interface. Early detection of current imbalance, overvoltage events, or encoder signal degradation allows maintenance teams to schedule interventions during planned downtime windows rather than responding to unplanned failures — preserving production line throughput and avoiding the energy inefficiencies associated with emergency restarts and re-synchronization cycles.

For procurement and MRO teams, NANKMOS maintains verified inventory of the SDCS-CON-4 (3ADT313900R1501) with short lead times and pre-shipment functional testing. Each unit undergoes bench verification against ABB DCS800 drive specifications before dispatch, ensuring that replacement boards restore full drive performance without requiring extended commissioning time on the production floor.

Q1: How does the SDCS-CON-4 contribute to energy savings in DC drive applications? The SDCS-CON-4 regulates thyristor firing angles and armature current with high precision, ensuring the motor draws only the energy required for the actual mechanical load. This load-adaptive control reduces reactive power losses, minimizes harmonic distortion, and lowers overall kWh consumption — particularly in variable-load applications such as winding machines, conveyors, and rolling mills.

Q2: Is the 3ADT313900R1501 compatible with all DCS800 drive variants? The SDCS-CON-4 (3ADT313900R1501) is designed for use within the ABB DCS800 DC drive series. Compatibility depends on the specific DCS800 frame size and firmware version. We recommend verifying the existing control board revision and drive configuration before ordering. Our technical team can assist with cross-referencing if you provide the full drive nameplate data.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover? Each SDCS-CON-4 unit is functionally tested against ABB DCS800 drive specifications prior to dispatch. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events beyond rated limits, or unauthorized modification. Warranty claims are supported directly through NANKMOS.

Q4: Can this board be used as a direct replacement for a failed SDCS-CON-4 in an existing DCS800 installation? Yes. The 3ADT313900R1501 is a direct form-fit-function replacement for the SDCS-CON-4 in compatible DCS800 drives. After physical installation, parameter restoration from a backup or manual re-entry of drive settings is required to return the system to its previous operating configuration. NANKMOS can provide guidance on the replacement procedure and parameter backup best practices upon request.
