ABB 3ADT315100R1001 SDCS-POW-4-COAT Industrial Power Supply

Product Details

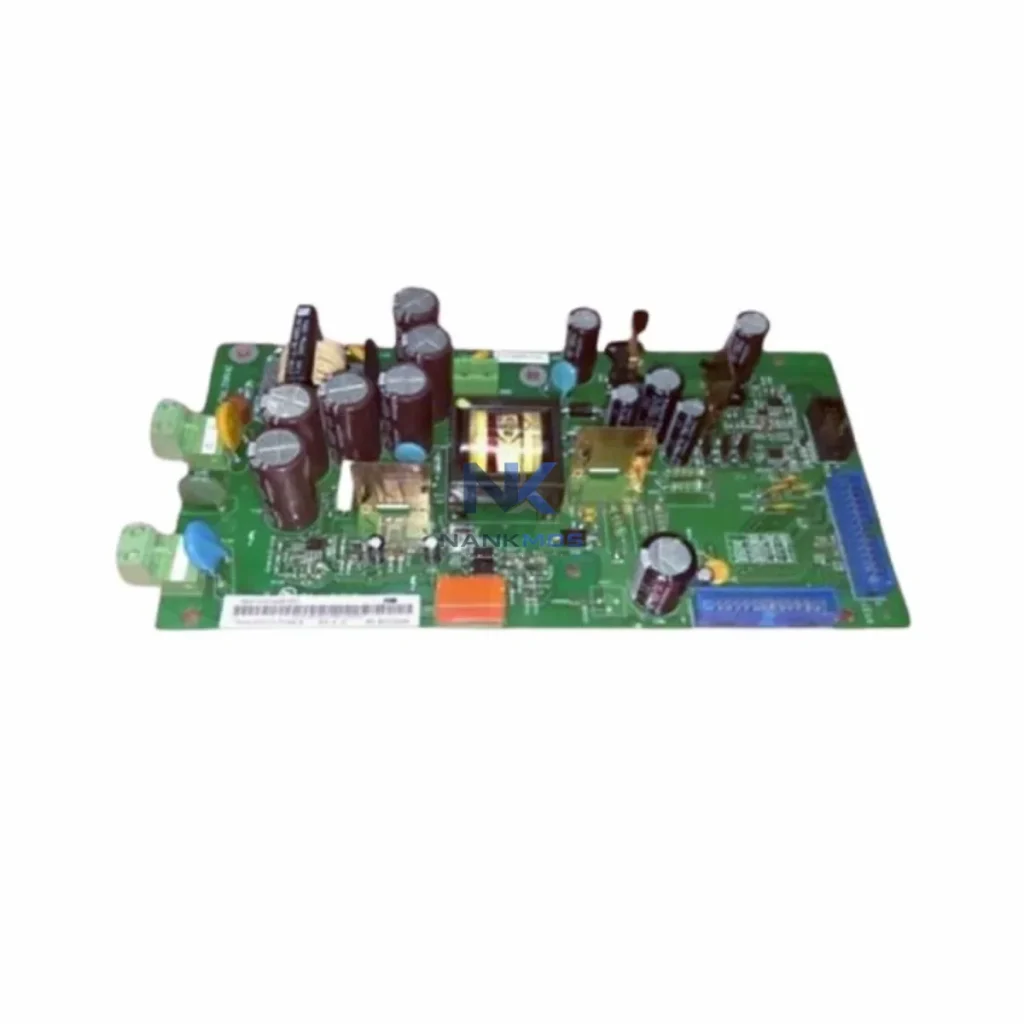

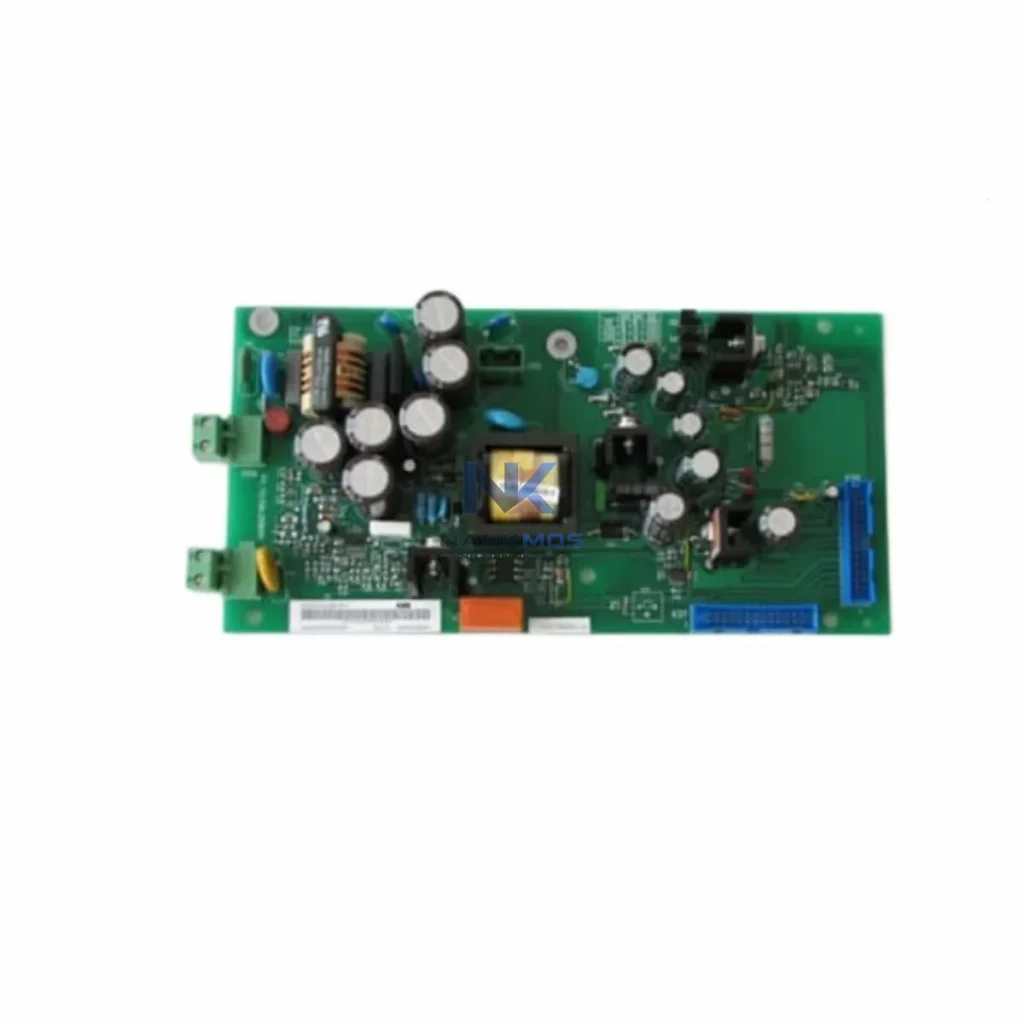

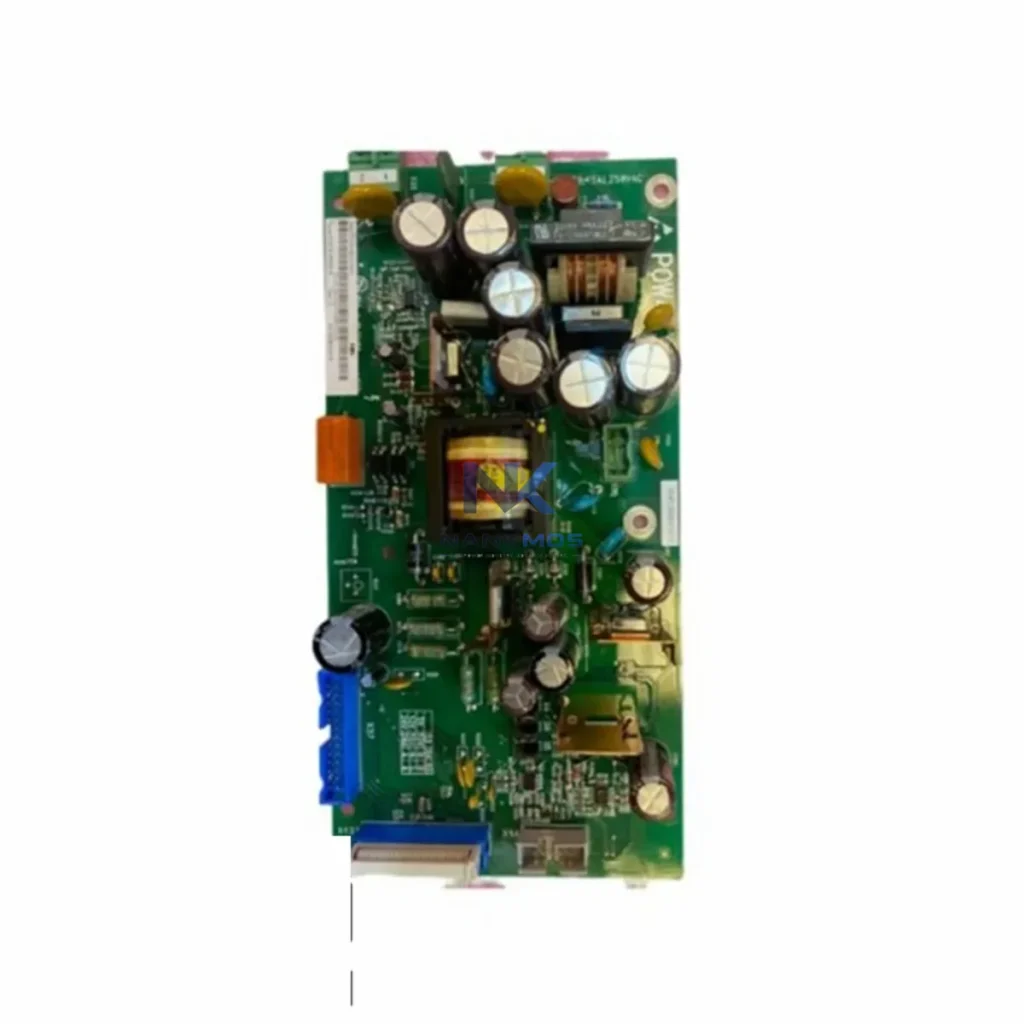

3ADT315100R1001 SDCS-POW-4-COAT Product Description

The ABB 3ADT315100R1001 SDCS-POW-4-COAT is a dedicated auxiliary power supply board engineered for ABB DCS800 series DC drive systems. In modern smart factory environments, stable and protocol-aware power infrastructure is the backbone of every data link — from field-level sensors and actuators through PLC controllers, remote I/O modules, HMI panels, SCADA platforms, and edge gateways up to enterprise MES and ERP systems. The SDCS-POW-4-COAT occupies a critical node in this chain: it delivers conditioned, regulated power to the DCS800 drive control electronics, ensuring that communication interfaces remain live, signal integrity is preserved, and real-time data exchange across the automation network is never interrupted by power instability.

In a typical connected factory deployment, the DCS800 drive — powered and stabilized by the SDCS-POW-4-COAT — interfaces with ABB AC500 PLC controllers via PROFIBUS-DP or Modbus RTU, exchanging speed references, torque feedback, fault codes, and diagnostic registers in real time. Upstream, the AC500 aggregates drive data alongside inputs from ABB RINT-5611C remote I/O modules, Endress+Hauser flow sensors, and Siemens ET 200SP distributed I/O, forwarding structured datasets to an ABB 800xA SCADA/DCS platform or a Wonderware InTouch HMI for operator visualization. The SDCS-POW-4-COAT's role in sustaining the DCS800's internal logic power means that every layer of this data flow — from raw encoder pulses and analog current feedback to high-level SCADA trend archives — depends on its reliable operation.

As factories migrate toward IIoT architectures, edge gateways such as the Moxa MGate MB3170 or Advantech ADAM-3600 are increasingly deployed to bridge legacy serial protocols (RS-485 Modbus RTU) with Ethernet-based networks (PROFINET, EtherNet/IP, OPC-UA). The DCS800 drive, kept operational by the SDCS-POW-4-COAT, feeds real-time motor current, speed, and fault status data to these gateways, which then publish structured JSON or OPC-UA node data to cloud SCADA dashboards or on-premise historians. This enables remote diagnostics — maintenance engineers can monitor drive health, review alarm histories, and initiate controlled shutdowns from any location without physical access to the switchgear room.

Power quality at the drive control board level directly affects communication stability. Voltage sags or ripple on the auxiliary supply can cause PROFIBUS nodes to drop off the network, corrupt Modbus register reads, or trigger spurious fault trips that cascade through the automation system. The SDCS-POW-4-COAT is designed to eliminate these failure modes, providing the DCS800 with a clean, stable auxiliary rail that keeps the drive's SDCS-COM8 communication module, SDCS-IOB-3 I/O board, and SDCS-CON-4 control board fully powered through transient grid events. This resilience is essential in heavy industrial environments — steel mills, paper machines, mining conveyors, and marine propulsion systems — where grid disturbances are frequent and unplanned drive trips carry significant production cost.

From a system integration perspective, the SDCS-POW-4-COAT supports the broader ABB DriveAP and Drive Composer ecosystem. Engineers using ABB Drive Composer Pro can connect to the DCS800 via the DDCS fiber-optic link or USB-to-DDCS adapter, reading parameter sets, fault logs, and real-time signal traces — all of which require the SDCS-POW-4-COAT to be functioning correctly to maintain the drive's internal bus. Paired with ABB's NETA-21 remote monitoring adapter, the DCS800 can publish drive KPIs — energy consumption, running hours, peak current events — directly to ABB Ability cloud analytics, enabling predictive maintenance workflows and reducing unplanned downtime across multi-drive installations.

Every NANKMOS-supplied 3ADT315100R1001 SDCS-POW-4-COAT unit undergoes pre-shipment functional testing, verifying output voltage rails, capacitor health, and connector integrity before dispatch. Units are sourced from verified industrial channels, held in climate-controlled storage, and covered by a 12-month warranty from the date of delivery. Stock is available for immediate quotation and rapid dispatch to support both planned maintenance schedules and emergency breakdown requirements.

A complete smart factory data chain built around the DCS800 and SDCS-POW-4-COAT begins at the motor shaft. Encoders and tachogenerators feed speed and position signals into the DCS800's SDCS-IOB-3 I/O board, while current transformers and voltage transducers provide real-time electrical feedback to the SDCS-CON-4 control board. The SDCS-POW-4-COAT sustains the internal 24 VDC and 5 VDC rails that keep all these boards active and communicating.

At the network layer, the SDCS-COM8 fieldbus adapter — powered via the SDCS-POW-4-COAT's auxiliary rail — connects the DCS800 to the plant PROFIBUS-DP segment, where an ABB AC500 PM591 PLC acts as the DP master. The AC500 cyclically polls the drive for speed actual, current actual, fault word, and status word at 12 ms cycle times, integrating this data with inputs from RINT-5611C remote I/O modules monitoring motor temperature, bearing vibration (via IFM VSE150 vibration sensors), and cooling fan status. The consolidated dataset is forwarded over Industrial Ethernet (PROFINET or EtherNet/IP) to an ABB 800xA operator station, where process engineers monitor drive performance on real-time trend displays and configure alarm thresholds for overcurrent, overspeed, and thermal events.

For sites requiring OPC-UA connectivity, a Moxa MGate MB3170 protocol gateway bridges the DCS800's Modbus RTU port to the plant OPC-UA server, enabling Ignition SCADA or Siemens WinCC to subscribe to drive data tags without fieldbus infrastructure changes. An Advantech ADAM-3600 edge controller can simultaneously log drive data locally and push compressed datasets to cloud historians during network outages, ensuring no data gaps in the production record. The SDCS-POW-4-COAT's stable auxiliary supply is the prerequisite for all of these data paths — without it, the DCS800's communication interfaces go dark, and the entire data chain from motor to cloud is severed.

Industrial sites running legacy DCS800 installations frequently encounter data gaps caused by auxiliary power board degradation. Aging electrolytic capacitors on the SDCS-POW-4 cause voltage ripple that manifests as intermittent PROFIBUS communication errors, Modbus CRC failures, and spurious drive fault trips — all of which create gaps in SCADA historian records and complicate root-cause analysis. Replacing the SDCS-POW-4-COAT with a tested unit immediately restores communication stability and closes these data gaps.

Protocol fragmentation is another common challenge. Sites with mixed ABB DCS800 and third-party drives (Siemens SIMOREG, Eurotherm 590+) often struggle to unify drive data in a single SCADA view. The DCS800's SDCS-COM8 module supports multiple fieldbus protocols, and with the SDCS-POW-4-COAT ensuring stable auxiliary power, engineers can confidently configure the drive for PROFIBUS-DP master/slave topologies or Modbus RTU multi-drop networks without risking communication dropouts caused by power instability.

Remote monitoring gaps are addressed by pairing the DCS800 with ABB's NETA-21 remote monitoring adapter, which requires stable auxiliary power from the SDCS-POW-4-COAT to maintain its Ethernet uplink. With NETA-21 active, maintenance teams receive email and SMS alerts for drive fault events, can remotely reset non-critical faults, and can download fault logs without dispatching field engineers — reducing mean time to repair and improving overall equipment effectiveness across multi-site operations.

Q1: Does the SDCS-POW-4-COAT affect PROFIBUS-DP communication stability in DCS800 drives?Yes. The SDCS-POW-4-COAT powers the SDCS-COM8 fieldbus adapter and the SDCS-CON-4 control board. Any degradation in the auxiliary power supply directly causes PROFIBUS-DP node dropouts, increased bus error rates, and potential loss of cyclic data exchange with the PLC master. A tested replacement unit restores full communication stability.

Q2: Can the DCS800 with SDCS-POW-4-COAT integrate with OPC-UA-based SCADA systems?Yes, via protocol gateways. The DCS800's Modbus RTU or PROFIBUS-DP interface connects to OPC-UA-capable gateways (e.g., Moxa MGate, Kepware KEPServerEX), which expose drive data as OPC-UA nodes consumable by Ignition, Siemens WinCC, or ABB 800xA. Stable auxiliary power from the SDCS-POW-4-COAT is required to keep the drive's communication interface active.

Q3: What remote diagnostic capabilities does the DCS800 support when the SDCS-POW-4-COAT is functioning correctly?With stable auxiliary power, the DCS800 supports remote diagnostics via ABB Drive Composer Pro (parameter read/write, fault log download, signal tracing over DDCS or USB) and via the NETA-21 remote monitoring adapter (Ethernet-based fault alerts, KPI reporting, and remote parameter access). Both tools require the SDCS-POW-4-COAT to maintain the drive's internal logic power.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 3ADT315100R1001 SDCS-POW-4-COAT?Every unit supplied by NANKMOS undergoes pre-shipment functional testing covering output voltage verification, capacitor ESR checks, and connector integrity inspection. All units are covered by a 12-month warranty from the date of delivery. Stock is available for immediate quotation with rapid dispatch to support both planned maintenance and emergency breakdown requirements.
