3AUA0000036521/BDCU-12C Product Description

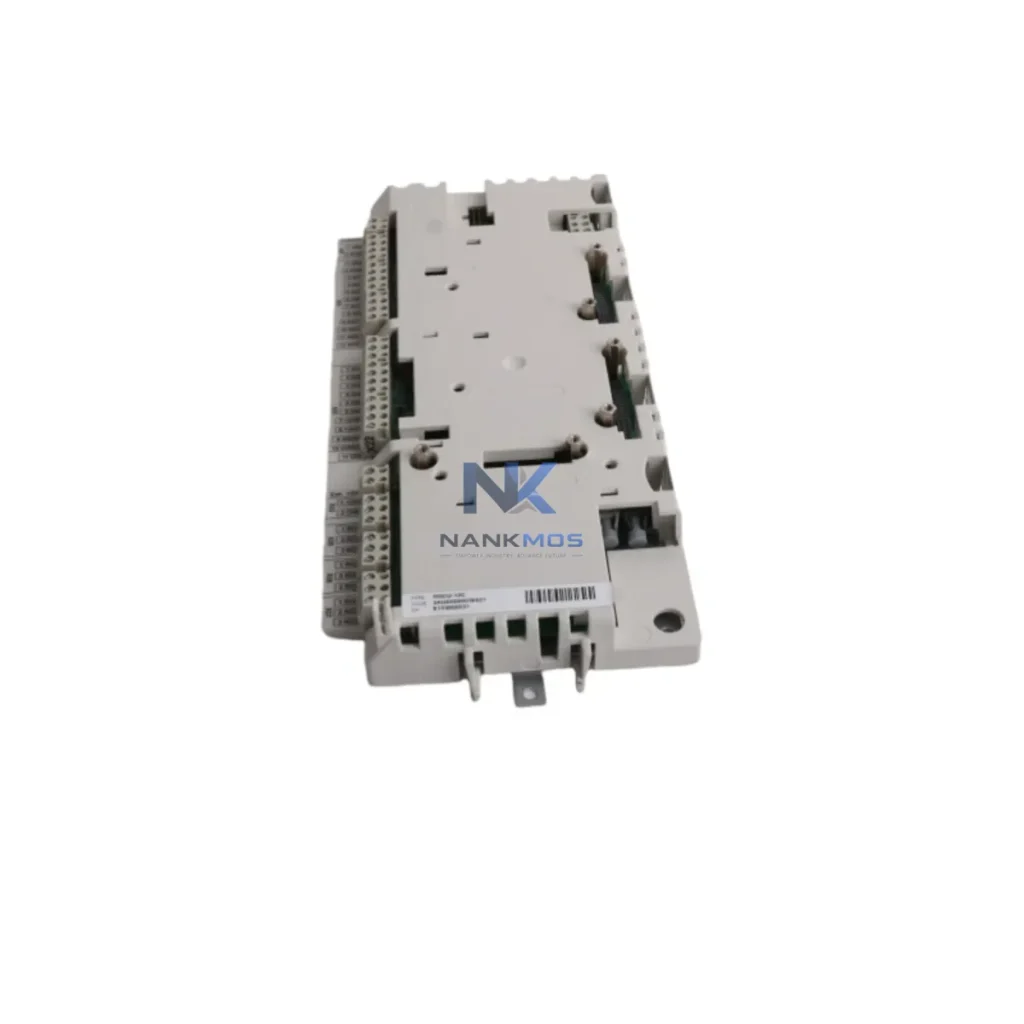

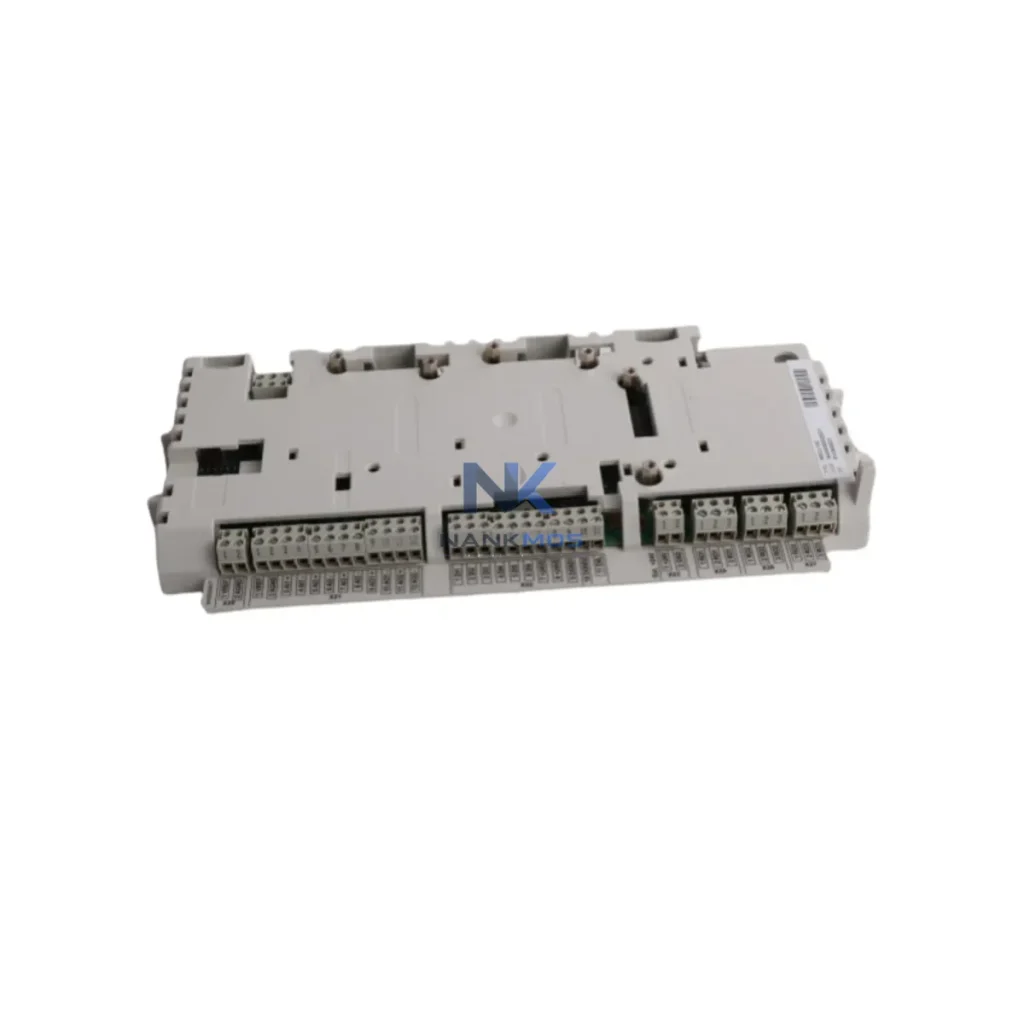

The ABB 3AUA0000036521 BDCU-12C is a dedicated drive control unit engineered for the ACS880 industrial drive platform. As the central intelligence layer of the ACS880 drive architecture, the BDCU-12C manages motor control algorithms, I/O signal processing, fieldbus communication, and real-time diagnostics — making it a foundational component in any high-performance automation system. Whether deployed in standalone drive configurations or integrated into multi-drive cabinet solutions, the BDCU-12C delivers the processing power, communication flexibility, and modular expandability that modern industrial control architectures demand.

In a complete automation architecture, the BDCU-12C occupies the control layer, interfacing directly with the power electronics layer below and the supervisory control layer above. Its role extends beyond simple motor speed regulation: it coordinates signal flow between the drive's I/O terminals, fieldbus adapters, encoder feedback modules, and optional extension modules, ensuring that every layer of the control hierarchy operates with consistent timing and data integrity. This contextual integration capability is what distinguishes the BDCU-12C as a system-level component rather than a standalone device.

For engineers designing or maintaining ACS880-based systems, the BDCU-12C supports a broad range of application scenarios — from single-drive pump and fan control in water treatment facilities to multi-drive coordinated motion in paper mills, steel rolling lines, and marine propulsion systems. Its architecture is designed for long-term reliability, with robust firmware update capability, parameter backup and restore functions, and compatibility with ABB's Drive Composer commissioning tool for streamlined engineering workflows.

The BDCU-12C is designed to function as the nerve center of a fully integrated ACS880 drive system. In a typical automation cabinet, it works in close coordination with the AINT-02C inverter control interface board, which bridges the control unit to the power stage. The APBU-44C pulse encoder interface and FEN-31 absolute encoder module provide high-resolution speed and position feedback, enabling precise closed-loop control for demanding applications such as winders, cranes, and extruders.

On the fieldbus communication layer, the BDCU-12C supports optional adapter modules including the FENA-21 Ethernet/IP and PROFINET adapter, the FPBA-01 PROFIBUS-DP adapter, and the FDNA-01 DeviceNet adapter. These modules slot directly into the BDCU-12C's fieldbus adapter port, enabling seamless integration with Siemens SIMATIC S7, Rockwell ControlLogix, Schneider Modicon M340, or ABB AC500 PLC platforms without requiring additional protocol converters or signal conditioning hardware.

For multi-drive systems, the BDCU-12C supports ABB's Drive-to-Drive Link, allowing master-follower torque sharing and speed synchronization across multiple ACS880 drives without loading the main fieldbus network. This is particularly valuable in coordinated conveyor systems, multi-motor winding lines, and parallel pump stations where tight inter-drive synchronization is required.

Power supply integrity for the control board is maintained through the drive's internal APOW-01C auxiliary power unit, which provides isolated 24 VDC control voltage independent of the main DC bus. This architecture ensures that the BDCU-12C remains operational during main power interruptions, preserving communication links, diagnostic data, and parameter memory — a critical requirement in process industries where unplanned shutdowns carry significant operational cost.

For I/O expansion, the BDCU-12C is compatible with the AIMA-01 I/O extension module and the AIAO-01 analog I/O extension, allowing engineers to add digital inputs, digital outputs, and analog channels without replacing the control unit. This modular expandability supports phased project commissioning and future-proofs the installation against evolving process requirements.

Power Generation and Energy Management: In thermal and hydroelectric power plants, the BDCU-12C controls boiler feed pumps, cooling water circulation fans, and auxiliary drive systems. Its DTC motor control algorithm delivers precise torque response during load transients, reducing mechanical stress on pump impellers and fan blades while maintaining process stability. Integration with plant DCS systems via PROFIBUS or PROFINET ensures that drive status, fault codes, and energy consumption data are available at the control room level in real time.

Petrochemical and Oil & Gas Processing: Compressor drives, pipeline booster pumps, and gas injection systems in petrochemical facilities require drive control units that can operate reliably in high-ambient-temperature environments with minimal maintenance intervention. The BDCU-12C's robust firmware architecture, combined with its parameter backup and restore capability, allows rapid drive replacement without re-commissioning — a significant advantage in facilities where production continuity is paramount.

Water and Wastewater Treatment: Municipal water treatment plants deploy ACS880 drives with BDCU-12C control units on raw water intake pumps, aeration blowers, and sludge transfer pumps. The drive's energy optimization algorithms, accessible through the BDCU-12C's control program, reduce pump energy consumption by 20–40% compared to fixed-speed operation, directly supporting facility sustainability targets and reducing operational expenditure.

Mining and Mineral Processing: Conveyor drives, crusher motors, and mill drives in mining operations demand high starting torque, precise speed control, and fault-tolerant operation. The BDCU-12C's DTC control mode delivers full motor torque from zero speed, enabling reliable starting of heavily loaded conveyors and crushers without mechanical soft-starters. Its diagnostic data logging capability supports predictive maintenance programs, reducing unplanned downtime in remote mining locations.

Marine Propulsion and Offshore: In marine applications, the BDCU-12C is deployed in thruster drives, winch drives, and HVAC fan drives aboard vessels and offshore platforms. Its compatibility with DNV-GL type-approved ACS880 drive frames and support for redundant fieldbus communication ensures that critical propulsion and positioning systems maintain operational integrity in demanding marine environments.

Q1: Is the ABB 3AUA0000036521 BDCU-12C compatible with all ACS880 drive frame sizes, and can it be retrofitted into an existing installation? The BDCU-12C is designed for specific ACS880 frame sizes — compatibility depends on the drive's hardware revision and firmware version. Before retrofitting, verify the drive's type designation and existing control board part number against ABB's ACS880 hardware manual. In most cases, the BDCU-12C can be installed as a direct replacement for a faulty control unit without requiring changes to the power stage, motor cabling, or fieldbus wiring. NANKMOS supplies the BDCU-12C with a pre-shipment functional test report and a 12-Month Warranty, reducing commissioning risk for retrofit projects.

Q2: What fieldbus protocols does the BDCU-12C support, and how does it integrate with third-party PLC platforms? The BDCU-12C supports all ABB ACS880 optional fieldbus adapter modules, including FENA-21 (EtherNet/IP, PROFINET), FPBA-01 (PROFIBUS-DP), FDNA-01 (DeviceNet), FCAN-01 (CANopen), and FMBA-01 (Modbus/TCP). These adapters connect to the BDCU-12C's dedicated fieldbus slot and are configured through the drive's parameter set. Integration with Siemens, Rockwell, Schneider, and ABB PLC platforms is supported via standard GSD, EDS, or GSDML device description files, enabling plug-and-play network integration without custom programming.

Q3: What does the 12-Month Warranty cover, and what is the typical lead time for BDCU-12C supply? NANKMOS provides a 12-Month Warranty on the ABB 3AUA0000036521 BDCU-12C covering manufacturing defects, component failures, and functional performance under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify control board initialization, I/O channel integrity, and communication port operation before dispatch. Stock is maintained for immediate shipment, with typical lead times of 3–7 business days for standard orders. For urgent requirements or bulk procurement, contact NANKMOS directly to confirm availability and arrange expedited logistics.
