ABB 3AUA0000043722/RDCU-12C Drive Control Unit

Product Details

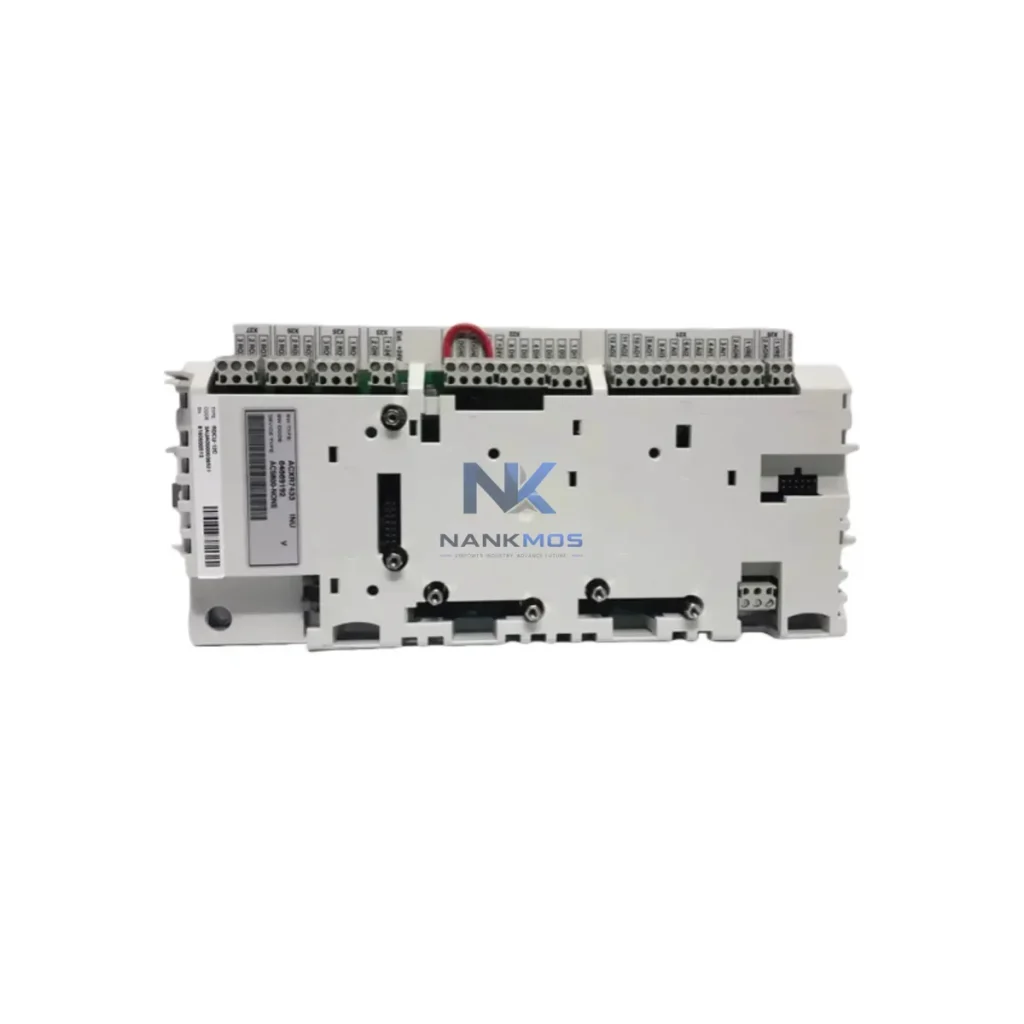

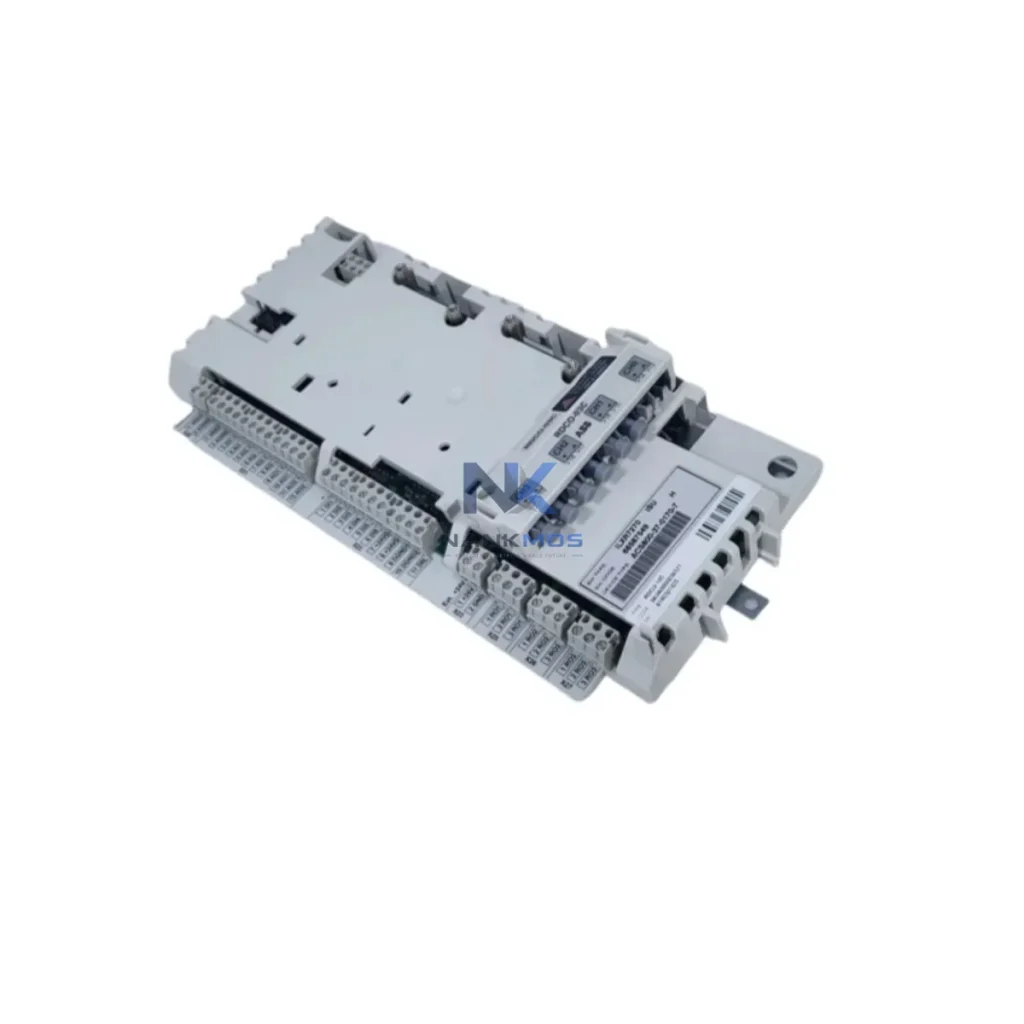

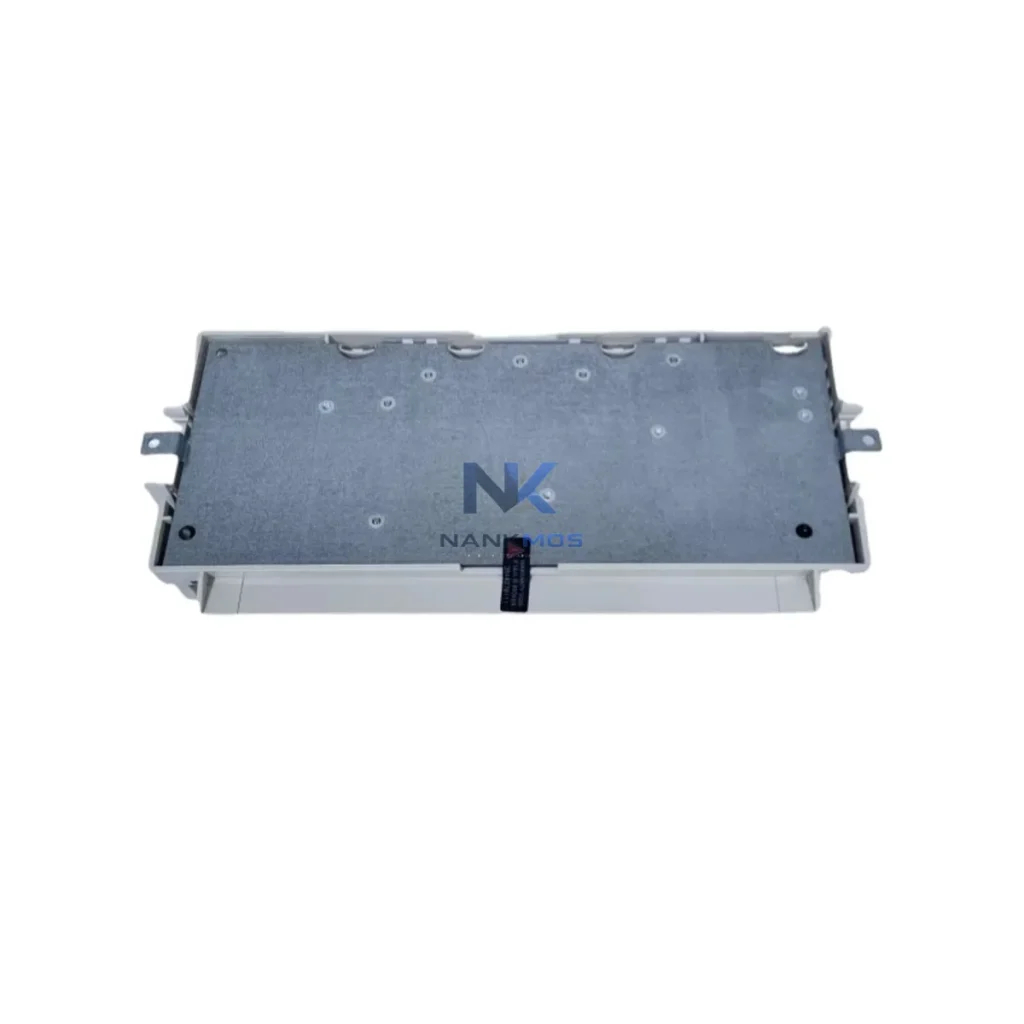

3AUA0000043722/RDCU-12C Product Description

The ABB RDCU-12C (part number 3AUA0000043722) is a dedicated drive control unit engineered for seamless integration within the ACS800 multi-drive and single-drive architecture. As the central intelligence layer of the ACS800 platform, the RDCU-12C governs motor control algorithms, I/O signal processing, fieldbus communication, and adaptive parameter management — forming the backbone of a coherent, scalable automation system. Whether deployed in power generation, petrochemical processing, water treatment, or heavy industrial manufacturing, the RDCU-12C delivers the control precision and system consistency that modern process automation demands.

In a fully realized ACS800 control architecture, the RDCU-12C does not operate in isolation. It functions as the coordinating intelligence between the power electronics layer, the I/O expansion modules, the fieldbus adapter layer, and the supervisory control system. Its design philosophy prioritizes contextual integration — ensuring that every signal path, every parameter exchange, and every diagnostic event is coherent across the entire drive system. This makes the RDCU-12C an indispensable component for engineers who require not just motor control, but full-system observability and long-term maintainability.

The RDCU-12C achieves its full potential when deployed as part of a coordinated ACS800 automation platform. At the control layer, it interfaces directly with the ACS800 power unit, managing DTC-based torque and speed regulation with millisecond-level response. The control unit communicates upstream with SCADA and DCS platforms via fieldbus adapters such as the RPBA-01 PROFIBUS Adapter or the RFBA-01 PROFIBUS DP Adapter, enabling real-time process variable exchange and remote parameter access.

At the I/O layer, the RDCU-12C coordinates with RDIO-01 Digital I/O Extension Modules and RAIO-01 Analog I/O Extension Modules, expanding the drive's signal handling capacity for complex process interlocks, feedback loops, and multi-motor coordination. For applications requiring encoder-based speed feedback, the RTAC-01 Pulse Encoder Interface Module integrates directly with the RDCU-12C to deliver closed-loop vector control with high positional accuracy.

Power supply integrity is maintained through the ACS800's internal DC bus architecture, while auxiliary control power is distributed via the APOW-01 Auxiliary Power Supply Module, ensuring that the RDCU-12C and its peripheral adapters remain operational during main power fluctuations. For multi-drive cabinet installations, the ACS800-07 Multi-Drive Cabinet provides the structural and electrical framework within which multiple RDCU-12C units operate in synchronized coordination, sharing a common DC bus and enabling energy recovery between drive axes.

At the HMI layer, the CDP312R Control Panel provides local parameter access, fault history review, and drive commissioning directly through the RDCU-12C interface. For remote monitoring and diagnostics, the DriveWindow Light 2 PC tool connects via the RDCU-12C's serial communication port, enabling full parameter backup, trend logging, and firmware management without interrupting production. In safety-critical applications, the AGPS-21C Gate Driver Board works in conjunction with the RDCU-12C to enforce Safe Torque Off (STO) functionality, meeting IEC 61508 SIL 2 requirements for machinery protection.

In power generation facilities, the RDCU-12C governs boiler feed pump drives, cooling water circulation systems, and induced draft fan controls, where precise torque management and fieldbus integration with plant DCS are non-negotiable. The unit's DTC algorithm ensures smooth motor acceleration and deceleration, reducing mechanical stress on pump impellers and fan blades while maintaining process stability during load transients.

In petrochemical and oil & gas processing plants, the RDCU-12C is deployed in compressor drive systems, pipeline booster stations, and crude oil transfer pump applications. Its robust fieldbus communication capability allows seamless integration with Honeywell, Emerson, or Siemens DCS platforms via PROFIBUS-DP, enabling centralized process control and remote fault diagnostics without requiring local operator intervention.

In water and wastewater treatment infrastructure, the RDCU-12C manages variable-speed pump drives for raw water intake, filtration backwash cycles, and effluent discharge systems. Its adaptive parameter management ensures energy-efficient operation across varying flow demand profiles, while the integrated fault logging capability supports predictive maintenance scheduling and regulatory compliance reporting.

In mining and mineral processing operations, the RDCU-12C controls conveyor belt drives, crusher motor systems, and slurry pump applications under high-duty-cycle conditions. The unit's thermal management algorithms and real-time current monitoring protect motor assets from overload events, reducing unplanned downtime in remote or difficult-to-access installations.

In marine propulsion and vessel automation, the RDCU-12C is integrated into thruster drive systems and auxiliary machinery controls, where compact form factor, reliable fieldbus communication, and resistance to vibration and humidity are essential for continuous seagoing operation.

Q1: Is the RDCU-12C compatible with all ACS800 drive frame sizes, and can it be retrofitted into existing installations? The RDCU-12C is designed for specific ACS800 frame configurations. Compatibility depends on the drive frame size and firmware revision of the existing installation. Before retrofitting, verify the drive's hardware revision against ABB's compatibility matrix. In most cases, the RDCU-12C can be installed as a direct replacement for the original control unit, retaining existing parameter sets via CDP312R panel backup or DriveWindow Light 2 export. Our technical team can assist with pre-installation compatibility verification upon request.

Q2: What fieldbus protocols does the RDCU-12C support, and how does it integrate with existing SCADA or DCS architectures? The RDCU-12C supports fieldbus communication via plug-in adapter modules installed in the drive's option slot. Supported protocols include PROFIBUS-DP (RPBA-01), DeviceNet (RDNA-01), CANopen (RCAN-01), and Modbus RTU (RMBA-01). Integration with SCADA or DCS platforms is achieved through standard cyclic and acyclic data exchange, with process data objects (PDOs) configurable via the drive's parameter set. The RDCU-12C's fieldbus interface supports both speed/torque reference transmission and real-time status feedback, enabling full supervisory control from the plant automation layer.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed on the RDCU-12C? Every RDCU-12C unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each unit undergoes functional verification testing including power-on self-test, I/O signal integrity check, and communication port validation. Units are packaged in anti-static protective enclosures with humidity indicators to ensure safe transit. In the event of a warranty claim, NANKMOS provides direct technical support and replacement coordination to minimize system downtime. Contact [email protected] or +86 18359268345 for warranty registration and technical assistance.
