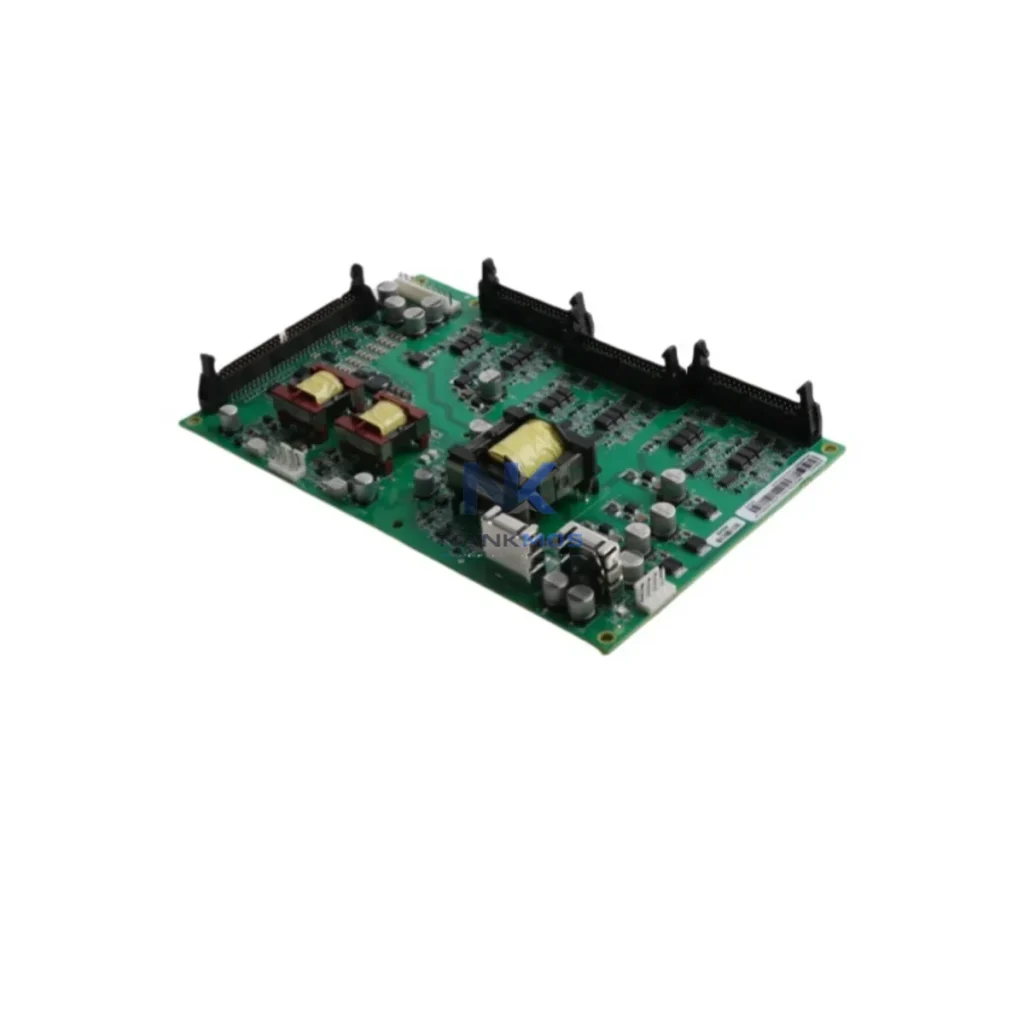

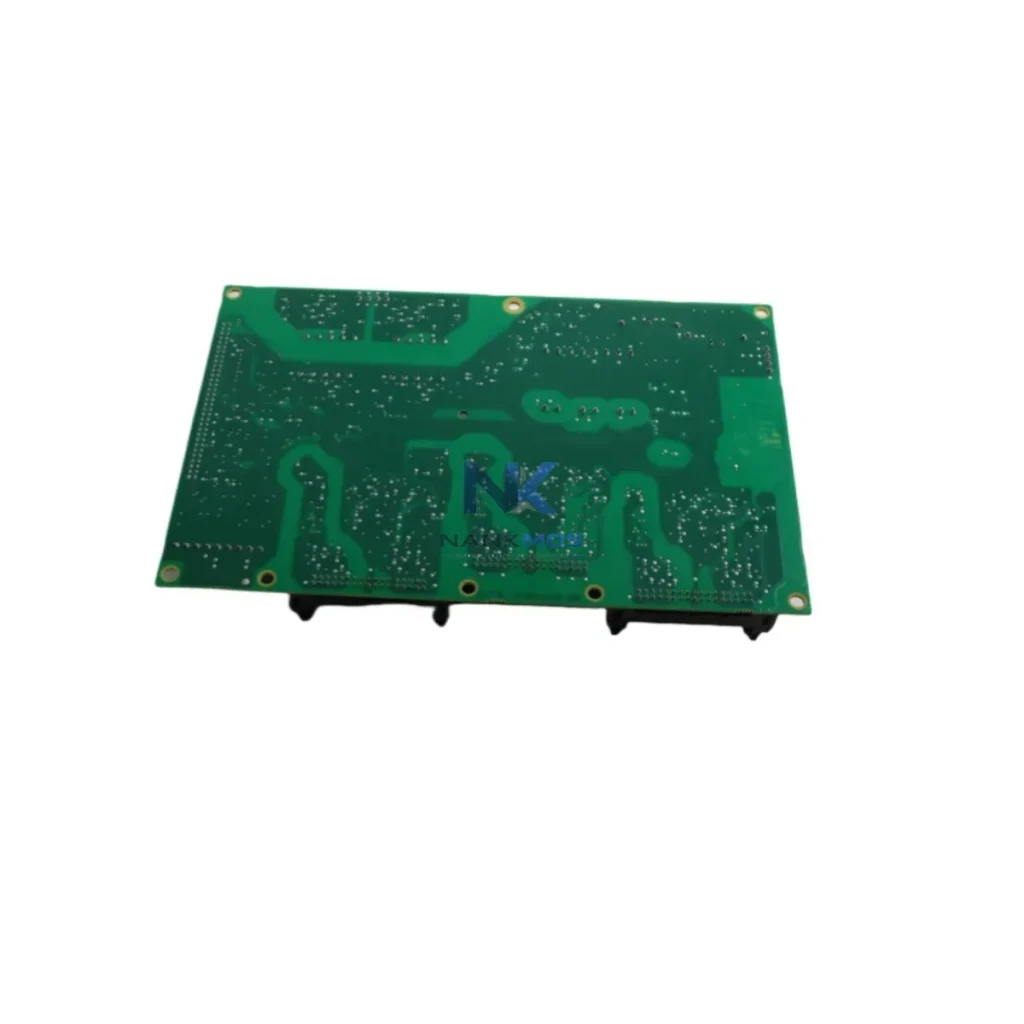

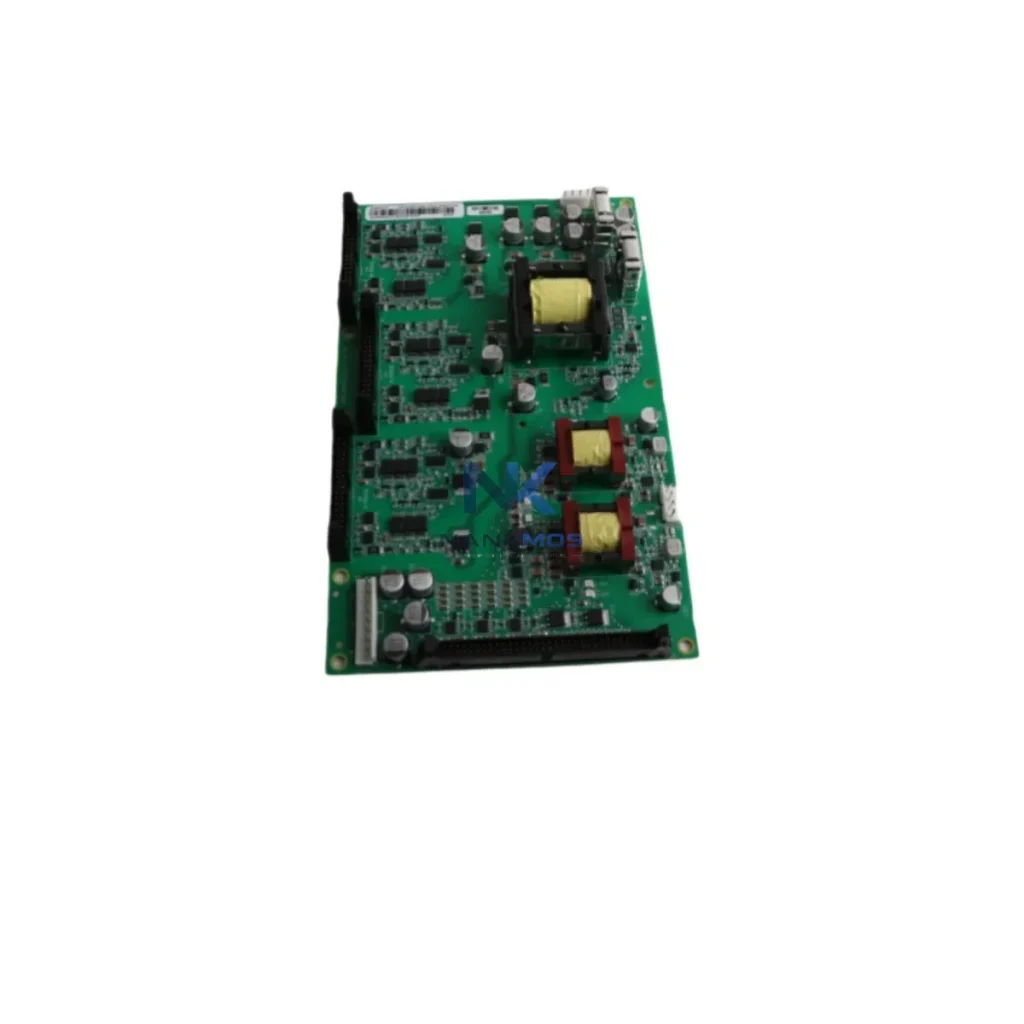

ABB 3AUA0000074145/BGDR-01C Gate Driver Board

Product Details

3AUA0000074145/BGDR-01C Product Description

The ABB BGDR-01C (3AUA0000074145) is a precision gate driver board engineered for the ACS800 series variable frequency drive platform. In modern smart factory environments, the gate driver is not merely a power switching component — it is a critical node in the industrial data chain that connects field-level drive hardware to upper-layer control, monitoring, and diagnostic systems. By ensuring reliable IGBT switching, fault signal propagation, and drive-level status feedback, the BGDR-01C enables seamless integration between the ACS800 drive and the broader automation network, including PLC controllers, SCADA platforms, HMI terminals, and remote diagnostic gateways.

In a connected factory architecture, the ACS800 VFD equipped with the BGDR-01C gate driver board communicates drive health data — including overcurrent events, thermal warnings, and switching fault codes — upstream to the control layer. This data is captured by the drive's RDCO-03 communication module or RDNA-01 DeviceNet adapter, which translates drive-level signals into standard industrial protocols such as PROFIBUS-DP, Modbus RTU, or DeviceNet. From there, the data flows into the plant's PLC backbone — typically an ABB AC500 or Allen-Bradley ControlLogix system — where logic controllers process real-time drive status and issue corrective commands. The entire signal path, from gate switching event to PLC response, is completed within milliseconds, enabling closed-loop drive protection and automated fault recovery without operator intervention.

At the SCADA and HMI layer, drive data aggregated from multiple ACS800 units — each relying on a properly functioning BGDR-01C gate driver — is visualized on operator dashboards built on platforms such as ABB System 800xA, Wonderware InTouch, or Ignition SCADA. Operators can monitor real-time motor speed, torque output, DC bus voltage, and IGBT junction temperature trends across an entire production line. When the BGDR-01C detects an abnormal switching condition, the fault signal propagates through the drive's internal bus, is encoded by the communication adapter, and appears as an alarm on the SCADA display within one scan cycle — typically under 100 milliseconds on a well-configured PROFIBUS network.

For facilities deploying edge computing infrastructure, the ACS800 drive's communication data can be routed through an industrial edge gateway — such as the ABB Edge Connect or a Moxa MGate protocol converter — which aggregates drive data from multiple field nodes and forwards it to cloud-based analytics platforms or on-premise MES systems via OPC-UA or MQTT. This architecture supports predictive maintenance workflows: historical IGBT switching data, fault frequency trends, and thermal cycle counts collected from the BGDR-01C's operating environment are analyzed to predict remaining useful life and schedule proactive maintenance before unplanned downtime occurs.

In remote monitoring scenarios — common in water treatment plants, offshore platforms, and unmanned substations — the BGDR-01C's fault output is a primary data source for remote diagnostic systems. Drive fault codes are transmitted via the plant's industrial Ethernet backbone, passed through managed industrial switches such as the Hirschmann RS20 or Phoenix Contact FL SWITCH series, and delivered to remote operations centers where engineers can diagnose drive faults, review switching waveform logs, and authorize maintenance dispatch without on-site presence. This capability directly reduces mean time to repair (MTTR) and supports 24/7 operational continuity for critical rotating equipment.

A complete smart factory data flow built around the ABB BGDR-01C begins at the IGBT switching layer and extends to enterprise-level data systems. At the field level, the BGDR-01C drives the IGBT modules within the ACS800 power unit, generating real-time switching signals that are monitored by the drive's internal control board — the AINT-14C or AINT-02C — which processes gate feedback and fault conditions. The AINT board communicates with the drive's main control unit via the internal DDCS fiber optic bus, ensuring high-speed, noise-immune data transfer within the drive cabinet.

The drive's communication adapter — such as the RDCO-03 DDCS-to-PROFIBUS converter or the RDNA-01 DeviceNet adapter — bridges the ACS800's internal data bus to the plant's fieldbus network. On the PROFIBUS segment, the ACS800 appears as a standard slave device, reporting drive status words, fault codes, and process variables to the PLC master — typically an ABB AC500 PM591 or Siemens S7-300 controller. The PLC processes this data in real time, executing speed reference commands, enabling fault reset sequences, and logging drive events to the plant historian.

At the network layer, managed industrial switches — such as the Phoenix Contact FL SWITCH 2008 or Hirschmann RS20 — segment the PROFIBUS and Industrial Ethernet traffic, ensuring deterministic communication latency and network redundancy. Remote I/O modules, such as the ABB CI854A PROFIBUS DP/V1 interface, extend the control network to distributed field panels, allowing additional sensors, temperature transmitters, and vibration monitors to share the same communication backbone as the ACS800 drive.

HMI terminals — running on ABB CP600 panels or Siemens TP1200 Comfort displays — present real-time drive data to floor operators, including motor current, output frequency, DC bus voltage, and active fault codes sourced directly from the BGDR-01C's switching status. At the SCADA level, platforms such as ABB System 800xA or Ignition by Inductive Automation aggregate data from all ACS800 drives on the network, enabling trend analysis, alarm management, and production reporting. Edge gateways — such as the Moxa MGate MB3480 — convert Modbus RTU drive data to OPC-UA for cloud analytics pipelines, completing the data chain from gate driver to enterprise dashboard.

Many industrial facilities operating ACS800 drives face persistent data visibility challenges: drive fault events are logged locally but never reach the SCADA system; protocol mismatches between legacy Modbus RTU drives and modern PROFINET controllers create data islands; and remote sites lack the network infrastructure to support real-time drive monitoring. The ABB BGDR-01C addresses these challenges at the hardware foundation level — by ensuring reliable gate switching and accurate fault signal generation, it provides the clean, consistent data that upstream communication systems depend on.

When a gate driver board fails or degrades, the fault signals it generates become unreliable, causing false alarms, missed fault events, and corrupted drive status data in the SCADA historian. Replacing a degraded gate driver with a verified BGDR-01C (3AUA0000074145) restores data integrity across the entire drive communication chain. For sites implementing protocol unification projects — migrating from PROFIBUS-DP to PROFINET or adding Modbus TCP gateways — a properly functioning gate driver board is a prerequisite for stable drive integration, as communication adapters rely on accurate drive status data to report correctly to the new network layer.

Remote monitoring deployments benefit directly from gate driver reliability: when the BGDR-01C operates within specification, remote diagnostic systems receive consistent, interpretable fault data, enabling engineers to distinguish between transient overcurrent events and progressive IGBT degradation without dispatching on-site technicians. This capability is particularly valuable in unmanned substations, offshore pump stations, and remote mining conveyors where site access is costly and time-consuming. Every BGDR-01C shipped by NANKMOS is pre-shipment tested and covered by a 12-month warranty, ensuring that the gate driver performs reliably from day one of installation.

Q1: Does the ABB BGDR-01C support direct connection to PROFIBUS or Modbus networks? The BGDR-01C is an internal gate driver board and does not connect directly to fieldbus networks. Industrial protocol connectivity for the ACS800 is provided by dedicated communication adapters such as the RDCO-03 (PROFIBUS-DP) or RDNA-01 (DeviceNet), which interface with the drive's DDCS fiber optic bus. The BGDR-01C provides the reliable switching and fault signal data that these adapters depend on for accurate drive status reporting.

Q2: How does a faulty gate driver board affect SCADA data quality? A degraded or failed BGDR-01C can generate spurious fault signals, missed overcurrent events, or incorrect switching status data. These errors propagate through the drive's communication adapter to the PLC and SCADA system, resulting in false alarms, corrupted historian data, and unreliable trend analysis. Replacing the gate driver with a verified unit restores data integrity across the entire monitoring chain.

Q3: What is the communication latency impact of the gate driver on drive network response time? The BGDR-01C operates at the hardware switching layer with microsecond-level response times. Fault signal propagation from the gate driver to the drive's control board occurs within the drive's internal DDCS cycle, typically under 1 millisecond. End-to-end latency from fault event to SCADA alarm display depends on the fieldbus scan rate — typically 10–100 milliseconds on PROFIBUS-DP at 1.5 Mbps — and is not limited by the gate driver itself.

Q4: Is the BGDR-01C pre-shipment tested and does it carry a warranty? Yes. Every ABB BGDR-01C (3AUA0000074145) supplied by NANKMOS undergoes functional pre-shipment testing to verify switching performance and fault signal output before dispatch. All units are covered by a 12-month warranty from the date of shipment. In-stock units are available for immediate dispatch to support urgent maintenance and drive commissioning schedules.
