ABB 3AUA0000110431 Control Unit Module

Product Details

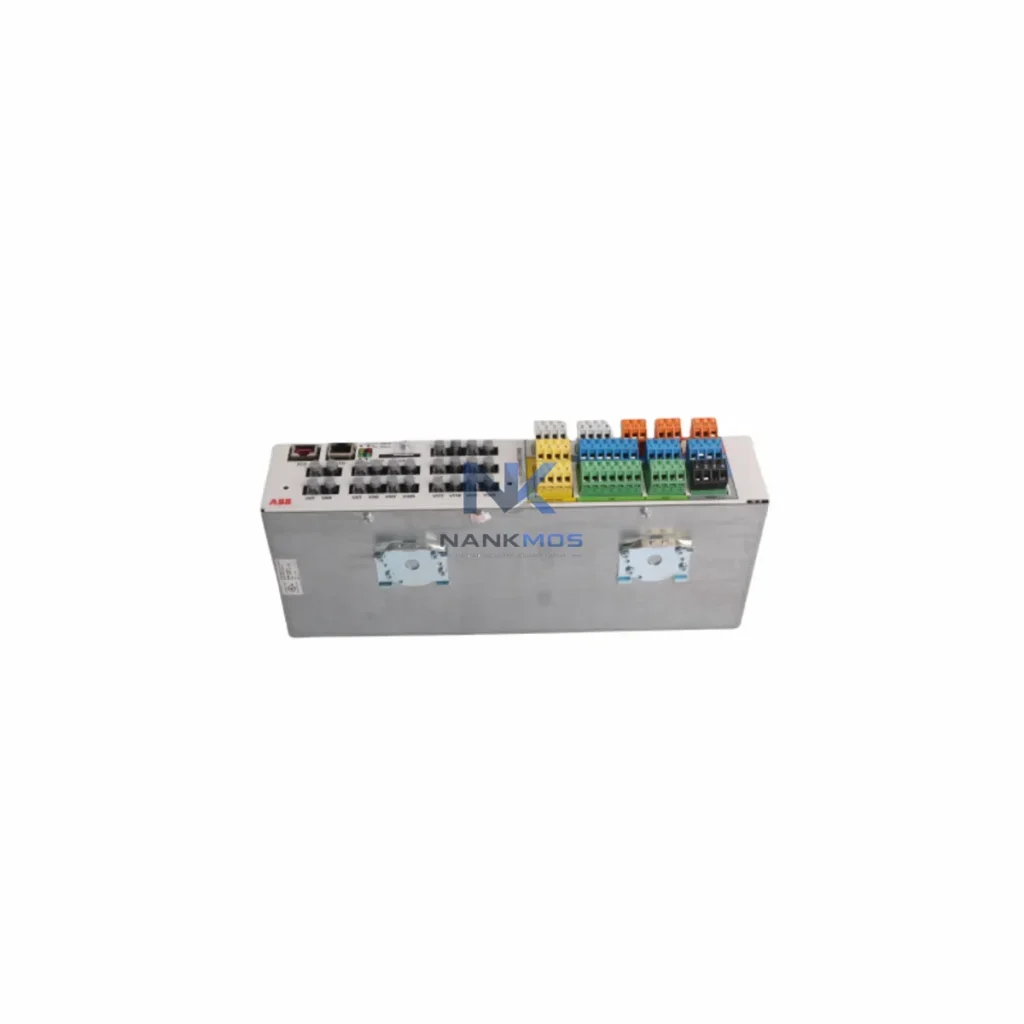

3AUA0000110431 Product Description

The ABB BCU-22 (part number 3AUA0000110431) is a dedicated control unit module engineered for the ACS880 industrial drive platform. Designed to deliver precise motor control, real-time energy monitoring, and adaptive load management, the BCU-22 sits at the heart of energy-efficient production line architectures. Whether deployed in continuous process industries, discrete manufacturing, or heavy-duty automation environments, this control unit enables operators to reduce unnecessary energy consumption, stabilize drive performance, and extend equipment service life — all within a compact, DIN-rail-compatible form factor.

As industrial facilities face increasing pressure to reduce carbon footprint and operating costs, the BCU-22 provides the intelligence layer that connects drive hardware to higher-level energy management systems. Its compatibility with the ACS880 drive family — including multi-drive cabinet configurations — makes it a versatile choice for engineers designing scalable, energy-aware automation architectures.

The BCU-22 does not operate in isolation — its value is fully realized when integrated into a coordinated, power-aware automation architecture. In a typical ACS880-based drive system, the BCU-22 communicates with the drive's power unit via the DDCS fiber optic link, enabling high-speed torque and flux reference exchange that underpins ABB's Direct Torque Control (DTC) algorithm. This eliminates the energy losses associated with conventional V/Hz control by continuously matching motor excitation to actual load demand.

At the field level, the BCU-22 interfaces with I/O extension modules such as the FIO-01 or FAIO-01 to receive analog process signals — flow rates, pressure readings, or temperature feedback — that inform dynamic speed setpoint adjustments. These signals, sourced from field-mounted sensors including pressure transmitters, flow meters, and temperature probes, allow the drive system to respond to real process conditions rather than running at fixed speed, directly reducing energy waste during partial-load cycles.

For supervisory control, the BCU-22 connects to ABB AC500 PLCs or third-party PLC platforms via PROFIBUS, PROFINET, or EtherNet/IP fieldbus adapters (FPBA-01, FENA-21), enabling the PLC to issue speed references, read drive status words, and trigger energy-saving operating modes such as sleep/wake or energy optimizer functions. This integration is equally compatible with Siemens S7 series PLCs and Rockwell ControlLogix platforms when the appropriate fieldbus adapter is fitted.

At the HMI layer, operators can monitor real-time power consumption, efficiency curves, and fault history through ABB Panel Builder-compatible HMI terminals or third-party SCADA systems. The BCU-22 exposes drive parameters and energy counters via the fieldbus, making it straightforward to integrate into plant-wide energy management systems (EMS) or ISO 50001-aligned monitoring platforms. Power monitoring modules such as the ABB B23 or CM-series energy meters can be deployed alongside the drive to provide sub-metering data that validates energy savings at the circuit level.

In multi-drive cabinet configurations, the BCU-22 acts as a drive-level intelligence node within a DDCS master-follower topology, where an RDCU or RMIO master controller coordinates multiple BCU-22 units across a common DC bus. This architecture is common in winder, unwinder, and multi-motor conveyor applications where synchronized torque sharing and regenerative braking — feeding energy back to the DC bus rather than dissipating it as heat — deliver measurable reductions in total system energy consumption.

In production line applications, uncontrolled motor starts and fixed-speed operation are among the largest sources of avoidable energy waste. The BCU-22, through its DTC-based control of the ACS880 drive, eliminates both problems. Soft-start ramp profiles reduce inrush current and mechanical stress on couplings and gearboxes, while continuous speed modulation ensures the motor delivers only the torque the process actually requires at any given moment.

For pump and fan applications — which account for a significant share of industrial electricity consumption — the BCU-22 enables quadratic torque reduction at partial loads. A pump running at 80% of rated speed consumes approximately 51% of the energy it would use at full speed, following the affinity laws. The BCU-22's load curve monitoring and energy optimizer function automate this adjustment, removing the need for manual setpoint intervention and ensuring consistent energy performance across shifts and operators.

Thermal load management is another key benefit. By eliminating over-excitation and reducing harmonic distortion through DTC, the BCU-22 lowers heat generation in both the motor and the drive cabinet. This reduces the duty cycle of cooling systems — fans, heat exchangers, and air conditioning units — contributing to secondary energy savings that are often overlooked in simple drive-level efficiency calculations. Lower operating temperatures also extend insulation life in motor windings and reduce the frequency of thermal-related faults, directly improving equipment uptime and reducing unplanned maintenance costs.

From a production rhythm perspective, the BCU-22 supports consistent line throughput by maintaining tight speed and torque regulation even under variable load conditions. In conveyor and material handling systems, this translates to reduced product damage, fewer jam-related stoppages, and more predictable cycle times. Predictive maintenance is further supported by the drive's built-in load history logging, which can be read by SCADA or MES systems to identify developing mechanical faults — bearing wear, coupling misalignment, or pump cavitation — before they cause unplanned downtime.

Every unit of ABB 3AUA0000110431 supplied by NANKMOS is drawn from verified inventory, subjected to pre-shipment functional testing, and covered by a 12-Month Warranty from the date of shipment. This ensures that the energy performance and reliability characteristics described above are delivered from day one of installation.

Q1: What measurable energy savings can the BCU-22 deliver in a pump or fan application? In variable-torque applications such as centrifugal pumps and fans, the BCU-22 — controlling the ACS880 drive — can reduce motor energy consumption by 20–50% compared to fixed-speed operation with a throttling valve or damper. Actual savings depend on the load profile, but the affinity law relationship between speed and power means even modest speed reductions yield significant energy reductions. The drive's built-in energy calculator provides real-time kWh savings data for reporting and verification.

Q2: Is the BCU-22 (3AUA0000110431) compatible with my existing PLC and SCADA infrastructure? Yes. The BCU-22 supports a wide range of fieldbus protocols through plug-in adapter modules, including PROFIBUS DP (FPBA-01), PROFINET IO (FENA-21), EtherNet/IP (FENA-21), Modbus RTU (FMBA-01), and DeviceNet (FDNA-01). This makes it compatible with PLC platforms from ABB, Siemens, Rockwell Automation, Schneider Electric, and others. For SCADA integration, standard OPC-UA or Modbus TCP gateways can be used to expose drive data to supervisory systems.

Q3: Can the BCU-22 replace an older BCU-12 or RMIO board in an existing ACS880 installation? The BCU-22 is the designated replacement for earlier ACS880 control boards in compatible drive frames. Before substitution, verify the drive firmware version and hardware revision to confirm compatibility. NANKMOS technical support can assist with cross-reference validation. All replacement units are pre-tested prior to shipment, and the 12-Month Warranty covers the replacement unit from the date of delivery.

Q4: What does the 12-Month Warranty cover, and what is the stock availability? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside specified environmental limits. NANKMOS maintains stock of the ABB 3AUA0000110431 BCU-22 and can confirm current availability and lead time upon inquiry. Pre-shipment testing is performed on every unit to verify control logic, communication interfaces, and I/O functionality before dispatch.
