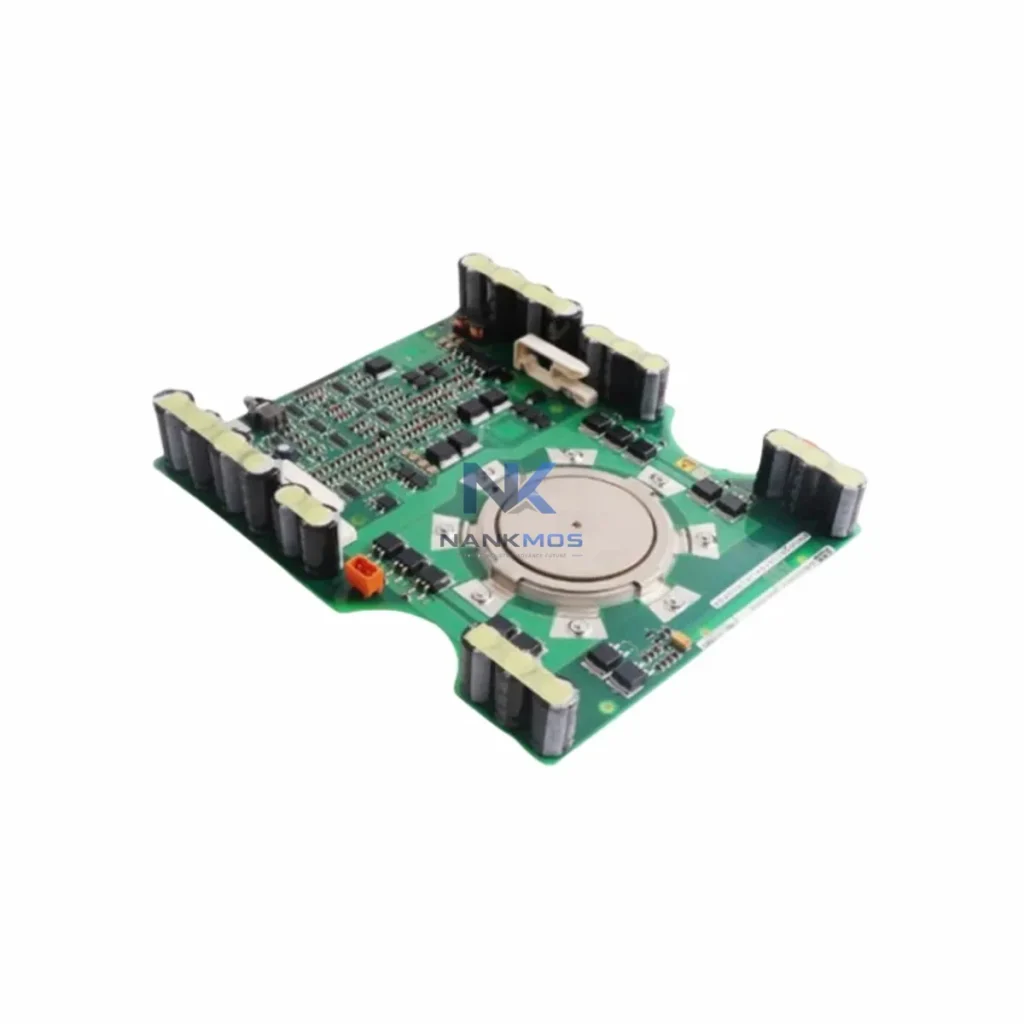

ABB 3BHB003230R0101 5SXE05-0152 IGBT Gate Drive Board

Product Details

3BHB003230R0101 5SXE05-0152 Product Description

The ABB 3BHB003230R0101 (5SXE05-0152) is a precision-engineered IGBT Gate Drive Board designed for deployment within ABB's medium-voltage drive and power conversion platforms. As a core switching control component, this gate drive board governs the precise turn-on and turn-off timing of IGBT power modules, directly determining inverter efficiency, thermal stability, and fault response speed across the full control architecture. In high-demand industrial environments — including steel rolling mills, petrochemical compressor drives, offshore platform power systems, and large-scale water treatment pump stations — the integrity of the gate drive layer is non-negotiable. The 3BHB003230R0101 5SXE05-0152 delivers the signal fidelity, isolation performance, and protection logic required to sustain continuous operation under demanding electrical and thermal conditions.

At NANKMOS, every ABB 3BHB003230R0101 5SXE05-0152 unit is sourced through verified industrial supply channels, subjected to pre-shipment functional testing, and backed by a 12-Month Warranty. Global inventory availability ensures rapid deployment for both planned maintenance cycles and emergency replacement scenarios.

The ABB 3BHB003230R0101 5SXE05-0152 does not operate in isolation — it functions as a precision switching interface within a layered automation architecture where every module's performance is interdependent. Understanding its system context is essential for correct specification, commissioning, and long-term maintenance planning.

At the power conversion layer, the gate drive board interfaces directly with ABB's 5SNA or 5SNE series IGBT power modules, which form the inverter bridge within ACS 1000 and ACS 6000 medium-voltage drives. The gate drive board's desaturation detection and active clamping functions protect these high-value IGBT stacks from catastrophic overcurrent events, preserving the integrity of the entire power stage.

At the control layer, the gate drive board receives switching commands from the ABB RDCU (Drive Control Unit) or APBU (Pulse Encoder Interface Unit) via fiber optic links. This fiber-based signal path eliminates ground loop interference and ensures deterministic switching timing even in electrically noisy industrial environments. The RDCU coordinates modulation strategy, speed reference, and fault management across the full drive system, while the gate drive board executes switching commands with microsecond-level precision.

At the communication layer, ABB drives equipped with RPBA-01 (PROFIBUS), RETA-01 (Ethernet/IP), or RDNA-01 (DeviceNet) adapter modules integrate the drive into plant-wide SCADA and DCS platforms. The gate drive board's fault status signals propagate upward through the drive's internal diagnostics bus to these communication adapters, enabling real-time fault visibility at the control room level without requiring manual panel inspection.

At the power supply layer, the gate drive board's auxiliary power is typically derived from the drive's internal APOW (Auxiliary Power Supply) module. Stable auxiliary voltage is critical — any ripple or dropout at the gate drive power input can trigger spurious UVLO events, causing unplanned drive trips. Ensuring the APOW module is within specification is a prerequisite for reliable gate drive operation.

At the I/O and signal conditioning layer, analog and digital I/O modules such as the RAIO (Analog I/O Extension) and RDIO (Digital I/O Extension) provide process feedback signals — speed references, torque limits, and external fault inputs — that the drive control unit uses to modulate switching patterns delivered to the gate drive board. Signal integrity at this layer directly influences the quality of gate switching commands.

At the protection and safety layer, the gate drive board's built-in short-circuit and desaturation protection functions complement external protection devices including ABB's SACE Emax or Tmax series circuit breakers and motor protection relays. A coordinated protection philosophy — where the gate drive board handles sub-millisecond IGBT-level protection and external breakers handle system-level fault isolation — is essential for safe and reliable drive operation.

At the HMI and diagnostics layer, ABB's ACS control panels (CDP312R or ACS-CP-C) provide local parameter access and fault history retrieval. Fault codes generated by the gate drive board — including DESAT faults, UVLO events, and fiber link errors — are logged in the drive's fault buffer and accessible via the control panel or remote DRIVEWINDOW software, enabling rapid root-cause analysis without drive disassembly.

At the maintenance and lifecycle layer, planned replacement of gate drive boards during scheduled outages — rather than reactive replacement after failure — is the recommended maintenance strategy for high-availability installations. NANKMOS maintains in-stock inventory of the 3BHB003230R0101 5SXE05-0152 to support both planned maintenance programs and emergency replacement requirements, with global shipping capability to minimize unplanned downtime.

Steel and Metals Processing: In rolling mill main drive systems, medium-voltage drives equipped with the ABB 3BHB003230R0101 5SXE05-0152 gate drive board control the high-torque motors driving roughing and finishing stands. The gate drive board's precise switching control enables smooth torque transitions during strip threading and speed changes, reducing mechanical stress on the rolling mill drivetrain and improving product dimensional consistency.

Petrochemical and Refinery Applications: Compressor and pump drives in petrochemical plants operate continuously under variable load conditions. The gate drive board's robust fault protection — including desaturation detection and active clamping — provides the first line of defense against IGBT failure in these critical, often unspared drive systems. Reliable gate drive performance directly supports process continuity and safety system integrity.

Power Generation and Utilities: In variable-speed hydro turbine governors and wind turbine pitch control systems, ABB medium-voltage drives rely on gate drive boards to deliver precise frequency and voltage control. The 3BHB003230R0101 5SXE05-0152 supports the high switching frequency and low harmonic distortion requirements of grid-connected power conversion applications.

Water and Wastewater Treatment: Large pump station drives in municipal water supply and wastewater treatment facilities operate in demanding environments with high humidity and variable ambient temperatures. The gate drive board's galvanic isolation and robust thermal design support reliable operation across extended maintenance intervals, reducing the operational burden on facility maintenance teams.

Mining and Mineral Processing: Conveyor drives, crusher drives, and mill drives in mining operations subject drive components to high vibration, dust ingress, and wide temperature swings. The ABB ACS 6000 platform, equipped with 3BHB003230R0101 5SXE05-0152 gate drive boards, is widely deployed in these applications for its proven reliability and comprehensive fault diagnostics capability.

Marine and Offshore: Offshore platform topside drives and marine propulsion systems require drive components certified for marine environmental conditions. ABB's medium-voltage drive platforms, including gate drive boards of this series, are deployed in offshore applications where component reliability and supply chain availability are critical operational considerations.

Q1: Is the ABB 3BHB003230R0101 5SXE05-0152 compatible with both ACS 1000 and ACS 6000 drive platforms? The 3BHB003230R0101 5SXE05-0152 is designed for use within ABB's medium-voltage drive power stack architecture. Compatibility with a specific drive platform and inverter configuration should be verified against the drive's hardware revision and power module type (5SNA or 5SNE series IGBT). NANKMOS technical support can assist with cross-referencing the gate drive board to your specific drive serial number and hardware revision prior to order confirmation.

Q2: What pre-shipment testing is performed on the 3BHB003230R0101 5SXE05-0152, and what does the 12-Month Warranty cover? Every unit shipped by NANKMOS undergoes pre-shipment functional verification including power-on testing, gate output signal verification, and isolation integrity checks. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with protective packaging to prevent ESD damage and mechanical stress during transit. Warranty claims are supported by NANKMOS's technical team with replacement or repair options.

Q3: How should the 3BHB003230R0101 5SXE05-0152 be handled and installed to ensure long-term reliability? IGBT gate drive boards are sensitive to electrostatic discharge (ESD). Installation must be performed by qualified drive service personnel using appropriate ESD precautions. The board should be installed with the drive de-energized and DC bus fully discharged. Fiber optic connections must be clean and properly seated to ensure reliable signal transmission. Following installation, the drive should be commissioned using ABB's standard drive commissioning procedure, including gate drive fault verification and IGBT firing pattern confirmation before returning the drive to service.
