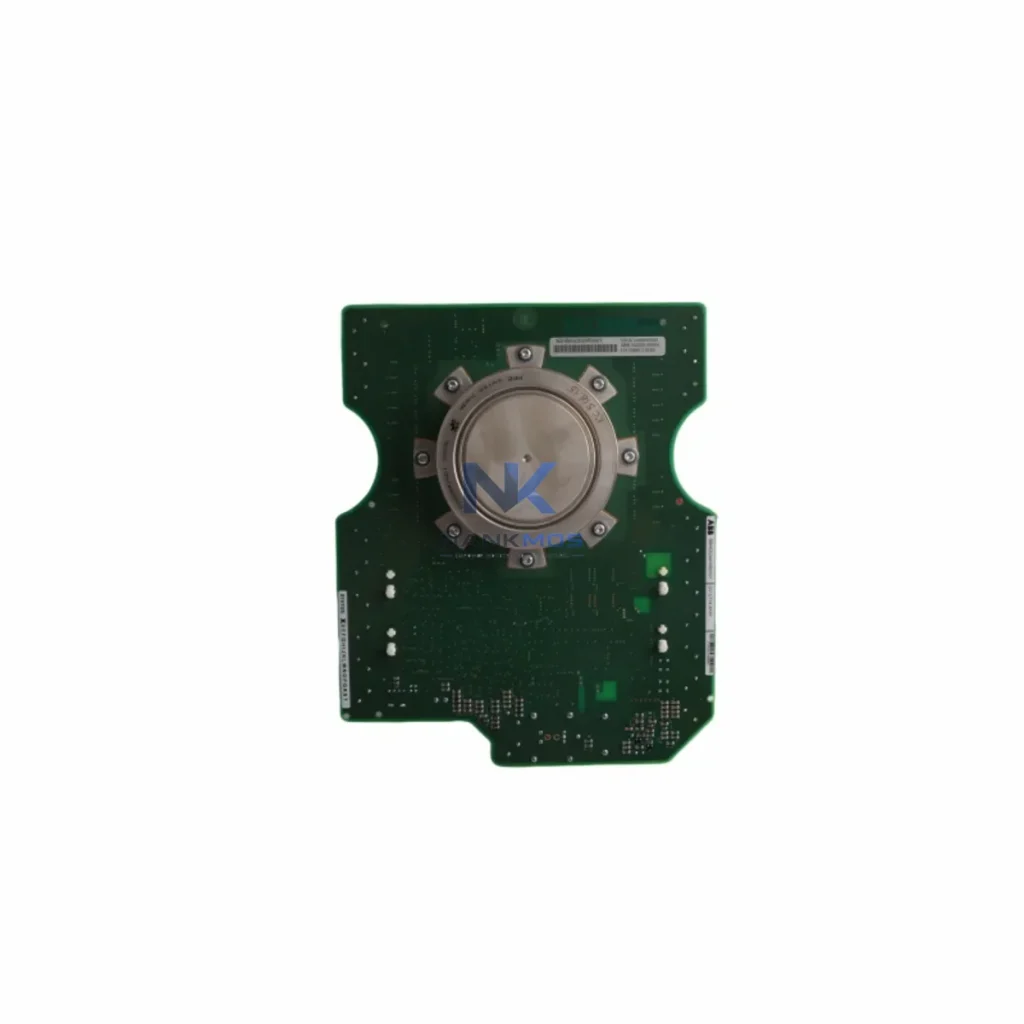

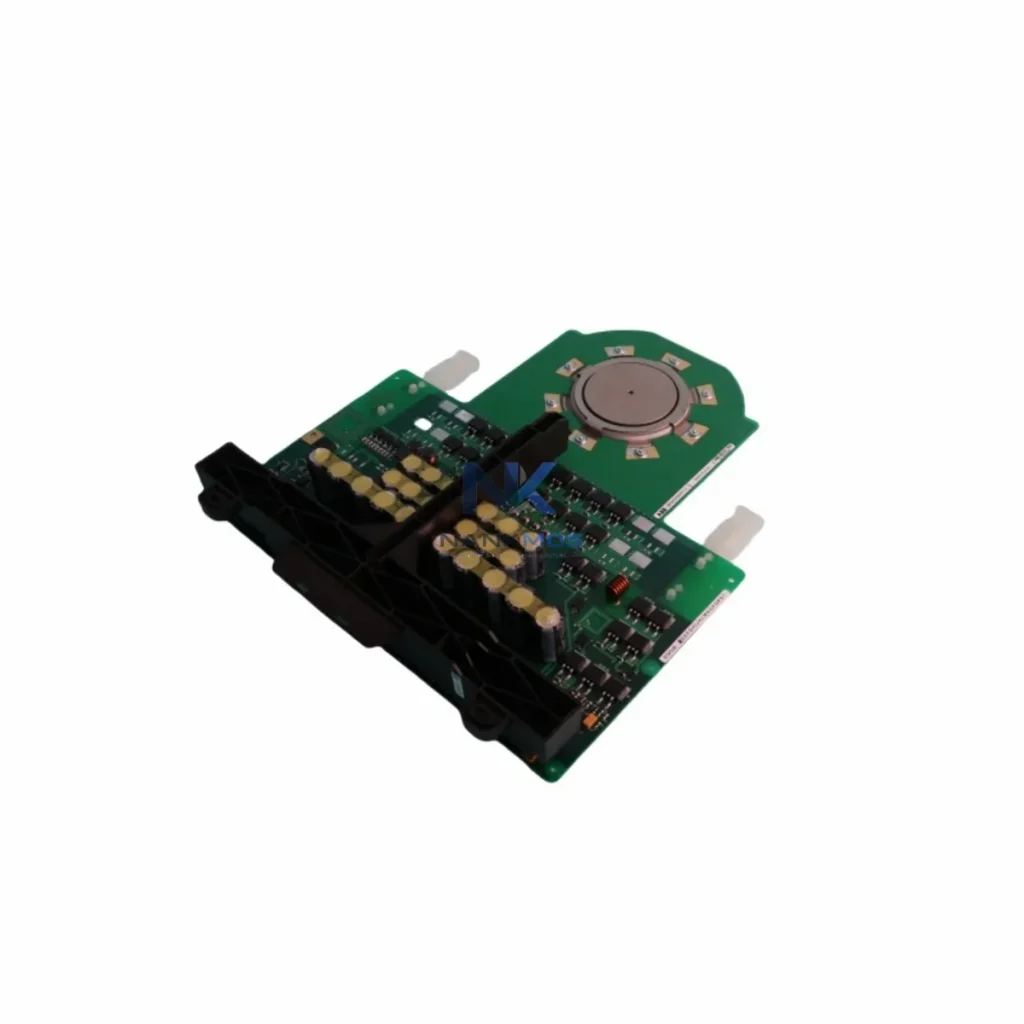

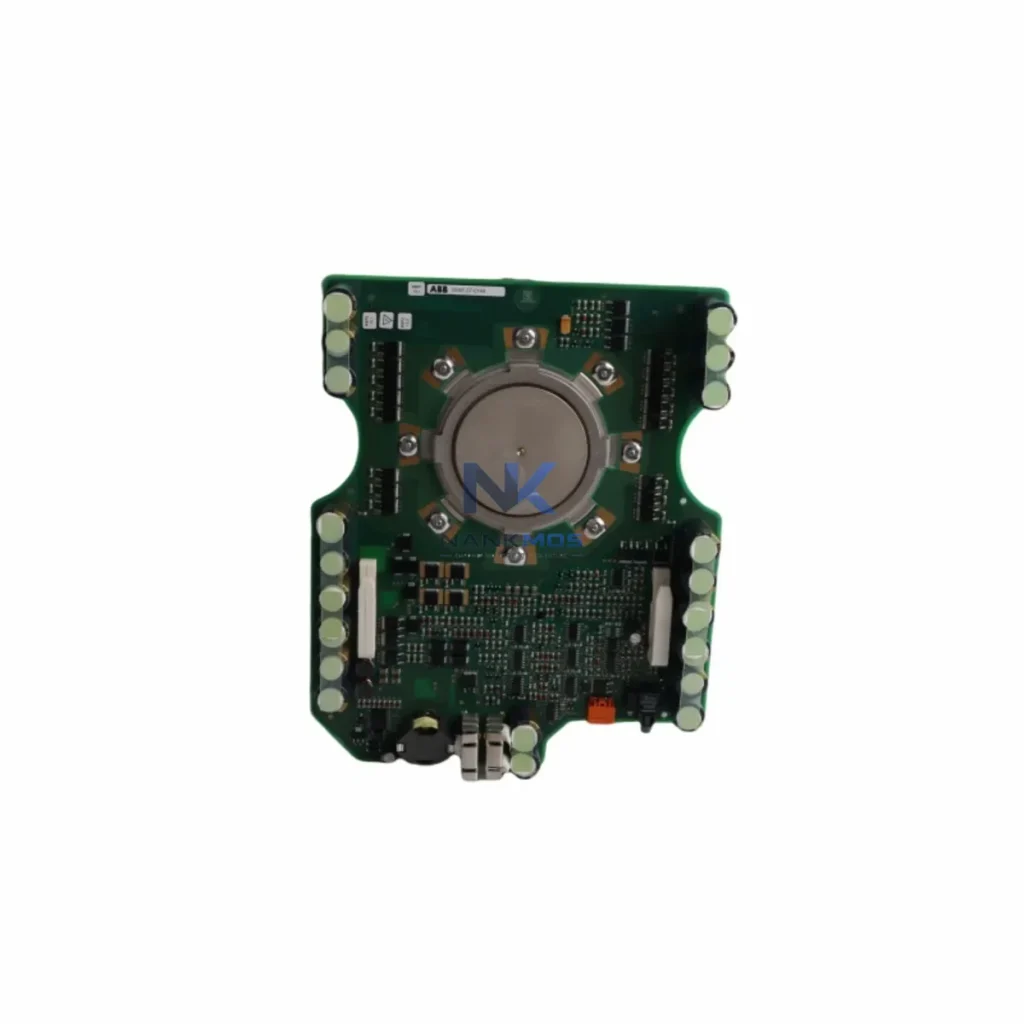

ABB 3BHB030310R0001 5SHY4045L0006 IGCT Module

Product Details

3BHB030310R0001 5SHY4045L0006 Product Description

In modern smart manufacturing environments, every component in the power conversion chain must do more than switch current — it must participate in the plant-wide data ecosystem. The ABB 3BHB030310R0001 / 5SHY4045L0006 IGCT (Integrated Gate-Commutated Thyristor) Module is a precision power semiconductor assembly engineered for ABB's ACS Series medium-voltage drives, delivering not only high-efficiency switching performance but also the electrical and signal integrity required to support seamless integration across industrial communication networks, SCADA platforms, and edge-connected automation architectures.

As factories transition toward Industry 4.0 frameworks, the demand for transparent, real-time data flow from field devices to supervisory systems has never been greater. The 3BHB030310R0001 / 5SHY4045L0006 IGCT module sits at the heart of the drive's power stack, and its reliable operation is foundational to the entire data chain — from motor feedback signals and drive status registers to alarm events and energy consumption metrics that flow upward through the automation hierarchy.

Understanding how the ABB 3BHB030310R0001 / 5SHY4045L0006 IGCT module fits into a connected factory requires tracing the full data path from the motor shaft to the enterprise dashboard. At the field level, process sensors — including current transformers, temperature probes, and vibration transducers — feed analog and digital signals into the ACS Series drive's I/O terminals. The drive's internal control board, typically an ABB RDCU-02C or RMIO-11C control unit, processes these signals and generates gate firing commands that are transmitted to the IGCT module via a high-speed fiber-optic gate drive link, ensuring electrical isolation and immunity to EMI in high-voltage environments.

The IGCT module itself — the 3BHB030310R0001 / 5SHY4045L0006 assembly — executes the switching events that convert DC bus energy into precisely controlled AC output for the motor. Simultaneously, the drive's communication adapter, such as the ABB RPBA-01 PROFIBUS Adapter or the RETA-02 EtherNet/IP Adapter, translates drive status data — including output frequency, motor current, DC link voltage, fault codes, and energy counters — into standard industrial protocol frames that travel across the plant network.

On the network backbone, industrial managed Ethernet switches (such as those from the Hirschmann RS20 or Cisco IE3000 series) route this data through PROFINET or EtherNet/IP segments to the plant's PLC layer. Siemens S7-1500 or Allen-Bradley ControlLogix PLCs receive drive process data objects (PDOs) and integrate them into the broader machine control logic — coordinating conveyor speeds, pump pressures, and compressor loads in real time. Remote I/O modules, such as the ABB CI854A PROFIBUS Remote I/O, extend the network reach to field junction boxes, collecting additional sensor data and feeding it back into the same communication loop.

At the supervisory layer, HMI panels — including ABB CP600 series operator panels or Weintek cMT series touchscreens — display live drive parameters, alarm histories, and energy trend graphs. SCADA platforms such as Wonderware InTouch, Ignition by Inductive Automation, or ABB's own System 800xA connect to the drive network via OPC-UA or direct PROFIBUS/PROFINET interfaces, aggregating data from multiple ACS drives, remote I/O nodes, and edge gateways into unified plant dashboards. Edge computing gateways — for example, the Moxa UC-8112 or Advantech WISE-5000 series — can perform local data preprocessing, anomaly detection, and protocol bridging between legacy Modbus RTU devices and modern MQTT/cloud pipelines, ensuring that even older field instruments contribute to the smart factory data fabric.

Power quality and energy management are also part of the connected data chain. ABB M2M energy meters installed at the MCC (Motor Control Center) level monitor the power drawn by each ACS drive, and this data is correlated with production output metrics in the MES (Manufacturing Execution System) to calculate OEE (Overall Equipment Effectiveness) and identify energy waste. The 3BHB030310R0001 / 5SHY4045L0006 IGCT module's switching efficiency directly influences these energy figures, making its reliable operation a measurable KPI in the plant's sustainability reporting.

Protocol Fragmentation: Many industrial sites operate a mix of legacy Modbus RTU devices alongside newer PROFINET or EtherNet/IP equipment. The ABB ACS Series drives equipped with the 3BHB030310R0001 / 5SHY4045L0006 IGCT module support multiple communication adapters, allowing a single drive to bridge protocol boundaries — acting as a Modbus slave to a legacy DCS while simultaneously reporting to a PROFINET controller, eliminating the need for standalone protocol converters on the drive circuit.

Data Silos and Production Transparency: When drive fault data, energy consumption, and motor load trends are trapped in isolated drive memories with no network path to the SCADA or MES, maintenance teams lose visibility into developing failures. By ensuring the IGCT module operates within specification — maintaining clean gate firing signals and stable DC bus switching — the drive can sustain its communication adapter connection without resets or watchdog timeouts, keeping the data pipeline open and continuous. This supports real-time production transparency across shifts and production lines.

Remote Monitoring and Alarm Tracking: Unplanned downtime caused by IGCT overcurrent or gate drive faults is one of the most disruptive events in a medium-voltage drive installation. With the drive's SCADA integration active, fault events from the 3BHB030310R0001 / 5SHY4045L0006 module — such as gate unit communication loss, overcurrent trips, or thermal warnings — are immediately propagated as alarm records to the control room HMI and, via email or SMS gateway, to on-call maintenance engineers. Remote diagnostic tools, including ABB's DriveWindow Light software connected via Ethernet, allow engineers to review fault logs, waveform captures, and parameter histories without physical access to the MCC room.

System Scalability: As production capacity expands, additional ACS drives can be added to the PROFIBUS or PROFINET segment without architectural redesign. Each new drive with a properly functioning IGCT module integrates into the existing SCADA tag database with minimal configuration, supporting modular factory expansion aligned with lean manufacturing principles.

Q1: Does the ABB 3BHB030310R0001 / 5SHY4045L0006 IGCT module support PROFINET communication directly? The IGCT module itself is a power semiconductor component and does not handle communication protocols independently. PROFINET, PROFIBUS-DP, EtherNet/IP, and Modbus TCP connectivity is provided by the drive's communication adapter modules (e.g., ABB RPBA-01, RETA-02, RDNA-01) installed in the ACS Series drive's option slot. The IGCT module must be in proper operating condition for the drive to maintain stable communication — any gate drive fault will trigger a drive trip and interrupt the network data stream.

Q2: How does a faulty IGCT module affect SCADA data continuity? An IGCT gate unit fault or overcurrent event causes the ACS drive to execute a protective trip, which halts motor operation and suspends the drive's process data output to the SCADA/PLC network. This creates a data gap in the historian and may trigger cascading alarms in the control system. Replacing the 3BHB030310R0001 / 5SHY4045L0006 module with a verified, pre-tested unit restores drive operation and re-establishes the full data link within the drive's restart sequence — typically within minutes of module swap and parameter restore.

Q3: What pre-shipment testing is performed on the 3BHB030310R0001 / 5SHY4045L0006 module? Each unit supplied by NANKMOS undergoes a pre-shipment functional verification that includes gate trigger response testing, forward voltage drop measurement, and visual inspection for physical integrity. Units are shipped with anti-static packaging and documentation confirming test results. A 12-month warranty covers defects in materials and workmanship from the date of delivery, with technical support available for installation guidance and fault diagnosis.

Q4: Can this IGCT module be used in a remote diagnostic architecture without on-site intervention? Yes — when the ACS Series drive is integrated into a SCADA or remote monitoring platform via its communication adapter, drive parameters including IGCT gate unit status, DC link voltage, output current, and thermal readings can be monitored remotely in real time. Predictive maintenance algorithms running on edge gateways or cloud platforms can analyze these parameters to detect early signs of IGCT degradation — such as increasing gate trigger delay or rising junction temperature — and schedule preventive replacement before an unplanned trip occurs, minimizing production impact.
