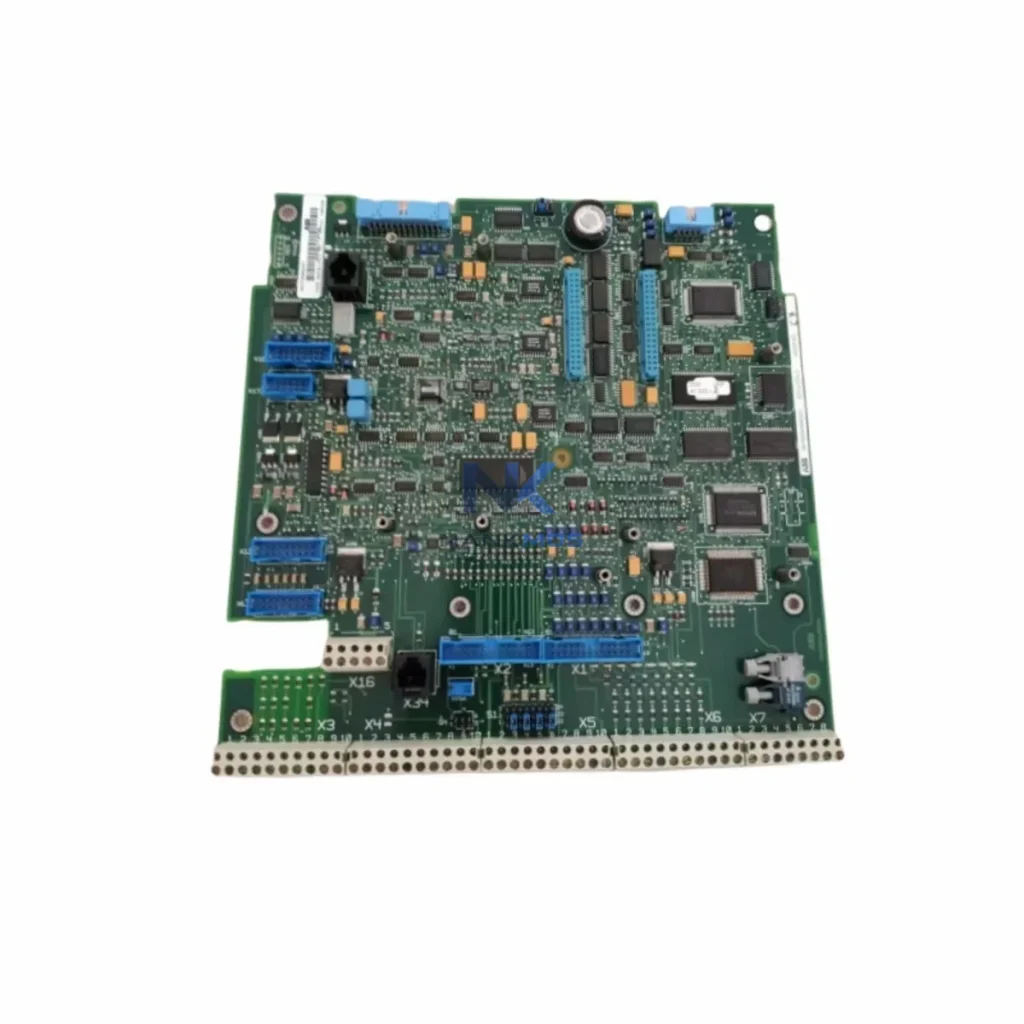

ABB 3BHE004059R0001 SDCS-CON 2 DC Drive Control Board

Product Details

3BHE004059R0001 SDCS-CON 2 Product Description

The ABB 3BHE004059R0001, also identified as the SDCS-CON-2 control board, is the core intelligence unit of ABB's DCS600 series DC drive platform. Engineered for demanding industrial environments, this control board governs armature current regulation, field excitation control, speed feedback processing, and real-time torque management — making it a critical component in energy-efficient motor drive systems across manufacturing, metals processing, paper mills, and heavy-duty process industries.

By precisely regulating DC motor output in response to actual load demand, the SDCS-CON-2 eliminates the energy waste associated with fixed-speed or poorly tuned drive systems. In production lines where motor loads fluctuate — such as winding machines, extruders, rolling mills, and conveyor systems — this board enables the DCS600 drive to continuously match power delivery to process requirements, reducing unnecessary current draw and thermal stress on connected equipment.

The SDCS-CON-2 does not operate in isolation — its value is fully realized when integrated into a coordinated automation architecture. In a typical smart production line, the ABB DCS600 drive equipped with this control board interfaces directly with a Siemens S7-300 or S7-1500 PLC via PROFIBUS DP, receiving speed and torque setpoints in real time. The PLC's output signals are processed by the SDCS-CON-2 to modulate armature current with millisecond-level response, ensuring the DC motor tracks the production line's speed profile without energy-wasting overshoot.

For energy monitoring, the DCS600 system pairs naturally with ABB M2M power measurement modules or third-party power quality analyzers connected to the plant's SCADA layer. These instruments capture real-time kW consumption, power factor, and harmonic distortion data — feeding the energy management system with the granular metrics needed to identify inefficiency windows and schedule load-shedding during peak tariff periods.

On the field side, the SDCS-CON-2 accepts encoder feedback from incremental or absolute encoders mounted on the motor shaft, enabling closed-loop speed regulation with high accuracy. This feedback loop is essential in tension-controlled winding applications, where even minor speed deviations translate into material waste and increased rework energy costs. The board also supports integration with ABB SDCS-IOB-3 I/O expansion boards, extending digital and analog I/O capacity for multi-axis or multi-zone drive configurations.

Communication flexibility is provided through optional SDCS-COM-8 (PROFIBUS) or SDCS-COM-5 (Modbus RTU) fieldbus adapter modules, which plug directly into the SDCS-CON-2 board. This allows the DCS600 drive to participate in plant-wide energy management networks, reporting drive status, load current, and fault codes to ABB Ability™ or third-party SCADA platforms without additional signal converters. HMI panels — such as the ABB CP600 series or Siemens TP700 — can display live drive parameters, enabling operators to make real-time load adjustments that prevent energy spikes during production transitions.

In multi-drive installations, the SDCS-CON-2 supports master-follower torque sharing configurations, where a master DCS600 drive coordinates load distribution across multiple follower drives. This architecture is common in paper machine drive sections and rolling mill stands, where uneven torque distribution causes mechanical stress, increased motor temperatures, and higher aggregate energy consumption. By balancing torque across the drive train, the system reduces peak current demand and extends motor service intervals.

Factory energy optimization begins at the drive level. The ABB 3BHE004059R0001 SDCS-CON-2 contributes to plant-wide energy reduction through several mechanisms that operate continuously during production.

Demand-matched current regulation is the primary energy lever. Rather than running the DC motor at a fixed excitation level regardless of load, the SDCS-CON-2 continuously adjusts field current based on actual torque demand. During light-load phases — such as material changeovers, idle conveyor segments, or deceleration ramps — the board reduces field excitation proportionally, cutting copper losses in the motor windings and reducing heat dissipation in the drive cabinet. This directly lowers the thermal load on cooling systems, reducing HVAC energy consumption in the drive room.

Precise speed regulation stabilizes production line rhythm. In processes where downstream equipment — such as cutters, presses, or packaging machines — operates at fixed cycle rates, speed instability in the drive system forces operators to run at conservative setpoints with wide safety margins. The SDCS-CON-2's closed-loop speed control eliminates this margin, allowing the line to run at its true optimal speed without risk of synchronization faults. The result is higher throughput per energy unit consumed — a direct improvement in production line OEE (Overall Equipment Effectiveness).

Predictive maintenance readiness is built into the drive's diagnostic architecture. The SDCS-CON-2 continuously monitors armature current waveforms, field current stability, and speed feedback quality. Deviations from baseline — such as increasing current ripple or speed oscillation — are logged as fault events and transmitted to the SCADA system. Maintenance teams can act on these signals before a drive fault causes an unplanned stoppage, avoiding the energy and productivity losses associated with emergency restarts and cold-start ramp-up sequences.

Reduced downtime also means reduced energy waste from restart cycles. Every unplanned motor stop in a continuous process — such as a paper machine or extrusion line — requires a controlled ramp-up that consumes significantly more energy than steady-state operation. By maintaining drive health and enabling early fault detection, the SDCS-CON-2 helps plants minimize these high-energy restart events and maintain stable, energy-efficient production rhythms.

All units supplied by NANKMOS undergo pre-shipment functional testing, verifying control board communication, I/O response, and drive interface integrity before dispatch. Each unit is covered by a 12-month warranty, with in-stock availability ensuring minimal lead time for maintenance replacements and capital project builds.

Q1: How does the ABB 3BHE004059R0001 SDCS-CON-2 reduce energy consumption in DC drive applications? The SDCS-CON-2 regulates armature and field current in real time based on actual motor load demand. By eliminating fixed over-excitation during light-load phases, it reduces copper losses, lowers motor operating temperatures, and decreases the thermal load on drive cabinet cooling systems — resulting in measurable reductions in both motor and auxiliary energy consumption.

Q2: Which drive platforms and control systems is the SDCS-CON-2 compatible with? The 3BHE004059R0001 is designed for the ABB DCS400, DCS500, and DCS600 drive series. It supports fieldbus communication via optional SDCS-COM adapter modules (PROFIBUS DP, Modbus RTU), enabling integration with Siemens S7 PLCs, ABB AC500 controllers, SCADA platforms, and HMI systems. Encoder feedback inputs support standard incremental encoders for closed-loop speed control.

Q3: Can this board replace a faulty SDCS-CON-2 in an existing DCS600 installation without drive reconfiguration? Yes. The 3BHE004059R0001 is a direct replacement for the SDCS-CON-2 in DCS600 drive cabinets. Drive parameters stored in the control panel or SCADA system can be re-downloaded to the replacement board after installation. NANKMOS recommends verifying firmware compatibility with your existing DCS600 software version before installation. Our technical team can assist with compatibility confirmation.

Q4: What testing is performed before shipment, and what does the 12-month warranty cover? Every ABB 3BHE004059R0001 unit supplied by NANKMOS undergoes pre-shipment functional testing, including control power verification, I/O channel response checks, and communication interface validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped from in-stock inventory, with same-day or next-business-day dispatch available for urgent maintenance requirements.
