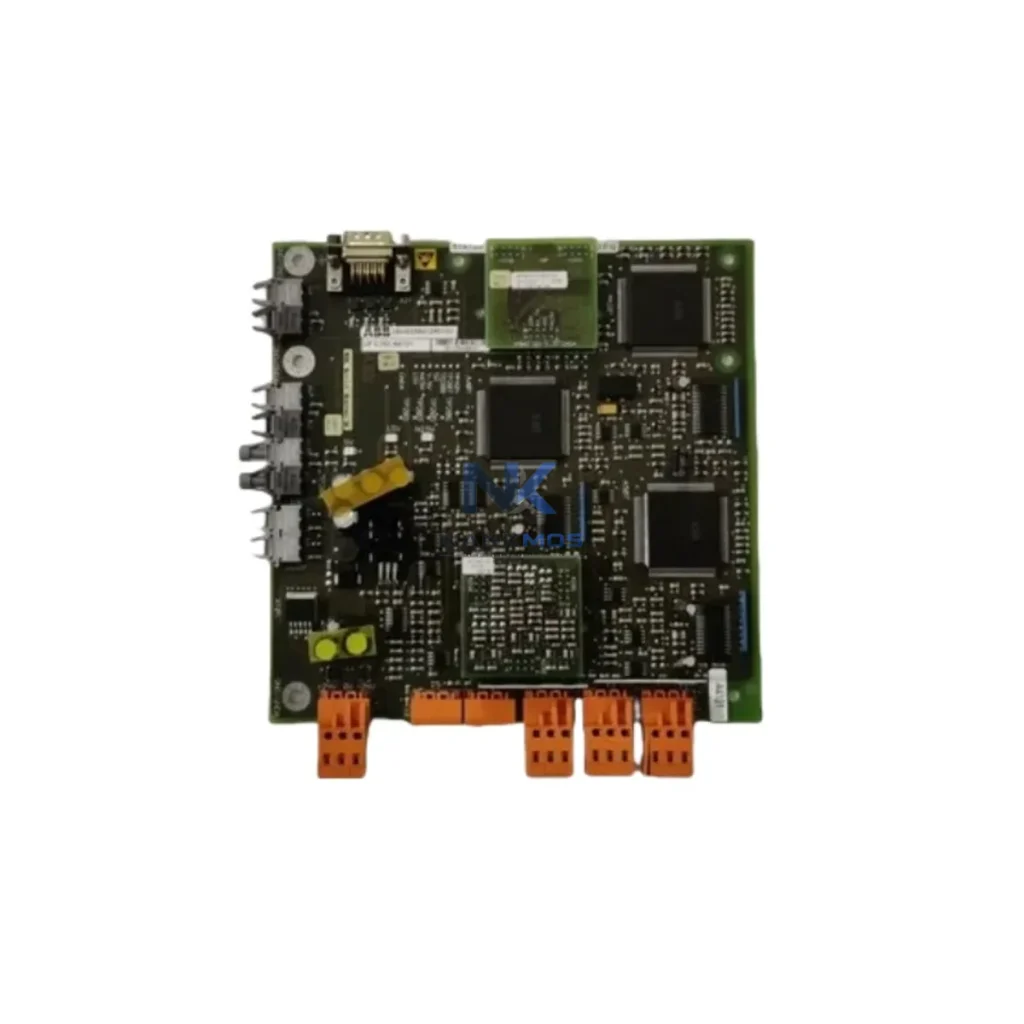

3BHE004573R1041 UFC760 BE41 Product Description

The ABB 3BHE004573R1041 UFC760 BE41 is a precision exciter control module engineered for deployment within ABB's ACS800 industrial drive architecture. Designed to regulate field excitation in synchronous motor and generator applications, this module occupies a critical role at the intersection of the control layer and power conversion layer — ensuring stable flux management, responsive torque control, and sustained drive system integrity across demanding industrial environments. Its integration into a complete automation platform demands careful alignment with upstream CPU logic, downstream power electronics, and lateral communication infrastructure.

The 3BHE004573R1041 UFC760 BE41 does not operate in isolation — its value is fully realized when positioned within a coherent ACS800-based automation architecture. At the control layer, the module interfaces with the ACS800 main control board (RMIO board series) which handles speed reference, torque demand, and closed-loop PID execution. The exciter module receives field current setpoints via the DDCS fiber optic link, ensuring low-latency, noise-immune signal transmission between the control and power stages.

At the I/O layer, analog input modules such as the ABB NAIO-01 or RAIO-01 provide process feedback — motor speed, temperature, and load current — feeding the control loop that the UFC760 BE41 acts upon. These signals are conditioned and routed through the drive's internal backplane, maintaining signal integrity even in high-EMI cabinet environments typical of steel mills, compressor stations, and marine propulsion systems.

Communication stability is maintained through the DDCS protocol, which links the exciter module to the drive's master controller and, where applicable, to a fieldbus adapter such as the RPBA-01 PROFIBUS adapter or RCAN-01 CANopen module. This enables the exciter's operational status — field current level, fault codes, thermal state — to be surfaced to a supervisory SCADA or DCS platform without additional signal conversion hardware.

Power supply integrity for the UFC760 BE41 is sourced from the ACS800 drive's internal 24 VDC auxiliary rail, typically backed by an APBU-44C or APBU-12C pulse encoder interface unit in multi-drive configurations. In redundant architectures, a secondary 24 VDC UPS module ensures that exciter control logic remains powered during main supply interruptions, preventing uncontrolled de-excitation events in synchronous machine applications.

At the HMI layer, the ABB CDP312R control panel or a remote DriveWindow Light PC tool provides real-time parameter access, fault history review, and exciter tuning capability. Engineers can adjust field weakening curves, set excitation limits, and monitor thermal derating thresholds without disconnecting from the live system — a critical capability during commissioning and scheduled maintenance windows.

For protection and diagnostics, the UFC760 BE41 integrates with the ACS800's internal fault management system, generating structured fault codes that propagate to the RMIO board and onward to the plant DCS. Complementary protection modules such as the AGPS-21C gate driver board and AINT-02C inverter control board complete the protection layer, ensuring that overcurrent, overvoltage, and thermal events are captured and acted upon within microseconds.

In modular expansion scenarios — such as multi-drive common DC bus configurations — the UFC760 BE41 maintains exciter synchronization across parallel drive units, supporting load-sharing and redundant motor control topologies common in offshore platforms, pulp and paper lines, and large-scale water treatment pump stations.

Power Generation & Utilities: In synchronous generator excitation systems at hydroelectric and thermal power plants, the 3BHE004573R1041 regulates field current to maintain terminal voltage stability under variable load conditions. Its integration with plant-level DCS via PROFIBUS or MODBUS ensures that excitation adjustments are coordinated with turbine governor responses.

Oil, Gas & Petrochemical: Compressor and pump drive systems in upstream and downstream facilities rely on precise exciter control to manage motor starting currents and maintain power factor compliance. The UFC760 BE41's compatibility with the ACS800 multi-drive platform supports zone-classified cabinet installations with full diagnostic transparency.

Mining & Metals: Hoist drives, ball mill drives, and conveyor systems in mining operations demand robust exciter modules capable of sustained high-torque operation. The module's thermal management and fault propagation architecture reduce unplanned downtime in remote, high-consequence environments.

Marine & Offshore: Vessel propulsion and thruster control systems using ACS800 drives benefit from the UFC760 BE41's fiber optic DDCS communication, which eliminates ground loop interference in electrically noisy marine environments. Classification society compliance is supported through the module's documented test and warranty chain.

Packaging & Process Lines: High-speed synchronous motor drives in packaging machinery and continuous process lines use exciter control modules to maintain precise speed regulation across product changeovers. The module's fast field response supports dynamic load profiles without speed deviation.

Q1: Is the 3BHE004573R1041 UFC760 BE41 compatible with all ACS800 drive variants?The UFC760 BE41 is designed for ACS800 series drives configured for synchronous motor or exciter-controlled applications. Compatibility depends on the specific ACS800 firmware version and RMIO board revision. It is recommended to verify the drive's hardware configuration list (HCL) and software version against ABB's module compatibility matrix before installation. Our team can assist with cross-referencing your drive's serial number and firmware baseline.

Q2: What does the 12-Month Warranty cover, and what pre-shipment testing is performed?Every 3BHE004573R1041 unit is subject to pre-shipment functional verification including power-on self-test, communication interface check, and visual inspection for component integrity. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are processed with full traceability documentation, and replacement units are dispatched from in-stock inventory to minimize system downtime.

Q3: How should the UFC760 BE41 be integrated during drive commissioning, and what tools are required?During ACS800 commissioning, the UFC760 BE41 is installed in the designated exciter slot of the drive cabinet and connected via the DDCS fiber optic link to the RMIO main control board. Parameter group 99 (Start-Up Data) and group 16 (System Control Inputs) must be configured using the CDP312R panel or DriveWindow software to define excitation mode, field current limits, and fault response behavior. A DDCS node address must be assigned to avoid bus conflicts in multi-drive topologies. Commissioning engineers should reference ABB's ACS800 Firmware Manual and the UFC760 hardware guide for parameter mapping and fault code interpretation.
