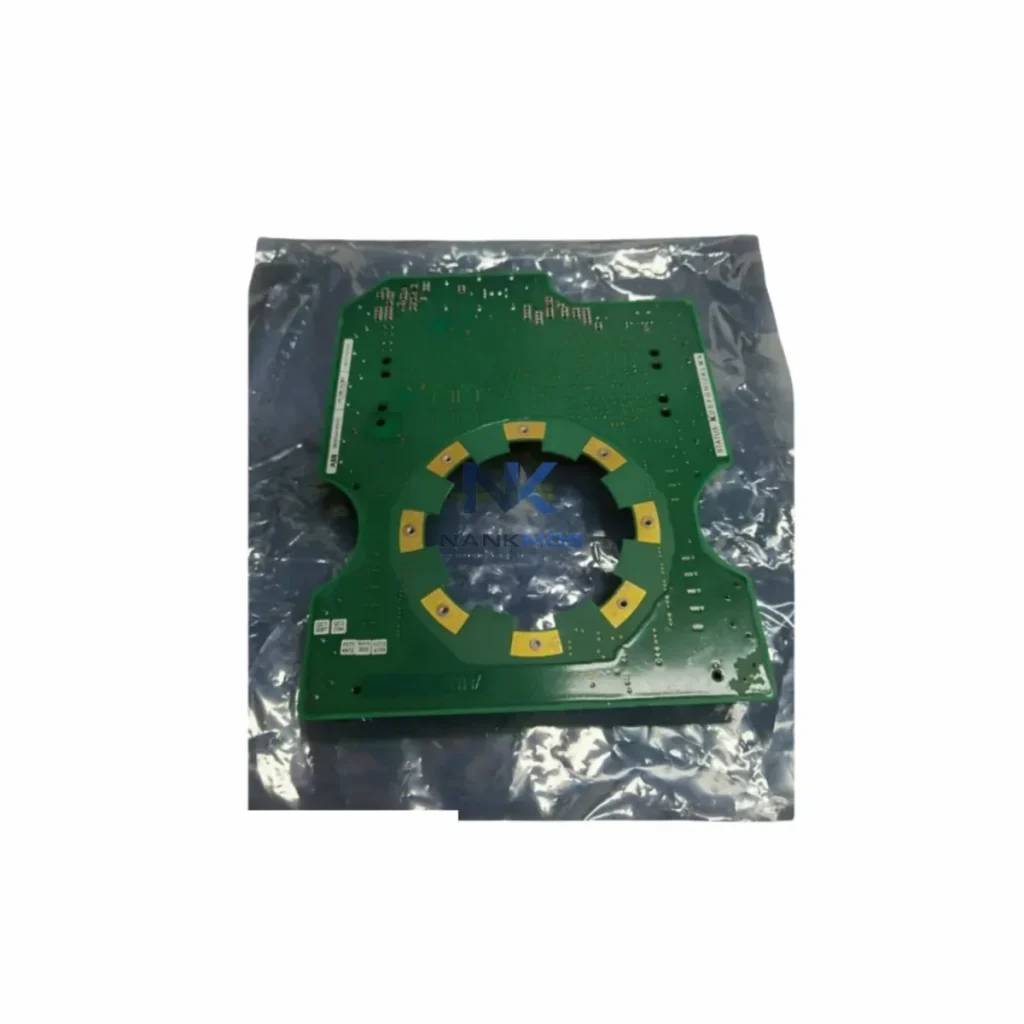

ABB 3BHE024415R0101 C714 A101 AC Drive Control Board

Product Details

3BHE024415R0101 C714 A101 Product Description

The ABB 3BHE024415R0101 C714 A101 is a precision-engineered AC drive control board designed for ABB's ACS series variable frequency drives. As a core energy-control component in modern industrial automation, this board governs motor speed regulation, torque management, and power conversion efficiency — directly reducing unnecessary energy consumption across continuous and intermittent production cycles. Whether deployed in process industries, discrete manufacturing, or energy-intensive utilities, the 3BHE024415R0101 delivers stable, measurable improvements in drive-level energy performance and production line throughput.

In a fully integrated smart factory, the ABB 3BHE024415R0101 does not operate in isolation — it functions as the intelligence layer within a broader energy-aware automation architecture. When paired with an ABB ACS880 or ACS580 variable frequency drive, this control board manages the PWM switching logic that translates PLC speed commands into precise motor output, eliminating the energy penalty of across-the-line motor starts and fixed-speed operation.

On the control side, the board interfaces with ABB AC500 PLCs or third-party Siemens S7-1200/S7-1500 controllers via standard fieldbus protocols including PROFIBUS-DP, PROFINET, and Modbus RTU. These communication channels allow real-time speed references, torque limits, and fault acknowledgment to flow between the PLC and the drive — enabling dynamic load management that responds to actual production demand rather than running at fixed capacity.

For energy monitoring, the 3BHE024415R0101 integrates naturally with ABB B23 or B24 power measurement units and compatible energy metering modules connected to the plant's SCADA system. When drive-level power data is fed into platforms such as ABB Ability™ Energy Manager or third-party SCADA solutions, facility engineers gain granular visibility into per-drive energy consumption — enabling load-shifting strategies that reduce peak demand charges and improve overall plant power factor.

On the output side, the control board governs the gate signals to the drive's IGBT power modules, directly influencing switching losses and thermal output. When combined with ABB RINT or RDCU interface boards and properly sized DC chokes or line reactors, the system achieves lower harmonic distortion and reduced heat generation in the drive cabinet — extending the service life of both the drive and the connected motor.

For servo-adjacent applications, the 3BHE024415R0101 complements ABB MicroFlex or MotiFlex servo drives in mixed-motion production lines where some axes require precise positioning while others require energy-efficient speed regulation. The result is a unified drive ecosystem where energy consumption is managed at every motion axis, not just at the motor terminal.

HMI integration is equally straightforward. ABB CP600 or CP400 operator panels can display real-time drive status, energy consumption trends, and fault diagnostics pulled from the ACS drive via the control board's communication interface — giving line operators immediate feedback on energy performance without requiring SCADA-level access.

Finally, for I/O-intensive applications, the board works alongside ABB CI840 or CI854 fieldbus adapter modules and standard 24VDC industrial power supplies to ensure stable control voltage across all drive I/O channels — preventing nuisance trips caused by voltage sag during high-load motor starts.

The primary energy benefit of the ABB 3BHE024415R0101 lies in its role as the decision-making core of the ACS drive's speed control loop. In facilities where motors previously ran at fixed speed regardless of actual load demand — pumps, fans, compressors, conveyors — replacing or restoring a failed control board with a verified 3BHE024415R0101 immediately restores the drive's ability to modulate motor speed in proportion to process demand. This single change can reduce motor energy consumption by 20–50% in variable-torque applications, depending on the load profile and duty cycle.

Beyond direct energy savings, the control board contributes to thermal load reduction across the production environment. By eliminating the high inrush currents associated with direct-on-line motor starts, the drive system reduces heat generation in motor windings, cable insulation, and switchgear — lowering the cooling load on HVAC systems in the motor control center (MCC) and reducing overall facility energy demand.

From a production line rhythm perspective, the 3BHE024415R0101 enables smooth acceleration and deceleration ramps that protect mechanical drivetrain components — gearboxes, couplings, and conveyor belts — from shock loading. This translates directly into fewer unplanned stoppages, more consistent production throughput, and reduced maintenance intervals. In high-cycle applications such as packaging lines or press-feed systems, the cumulative effect on overall equipment effectiveness (OEE) is significant.

Predictive maintenance integration is another key advantage. When the ACS drive's control board is functioning correctly, it continuously monitors output current, DC bus voltage, switching frequency, and thermal status. These parameters, when logged via SCADA or a connected condition monitoring system, provide early warning of motor degradation, bearing wear, or process anomalies — allowing maintenance teams to schedule interventions during planned downtime rather than responding to emergency failures.

For facilities managing multi-drive production lines, the ability to source a verified, pre-tested ABB 3BHE024415R0101 C714 A101 from stock — with a 12-month warranty and confirmed pre-shipment functional testing — eliminates the extended lead times associated with OEM procurement channels. This inventory availability directly supports lean maintenance strategies where critical spare boards are held at the plant level, ensuring that a single drive failure does not cascade into a multi-hour or multi-day production stoppage.

Q1: What energy savings can I expect after replacing a failed 3BHE024415R0101 control board? Restoring a functional ABB 3BHE024415R0101 to an ACS series drive returns the drive to full variable-speed operation. In pump, fan, and compressor applications, this typically reduces motor energy consumption by 20–50% compared to fixed-speed operation. Actual savings depend on load profile, duty cycle, and system configuration.

Q2: Is the ABB 3BHE024415R0101 compatible with my existing ACS drive and PLC system? The 3BHE024415R0101 C714 A101 is designed for ABB ACS series variable frequency drives. It is compatible with standard fieldbus communication protocols including PROFIBUS-DP, Modbus RTU, and PROFINET when used with the appropriate adapter modules. Confirm your drive model and firmware version before installation to ensure full compatibility.

Q3: What does pre-shipment testing cover, and how does it support my maintenance process? Every 3BHE024415R0101 unit undergoes functional verification and load testing before dispatch. This confirms that the board's control logic, communication interfaces, and power regulation circuits are operating within specification — reducing the risk of infant failure after installation and supporting your plant's predictive maintenance and spare parts management strategy.

Q4: What warranty and supply lead time should I plan for? All units are covered by a 12-month warranty from the date of shipment. Stock is maintained for immediate dispatch, supporting both emergency replacement and planned maintenance procurement. Contact our team to confirm current inventory levels and lead time for your specific quantity requirement.
