ABB 3BHE036130R0101 GDC806B PCB Card

Product Details

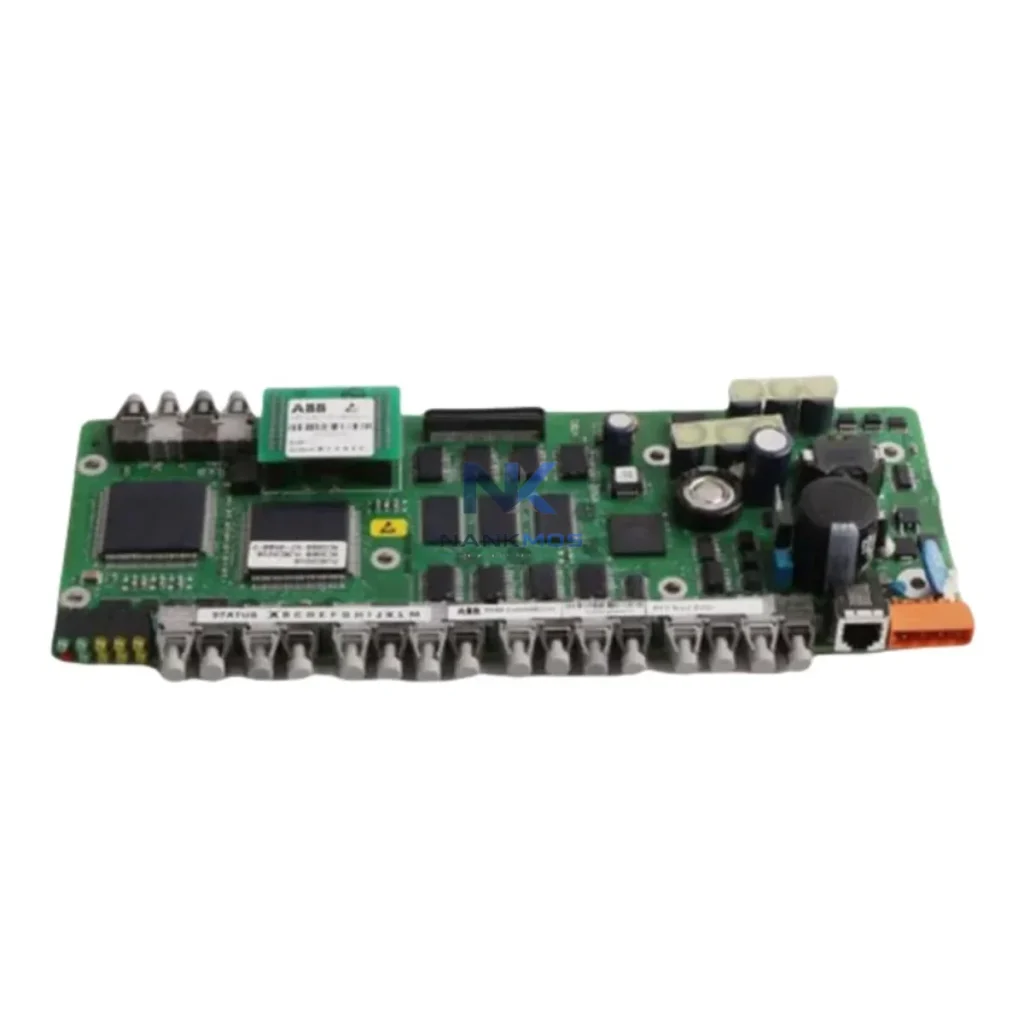

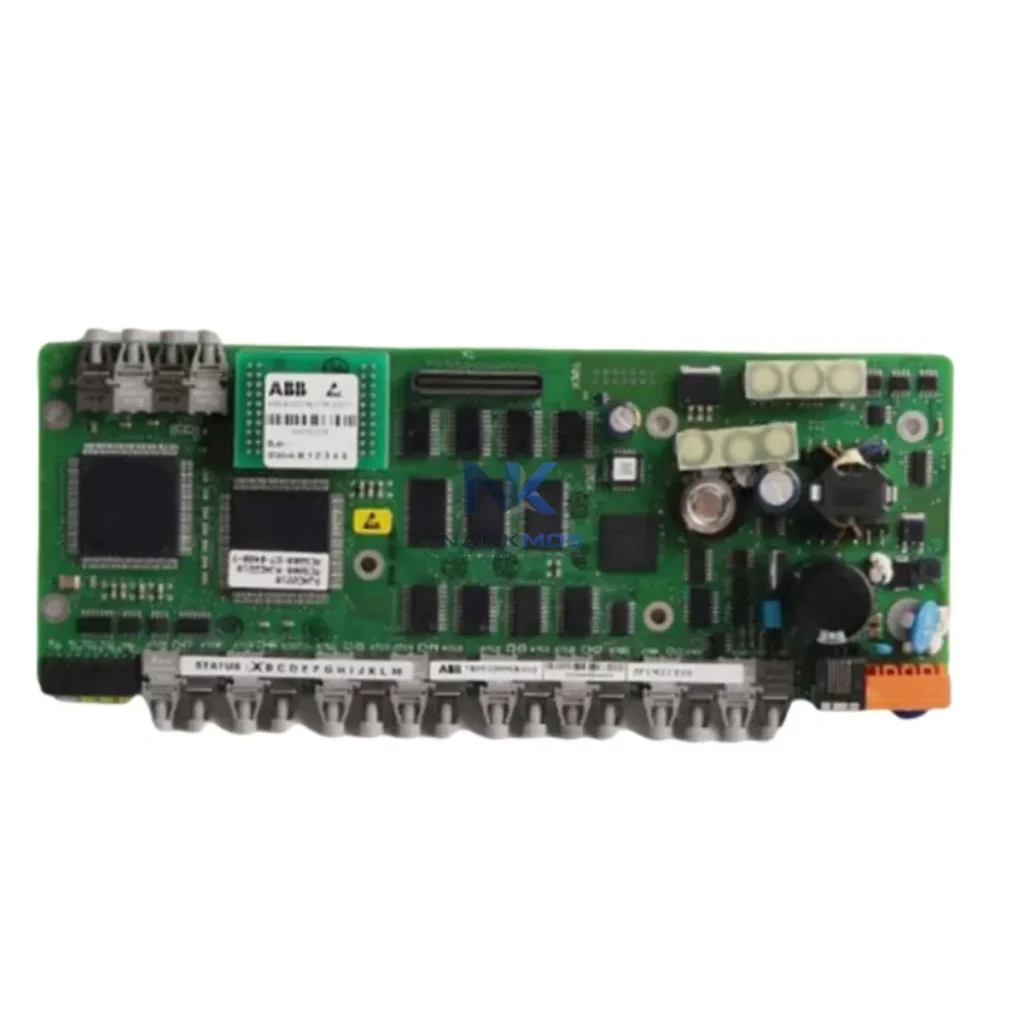

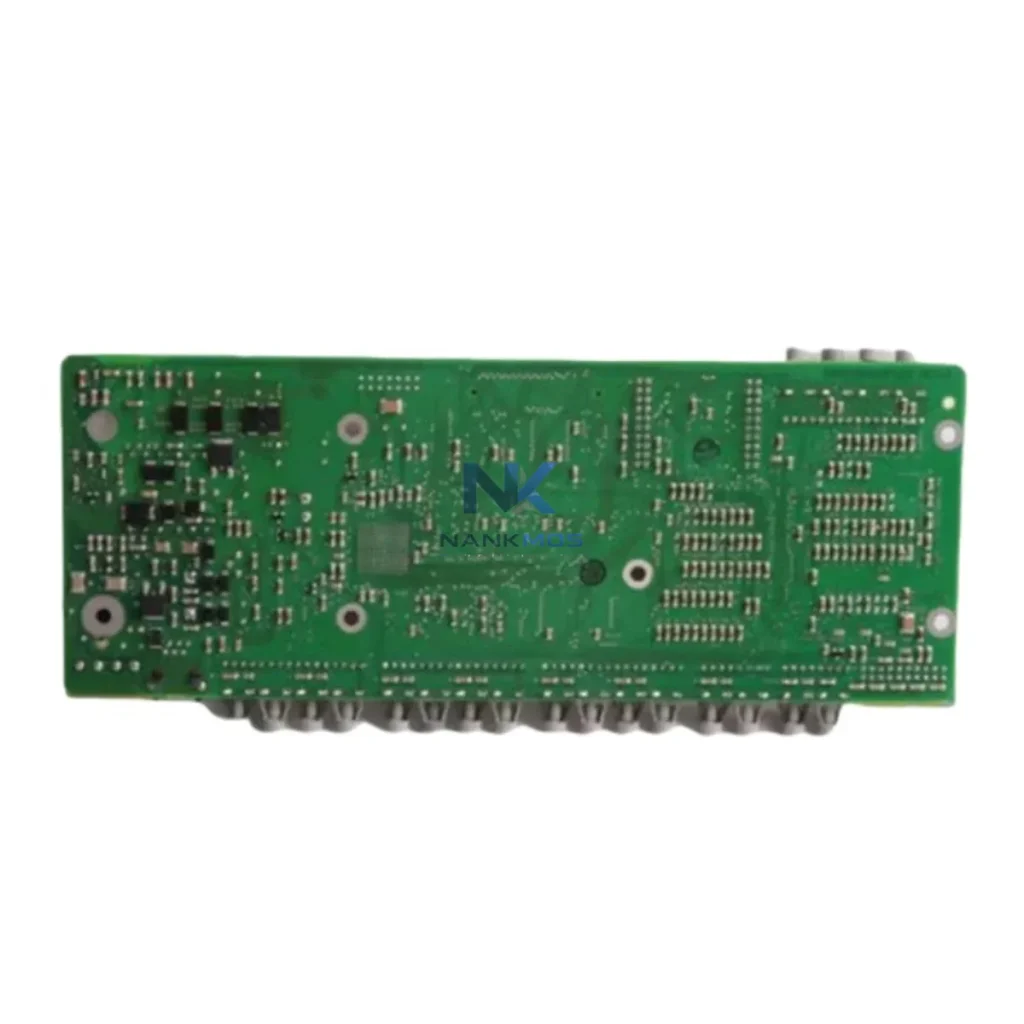

3BHE036130R0101 GDC806B Product Description

The ABB 3BHE036130R0101 GDC806B is a precision-engineered drive control PCB card designed for the ABB GDC800 series AC drive platform. Purpose-built for industrial energy optimization, this board governs the core switching logic, gate drive signals, and feedback loops that determine how efficiently a drive converts input power into controlled motor output. In smart production environments where energy accountability and uptime are non-negotiable, the GDC806B delivers the signal integrity and thermal stability required to sustain continuous, high-efficiency operation across demanding duty cycles.

Deployed in power generation, petrochemical processing, water treatment, mining conveyors, and marine propulsion systems, the GDC800 platform is trusted for its ability to manage high-inertia loads with precision. The GDC806B PCB card sits at the heart of this capability — coordinating PWM modulation, current feedback, and fault detection to ensure the drive operates within its optimal efficiency band at all times. When this card functions correctly, the drive minimizes switching losses, reduces harmonic distortion, and lowers the thermal burden on the power stack — all of which translate directly into measurable energy savings at the plant level.

The GDC806B does not operate in isolation — it functions as the intelligence layer within a broader energy-aware automation architecture. In a typical smart production line, the ABB GDC800 drive receives speed and torque references from a Siemens S7-1500 PLC or Allen-Bradley ControlLogix controller via PROFIBUS DP or Modbus/TCP. The GDC806B processes these references and generates the precise gate drive signals that control the IGBT power modules, ensuring the motor receives only the energy it needs — no more, no less.

Upstream, a power monitoring module such as the ABB M2M or a Schneider Electric PowerLogic PM8000 tracks real-time kWh consumption and feeds data to the plant's energy management system or SCADA platform. When the GDC806B is functioning correctly, the drive's power factor remains high and current draw stays proportional to actual load — a condition that power monitoring systems can verify and log for ISO 50001 energy audits.

On the output side, the drive connects to standard ABB M3BP or M2BAX induction motors, where the GDC806B's PWM accuracy directly determines motor efficiency. Erratic gate signals from a degraded control board cause increased motor slip, elevated winding temperatures, and unnecessary energy consumption. Replacing a faulty GDC806B restores the drive's ability to deliver clean, frequency-accurate output — reducing motor heat load and extending winding insulation life.

For multi-axis production lines, the GDC800 drive may operate alongside ABB ACS880 servo drives or Siemens SINAMICS S120 units on a shared DC bus architecture. In these configurations, the GDC806B's role in maintaining stable DC link regulation becomes critical — a malfunctioning board can cause DC bus voltage fluctuations that propagate across all connected drives, triggering protective shutdowns and disrupting production rhythm. Restoring the GDC806B ensures the shared energy bus remains stable and all drives operate at peak efficiency.

Integration with HMI panels (such as the ABB CP600 or Siemens SIMATIC TP1200) allows operators to monitor drive status, energy consumption trends, and fault history in real time. The GDC806B's onboard diagnostics feed fault codes and status signals to the drive's communication interface, which the HMI displays for immediate operator awareness. This closed-loop visibility is essential for predictive maintenance strategies that aim to replace components before failure — not after.

In industrial facilities where AC drives control pumps, fans, compressors, conveyors, and extruders, the drive control PCB is the single component most responsible for translating energy management intent into physical motor behavior. A degraded or failed GDC806B causes the GDC800 drive to operate outside its efficiency curve — drawing excess current, generating unnecessary heat, and in worst cases, triggering protective trips that halt production entirely.

Replacing the GDC806B with a verified, pre-tested unit restores the drive to factory-specification efficiency. For variable-torque loads such as centrifugal pumps and fans — where power consumption scales with the cube of speed — even a 2–3% improvement in drive efficiency translates into significant annual energy savings at scale. A facility running ten GDC800 drives on pump duty can recover the cost of a replacement PCB card within weeks through reduced electricity consumption alone.

Beyond direct energy savings, a correctly functioning GDC806B contributes to production line stability by eliminating nuisance trips and unpredictable drive behavior. Consistent drive output means consistent motor speed, which in turn means consistent process throughput — a critical factor in maintaining production line takt time and meeting output targets without running equipment at unnecessarily high speeds to compensate for variability.

Predictive maintenance programs benefit directly from a healthy GDC806B. When the control board is functioning correctly, the drive's diagnostic outputs accurately reflect actual operating conditions — allowing SCADA systems and energy management platforms to detect developing faults in motors, bearings, and mechanical loads before they cause unplanned downtime. A faulty control board masks these signals, undermining the plant's ability to act on early warning data.

All units supplied by NANKMOS are sourced from verified supply channels, subjected to pre-shipment functional testing under representative load conditions, and covered by a 12-month warranty. In-stock availability ensures rapid deployment — minimizing the mean time to repair (MTTR) and getting production lines back to full efficiency as quickly as possible.

Q1: How does replacing the GDC806B PCB card reduce energy consumption? A faulty GDC806B causes the GDC800 drive to generate incorrect or unstable gate signals, forcing the IGBT power modules to switch inefficiently. This increases switching losses, raises the drive's internal temperature, and causes the motor to draw more current than the load requires. Replacing the board with a verified GDC806B restores precise PWM control, returning the drive to its rated efficiency and eliminating the excess energy consumption caused by degraded control logic.

Q2: Is the 3BHE036130R0101 GDC806B compatible with my existing GDC800 drive configuration? The 3BHE036130R0101 GDC806B is designed specifically for the ABB GDC800 series AC drive platform. Before installation, verify your drive's firmware version and hardware revision against ABB's compatibility documentation. NANKMOS technical support can assist with compatibility confirmation based on your drive's nameplate data and existing board revision.

Q3: What testing is performed before shipment, and what does the 12-month warranty cover? Every GDC806B unit supplied by NANKMOS undergoes pre-shipment functional testing to verify gate drive signal integrity, communication interface operation, and fault detection response. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the drive's rated parameters.

Q4: How quickly can a replacement GDC806B be delivered, and is expedited shipping available? NANKMOS maintains in-stock inventory of the 3BHE036130R0101 GDC806B to support urgent maintenance requirements. Standard international shipping is available to most industrial regions, with expedited options for critical production line recovery scenarios. Contact [email protected] or +86 18359268345 to confirm current stock levels and arrange priority dispatch.
