ABB 3BHE037864R0108 UNF911 B108 Excitation Control Module

Product Details

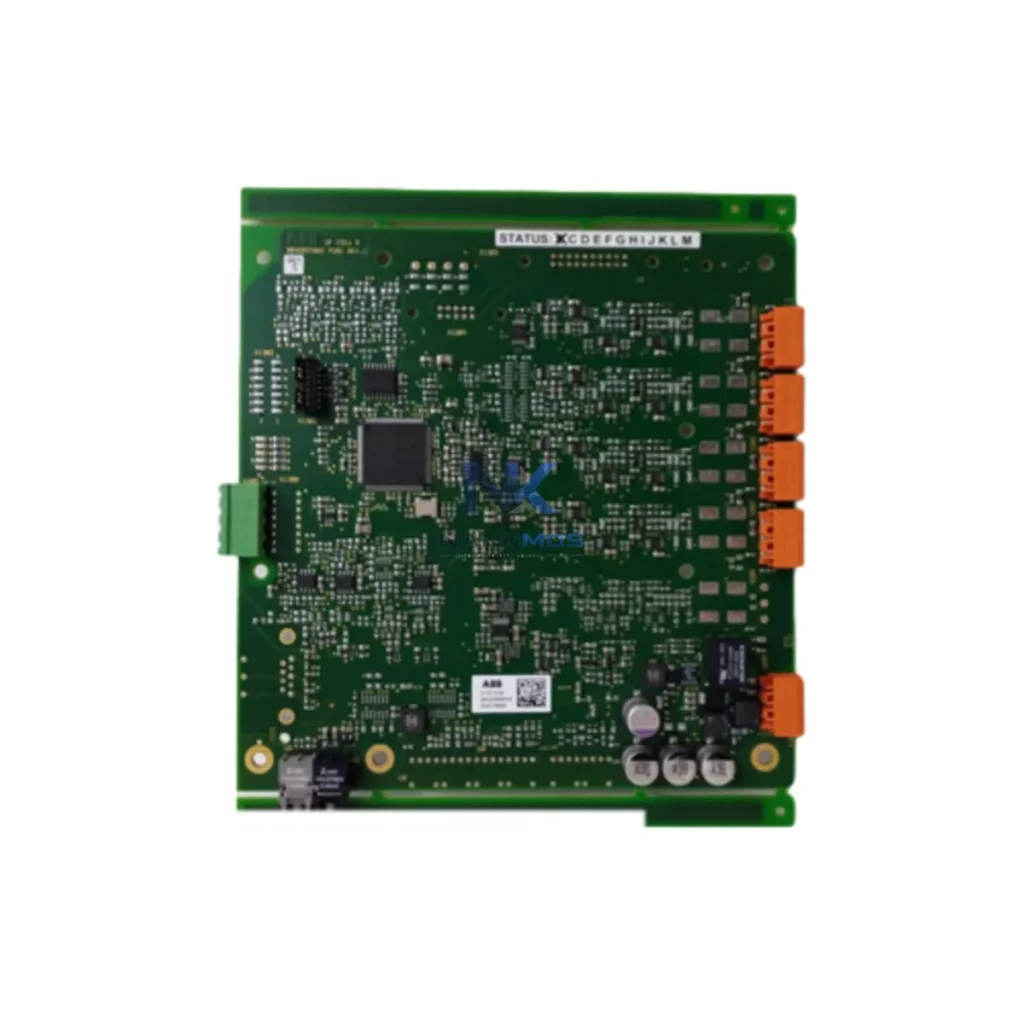

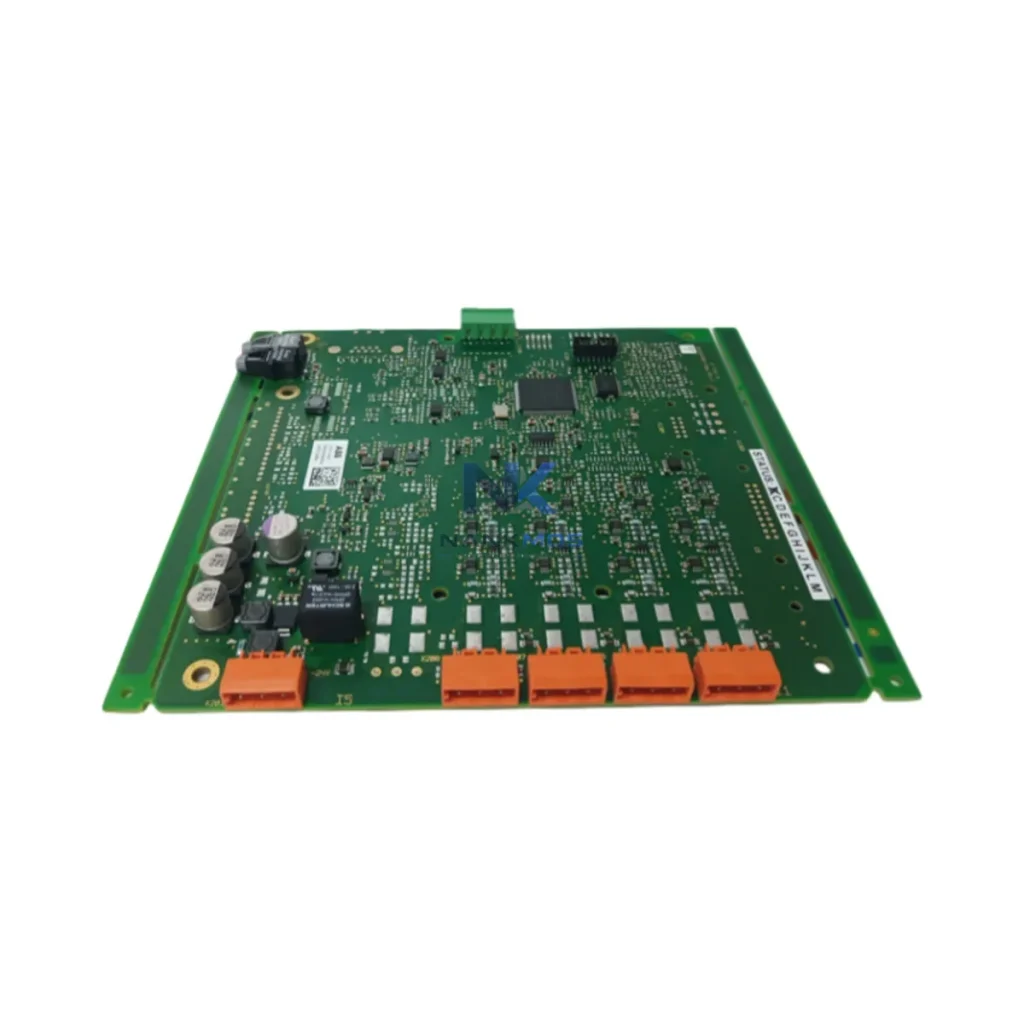

3BHE037864R0108 UNF911 B108 Product Description

The ABB 3BHE037864R0108 UNF911 B108 is a precision excitation control module engineered for deployment within the ABB UNITROL excitation system platform. Designed to regulate generator field current and terminal voltage with high accuracy, this module occupies a critical position in the power generation control architecture — bridging the excitation layer, the control layer, and the supervisory communication layer in a unified, diagnostics-ready framework. Its modular form factor and system-matched signal conditioning make it a preferred component for power plant engineers, OEM integrators, and industrial automation specialists who demand long-term reliability, contextual integration capability, and verifiable performance across the full system lifecycle.

Within the UNITROL platform, the UNF911 B108 module functions as a core excitation regulation unit, receiving setpoint commands from the automatic voltage regulator (AVR) logic layer and translating them into precise firing pulses for the thyristor bridge or IGBT converter stage. This closed-loop architecture ensures that terminal voltage remains stable under load transients, grid disturbances, and reactive power swings — conditions that are common in utility-scale generators, industrial co-generation plants, and marine propulsion systems. The module's internal signal processing chain is optimized for low-latency response, enabling the excitation system to react within milliseconds to voltage deviations detected by the measurement input cards.

System coherence is a defining characteristic of the 3BHE037864R0108 design philosophy. Rather than operating as a standalone controller, the UNF911 B108 is architected to function within a layered automation environment that includes the UNITROL 6800 or UNITROL 1000 AVR platform, the 3BHE022294R0101 pulse transformer interface, the UNS0881 measurement module for three-phase voltage and current acquisition, and the UFC760 fieldbus communication card for PROFIBUS DP or Modbus RTU integration with the plant DCS or SCADA system. This multi-layer integration ensures that excitation data — including field current magnitude, reactive power output, and excitation limiter status — is continuously available to the supervisory control layer for real-time monitoring and historical trending.

The 3BHE037864R0108 UNF911 B108 achieves its highest operational value when deployed as part of a fully integrated ABB excitation and power control architecture. In a typical utility or industrial power generation installation, the module interfaces upstream with the UNITROL 6800 AVR main controller, which provides the voltage reference setpoint and reactive power limiter logic. Downstream, the UNF911 B108 drives the thyristor firing sequence through the 3BHE022294R0101 pulse transformer board, ensuring synchronized gate pulses across all six thyristor legs of the rectifier bridge.

Voltage and current measurement inputs are supplied by the UNS0881 measurement input module, which acquires three-phase generator terminal voltage and stator current signals and conditions them for the AVR feedback loop. For installations requiring redundant excitation capability, the UNITROL platform supports a dual-channel architecture in which a secondary UNF911 module operates in hot-standby mode, with automatic bumpless transfer managed by the UNS0776 redundancy switchover unit. This redundancy design is particularly critical in base-load power plants, offshore platforms, and continuous-process industries where unplanned excitation trips carry significant operational and financial consequences.

Communication integration is handled through the UFC760 fieldbus interface card, which bridges the UNITROL internal communication bus to plant-level PROFIBUS DP or Modbus RTU networks. This enables the DCS — whether an ABB System 800xA, Siemens PCS 7, or Honeywell Experion platform — to read excitation status registers, issue remote setpoint adjustments, and log alarm events without requiring dedicated hardwired I/O. For installations using IEC 61850-based substation automation, the COM600 station automation unit can serve as a protocol gateway, translating UNITROL Modbus data into GOOSE messages for integration with protection relays and bay controllers.

Power supply integrity for the excitation control rack is maintained by the 3BHE006373R0001 auxiliary power supply module, which provides regulated 24 VDC to all logic cards including the UNF911 B108. In high-availability installations, dual power supply modules are deployed with automatic load sharing and fault detection. The control cabinet layout typically includes ABB S800 I/O modules for discrete status monitoring, CI854 PROFIBUS DP communication interfaces for fieldbus connectivity, and TB820 ModuleBus modem units for internal rack communication — all of which contribute to a coherent, diagnostics-rich automation environment that simplifies commissioning and long-term maintenance.

Power Generation and Grid Synchronization: In thermal, hydro, and gas turbine power plants, the UNF911 B108 regulates generator excitation during synchronization sequences, load pickup, and reactive power dispatch. Its fast response characteristic supports power system stabilizer (PSS) functions that damp inter-area oscillations on interconnected grids, contributing to overall grid stability and compliance with utility interconnection standards.

Petrochemical and Refinery Co-generation: Refinery co-generation units operating in island mode or parallel-with-grid configurations rely on precise excitation control to maintain bus voltage within tight tolerances during load shedding events. The 3BHE037864R0108 supports these demanding applications through its high-bandwidth AVR interface and configurable limiter functions for under-excitation, over-excitation, and stator current limiting.

Marine Propulsion and Offshore Platforms: Shipboard generators and offshore platform power systems require excitation controllers that can withstand vibration, humidity, and wide ambient temperature variations. The UNITROL platform's modular architecture allows the UNF911 B108 to be installed in marine-grade enclosures with conformal-coated PCBs, meeting DNV GL and ABS classification requirements for critical electrical systems.

Mining and Metals Processing: Large synchronous motors driving ball mills, crushers, and compressors in mining operations use excitation control modules to regulate reactive power absorption and maintain power factor correction targets. The UNF911 B108's compatibility with the UNITROL motor excitation variant enables consistent control architecture across both generator and large motor applications within the same facility.

Water Treatment and Pumping Stations: Municipal water authorities operating large synchronous pump drives benefit from the UNF911 B108's stable voltage regulation during pump start sequences and variable-flow operation, reducing mechanical stress on pump shafts and extending bearing service life through smoother torque profiles.

Q1: Is the ABB 3BHE037864R0108 UNF911 B108 compatible with both UNITROL 6800 and UNITROL 1000 AVR platforms, and what configuration steps are required for system integration?

The UNF911 B108 module is designed for use within the UNITROL excitation system family and is compatible with UNITROL 6800 and UNITROL 5000 platform architectures. Integration requires parameter configuration via the UNITROL commissioning software tool, where the module address, firing angle limits, current feedback scaling, and communication node ID are set. For UNITROL 1000 installations, compatibility should be verified against the specific hardware revision of the AVR main board, as earlier revisions may require a firmware update. Our technical team can provide configuration guidance and parameter file templates upon request.

Q2: What redundancy options are available for the UNF911 B108 in high-availability power generation applications, and how is automatic switchover managed?

The UNITROL platform supports N+1 redundancy for the excitation control layer through the UNS0776 redundancy switchover unit, which continuously monitors the active UNF911 channel and initiates bumpless transfer to the standby channel within one control cycle if a fault is detected. Both channels share the same measurement inputs and communication bus, ensuring that the standby module maintains synchronized state with the active module at all times. This architecture is recommended for base-load generators, offshore platforms, and any application where excitation trips carry significant operational risk. All redundant configurations are pre-shipment tested as a complete assembly before dispatch.

Q3: What is the warranty coverage for the 3BHE037864R0108 UNF911 B108, and what does the pre-shipment testing process include?

Every ABB 3BHE037864R0108 UNF911 B108 module supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. Pre-shipment testing includes functional verification of the pulse output circuit, auxiliary power supply input range, analog signal conditioning accuracy, and communication interface continuity. Modules that fail any test parameter are quarantined and not dispatched. A test report is available upon request for quality-critical procurement processes. In-stock units are available for immediate global dispatch, with lead times confirmed at the time of order placement.
