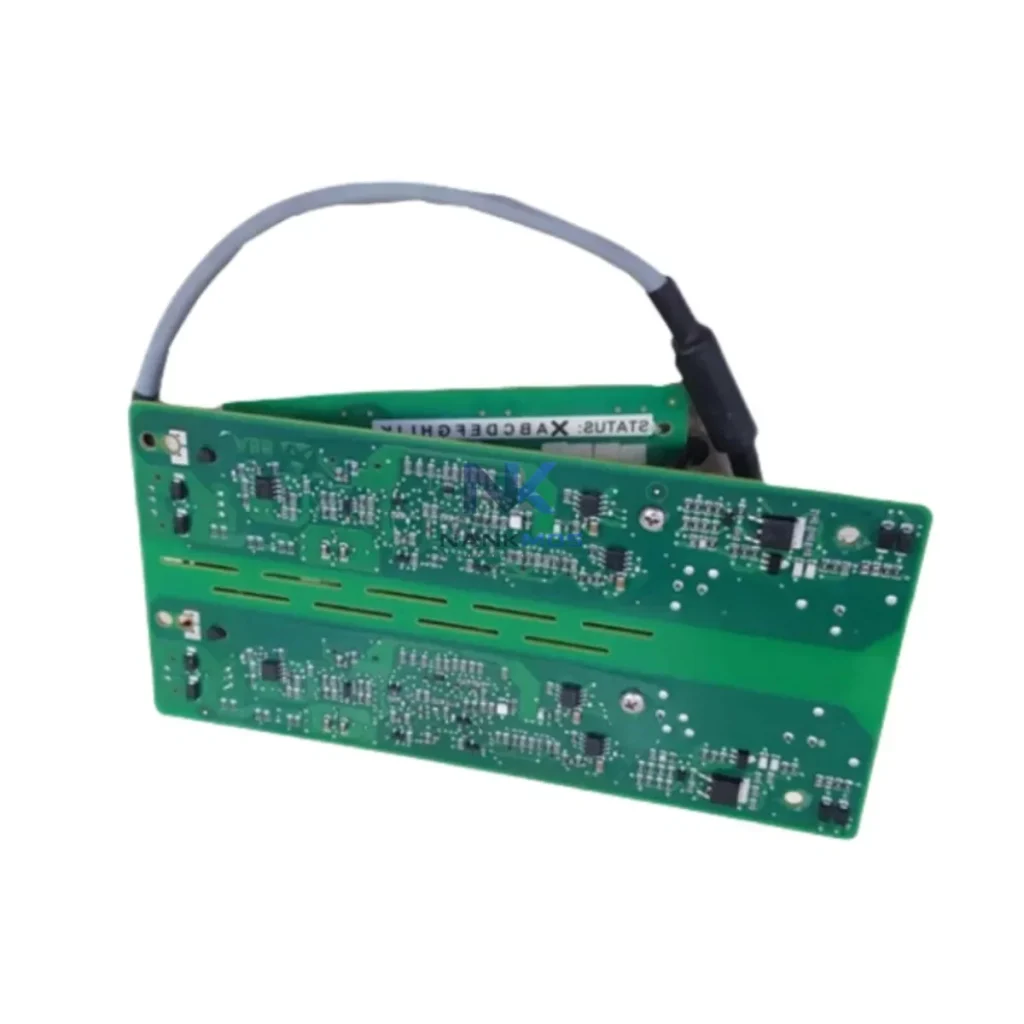

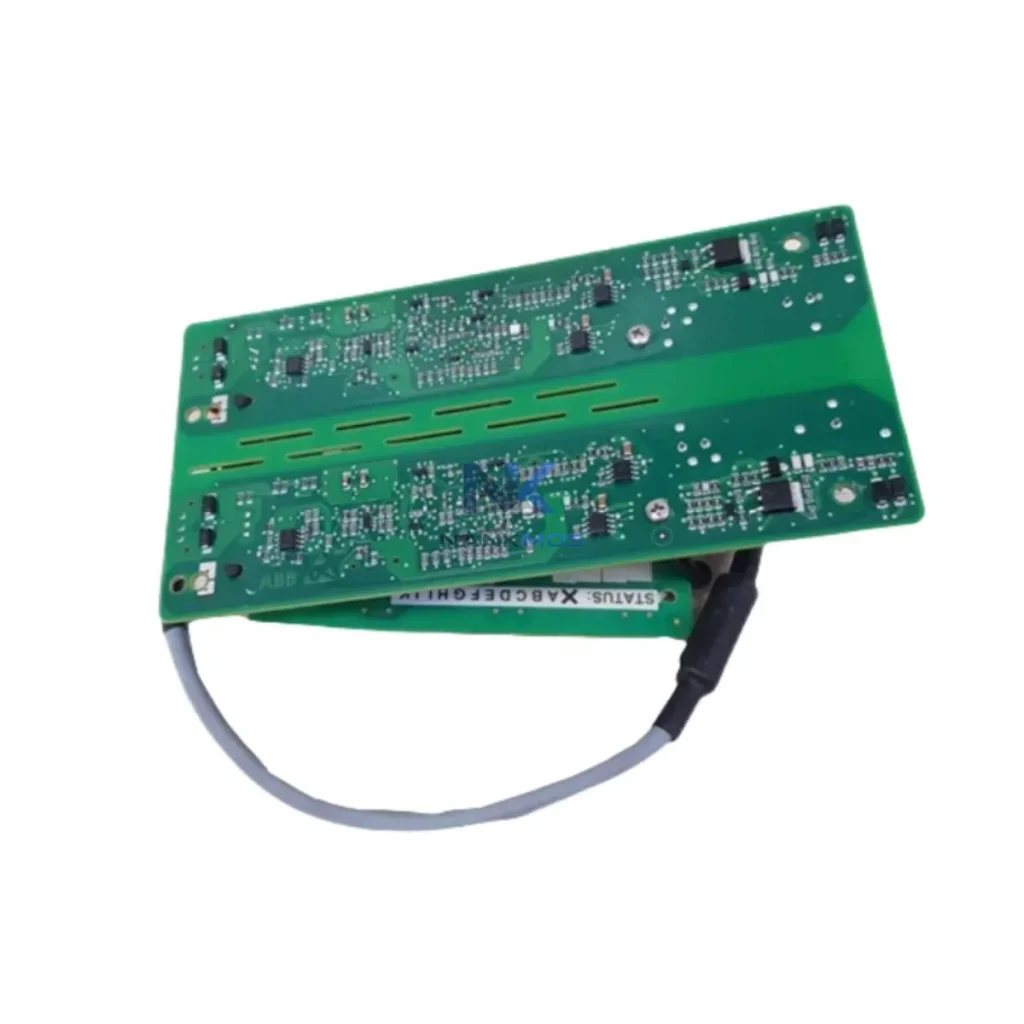

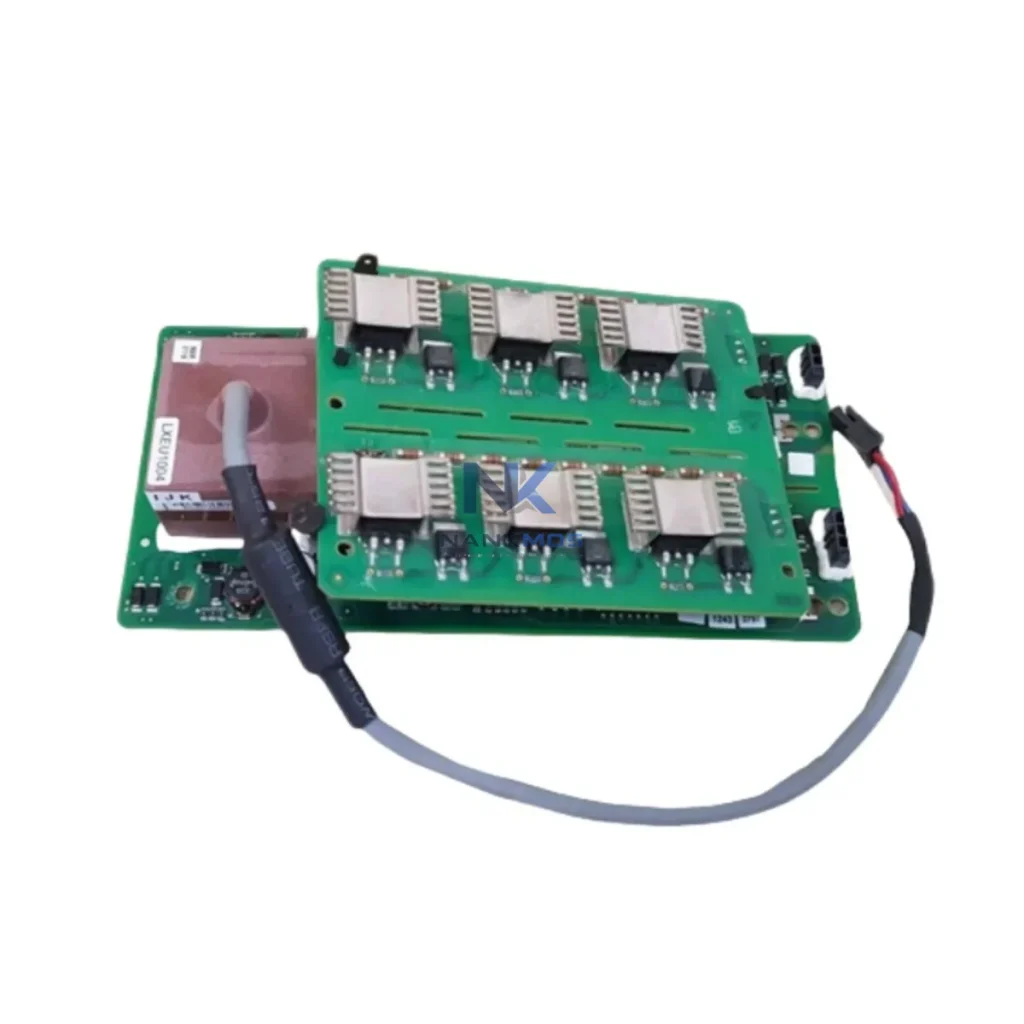

ABB 3BHE041294R010 GDC806 C103 Gate Driver Control Board

Product Details

3BHE041294R010 GDC806 C103 Product Description

The ABB 3BHE041294R010 GDC806 C103 is a precision-engineered gate driver control board designed for seamless integration within ABB's ACS medium-voltage drive architecture. As a core component of the power conversion layer, this gate driver governs IGBT switching sequences with microsecond-level accuracy, ensuring stable DC bus regulation, low harmonic distortion, and reliable torque control across demanding industrial applications. Its role extends beyond isolated switching — it functions as a critical node in the layered control hierarchy that connects the drive controller, power stack, fiber-optic communication bus, and protection circuitry into a unified, diagnostically coherent system.

In modern industrial automation, gate driver boards such as the 3BHE041294R010 are not standalone components — they are architectural elements. Their performance directly determines the integrity of the entire drive system, from the control layer issuing speed references down to the motor shaft delivering mechanical output. When deployed within a properly configured ACS800 or ACS6000 drive cabinet, this board interfaces with the RDCU-02C drive control unit, AINT-02C inverter control board, and APBU-44C pulse encoder interface, forming a tightly coupled signal chain that supports both open-loop and closed-loop vector control strategies.

The GDC806 C103 variant is factory-calibrated for specific IGBT module configurations used in ABB's high-power inverter stacks. Its fiber-optic gate signal inputs eliminate ground loop interference and provide galvanic isolation between the low-voltage control domain and the high-voltage power domain — a fundamental requirement in installations where DC link voltages exceed 1,000 VDC. This isolation architecture also supports redundant control topologies, where a standby RDCU or parallel gate driver path can assume control without interrupting the power conversion process.

From a system integration perspective, the 3BHE041294R010 is designed to operate within ABB's DriveAP and DriveWindow commissioning environments. Engineers can monitor gate pulse timing, IGBT junction temperature feedback, and fault event logs through the drive's diagnostic interface, reducing commissioning time and enabling predictive maintenance scheduling. When paired with the NDBU-95C branching unit and NINT-72C inverter module interface, the gate driver participates in a distributed fault detection network that isolates faults at the module level rather than triggering full system shutdowns.

All units supplied by NANKMOS are pre-shipment tested against ABB factory acceptance criteria, including gate pulse symmetry verification, isolation resistance measurement, and thermal cycling validation. Each board ships with a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Stock is maintained for immediate dispatch, supporting both planned maintenance windows and emergency replacement scenarios.

The 3BHE041294R010 GDC806 C103 achieves its full performance potential when deployed as part of a complete ABB ACS drive architecture. At the control layer, the RDCU-02C Drive Control Unit generates the PWM reference signals that are transmitted via fiber-optic link to the gate driver board, ensuring deterministic switching with sub-microsecond jitter. The AINT-02C Inverter Control Board manages the inverter phase coordination and provides the supervisory interface between the drive controller and the power stack.

Power supply integrity is maintained by the APOW-01C Auxiliary Power Supply Board, which delivers regulated 24 VDC to the gate driver and associated control electronics. In redundant configurations, a secondary APOW module provides automatic failover, preventing nuisance trips during power supply transients. The NDBU-95C Branching Unit distributes fiber-optic gate signals from the RDCU to multiple gate driver boards in parallel inverter topologies, supporting multi-module power stacks used in high-current applications above 1,000 A.

At the I/O and feedback layer, the RTAC-01 Pulse Encoder Interface Module provides closed-loop speed feedback to the RDCU, enabling field-oriented vector control with the gate driver executing the resulting current reference commands. The NINT-72C Inverter Module Interface Board aggregates temperature and fault signals from individual IGBT modules and relays them to the drive's diagnostic system, where they are correlated with gate driver event logs for root-cause analysis.

For communication and SCADA integration, the NETA-21 Remote Monitoring Tool and RPBA-01 PROFIBUS Adapter extend drive diagnostics to plant-level DCS and SCADA platforms, enabling real-time monitoring of gate driver health, switching frequency, and thermal margins without requiring local panel access. In installations using ABB's System 800xA distributed control system, drive objects including gate driver fault states are natively represented in the process graphic environment, supporting operator situational awareness and maintenance workflow integration.

Power Generation & Utilities: In variable-speed pump and fan drives for cooling water systems at thermal and nuclear power stations, the 3BHE041294R010 maintains precise IGBT switching timing across load cycles ranging from 20% to 110% of rated current, supporting both energy efficiency optimization and grid frequency response requirements.

Petrochemical & Oil and Gas: Compressor and pump drives in hazardous area installations rely on the gate driver's robust fault detection — including desaturation and short-circuit protection — to prevent cascading failures in processes where unplanned shutdowns carry significant safety and financial consequences. The board's compatibility with ABB's ACS6000 series makes it suitable for 3.3 kV and 6.6 kV medium-voltage motor drives common in upstream and downstream processing.

Mining & Minerals Processing: Conveyor, hoist, and mill drive systems in mining operations demand gate drivers capable of sustained high-current operation under variable load profiles. The GDC806 C103's thermal management design and IGBT desaturation detection support continuous duty cycles in environments where ambient temperatures and dust ingress challenge standard industrial electronics.

Water & Wastewater Treatment: Municipal water authorities operating large centrifugal pump stations use ACS-series drives with this gate driver board to achieve precise flow control, reducing energy consumption by 30–50% compared to throttle-valve regulation. The 12-Month Warranty and in-stock availability support the maintenance planning cycles typical of public utility infrastructure.

Marine Propulsion & Offshore: Podded propulsion systems and thruster drives on offshore vessels and platform supply ships require gate drivers with high isolation integrity and resistance to vibration and humidity. The 3BHE041294R010's fiber-optic interface architecture eliminates EMI coupling paths that are particularly problematic in marine electrical environments with multiple high-power converters operating in close proximity.

Q1: Is the 3BHE041294R010 GDC806 C103 compatible with both ACS800 and ACS6000 drive platforms? The GDC806 C103 is primarily designed for ABB's medium-voltage ACS drive platforms. Compatibility depends on the specific inverter stack configuration and IGBT module type installed in your drive cabinet. NANKMOS recommends providing your full drive nameplate data — including type code, firmware version, and inverter module part numbers — to confirm direct interchangeability before ordering. Our technical team can cross-reference your configuration against ABB's spare parts matrix to confirm fit.

Q2: What commissioning steps are required after replacing the gate driver board in an operational ACS drive system? After physical installation, the replacement gate driver must be verified for correct fiber-optic cable routing and connector seating. The drive should be powered up in a de-energized motor state to allow the RDCU to perform its self-test sequence and confirm gate driver communication integrity. Gate pulse symmetry and IGBT desaturation threshold calibration should be verified using ABB's DriveWindow or DriveAP software before returning the drive to service. NANKMOS supplies each board pre-tested to factory acceptance criteria, reducing on-site commissioning time.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims? The 12-Month Warranty provided by NANKMOS covers manufacturing defects and functional failures under normal operating conditions as specified in ABB's technical documentation for the 3BHE041294R010. Warranty claims are initiated by contacting NANKMOS at [email protected] with the order reference, installation date, and a description of the observed fault. Failed units are evaluated by our technical team, and confirmed warranty cases are resolved by replacement dispatch. The warranty period begins from the date of shipment confirmation.
