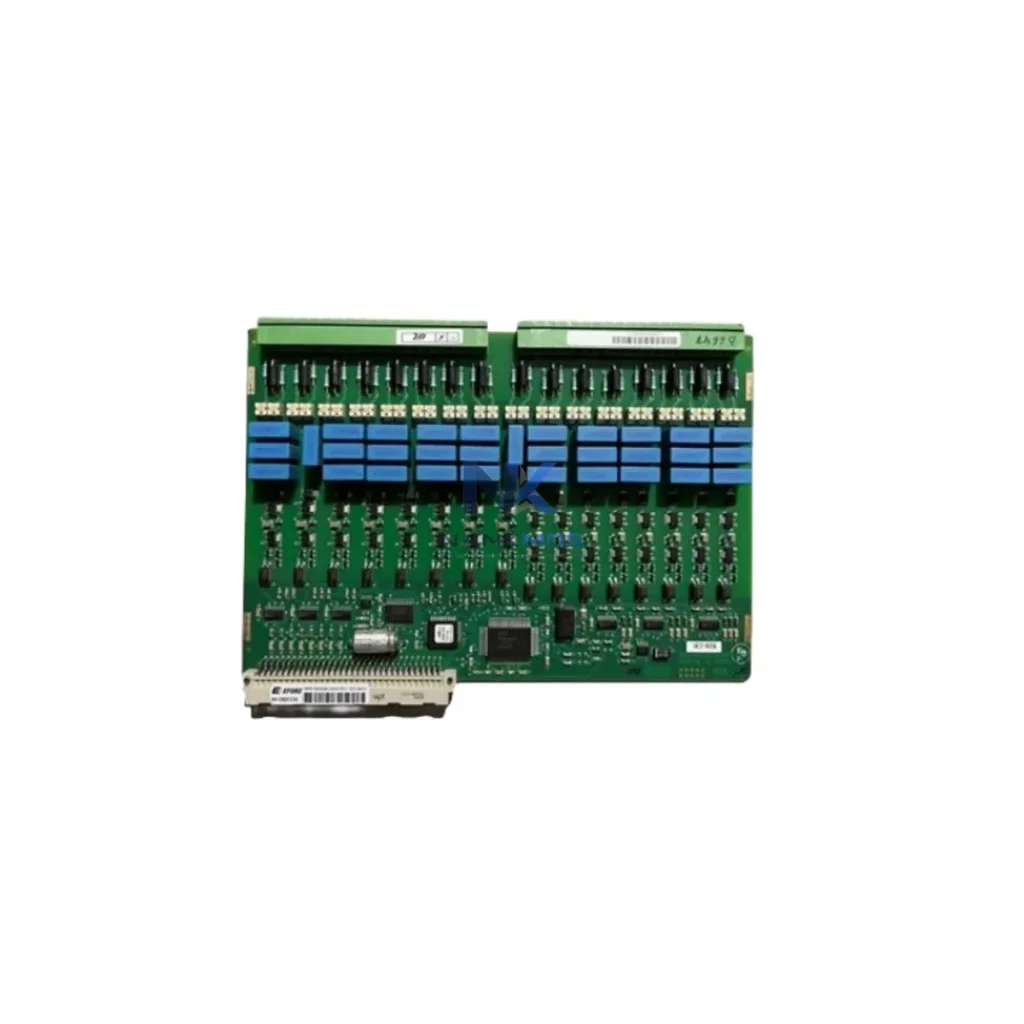

ABB 3BHL000986P3001 Control Board

Product Details

3BHL000986P3001 Product Description

The ABB 3BHL000986P3001 is a high-performance control board engineered for the ACS series of AC drives, delivering precise energy regulation, load management, and drive efficiency optimization across demanding industrial environments. Designed to operate within ABB's proven ACS drive platform, this board serves as the intelligence layer between the power stage and the control system — enabling real-time modulation of motor output, thermal load reduction, and production line synchronization. Whether deployed in continuous process manufacturing, discrete assembly, or energy-intensive material handling, the 3BHL000986P3001 provides the control accuracy and system integration depth required for modern energy-aware automation.

Each unit is sourced from verified supply channels, undergoes pre-shipment functional testing, and is backed by a 12-month warranty — ensuring operational confidence from installation through the full warranty period.

In a fully integrated industrial automation architecture, the ABB 3BHL000986P3001 control board functions as the central coordination point for energy-efficient drive operation. It interfaces directly with the ACS drive's power stage, translating control signals from upstream PLCs — such as the ABB AC500 or Siemens S7-1500 — into precise motor torque and speed commands. This closed-loop control eliminates unnecessary motor over-speed and over-excitation, two of the most common sources of wasted energy in variable-load applications.

When paired with ABB's RDCO-02 or RDCO-04 communication adapter modules, the 3BHL000986P3001 enables seamless DDCS fiber-optic communication between the drive and master controllers, supporting multi-drive coordination across large production lines. This is particularly valuable in applications where multiple ACS880 or ACS800 drives must operate in synchronized torque-sharing or speed-following modes — reducing mechanical stress and energy imbalance across the drivetrain.

The board also supports integration with ABB's FPBA-01 PROFIBUS adapter and FENA-21 EtherNet/IP adapter, allowing the drive system to report real-time energy consumption data to SCADA platforms and energy management systems (EMS). Combined with power monitoring modules such as the ABB B23 or B24 energy meter series, plant engineers gain full visibility into per-drive energy consumption, enabling data-driven load scheduling and demand response strategies.

On the I/O and sensing side, the 3BHL000986P3001 works in conjunction with the drive's analog and digital I/O terminals to receive feedback from current transformers, temperature sensors, and encoder modules. This feedback loop allows the drive to dynamically adjust its output in response to actual load conditions — reducing thermal stress on both the motor and the drive's power semiconductors. When integrated with ABB's ACS-AP-I or ACS-AP-W control panels (HMI), operators gain local visibility into drive status, energy counters, and fault diagnostics without requiring SCADA access.

For facilities running ABB's Ability™ Energy Manager or third-party SCADA systems via OPC-UA or Modbus TCP, the 3BHL000986P3001-equipped drive becomes a data node in the plant's broader energy monitoring network — contributing to production line energy KPIs, shift-based consumption reporting, and predictive maintenance scheduling.

The primary energy optimization contribution of the ABB 3BHL000986P3001 lies in its ability to maintain precise control over the drive's output voltage and frequency waveform. In applications where motor loads vary significantly — such as conveyor systems, centrifugal pumps, and compressors — the control board enables the ACS drive to apply only the energy required to meet the actual load demand at any given moment. This eliminates the fixed-speed energy waste common in across-the-line motor starters and reduces annual energy consumption by a measurable margin in high-utilization applications.

Beyond direct energy savings, the 3BHL000986P3001 contributes to production line stability by maintaining consistent motor torque response under transient load conditions. Sudden load spikes — common in stamping presses, injection molding machines, and rolling mills — are absorbed by the drive's torque control algorithm, preventing voltage sags that could disrupt other equipment on the same power bus. This stabilization effect reduces nuisance trips, protects downstream equipment, and maintains production line throughput without requiring oversized power infrastructure.

Thermal load management is another critical benefit. By modulating switching frequency and applying intelligent thermal derating when drive temperatures approach limits, the control board extends the operational lifespan of the drive's IGBT modules and capacitor banks. Reduced thermal cycling translates directly into lower maintenance frequency, fewer unplanned shutdowns, and a longer mean time between failures (MTBF) for the overall drive system.

For maintenance teams, the 3BHL000986P3001 supports predictive maintenance workflows by enabling the drive to log fault histories, running hours, and energy consumption data accessible via the drive's fieldbus interface. This data can be exported to CMMS platforms or analyzed within SCADA dashboards to identify degradation trends before they result in production stoppages — shifting maintenance from reactive to condition-based, and reducing both labor costs and spare parts consumption over the equipment lifecycle.

Stock availability is maintained to support rapid replacement needs. Given the critical role this control board plays in ACS drive operation, having a verified replacement unit available minimizes mean time to repair (MTTR) and protects production continuity. All units are pre-shipment tested and shipped with documentation supporting installation and commissioning.

Q1: What energy savings can be expected when using the ABB 3BHL000986P3001 in an ACS drive application?Energy savings depend on the application and baseline operating conditions. In variable-torque applications such as pumps and fans, ACS drives controlled by the 3BHL000986P3001 can reduce motor energy consumption by 20–50% compared to fixed-speed operation. In constant-torque applications, savings are typically lower but still significant due to elimination of over-excitation and improved power factor.

Q2: Which ACS drive models is the 3BHL000986P3001 compatible with?The 3BHL000986P3001 is designed for use within the ABB ACS drive platform. Compatibility should be verified against the specific ACS drive model and firmware version in your application. Our technical team can assist with cross-referencing the part number to your drive's bill of materials or service documentation prior to ordering.

Q3: What is the pre-shipment testing process for this control board?Each ABB 3BHL000986P3001 unit undergoes functional verification prior to shipment, including power-on testing and interface integrity checks. Units are inspected for physical condition, component integrity, and correct part number identification. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q4: How quickly can a replacement unit be sourced if the installed board fails?We maintain inventory of critical ACS series control boards including the 3BHL000986P3001 to support rapid dispatch. Lead times vary by region and current stock levels, but priority orders are processed for customers with active production line downtime. Contact our team directly to confirm current availability and estimated delivery timeline.
