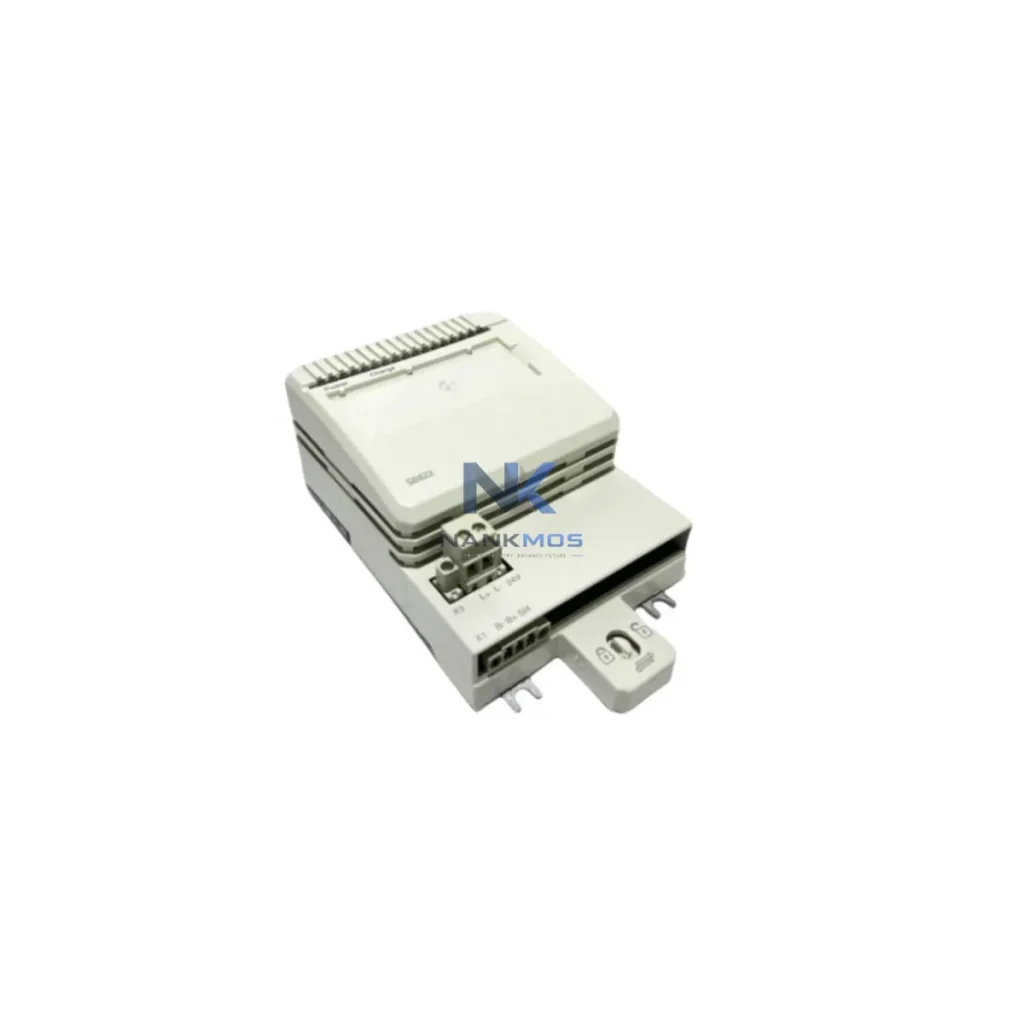

3BSC760019E1 SB822 AB12G 364-1115 3.7V 2.4AH Product Description

The ABB 3BSC760019E1 (SB822) is a dedicated backup battery module engineered for the ABB Advant and MOD 300 distributed control system platform. Its role within the control architecture is foundational: it sustains volatile memory and real-time clock functions in the CPU module during power interruptions, ensuring that process programs, configuration data, and runtime states are preserved without manual reloading after restoration of mains supply.

In a fully integrated Advant or MOD 300 control cabinet, the 3BSC760019E1 operates in close coordination with the PM511 / PM510 Processor Module, which relies on continuous low-voltage backup to maintain SRAM integrity. The battery module is typically installed alongside the SC510 / SC520 Subrack Controller, which manages slot addressing and inter-module communication across the backplane. Power distribution within the rack is handled by the SS822 / SS832 Power Supply Module, and the 3BSC760019E1 provides the secondary layer of energy continuity that the primary supply cannot guarantee during transient outages or planned shutdowns.

At the I/O layer, the system may include AI810 Analog Input Modules, AO810 Analog Output Modules, and DI810 / DO810 Digital I/O Modules, all of which depend on the CPU retaining its configuration and I/O mapping tables — data that the SB822 battery module protects. Loss of this data would require full re-commissioning of the I/O layer, a process that can take hours in a production environment.

At the communication layer, the Advant platform commonly integrates CI522A / CI532V PROFIBUS DP Communication Interface Modules and MB510 MasterBus 300 Communication Modules. These modules maintain fieldbus node addresses and communication parameters in CPU-resident memory. The 3BSC760019E1 ensures that these parameters survive power cycling, eliminating the risk of fieldbus re-addressing errors after restart.

For HMI and supervisory integration, the Advant platform connects to Operator Station (OS) workstations via the MasterBus 300 or Ethernet-based supervisory links. The CPU's ability to resume communication with the HMI layer immediately after power restoration — without re-initialization — depends directly on the memory retention provided by the SB822 battery module. In redundant CPU configurations, the 3BSC760019E1 must be present and functional in both the primary and standby processor modules to ensure seamless bumpless transfer during switchover events.

From a maintenance and lifecycle perspective, the 3BSC760019E1 is a scheduled replacement component. Industry practice recommends battery module replacement every 3–5 years depending on ambient temperature and duty cycle. Maintaining a spare inventory of SB822 modules alongside TB820 / TB825 Termination Boards and BC810 Bus Coupler Modules is standard practice for facilities operating Advant or MOD 300 systems in continuous process environments such as power generation, petrochemical refining, and water treatment.

Power Generation & Utilities: In thermal and hydroelectric power plants running ABB Advant DCS, the 3BSC760019E1 protects turbine control logic and excitation system parameters during grid disturbances. Rapid power restoration without re-commissioning is critical to maintaining generation continuity and grid stability compliance.

Petrochemical & Refining: MOD 300 systems in refinery process units manage complex interlock and safety logic. The SB822 battery module ensures that process variable setpoints, PID tuning parameters, and alarm configurations are retained across planned and unplanned shutdowns, reducing restart time and minimizing the risk of process upsets.

Water & Wastewater Treatment: Municipal water treatment facilities using Advant controllers for pump sequencing, dosing control, and SCADA integration rely on battery-backed CPU memory to maintain operational continuity during utility power fluctuations. The 3BSC760019E1 supports uninterrupted process control across shift changes and maintenance windows.

Mining & Metallurgy: In ore processing and smelting operations, DCS systems control high-inertia equipment such as ball mills, conveyors, and furnace burner management systems. Battery module integrity is essential to preserving the control logic that governs these systems, particularly in remote sites where re-commissioning support is not immediately available.

Packaging & Discrete Manufacturing: Production lines integrating ABB Advant controllers for coordinated motion, recipe management, and quality inspection benefit from the 3BSC760019E1's ability to retain active recipe data and production counters across power interruptions, supporting OEE targets and reducing scrap rates associated with unplanned restarts.

Q1: Is the ABB 3BSC760019E1 compatible with both the Advant and MOD 300 DCS platforms? Yes. The 3BSC760019E1 (SB822) is designed for use across the ABB Advant OCS and MOD 300 distributed control system families. It is cross-referenced as AB12G and 364-1115, and is compatible with processor modules including the PM511 and PM510 series. Always verify the specific subrack and processor module revision against the ABB hardware compatibility matrix before installation.

Q2: How does the SB822 battery module integrate into a redundant CPU architecture? In redundant processor configurations, each CPU module — both primary and standby — requires an independently functional SB822 battery module. During a switchover event, the standby CPU must have its memory fully retained to execute a bumpless transfer. A degraded or missing battery in the standby module can result in a cold restart rather than a warm switchover, causing process disruption. Replacement of both modules simultaneously during scheduled maintenance is recommended to maintain symmetrical redundancy.

Q3: What is the recommended replacement interval, and does NANKMOS provide warranty coverage? ABB recommends replacing the 3BSC760019E1 every 3–5 years under standard operating conditions (ambient temperature 20–25°C). In higher-temperature environments, the replacement interval should be shortened accordingly. All units supplied by NANKMOS are covered by a 12-Month Warranty and undergo pre-shipment functional testing to verify voltage output and capacity retention. Stock is maintained for immediate dispatch to minimize system downtime during planned maintenance cycles.
