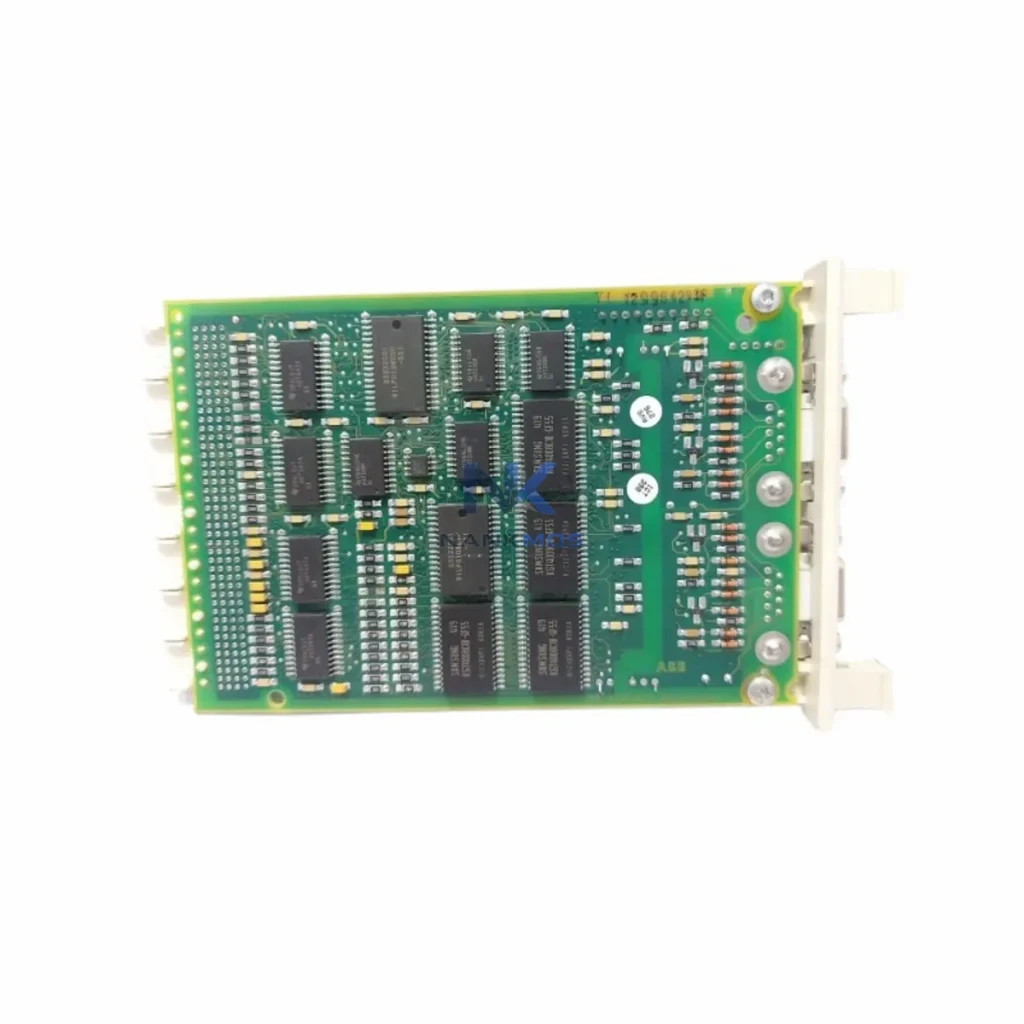

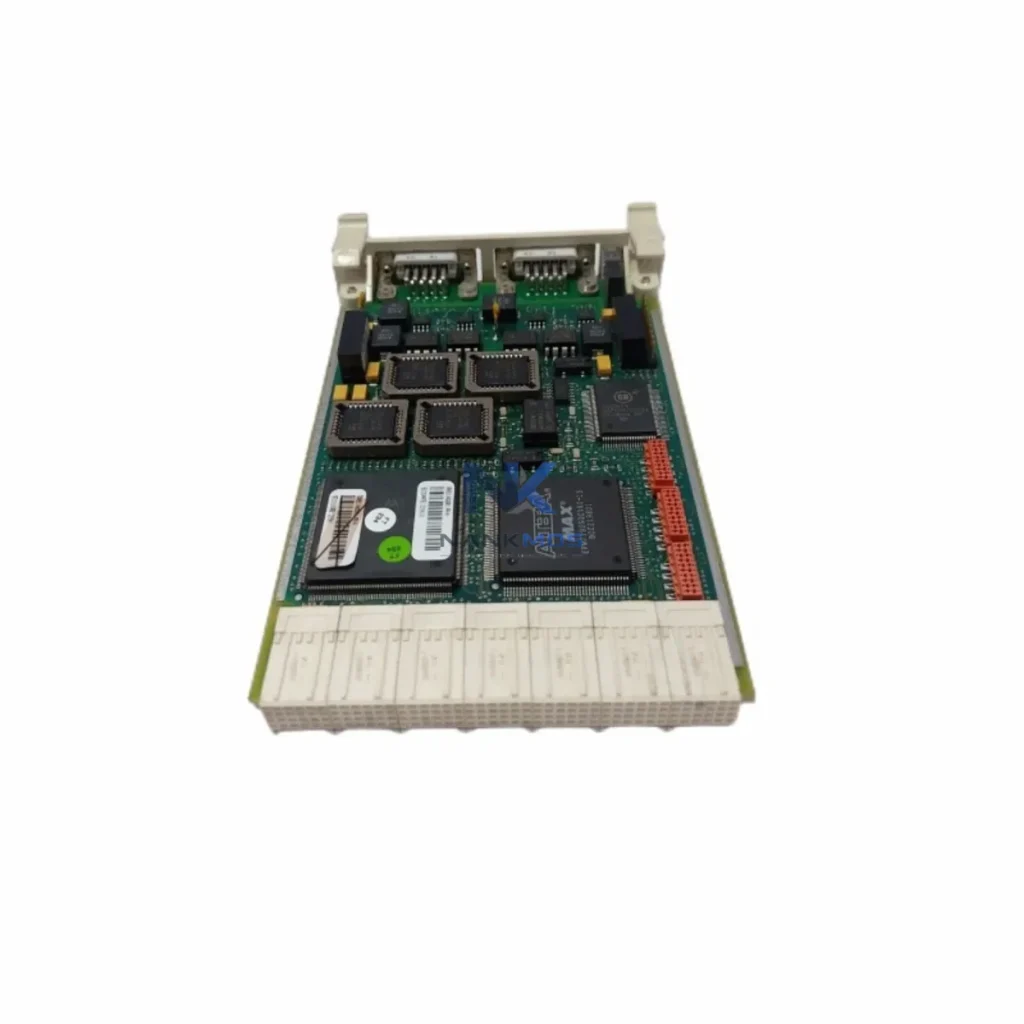

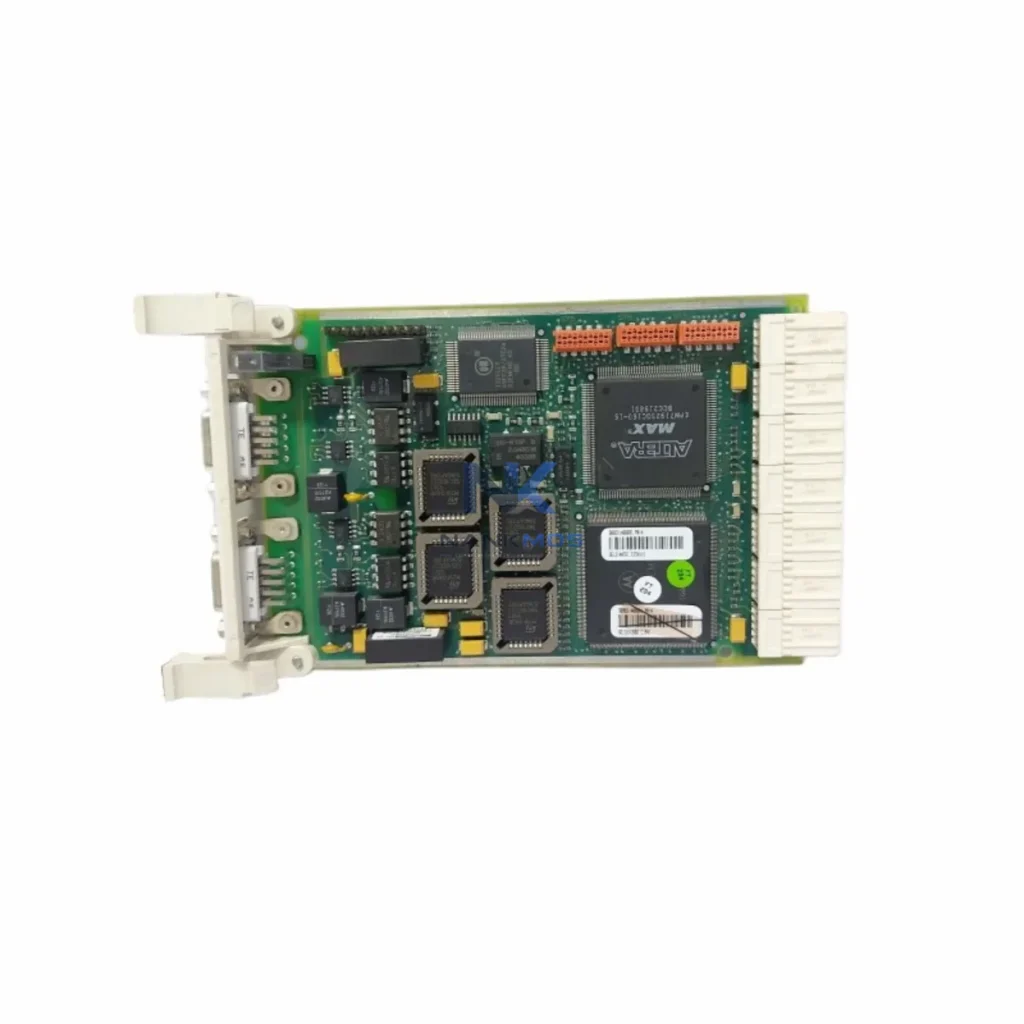

ABB 3BSE014666R1 CI541V1 Profibus Communication Gateway

Product Details

3BSE014666R1 CI541V1 Product Description

The ABB 3BSE014666R1 CI541V1 is a high-performance Profibus DP communication gateway engineered for the AC500 PLC platform, purpose-built to bridge field-level devices and upper-level control systems in demanding industrial environments. As smart factories evolve toward fully connected architectures, the CI541V1 serves as a critical data link node — enabling seamless protocol conversion, deterministic real-time communication, and transparent device integration across the entire automation hierarchy. From signal acquisition at the sensor level to data visualization on SCADA dashboards, this module ensures that every byte of process data reaches its destination reliably and on time.

In a modern smart factory, the ABB 3BSE014666R1 CI541V1 acts as the communication backbone between field instrumentation and supervisory systems. At the lowest layer, field sensors — including pressure transmitters, flow meters, and temperature probes — transmit process values over the Profibus DP network. The CI541V1 gateway, mounted directly on the AC500 CPU rack alongside modules such as the ABB DC532 digital I/O module and ABB AI523 analog input module, collects these signals and makes them available to the PLC's control logic in real time.

The AC500 CPU — for example the ABB PM573-ETH or ABB PM591 — processes the incoming field data and executes control algorithms. The CI541V1 ensures that Profibus DP slave devices, such as ABB ACS580 variable frequency drives and ABB ACSM1 servo drives, receive setpoints and return status feedback within the deterministic cycle time required for closed-loop control. This tight integration eliminates communication latency that would otherwise compromise process stability in high-speed manufacturing lines.

Moving up the network hierarchy, the AC500 PLC communicates with plant-level systems via Ethernet. An ABB CM589-PNIO PROFINET communication module or an industrial Ethernet switch — such as those in the ABB Ethernet Switch ES series — bridges the Profibus segment to the plant backbone, forwarding real-time data to SCADA platforms and MES systems. HMI panels, including ABB CP635 touch panels, subscribe to live process variables, enabling operators to monitor drive speeds, valve positions, and alarm states from a single interface.

For remote diagnostics and predictive maintenance, the data chain extends further: edge gateways aggregate Profibus device diagnostics — fault codes, communication error counters, and device health registers — and forward them to cloud-based analytics platforms. The CI541V1 supports DP-V1 acyclic services, which allow engineering tools to read and write device parameters without interrupting the cyclic data exchange. This capability is essential for remote commissioning of ABB FENA-21 Ethernet adapter modules installed in drives across geographically distributed production sites.

Every unit of the ABB 3BSE014666R1 CI541V1 supplied by NANKMOS undergoes pre-shipment functional testing to verify Profibus DP communication integrity, baud rate auto-detection, and backplane interface continuity. Stock is maintained on-hand to support urgent project timelines, and all units are covered by a 12-month warranty from the date of shipment.

Many industrial sites operate with a mix of legacy Profibus devices and modern Ethernet-based controllers, creating protocol fragmentation that prevents unified data visibility. The CI541V1 directly addresses this by acting as a DP master, polling all connected slave devices — drives, remote I/O stations, valve positioners, and smart sensors — and consolidating their data into the AC500 PLC's process image. This eliminates data silos that previously required manual data collection or separate SCADA polling cycles.

Remote monitoring challenges are resolved through the DP-V1 diagnostic channel, which surfaces device-level fault information — including Profibus address conflicts, cable break detection, and watchdog timeout events — directly to the SCADA alarm management system. Maintenance teams can acknowledge, investigate, and resolve field device faults without dispatching personnel to the panel, reducing mean time to repair and improving overall equipment effectiveness.

Production line transparency is achieved by mapping Profibus device status bits to SCADA tags, enabling real-time KPI dashboards that display OEE, cycle counts, and energy consumption per machine. As production capacity grows, the CI541V1 supports network expansion by accommodating up to 125 Profibus DP slave addresses per segment, with repeaters extending reach across large plant footprints. This scalability ensures that the communication infrastructure grows alongside the factory without requiring controller replacement.

Q1: What is the maximum Profibus DP baud rate supported by the ABB 3BSE014666R1 CI541V1? The CI541V1 supports auto-baud detection across the full Profibus DP range from 9.6 kbps to 12 Mbps. The module automatically synchronizes to the baud rate set by the Profibus master, eliminating manual configuration and reducing commissioning time on multi-vendor networks.

Q2: Is the CI541V1 compatible with third-party Profibus DP slave devices from vendors other than ABB? Yes. The CI541V1 complies with the EN 50170 Profibus DP standard and is compatible with any certified Profibus DP-V0 or DP-V1 slave device. GSD files from third-party vendors — including Siemens, Phoenix Contact, and Pepperl+Fuchs — can be imported into the AC500 engineering tool (Automation Builder) to configure slave device parameters.

Q3: How does the CI541V1 support remote diagnostics and predictive maintenance? The module supports DP-V1 acyclic communication services, which allow the AC500 PLC or an external engineering tool to read extended diagnostic data, device parameters, and alarm registers from slave devices without interrupting the cyclic data exchange. This data can be forwarded via the AC500 Ethernet interface to SCADA or cloud analytics platforms for trend analysis and predictive maintenance scheduling.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the ABB 3BSE014666R1 CI541V1? All units supplied by NANKMOS carry a 12-month warranty from the date of shipment. Each module undergoes pre-shipment functional testing covering Profibus DP communication verification, baud rate auto-detection, and backplane interface continuity checks. In-stock units are available for immediate dispatch to support urgent project and maintenance requirements.
