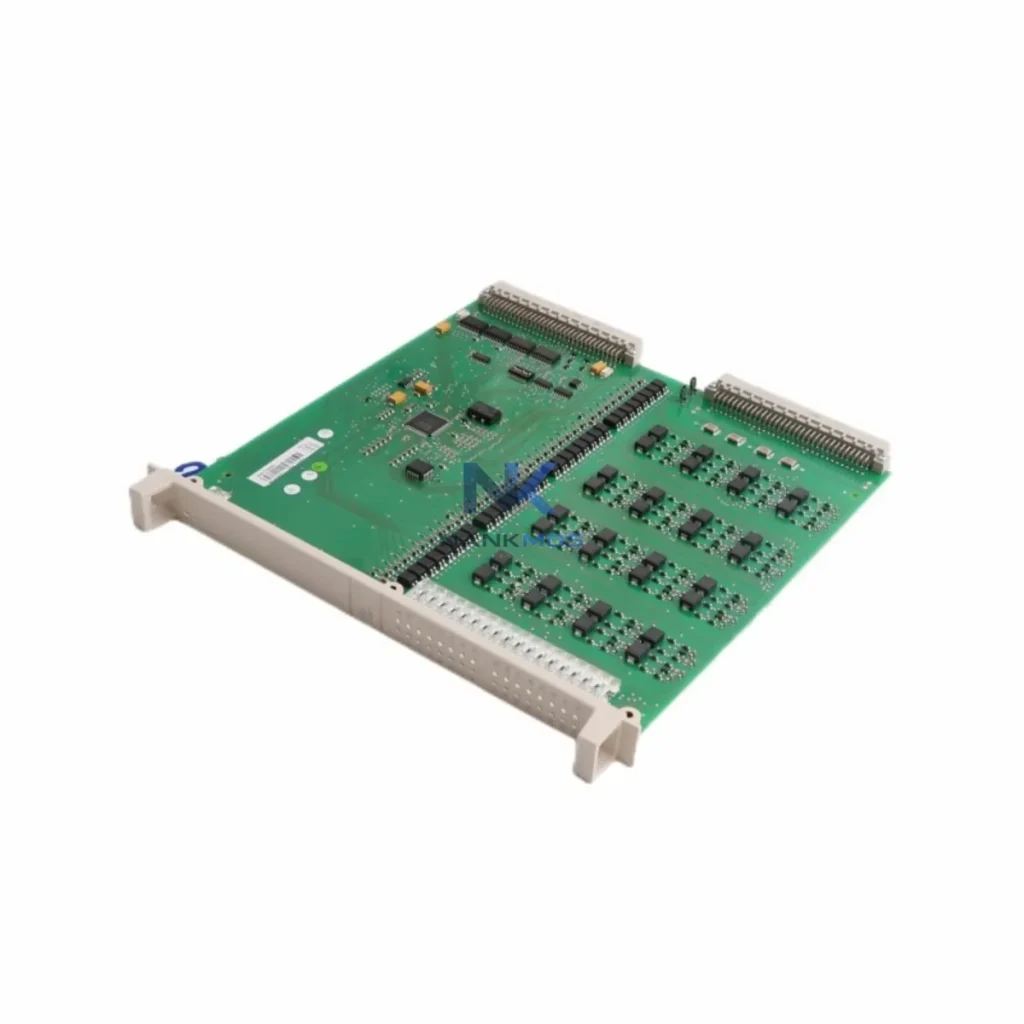

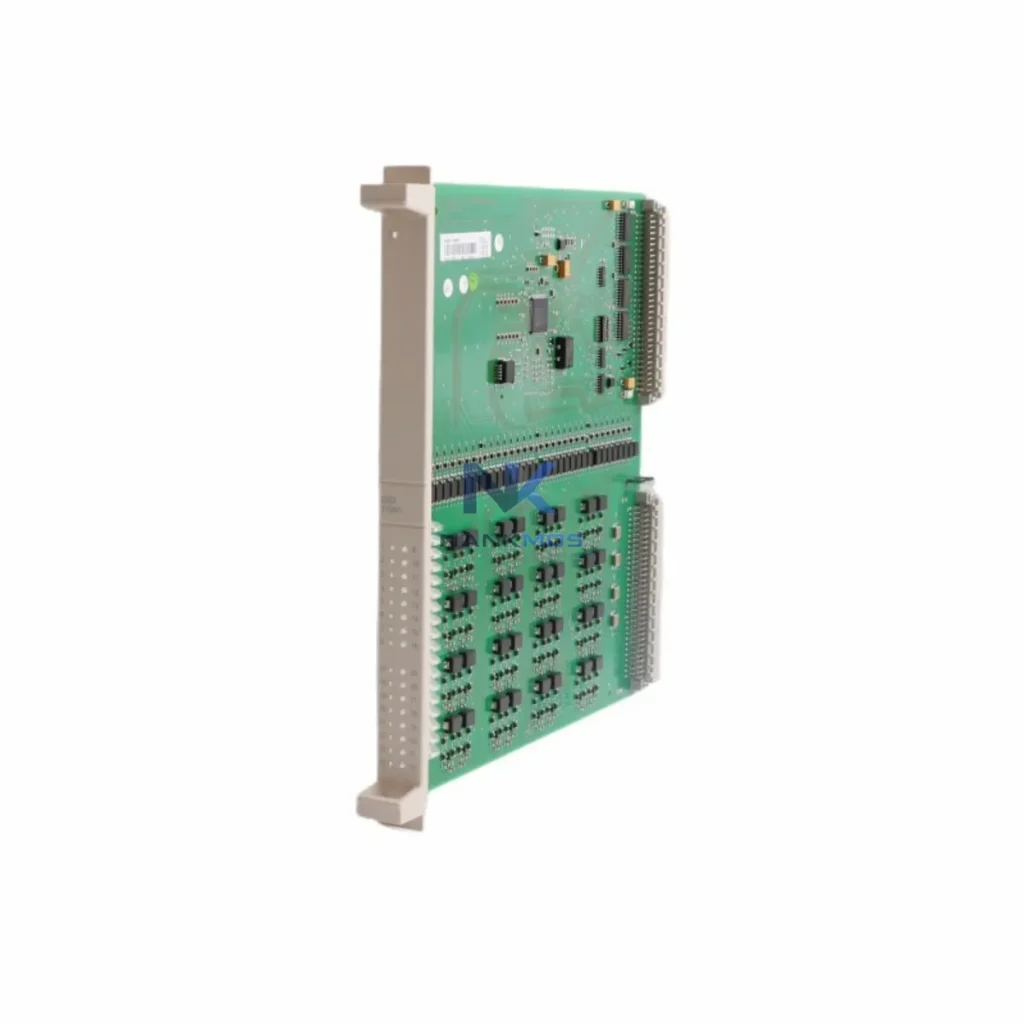

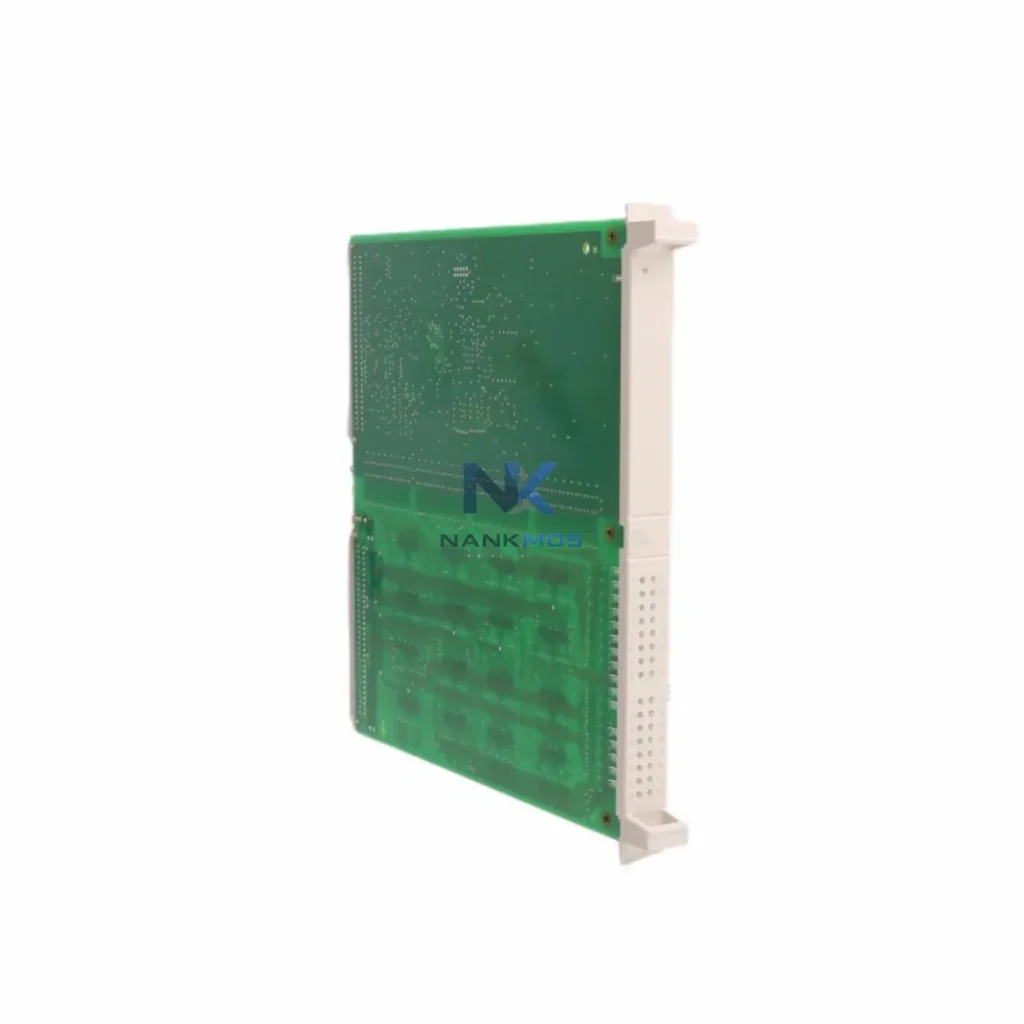

ABB 3BSE018295R1 DSDI 110AV1 Digital Input Module

Product Details

3BSE018295R1 DSDI 110AV1 Product Description

The ABB DSDI 110AV1 (3BSE018295R1) is a high-density digital input module engineered for seamless integration within ABB's S800 I/O platform — one of the most widely deployed distributed I/O architectures in process automation. Designed to operate as a precision signal acquisition layer within multi-tier control systems, the DSDI 110AV1 delivers deterministic input scanning, robust electrical isolation, and field-proven reliability across demanding industrial environments including power generation, oil and gas, chemical processing, water treatment, and advanced manufacturing.

In modern control architectures, the digital input layer is not a passive component — it is the sensory foundation upon which the entire control loop depends. The DSDI 110AV1 fulfills this role with 16 channels of isolated digital input, each capable of accepting 24 VDC field signals from limit switches, proximity sensors, valve position feedback, motor run/stop status, and safety interlock circuits. Its modular form factor integrates directly into the S800 I/O station backplane, enabling engineers to scale input capacity without redesigning the control cabinet or reconfiguring the communication infrastructure.

System architects deploying the DSDI 110AV1 benefit from its native compatibility with ABB's AC 800M controller family, including the PM861, PM864, and PM891 CPU modules. These controllers communicate with the S800 I/O station via the ModuleBus protocol, ensuring low-latency, cycle-synchronized data exchange between the field input layer and the control execution engine. This tight integration eliminates the signal jitter and scan-time variability that can compromise control loop performance in high-speed process applications.

Within a fully realized automation platform, the DSDI 110AV1 operates in close coordination with complementary S800 I/O modules. Analog input modules such as the DSAI 110AV1 and DSAI 130 handle 4–20 mA and thermocouple signals from flow transmitters, pressure sensors, and temperature elements, while digital output modules including the DSDO 115A and DSDO 110AV1 drive solenoid valves, motor contactors, and alarm annunciators. Power distribution to the I/O station is managed by the SD821 and SD822 power supply modules, which provide regulated 24 VDC with redundancy support for high-availability installations. Communication between the I/O station and the controller is routed through the CI854 PROFIBUS DP communication interface or the CI801 PROFINET adapter, depending on the network topology selected during system engineering.

For installations requiring redundant I/O capability, the DSDI 110AV1 can be deployed in paired configurations supported by the S800 I/O redundancy architecture, ensuring that a single module failure does not interrupt signal acquisition from critical field devices. This redundancy model is particularly valuable in safety-instrumented systems and continuous process plants where unplanned shutdowns carry significant operational and financial consequences.

The module's diagnostic capabilities extend beyond simple channel status reporting. Each input channel supports open-circuit detection and signal-level monitoring, enabling maintenance engineers to identify degraded field wiring or failing sensors before they cause process upsets. These diagnostics are surfaced through ABB's Control Builder engineering environment, where channel-level fault information is presented alongside process values in a unified diagnostic display. This integration accelerates fault isolation during commissioning and reduces mean time to repair during production operations.

From an installation perspective, the DSDI 110AV1 mounts directly onto the S800 I/O baseplate — available in 4-slot, 8-slot, and 12-slot configurations — without requiring additional mounting hardware or field wiring adapters. Field connections are made through the TB820 or TB840 termination units, which provide screw-terminal or spring-clamp wiring options depending on the installation standard. This modular termination approach allows the I/O station to be pre-wired and tested in the control cabinet before the DSDI 110AV1 module is inserted, significantly reducing commissioning time on large projects.

NANKMOS maintains verified stock of the ABB DSDI 110AV1 3BSE018295R1, sourced through established supply channels and subject to pre-shipment functional verification. Each unit is covered by a 12-Month Warranty, providing assurance of module integrity from the point of delivery through the initial operational period. Our inventory management process ensures that modules are stored in controlled environments consistent with ABB's recommended storage conditions, preserving long-term reliability for both immediate deployment and planned maintenance stock.

The DSDI 110AV1 achieves its full architectural value when deployed as part of a cohesive ABB automation platform. At the control layer, the AC 800M PM864 or PM891 CPU module serves as the execution engine, running IEC 61131-3 control programs and managing cyclic communication with all connected I/O stations via the ModuleBus protocol. The PM891 variant adds redundant CPU capability, enabling hot-standby controller configurations for critical process applications.

At the I/O layer, the DSDI 110AV1 operates alongside the DSAI 110AV1 analog input module for continuous process variable acquisition, the DSDO 115A digital output module for actuator and relay drive functions, and the DSAO 110AV1 analog output module for control signal generation to variable-speed drives and control valves. Power integrity across the I/O station is maintained by the SD821 24 VDC power supply, with the SD822 providing redundant power feed capability for high-availability installations.

At the communication layer, the CI854A PROFIBUS DP interface module connects the S800 I/O station to the plant-wide fieldbus network, enabling integration with third-party field devices, intelligent motor control centers, and remote I/O drops. For Ethernet-based architectures, the CI801 PROFINET adapter provides equivalent connectivity within IEC 62443-compliant network topologies. The TB820 termination unit provides the physical field wiring interface, while the TP830 power termination unit manages 24 VDC distribution within the I/O station.

At the HMI and supervisory layer, ABB's System 800xA distributed control system aggregates data from all S800 I/O stations, presenting unified process graphics, alarm management, and historical trending to operators. The DSDI 110AV1's channel-level diagnostic data is surfaced within the 800xA asset monitoring framework, enabling condition-based maintenance workflows that reduce unplanned downtime.

Power Generation: In thermal and hydroelectric power plants, the DSDI 110AV1 acquires digital status signals from turbine protection systems, generator breaker position feedback, and auxiliary equipment run/stop status. Its galvanic isolation ensures that high-voltage transients on the field wiring do not propagate into the control system backplane, protecting the integrity of the AC 800M controller and the broader DCS architecture.

Oil and Gas Processing: Upstream and midstream facilities deploy the DSDI 110AV1 to monitor wellhead valve positions, compressor status, emergency shutdown system (ESD) input signals, and fire and gas detector outputs. The module's compatibility with the S800 I/O redundancy architecture supports SIL-rated safety instrumented function implementations in accordance with IEC 61511.

Water and Wastewater Treatment: Municipal and industrial water treatment plants use the DSDI 110AV1 to monitor pump run/fail status, level switch inputs, UV disinfection system status, and chemical dosing pump feedback. The module's wide operating temperature range and IP20 protection class support installation in both climate-controlled control rooms and field-mounted junction boxes.

Metals and Mining: Continuous casting lines, rolling mills, and mineral processing plants rely on the DSDI 110AV1 for high-speed digital input acquisition from position sensors, conveyor belt status switches, and crusher protection interlocks. The module's deterministic scan time supports the tight control loop timing required in high-throughput production environments.

Packaging and Discrete Manufacturing: Automated packaging lines and assembly systems use the DSDI 110AV1 to interface with photoelectric sensors, inductive proximity switches, and machine safety door interlocks. Its 16-channel density reduces the number of I/O modules required per control cabinet, lowering hardware costs and simplifying cabinet layout.

Q1: Is the ABB DSDI 110AV1 3BSE018295R1 compatible with both AC 800M and older AC 800 controller generations?The DSDI 110AV1 is designed for the S800 I/O platform, which is natively supported by the AC 800M controller family (PM861, PM864, PM891). Compatibility with earlier AC 800 variants depends on the firmware version and ModuleBus configuration of the specific controller. NANKMOS recommends verifying the controller firmware revision against ABB's S800 I/O compatibility matrix before deployment. Our technical team can assist with compatibility verification for mixed-generation architectures.

Q2: Can the DSDI 110AV1 be used in a redundant I/O configuration, and what additional components are required?Yes. The S800 I/O platform supports module redundancy through paired baseplate configurations. A redundant DSDI 110AV1 installation requires two modules mounted on a redundancy-capable baseplate, a redundancy switch unit, and appropriate termination units. The AC 800M controller must be configured with redundant I/O enabled in Control Builder. NANKMOS can supply complete redundant I/O station assemblies including all required components under a single order, with pre-shipment configuration verification.

Q3: What is the warranty coverage for the ABB DSDI 110AV1 3BSE018295R1, and what does the 12-Month Warranty include?Every ABB DSDI 110AV1 3BSE018295R1 supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment. This warranty covers manufacturing defects, functional failures under normal operating conditions, and module-level hardware faults identified during the warranty period. Pre-shipment functional testing is performed on all units prior to dispatch. Warranty claims are processed through NANKMOS's technical support team, with replacement units dispatched from verified stock to minimize system downtime.
