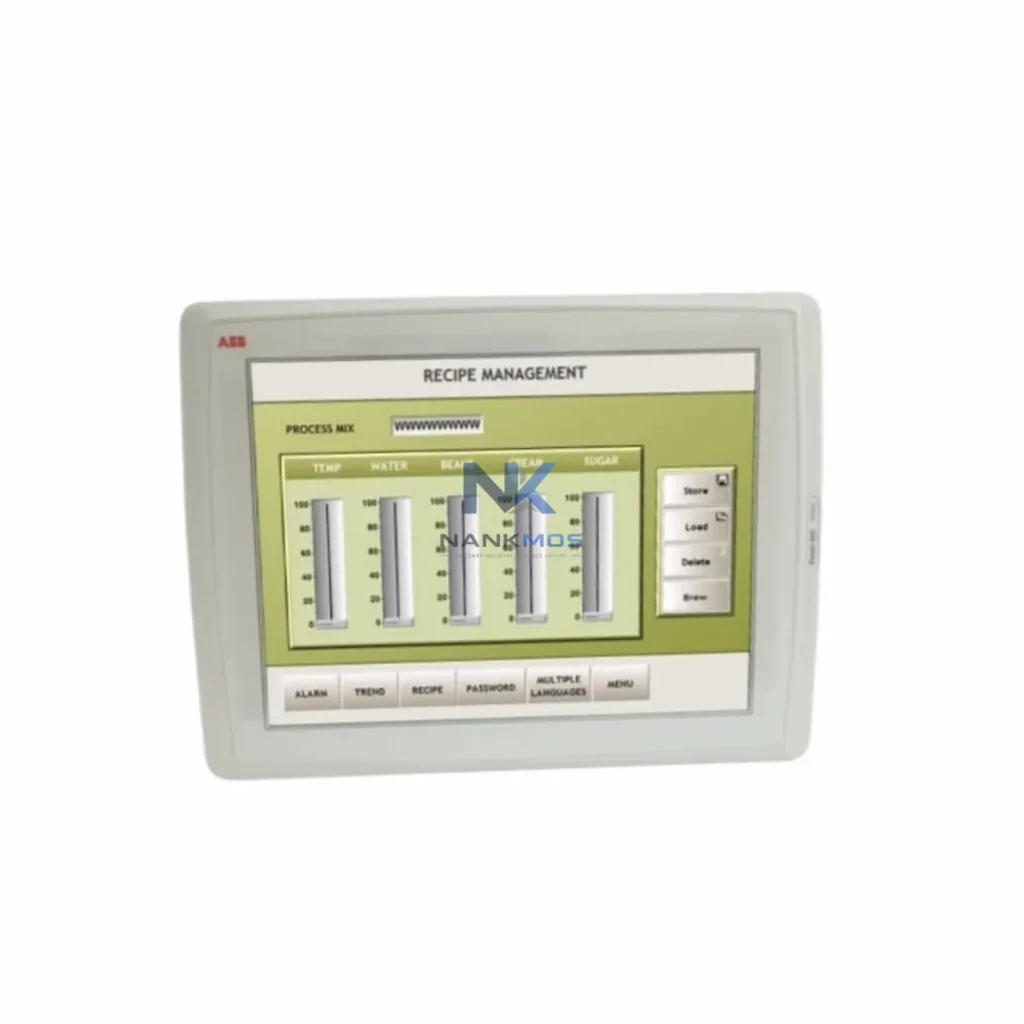

ABB 3BSE042236R1 HMI / Operator Panel

Product Details

3BSE042236R1 Product Description

The ABB 3BSE042236R1 is engineered as the operator-facing node within ABB's Panel 800 HMI platform, designed to integrate seamlessly into the broader AC 800M distributed control architecture. In a fully realized industrial automation system, the 3BSE042236R1 does not operate in isolation — it functions as the visualization and command interface that bridges the operator with the underlying control, I/O, and communication layers.

At the control layer, the 3BSE042236R1 connects directly to the ABB AC 800M PM864A or PM866A CPU modules, receiving real-time process data via the MMS (Manufacturing Message Specification) protocol over Ethernet. This tight coupling ensures that operator commands issued through the HMI are executed with minimal latency, and that alarm states, setpoint changes, and process variable trends are reflected on-screen within the scan cycle of the controller.

The I/O layer — typically populated with ABB S800 I/O modules such as the AI810 analog input, DI810 digital input, and AO810V2 analog output — feeds structured process data upward through the AC 800M backplane. The 3BSE042236R1 visualizes this data in real time, enabling operators to monitor field signals, valve positions, motor states, and flow rates without requiring a separate SCADA workstation in smaller or mid-scale installations.

For communication-intensive architectures, the 3BSE042236R1 supports PROFIBUS DP connectivity, allowing it to interface with field devices such as ABB ACS880 variable frequency drives, Yokogawa EJA-series pressure transmitters, and Siemens ET 200SP distributed I/O nodes. This multi-vendor compatibility is critical in brownfield upgrades where legacy field devices must be retained while the control and HMI layers are modernized.

At the power layer, the 3BSE042236R1 operates on a 24 VDC supply, typically sourced from an ABB CP-S 24/5.0 or equivalent SITOP PSU300M power supply module. Proper power conditioning — including surge protection and UPS backup via an ABB UPS CP-A RU series — ensures that the HMI remains operational during grid disturbances, preserving operator visibility during critical process transitions.

In redundant control architectures, the 3BSE042236R1 can be configured to monitor both the primary and standby AC 800M controller pair, providing seamless switchover indication and alarm management. This is particularly valuable in continuous process industries — such as oil refining, chemical production, and power generation — where unplanned downtime carries significant operational and safety consequences.

The HMI layer also integrates with ABB System 800xA supervisory software, enabling the 3BSE042236R1 to serve as a local operator station while the 800xA platform handles enterprise-level data historian, batch management, and advanced process control functions. This layered architecture ensures that local control capability is never compromised by network or server availability.

For maintenance and diagnostics, the 3BSE042236R1 supports on-screen diagnostic pages that display module health, communication status, and I/O channel faults — reducing the need for a laptop-based engineering tool during routine inspections. When paired with the ABB Control Builder M engineering software, technicians can push configuration updates to the AC 800M controller and immediately verify the result on the HMI without leaving the control room.

Terminal and wiring infrastructure — including Phoenix Contact PTFIX distribution blocks and Weidmüller WDU 2.5 terminal strips — supports clean signal routing within the control cabinet, ensuring that the 3BSE042236R1's communication ports are protected from electrical noise and ground loops that could degrade display accuracy or trigger spurious alarms.

Power Generation & Utilities: In combined-cycle power plants and hydroelectric facilities, the 3BSE042236R1 serves as the local operator panel for turbine control systems, providing real-time visualization of speed, temperature, and load setpoints. Its compatibility with AC 800M and Symphony Plus controllers makes it a natural fit for ABB-standardized power plant automation architectures.

Oil, Gas & Petrochemical: Offshore platforms and onshore processing facilities deploy the 3BSE042236R1 in wellhead control panels, compressor skids, and separator control stations. The IP65-rated front panel withstands the humid, corrosive environments typical of these installations, while PROFIBUS DP connectivity ensures reliable communication with field-mounted instruments and actuators.

Water & Wastewater Treatment: Municipal water treatment plants use the 3BSE042236R1 to monitor pump stations, chemical dosing systems, and filtration processes. Its compact panel-mount form factor allows installation in space-constrained local control panels distributed across large treatment facilities, reducing the need for centralized SCADA access for routine operational tasks.

Mining & Minerals Processing: In conveyor control systems, crusher automation, and flotation cell management, the 3BSE042236R1 provides operators with a ruggedized, locally mounted interface that withstands vibration and dust ingress. Integration with AC 800M controllers enables coordinated control of multiple process stages from a single HMI screen.

Packaging & Discrete Manufacturing: High-speed packaging lines and assembly systems benefit from the 3BSE042236R1's fast screen refresh and touch interface, enabling operators to adjust recipe parameters, monitor OEE metrics, and acknowledge alarms without interrupting production flow. Its Modbus TCP/IP support allows integration with third-party motion controllers and vision systems.

Marine & Shipboard Systems: Vessel automation systems — including engine room monitoring, ballast control, and cargo management — deploy the 3BSE042236R1 as a bridge or engine room operator panel. Its wide operating temperature range and vibration tolerance meet the demanding requirements of marine classification societies.

Q1: Is the ABB 3BSE042236R1 compatible with both AC 800M and Symphony Plus control platforms? Yes. The 3BSE042236R1 is designed within ABB's Panel 800 HMI family, which supports connectivity to AC 800M via Ethernet/MMS and to Symphony Plus via OPC-UA or Modbus TCP/IP. In mixed-platform environments, the HMI can be configured to display data from both controller types simultaneously, provided the appropriate communication drivers are licensed and configured in the Panel Builder 800 engineering tool. For architecture validation, confirm firmware version compatibility between the HMI and the target controller revision before deployment.

Q2: What are the long-term maintenance and spare parts considerations for the 3BSE042236R1? ABB's Panel 800 platform has an established long-term support commitment, with spare parts and firmware updates available through ABB's global service network. For installations requiring extended lifecycle support — particularly in power generation and petrochemical applications — it is advisable to maintain at least one spare 3BSE042236R1 unit on-site. NANKMOS maintains in-stock inventory of the 3BSE042236R1 with a 12-Month Warranty and full pre-shipment functional testing, ensuring that replacement units are available for rapid deployment without extended lead times.

Q3: Can the 3BSE042236R1 be integrated into a redundant control architecture, and what configuration is required? Yes. In redundant AC 800M architectures — where a primary and standby PM864A or PM866A CPU pair is deployed — the 3BSE042236R1 can be configured to monitor the active controller and automatically reflect switchover events on the operator display. This requires configuration of the redundancy switchover logic within Control Builder M and appropriate network topology (dual Ethernet paths recommended) to ensure HMI connectivity is maintained during controller failover. For safety-instrumented systems (SIS) architectures, the HMI should be segregated from the safety network per IEC 61511 requirements, with the 3BSE042236R1 serving the basic process control system (BPCS) layer only.
