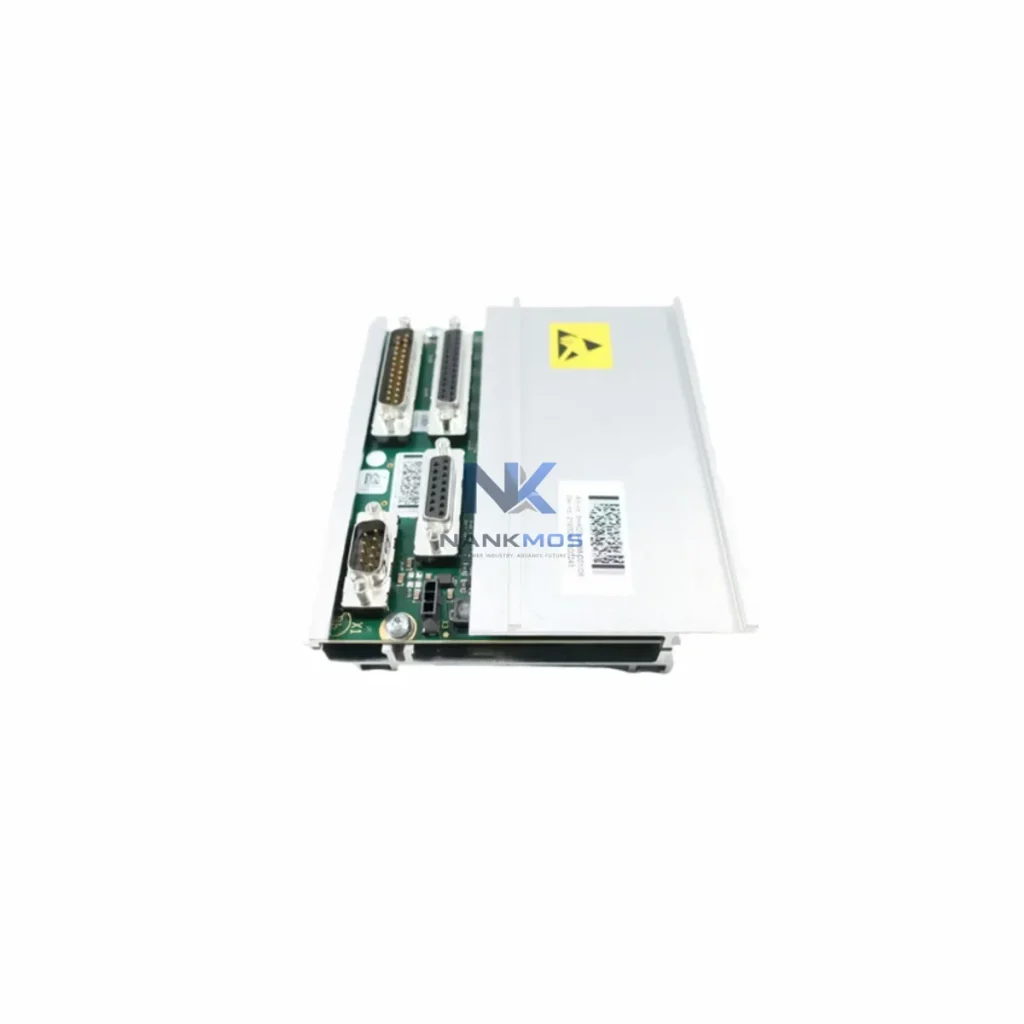

ABB 3HAC046686-001 Industrial Network Interface

Product Details

3HAC046686-001 Product Description

The ABB 3HAC046686-001 is a high-performance industrial network interface module engineered for ABB IRC5 robot controller platforms. Designed to bridge the communication gap between robotic systems and plant-wide automation networks, this gateway module enables seamless data exchange across PROFIBUS-DP, DeviceNet, EtherNet/IP, and PROFINET architectures — making it a critical node in any smart factory data chain.

In modern industrial environments, the ability to move real-time process data from field devices to supervisory systems without latency or packet loss is non-negotiable. The 3HAC046686-001 addresses this requirement directly, providing a stable, deterministic communication link between the IRC5 controller and upstream SCADA platforms, HMI terminals, and MES layers. Whether deployed in automotive body-in-white lines, electronics assembly cells, or precision welding stations, this module ensures that robot status, I/O states, fault codes, and cycle data are continuously available to the control room.

The 3HAC046686-001 sits at the intersection of robot-level control and plant-level data infrastructure. To understand its value, consider the full data chain it enables within a connected factory cell.

At the field level, sensors and actuators — including proximity switches, vision systems, and servo feedback encoders — feed real-time signals into the ABB IRC5 controller. The IRC5 processes these inputs through its motion and logic engine, generating outputs that drive robot axes, end-effectors, and peripheral tooling. Without a reliable network interface, this rich operational data remains isolated within the robot controller, invisible to the broader automation ecosystem.

The 3HAC046686-001 changes this by acting as the communication bridge between the IRC5 and the plant network. On a PROFIBUS-DP segment, it operates as a DP slave, exchanging cyclic I/O data with a master PLC — such as a Siemens S7-300 or S7-1500 — at deterministic scan rates. This allows the PLC to read robot ready signals, program numbers, fault states, and custom I/O maps in real time, enabling tightly coordinated multi-robot or robot-PLC interlock sequences.

For facilities running EtherNet/IP or PROFINET backbones, the module integrates the IRC5 into the same Ethernet infrastructure used by Allen-Bradley ControlLogix PLCs, Siemens ET 200SP remote I/O stations, and Schneider Modicon M340 controllers. This unified network layer allows a single SCADA platform — such as Wonderware InTouch, Ignition SCADA, or Siemens WinCC — to poll robot data alongside conveyor drives, ABB ACS880 variable frequency drives, and distributed I/O nodes without requiring separate OPC-UA gateways or protocol converters at each device.

At the supervisory level, HMI panels — including ABB CP600 operator panels or third-party Weintek and Proface terminals — can display live robot status, alarm histories, and production counters sourced directly from the IRC5 via the 3HAC046686-001 network link. This eliminates the need for manual status checks at the robot teach pendant and enables operators to monitor multiple robot cells from a centralised HMI station.

For edge computing and IIoT applications, the module's Ethernet connectivity allows data to be routed through an industrial edge gateway — such as an ABB Ability Edge device or a Moxa MGate protocol gateway — where it can be aggregated, pre-processed, and forwarded to cloud analytics platforms or on-premise MES systems. This supports predictive maintenance workflows, OEE dashboards, and digital twin synchronisation without modifying the core robot program.

Power for the communication module is supplied through the IRC5 controller backplane, and the module's status LEDs provide local diagnostic feedback on network link state, data exchange activity, and fault conditions — reducing commissioning time and simplifying on-site troubleshooting.

Many automation sites operate with robot controllers that are effectively data islands — capable of executing complex motion sequences but unable to share operational data with the surrounding control infrastructure. This creates measurable inefficiencies: maintenance teams cannot remotely diagnose robot faults, production managers cannot access real-time cycle counts, and SCADA systems cannot trigger coordinated responses to robot alarms.

The ABB 3HAC046686-001 directly resolves these data gaps. By providing a standards-compliant fieldbus or industrial Ethernet interface, it allows existing SCADA and PLC infrastructure to treat the IRC5 robot controller as a standard network node — readable, writable, and monitorable through the same tools used for every other device on the plant floor.

Protocol unification is one of the most common challenges on mixed-vendor sites. A facility may run Siemens PROFIBUS for legacy devices, EtherNet/IP for newer Allen-Bradley equipment, and PROFINET for Siemens safety PLCs — all within the same production line. The 3HAC046686-001's multi-protocol support means the IRC5 can be integrated into whichever network segment is most appropriate, without requiring a separate protocol converter or custom middleware.

Remote diagnostics become practical once the robot is on the network. Fault codes, axis error states, and program execution status can be read by the SCADA system and logged with timestamps, enabling root-cause analysis without physical access to the robot cell. Alarm notifications can be forwarded to maintenance personnel via the SCADA alarm management system, reducing mean time to repair (MTTR) and improving overall equipment effectiveness (OEE).

Production line transparency improves significantly when robot cycle data — including part counts, cycle times, and reject signals — is available to the MES layer. This data can be used to calculate real-time OEE, identify bottlenecks, and trigger automated work orders for preventive maintenance based on actual cycle counts rather than fixed time intervals.

System expansion is simplified because the 3HAC046686-001 uses standard industrial protocols. Adding a new robot cell to an existing PROFINET or EtherNet/IP network requires only network configuration — no new communication hardware or custom integration work is needed at the PLC or SCADA level.

Q1: What communication protocols does the ABB 3HAC046686-001 support?The 3HAC046686-001 supports PROFIBUS-DP, DeviceNet, EtherNet/IP, and PROFINET IO, depending on the specific variant installed in the IRC5 controller. This multi-protocol capability allows the module to integrate with a wide range of PLC platforms and SCADA systems without requiring additional protocol converters.

Q2: Is the 3HAC046686-001 compatible with non-ABB PLC and SCADA systems?Yes. Because the module uses standard industrial fieldbus and Ethernet protocols, it is compatible with Siemens S7 PLCs on PROFIBUS and PROFINET networks, Allen-Bradley ControlLogix on EtherNet/IP, and Schneider Modicon on DeviceNet. SCADA platforms such as Ignition, WinCC, and Wonderware can access IRC5 data through standard OPC or direct protocol drivers.

Q3: What is the communication latency for real-time I/O exchange?On PROFIBUS-DP and PROFINET IO networks, cyclic I/O data exchange operates at deterministic scan rates typically in the range of 1–10 ms, depending on network configuration and the number of nodes on the segment. EtherNet/IP connections operate at configurable requested packet intervals (RPI), typically set between 2–20 ms for robot I/O applications. These latencies are well within the requirements of standard robot-PLC interlock sequences.

Q4: Does the 3HAC046686-001 come with a warranty, and has it been tested before shipment?All ABB 3HAC046686-001 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. Each unit undergoes functional verification and communication testing prior to dispatch to confirm network interface integrity and protocol compliance. In-stock units are available for immediate shipment, with full documentation and traceability records provided upon request.
