ABB 3GAA081001-E AC Induction Motor

Product Details

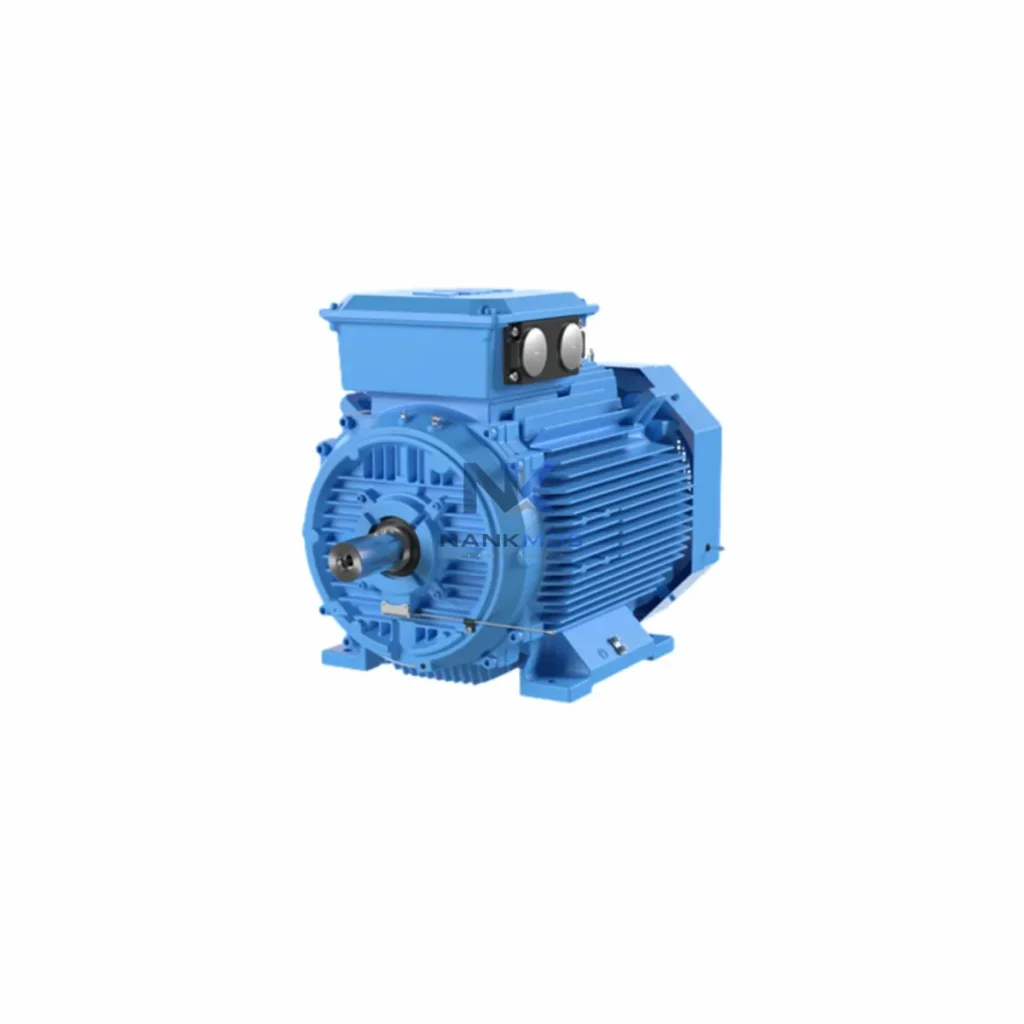

3GAA081001-E Product Description

The ABB 3GAA081001-E is a premium IE2-class AC induction motor from ABB's renowned M2AA series, engineered for energy-conscious industrial environments where load efficiency, thermal stability, and production continuity are non-negotiable. Designed and manufactured in Sweden to ABB's global quality standards, this motor delivers reliable rotational output with minimised reactive power draw — making it a cornerstone component in modern smart factory energy management strategies.

In today's industrial landscape, motor systems account for the largest share of electrical energy consumption on the plant floor. The 3GAA081001-E addresses this directly through its IE2 efficiency rating, optimised winding geometry, and low-loss lamination stack — reducing heat generation, cutting idle-state energy waste, and extending mean time between failures (MTBF) across continuous-duty production cycles.

The ABB 3GAA081001-E is designed to operate within a fully integrated power-aware automation architecture. In variable-speed applications, it pairs directly with ABB ACS series variable frequency drives (VFDs) — such as the ABB ACS580 or ACS880 — enabling precise speed and torque regulation that eliminates the energy waste associated with throttling valves or mechanical dampers. By matching motor output to actual load demand in real time, the system can reduce energy consumption by 30–50% in pump and fan applications compared to fixed-speed operation.

On the control side, the motor integrates seamlessly with ABB AC500 PLCs or third-party controllers via standard digital I/O and analogue feedback channels. Motor run/stop commands, fault signals, and thermal protection outputs connect directly to PLC I/O modules, enabling centralised supervisory control without additional signal conditioning hardware. For facilities running Siemens S7-1200 / S7-1500 PLCs or Mitsubishi MELSEC iQ-R series controllers, the 3GAA081001-E's standard terminal box layout ensures straightforward integration.

Power quality and energy metering are handled upstream by dedicated power monitoring modules — such as the ABB M2M energy meter or compatible Schneider Electric PowerLogic units — which track real-time kWh consumption, power factor, and harmonic distortion at the motor circuit level. This data feeds into plant-level SCADA systems (including Wonderware InTouch, Ignition SCADA, or ABB Ability™ System 800xA) for trend analysis, energy benchmarking, and predictive maintenance scheduling.

At the operator interface level, HMI panels — such as the Siemens SIMATIC TP700 or Weintek cMT series — display motor status, running hours, and energy KPIs in real time, giving line operators immediate visibility into drive efficiency and load conditions. Thermal sensors and PT100 RTD probes mounted on motor bearing housings feed temperature data back to the PLC, enabling early detection of overload conditions before they escalate into unplanned downtime.

For communication-intensive smart factory environments, the motor's drive system can be extended with PROFIBUS DP or PROFINET fieldbus adapters on the paired VFD, enabling full parameter read/write access from the SCADA or DCS layer. This supports remote commissioning, energy setpoint adjustment, and fault diagnostics without physical access to the drive cabinet — a key enabler of lean maintenance workflows.

Integrating the ABB 3GAA081001-E into a production line energy strategy delivers measurable improvements across four key dimensions: energy cost reduction, thermal load management, equipment utilisation, and production rhythm stability.

Energy Cost Reduction: The IE2 efficiency rating ensures that at rated load, the motor converts electrical input to mechanical output with minimal resistive and iron-core losses. When paired with a VFD operating on an energy-optimisation control mode, the system dynamically adjusts flux levels to match partial-load conditions — a technique that can reduce no-load losses by a further 10–15% during low-demand production windows such as shift changeovers or scheduled micro-stops.

Thermal Load Management: Reduced electrical losses translate directly into lower heat generation within the motor windings and stator core. This decreases the thermal burden on the surrounding control cabinet and reduces the duty cycle of cooling systems — lowering auxiliary energy consumption and extending the service life of insulation materials. In high-ambient-temperature environments (foundries, press shops, outdoor installations), the M2AA's Class F insulation and IP55 enclosure provide the thermal headroom needed to sustain rated output without derating.

Equipment Utilisation and Production Rhythm: Consistent, stable motor performance is fundamental to maintaining production line takt time. The 3GAA081001-E's low-vibration design and precision-balanced rotor minimise mechanical stress on coupled equipment — gearboxes, pumps, conveyors — reducing wear rates and extending service intervals. Predictive maintenance routines, triggered by vibration and temperature data collected via the PLC and SCADA system, allow maintenance teams to schedule interventions during planned downtime rather than reacting to unexpected failures.

Inventory Readiness and Supply Continuity: NANKMOS maintains verified in-stock inventory of the ABB 3GAA081001-E, with pre-shipment functional testing completed on every unit. Each motor is covered by a 12-Month Warranty from the date of dispatch, providing procurement teams with the supply chain confidence needed to support both planned capital projects and urgent replacement requirements.

Q1: What energy savings can I expect when using the 3GAA081001-E with a VFD? In variable-torque applications such as pumps and fans, combining the ABB 3GAA081001-E with an ABB ACS580 or equivalent VFD typically delivers 30–50% energy savings compared to direct-on-line (DOL) fixed-speed operation. Actual savings depend on load profile, duty cycle, and system hydraulic or aerodynamic characteristics. IE2 motor efficiency further reduces baseline losses at all operating points.

Q2: Is the 3GAA081001-E compatible with my existing PLC and SCADA infrastructure? Yes. The motor's standard terminal configuration is compatible with all major PLC platforms including ABB AC500, Siemens S7 series, Mitsubishi MELSEC, and Rockwell Automation ControlLogix. When paired with a PROFIBUS DP or PROFINET-capable VFD, full parameter integration with SCADA systems such as Ignition, Wonderware, or ABB System 800xA is supported without additional gateways.

Q3: Can this motor replace an existing IE1 or non-ABB motor of the same frame size? In most cases, yes. The M2AA series follows IEC standard frame dimensions, making it a direct mechanical replacement for IE1-class motors of equivalent frame size and shaft configuration. Electrical parameters (voltage, frequency, connection) should be verified against the existing installation. NANKMOS technical support can assist with cross-reference validation prior to order.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted? Every ABB 3GAA081001-E unit supplied by NANKMOS undergoes pre-shipment functional testing including insulation resistance verification, no-load run test, and visual inspection for mechanical integrity. The 12-Month Warranty covers manufacturing defects and premature failure under normal operating conditions from the date of dispatch. Warranty claims are processed directly through NANKMOS with replacement or repair turnaround coordinated to minimise production impact.
