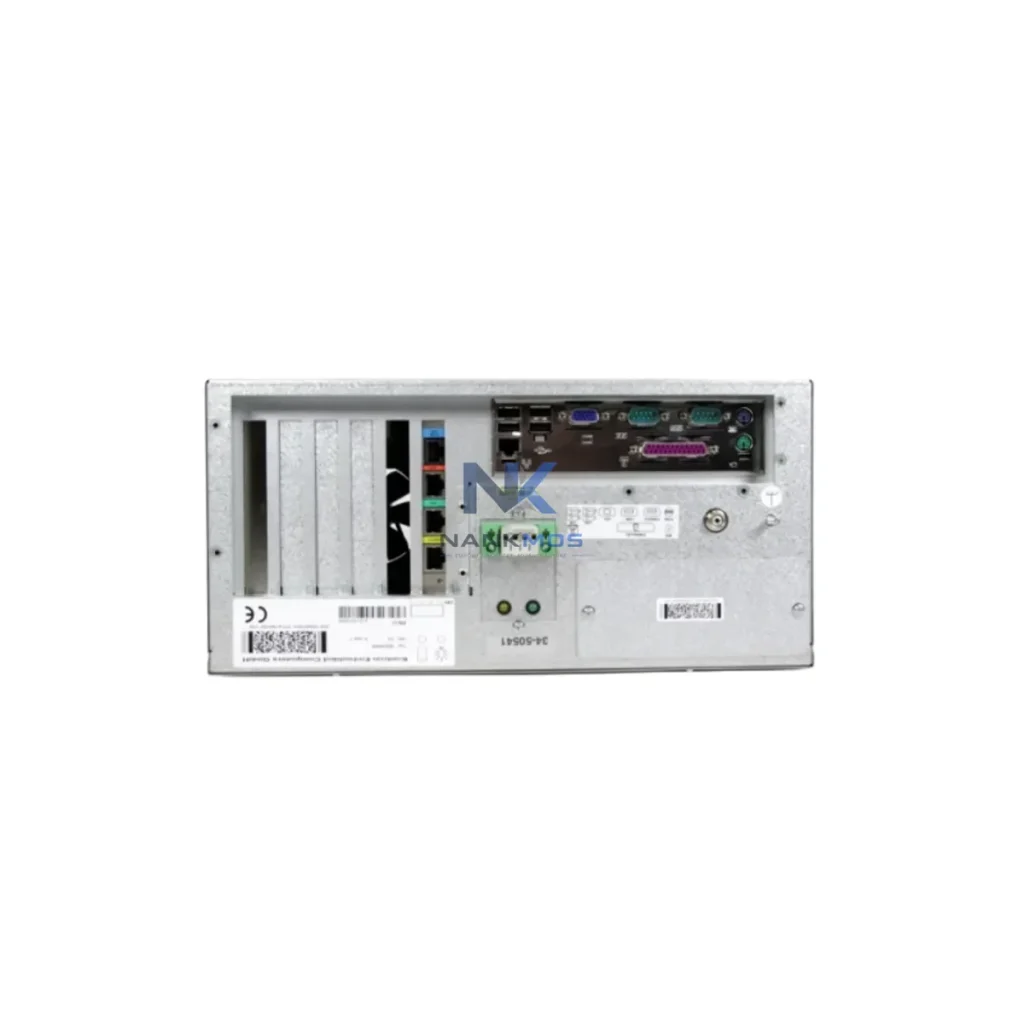

ABB 3HAC 020929-006 Embedded Computer Module

Product Details

3HAC 020929-006 Product Description

The ABB 3HAC020929-006 is the central processing unit of the IRC5 robot controller, responsible for executing RAPID programs, coordinating multi-axis motion, managing I/O signal routing, and maintaining real-time communication across all system layers. Its role within the IRC5 architecture is not isolated — it operates as the cognitive core of a tightly integrated automation platform where every peripheral module depends on its processing continuity and signal integrity.

At the control layer, the 3HAC020929-006 interfaces directly with the IRC5 drive unit (DSQC 661 or equivalent) to deliver synchronized motion commands across up to six robot axes plus external axes. The drive unit translates these digital motion references into precise motor torque commands, making the computer module's real-time cycle time and deterministic execution critical to path accuracy and repeatability. Any latency or fault at the CPU level propagates immediately to axis performance.

At the I/O layer, the module coordinates with ABB DSQC 652 digital I/O boards and DSQC 651 analog I/O boards mounted within the IRC5 cabinet. These boards handle field-level signals from end-effectors, conveyors, safety light curtains, and process sensors. The computer module arbitrates I/O scan cycles and ensures that signal state changes are reflected in RAPID program logic without race conditions — a requirement in high-speed pick-and-place or welding applications where signal timing directly affects product quality.

At the communication layer, the 3HAC020929-006 supports fieldbus connectivity through option boards such as the DSQC 378B (DeviceNet) and DSQC 667 (PROFIBUS-DP master/slave), enabling the IRC5 controller to participate in plant-wide automation networks alongside Siemens S7-300/S7-400 PLCs, Allen-Bradley ControlLogix systems, or Schneider Modicon M340 controllers. This cross-platform communication capability allows the robot cell to receive production orders, report cycle counts, and synchronize with upstream and downstream equipment without custom protocol conversion.

At the power layer, the computer module receives regulated 24 VDC from the IRC5 power unit (DSQC 609 or DSQC 662), which conditions incoming AC mains into stable DC rails for the controller electronics. Power quality at this layer directly affects the module's memory integrity and real-time clock accuracy. In installations where power fluctuations are common — such as heavy manufacturing or mining environments — an upstream UPS or line conditioner is recommended to protect the computer module from transient-induced data corruption.

At the HMI layer, the 3HAC020929-006 communicates with the ABB FlexPendant (IRC5 teach pendant) via a dedicated USB or Ethernet link, providing the operator interface for program loading, jogging, I/O monitoring, and fault diagnostics. The computer module hosts the RobotWare operating system, which renders the FlexPendant UI and processes all operator inputs in real time. Upgrading or replacing the computer module requires careful RobotWare license management to ensure the FlexPendant remains fully functional post-swap.

At the safety and protection layer, the module integrates with the IRC5 safety controller (DSQC 400 or SafeMove option) to enforce speed monitoring, zone supervision, and emergency stop logic. The computer module's health status is continuously monitored by the safety system; a detected CPU fault triggers an immediate controlled stop and safety relay de-energization, protecting both personnel and tooling. This architecture ensures that a single module failure does not result in uncontrolled robot motion.

For redundancy and maintenance, the 3HAC020929-006 is designed for hot-swap replacement within the IRC5 cabinet with minimal downtime. Maintaining a spare unit in inventory — alongside the DSQC 609 power unit and DSQC 652 I/O boards — forms the foundation of a robust spare parts strategy for continuous production environments. Pre-shipment functional testing of each unit ensures that replacement modules are verified operational before they reach the production floor, eliminating the risk of installing a defective spare during an unplanned outage.

Automotive Manufacturing: In body-in-white welding lines, the 3HAC020929-006 manages multi-robot coordination across IRC5 controllers networked via PROFIBUS or EtherNet/IP. The module's deterministic cycle time ensures weld gun timing is synchronized with conveyor indexing, maintaining consistent weld quality across high-volume production shifts.

Electronics Assembly: In PCB handling and component placement cells, the computer module executes high-speed RAPID routines with sub-millimeter repeatability. Its I/O coordination with vision system triggers and conveyor encoders enables adaptive pick-and-place without manual teach point correction between product variants.

Palletizing and Packaging: In end-of-line palletizing systems, the 3HAC020929-006 interfaces with upstream PLC systems (Siemens S7 or Allen-Bradley) via DeviceNet to receive pallet pattern data dynamically. This allows the robot cell to switch between product SKUs without controller reprogramming, reducing changeover time in FMCG production environments.

Metal Fabrication and Cutting: In plasma or laser cutting cells, the module's real-time path interpolation capability ensures smooth arc-on/arc-off transitions at high traverse speeds. Integration with process I/O boards (DSQC 651 analog) allows torch height control signals to be processed within the RAPID motion loop, maintaining cut quality on complex 3D geometries.

Pharmaceutical and Food Processing: In hygienic robot cells, the IRC5 computer module supports cleanroom-compatible controller configurations. Its network communication capability allows integration with MES and SCADA systems for batch traceability, ensuring that every robot cycle is logged against a production order for regulatory compliance.

Q1: Is the ABB 3HAC020929-006 compatible with all IRC5 controller variants, and does it require RobotWare license transfer? The 3HAC020929-006 is designed for the ABB IRC5 platform, including Single Cabinet, Dual Cabinet, and Panel Mounted Controller variants. RobotWare licenses are tied to the controller serial number and stored on the computer module. When replacing the module, the RobotWare license must be transferred or re-issued via ABB license management. We recommend confirming your RobotWare version (5.x or 6.x) and controller serial number before ordering to ensure full software compatibility. Our technical team can assist with pre-installation verification.

Q2: What is the recommended spare parts strategy for minimizing IRC5 downtime in continuous production environments? For 24/7 production environments, we recommend maintaining at minimum one spare 3HAC020929-006 computer module alongside a DSQC 609 or DSQC 662 power unit and at least one DSQC 652 digital I/O board. These three components account for the majority of IRC5 controller failures in high-cycle applications. All units supplied by NANKMOS are pre-shipment tested under load conditions and covered by a 12-Month Warranty, ensuring that spare inventory is verified functional and ready for immediate deployment when needed.

Q3: How does the 12-Month Warranty apply, and what support is available for installation and commissioning? Every ABB 3HAC020929-006 supplied by NANKMOS carries a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify CPU operation, memory integrity, and communication port functionality before dispatch. For installation support, our engineering team provides remote commissioning guidance including RobotWare configuration verification, I/O mapping review, and network integration troubleshooting. Contact us at [email protected] or +86 18359268345 for pre-order technical consultation or post-installation support.
