3HAC020988-008 3HAC046685-002 3HAC11440-1 IRB 76003HAC11440-1 3HAC033203-001 Product Description

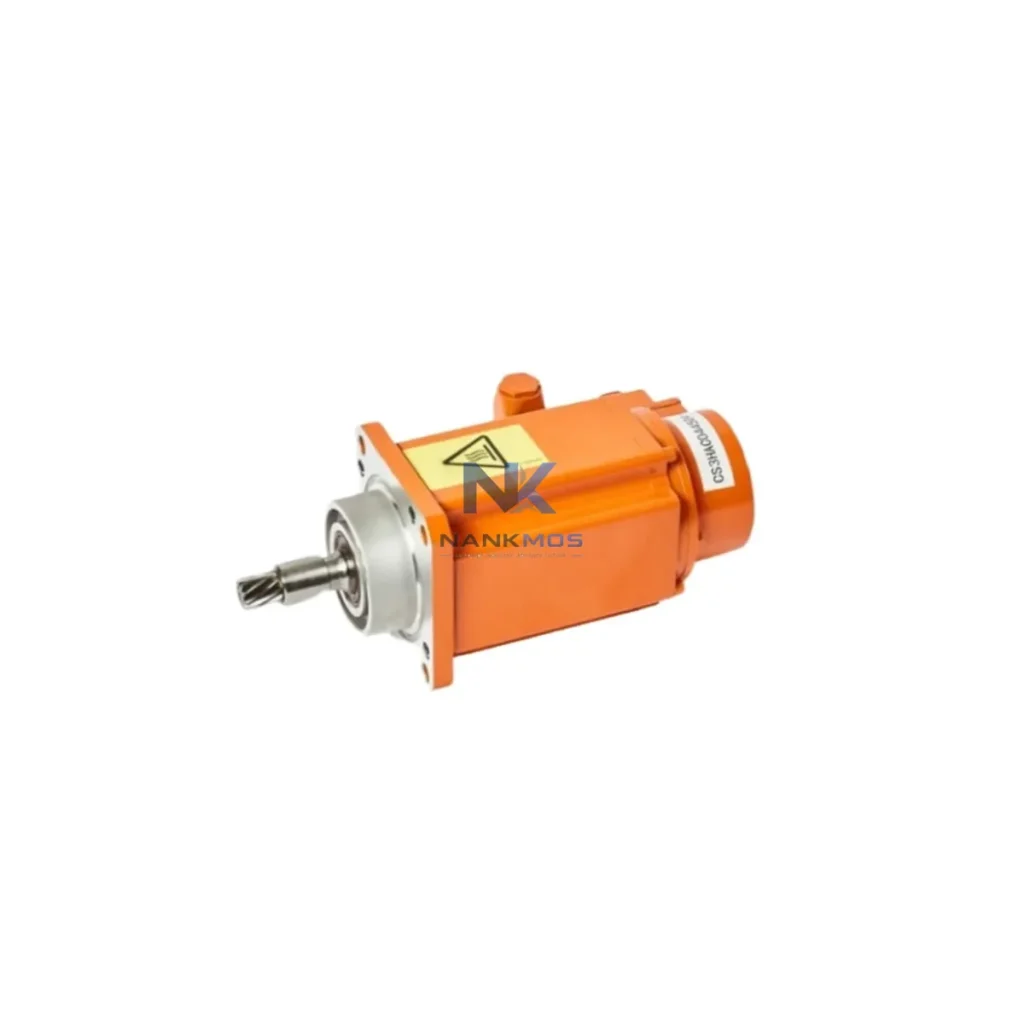

The ABB 3HAC020988-008 ROT AC Motor with Pinion is a precision-engineered drive component designed for the ABB IRB 7600 heavy-payload industrial robot series. Far beyond a mechanical replacement part, this motor operates as an integrated node within the ABB IRC5 controller's real-time motion control and data communication architecture. In smart factory environments where uptime, traceability, and remote diagnostics are non-negotiable, the 3HAC020988-008 delivers the electromechanical reliability that underpins seamless data flow from the robot joint level all the way to SCADA and MES platforms.

Engineered in Sweden to ABB's exacting standards, this motor interfaces directly with the ABB DSQC 661 drive unit and the IRC5 main computer module, enabling closed-loop torque and position feedback via the robot's internal SMB (Serial Measurement Board). The SMB continuously streams encoder data — speed, position, and temperature — through the IRC5 backplane to the ABB FlexPendant HMI and to upstream SCADA systems via EtherNet/IP or PROFIBUS-DP fieldbus protocols. This real-time signal chain ensures that every axis movement is logged, monitored, and available for remote diagnostics without interrupting production cycles.

In a fully connected smart factory, the ABB 3HAC020988-008 motor sits at the base of a multi-layer data architecture. At the field level, the motor's integrated encoder transmits real-time position and velocity data to the ABB DSQC 661 servo drive unit housed within the IRC5 controller cabinet. The DSQC 661 processes this feedback at millisecond intervals, executing torque corrections and reporting axis health status back to the IRC5 main computer.

From the IRC5 controller, motion data and alarm states are forwarded via EtherNet/IP to the plant's industrial network backbone — typically running through a managed industrial Ethernet switch (such as those in the Hirschmann MICE or Phoenix Contact FL SWITCH series) that segments robot cells from the broader OT network. This segmentation ensures deterministic communication latency below 10 ms, critical for synchronized multi-robot welding or press-tending lines.

At the supervisory level, an OPC-UA gateway or ABB Ability™ Connected Services edge node aggregates IRC5 data streams — including 3HAC020988-008 motor temperature, load cycles, and fault codes — and publishes them to the plant SCADA platform. Operators monitoring a Wonderware InTouch or Ignition SCADA dashboard can view real-time joint torque trends, predictive maintenance alerts, and production throughput KPIs without stepping onto the factory floor.

For remote I/O expansion beyond the robot cell, the IRC5 controller communicates with ABB AC500 PLC modules or third-party PROFIBUS-DP remote I/O racks via the fieldbus option board. This allows peripheral devices — safety light curtains, conveyor encoders, pneumatic valve islands, and vision system triggers — to be coordinated within the same control loop that governs the IRB 7600's axis movements. The result is a tightly integrated production cell where every signal, from the 3HAC020988-008 motor's resolver output to the upstream MES work order, flows through a single, auditable data chain.

When a fault occurs — such as an overcurrent event on Axis 1 or an encoder checksum error — the IRC5 generates a structured alarm with timestamp, axis ID, and error code. This alarm is simultaneously displayed on the ABB FlexPendant HMI, logged to the IRC5 event log, and forwarded via the OPC-UA gateway to the SCADA historian. Maintenance engineers can access this data remotely through a VPN-secured connection to the industrial DMZ, enabling root-cause analysis and spare parts ordering — such as a replacement 3HAC020988-008 or the associated 3HAC033203-001 gearbox unit — before the next scheduled maintenance window.

Many industrial sites operating ABB IRB 7600 robots face a common set of connectivity and data visibility challenges that the 3HAC020988-008 replacement program directly addresses:

Protocol Fragmentation: Older robot cells may run PROFIBUS-DP while newer additions use EtherNet/IP. The IRC5 controller's modular fieldbus option board architecture allows both protocols to coexist, with the 3HAC020988-008 motor's SMB data accessible regardless of which fieldbus backbone the plant uses. A protocol gateway — such as an HMS Anybus Communicator — can bridge legacy PROFIBUS segments to modern EtherNet/IP or MQTT-based IIoT platforms without rewiring the robot cell.

Data Silos and Production Transparency: When drive motors are replaced with non-OEM parts lacking proper encoder calibration, the IRC5 loses accurate position feedback, creating data gaps in the SCADA historian and breaking predictive maintenance models. Using genuine ABB 3HAC020988-008 motors — pre-tested and calibrated to ABB factory specifications — ensures continuous, accurate data flow from joint level to cloud dashboard, eliminating blind spots in production analytics.

Remote Monitoring and Alarm Tracking: Without a properly functioning drive motor, alarm frequency increases and remote diagnostic sessions become unreliable. The 3HAC020988-008's precision construction minimizes encoder drift and thermal runaway events, reducing false alarms and ensuring that remote monitoring sessions via ABB Ability™ or third-party SCADA platforms reflect true machine health rather than sensor noise.

System Scalability: As production lines expand — adding IRB 7600 units for new press-tending or palletizing cells — maintaining a standardized spare parts inventory of 3HAC020988-008 motors (alongside cross-references 3HAC046685-002 and 3HAC11440-1) ensures that new robot cells can be commissioned rapidly without waiting for custom procurement lead times. NANKMOS maintains ready stock with 12-month warranty coverage, supporting both planned maintenance and emergency replacement scenarios.

Q1: What communication protocols does the ABB IRC5 controller support when using the 3HAC020988-008 motor? The IRC5 controller supports EtherNet/IP, PROFIBUS-DP, DeviceNet, and Modbus TCP via optional fieldbus boards. The 3HAC020988-008 motor's SMB encoder data is transmitted internally over the IRC5 backplane and can be exposed to any of these external protocols through the controller's I/O configuration. OPC-UA connectivity is available via ABB Ability™ Connected Services or third-party OPC-UA servers installed on the IRC5 PC unit.

Q2: How is network stability maintained during high-cycle robot operations? The IRC5 controller uses a deterministic real-time OS (VxWorks) that prioritizes motion control communication over general network traffic. Industrial Ethernet switches with QoS (Quality of Service) configuration ensure that robot cell traffic is isolated from office IT networks. The 3HAC020988-008 motor's robust encoder design minimizes signal noise, reducing retransmission events that could introduce latency into the control loop.

Q3: Can remote diagnostics be performed without shutting down the production line? Yes. The IRC5 controller supports online monitoring via ABB RobotStudio in online mode or through OPC-UA data subscriptions to SCADA platforms. Motor temperature, load percentage, axis position error, and fault history can all be read remotely without interrupting robot operation. Emergency stops and safety-rated I/O remain hardware-enforced regardless of network connectivity status.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted? All NANKMOS-supplied ABB 3HAC020988-008 motors are tested for encoder signal integrity, winding resistance, insulation resistance, and mechanical runout before dispatch. The 12-month warranty covers manufacturing defects and premature failure under normal operating conditions. Each unit ships with a test report. For urgent replacement needs, expedited shipping is available — contact [email protected] or call +86 18359268345 for lead time confirmation and RFQ.
