3HAC021127-001/003/004/005/006/007/010/011 Product Description

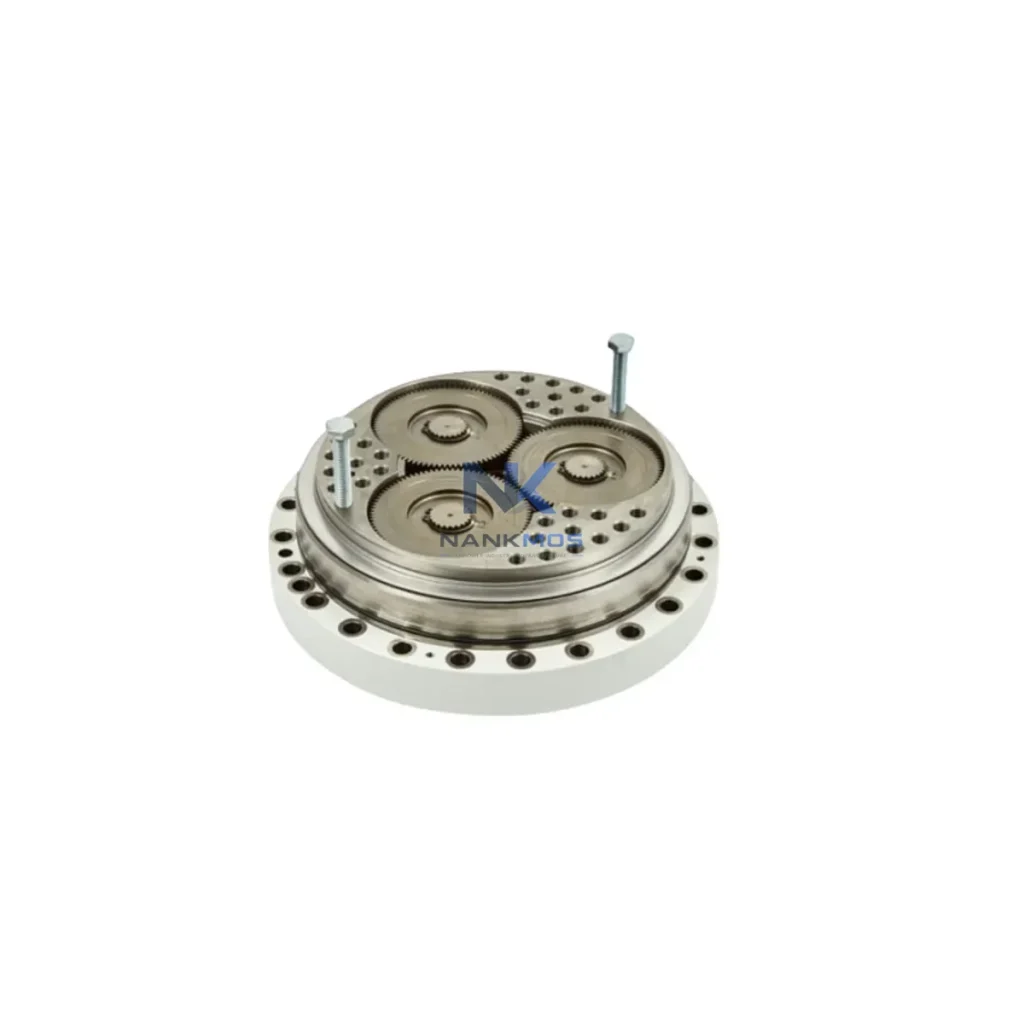

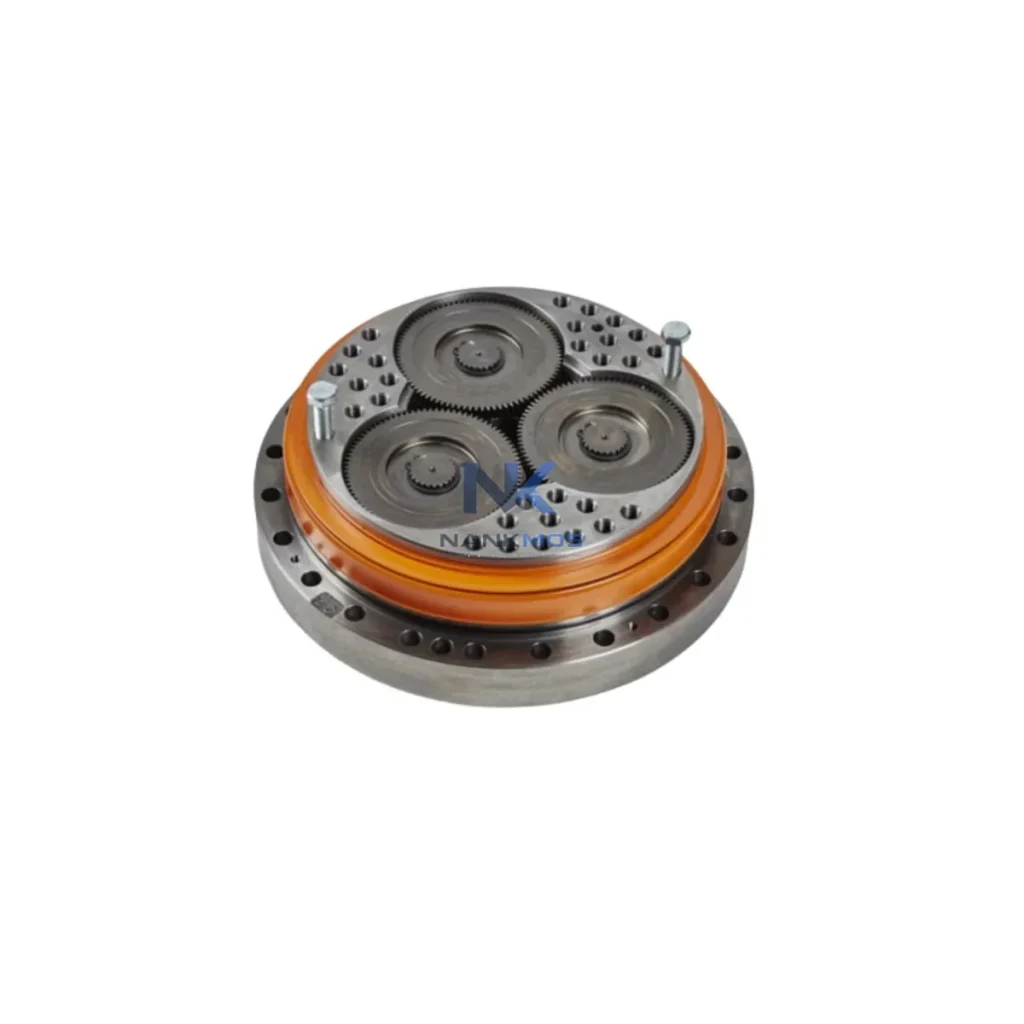

The ABB 3HAC021127-001 is a precision-engineered gearbox module designed for seamless integration within ABB IRB robot series architectures. Covering variant suffixes /001, /003, /004, /005, /006, /007, /010, and /011, this module serves as a critical mechanical transmission component within the robot's joint drive system, ensuring accurate torque delivery, positional repeatability, and long-term mechanical stability across demanding industrial automation environments. Whether deployed in automotive body-in-white lines, arc welding cells, material handling systems, or precision assembly stations, the 3HAC021127-001 maintains the mechanical integrity that ABB IRB robots are engineered to deliver.

At NANKMOS, every 3HAC021127-001 unit undergoes pre-shipment functional verification to confirm dimensional accuracy, backlash tolerance, and rotational smoothness before dispatch. Backed by a 12-Month Warranty and supported by in-stock global inventory, this module is available for rapid deployment to minimise unplanned downtime and support scheduled maintenance cycles across multi-robot installations.

The 3HAC021127-001 gearbox module does not operate in isolation — it is a foundational mechanical element within a layered ABB robot control architecture. Understanding its role within the broader system is essential for engineers specifying replacement parts, planning preventive maintenance, or commissioning new robot cells.

At the control layer, the ABB IRC5 controller (or legacy S4C+) manages all motion trajectories, axis interpolation, and safety supervision. The IRC5 cabinet houses the drive modules — such as the ABB DSQC639 main computer board and DSQC643 drive power unit — which translate motion commands into precise electrical signals delivered to each axis servo motor. The gearbox module sits directly downstream of the servo motor, converting high-speed, low-torque motor output into the controlled, high-torque rotational motion required at each robot joint.

At the drive and motor layer, the ABB 3HAC17484-1 servo motor and associated drive units work in tandem with the 3HAC021127-001 gearbox to maintain axis stiffness and repeatability. Any mechanical wear or backlash increase in the gearbox directly affects the servo loop's ability to maintain positional accuracy, making timely gearbox replacement critical to overall system performance.

At the I/O and signal layer, the ABB DSQC652 digital I/O board and DSQC651 analogue I/O module manage peripheral signals — tool changers, grippers, conveyor interlocks — that depend on the robot's positional accuracy. A degraded gearbox introduces mechanical lag that can propagate as timing errors at the I/O layer, causing false triggers or missed handshakes with downstream PLC systems such as the ABB AC500 series.

At the communication layer, the IRC5 controller communicates with plant-level SCADA and MES systems via PROFINET, EtherNet/IP, or DeviceNet fieldbus modules — including the ABB DSQC688 PROFINET device module. Maintaining mechanical integrity at the gearbox level ensures that robot cycle times remain consistent, preventing communication timeout errors caused by axis overrun or deceleration anomalies.

At the power layer, the ABB 3HAC024488-001 power supply unit and associated rectifier modules provide stable DC bus voltage to the drive system. Gearbox mechanical resistance changes — caused by lubrication breakdown or bearing wear — can increase motor current draw, stressing the power supply and potentially triggering overcurrent protection events. Proactive gearbox replacement as part of a scheduled maintenance programme protects the entire drive chain.

At the HMI and programming layer, the ABB FlexPendant (3HAC028357-001) provides operators with real-time axis load monitoring and joint torque feedback. Engineers can use FlexPendant diagnostics to identify early-stage gearbox wear through increased axis load percentages before mechanical failure occurs, enabling condition-based maintenance scheduling.

At the protection and safety layer, the IRC5 safety controller monitors axis torque limits and emergency stop circuits. A failing gearbox that causes axis stall or torque spike will trigger safety-rated stops, halting production. Maintaining a stock of 3HAC021127-001 gearbox modules — particularly across multi-robot installations — ensures rapid swap-out capability and minimises mean time to repair (MTTR).

At the maintenance and spare parts layer, NANKMOS maintains in-stock inventory of the 3HAC021127-001 across multiple suffix variants, enabling engineers to specify the correct axis and robot model variant without lead-time delays. This inventory strategy supports both corrective maintenance and planned overhaul programmes across IRB robot fleets in automotive, electronics, food and beverage, and general manufacturing sectors.

Automotive Manufacturing: In body-in-white welding and assembly lines, ABB IRB robots equipped with 3HAC021127-001 gearbox modules maintain the sub-millimetre positional accuracy required for spot welding, sealing, and panel assembly. Multi-robot cells operating on shared PROFINET networks depend on consistent axis performance to maintain synchronised motion sequences.

Electronics and Semiconductor Assembly: High-speed pick-and-place and precision dispensing applications demand minimal backlash and consistent torque delivery. The 3HAC021127-001's precision gear reduction ensures that IRB robots maintain repeatability across millions of cycles in cleanroom-adjacent environments.

Food and Beverage Packaging: Hygienic packaging lines require robots that can operate continuously across multi-shift production schedules. Scheduled gearbox replacement using in-stock 3HAC021127-001 units supports planned maintenance windows, avoiding unscheduled downtime during peak production periods.

Petrochemical and Process Industries: In hazardous area robot deployments — including drum handling, valve actuation, and sampling — mechanical reliability at the joint level is non-negotiable. The 3HAC021127-001's robust construction supports operation in environments with elevated temperature, vibration, and contamination exposure.

Metal Fabrication and Foundry: Arc welding, plasma cutting, and material handling in foundry environments subject robot joints to high thermal and mechanical stress. Regular gearbox inspection and replacement using OEM-specification 3HAC021127-001 modules maintains weld path accuracy and prevents axis drift in high-cycle applications.

Q1: How do I determine which suffix variant of the 3HAC021127-001 is compatible with my IRB robot model and axis? The suffix variant (/001, /003, /004, /005, /006, /007, /010, /011) corresponds to specific robot models and joint axes within the ABB IRB series. Refer to your robot's spare parts manual or the axis identification label on the gearbox housing. NANKMOS technical support can assist with cross-referencing your robot serial number and axis configuration to confirm the correct variant. All variants are maintained in stock for rapid dispatch.

Q2: Is the 3HAC021127-001 compatible with both IRC5 and legacy S4C+ controller platforms, and does replacement require controller recalibration? Yes, the 3HAC021127-001 gearbox module is mechanically compatible with IRB robot models operated under both the IRC5 and S4C+ controller platforms, as the gearbox interfaces directly with the robot's mechanical structure rather than the controller electronics. However, following any gearbox replacement, axis calibration using the ABB CalibWare tool or FlexPendant calibration routine is mandatory to restore positional accuracy. NANKMOS recommends retaining the original calibration data prior to disassembly to streamline the recommissioning process.

Q3: What warranty and quality assurance does NANKMOS provide for the 3HAC021127-001, and what is the typical lead time for global shipment? Every 3HAC021127-001 unit supplied by NANKMOS is covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional performance. Each unit undergoes pre-shipment inspection including dimensional verification, backlash measurement, and rotational resistance testing. In-stock units are available for same-day or next-business-day dispatch with global logistics coverage. For multi-unit orders supporting robot fleet maintenance programmes, NANKMOS can arrange consolidated shipments with full traceability documentation.
