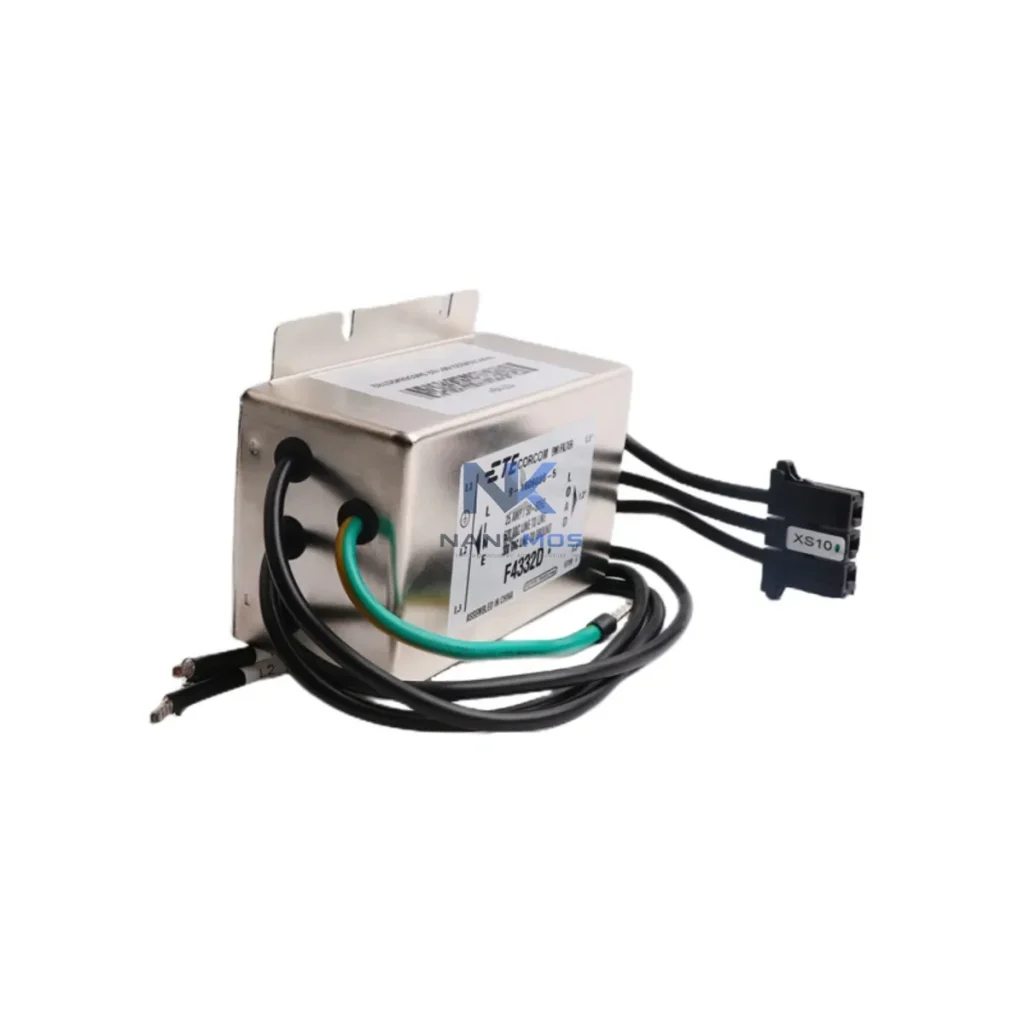

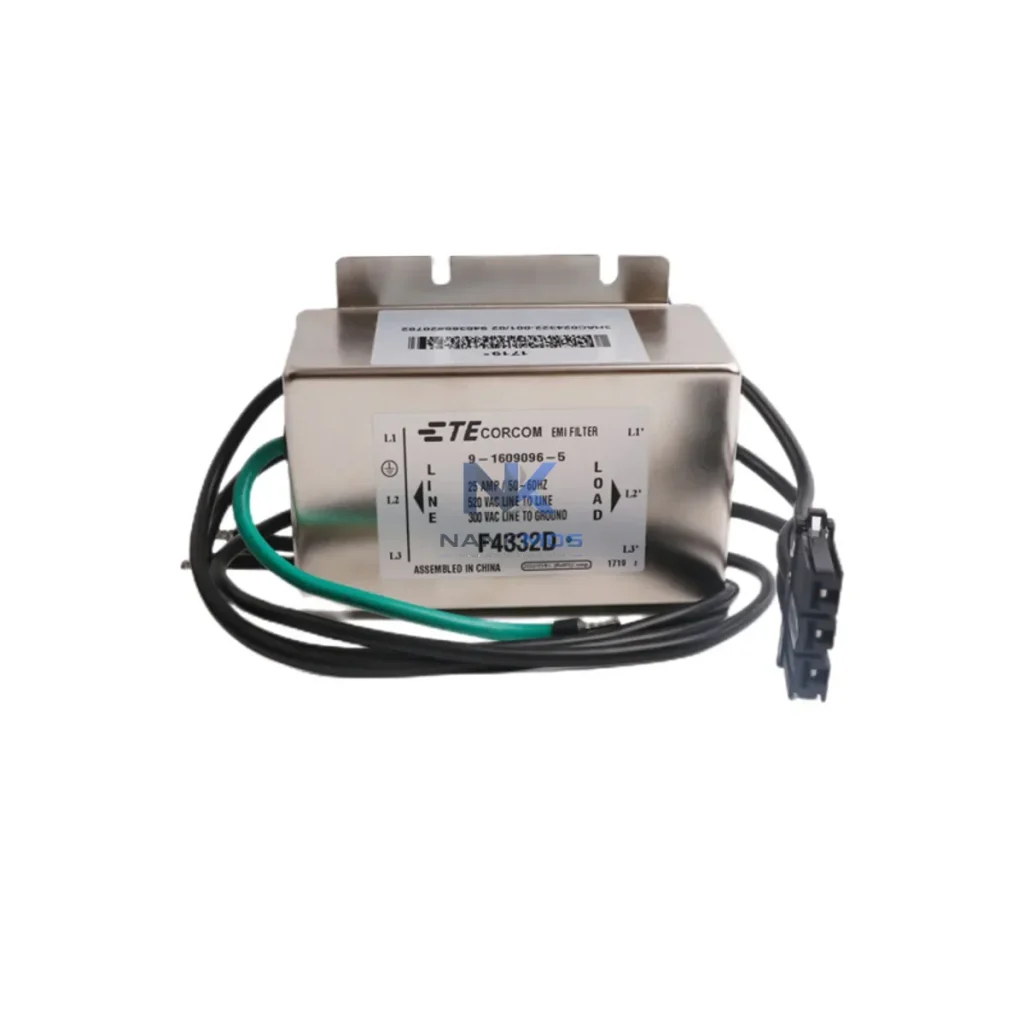

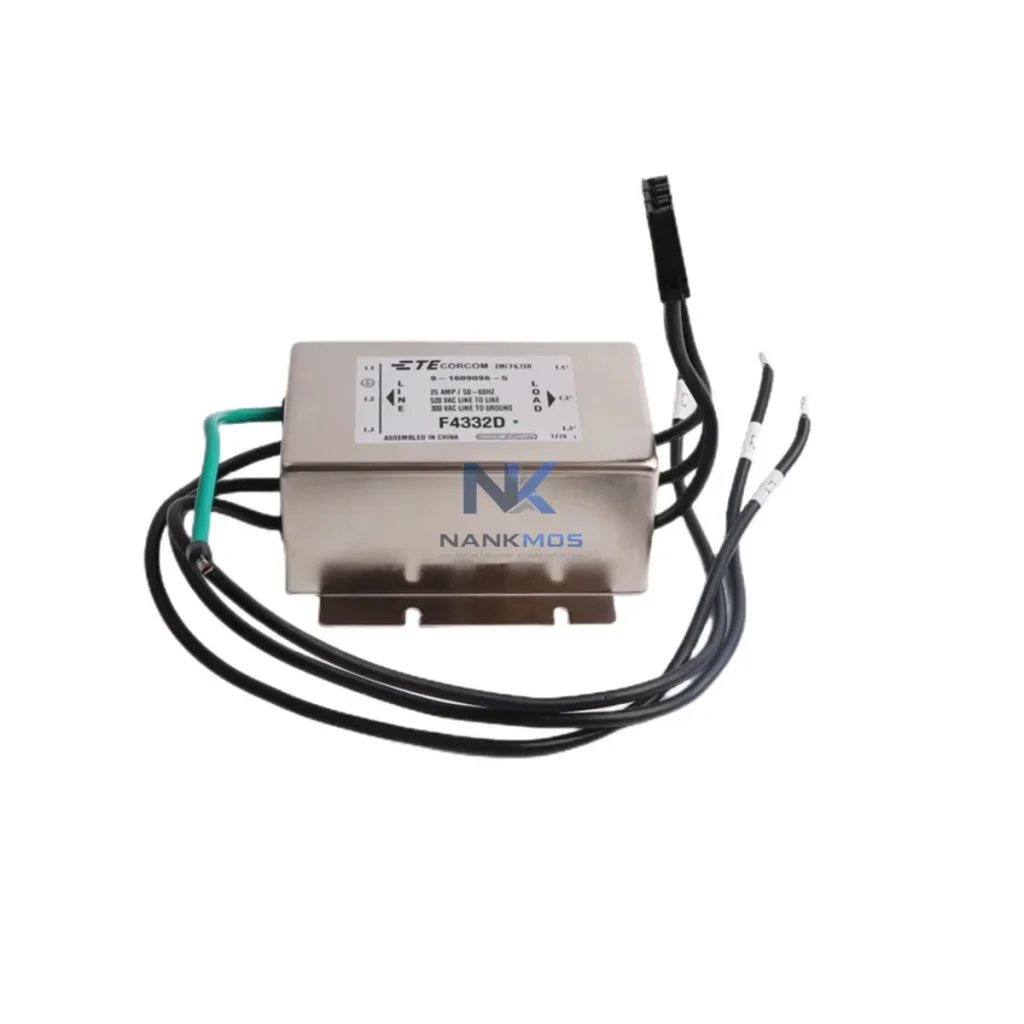

ABB 3HAC024322-001 EMI Filter Module

Product Details

3HAC024322-001 Product Description

The ABB 3HAC024322-001 is a precision-engineered EMI Filter Module designed for integration within the ABB IRC5 robot controller platform. In modern smart production environments, electromagnetic interference (EMI) is a persistent source of energy inefficiency, drive instability, and unplanned downtime. By suppressing conducted and radiated noise at the power input stage, the 3HAC024322-001 enables cleaner power delivery to downstream drive systems, reduces thermal stress on sensitive electronics, and contributes directly to measurable reductions in energy waste across the production line.

Sourced from ABB's industrial robotics division and manufactured to IEC/EN standards, this EMI filter is a critical component in any energy-aware automation architecture. It is engineered to operate continuously in demanding industrial environments — including high-cycle robotic welding cells, precision assembly stations, and multi-axis motion control systems — where power quality directly impacts throughput, equipment longevity, and total energy cost.

Every unit shipped from NANKMOS inventory undergoes pre-shipment functional verification and is backed by a 12-Month Warranty, ensuring operational confidence from day one of installation.

The 3HAC024322-001 EMI Filter occupies a foundational role in a power-aware automation architecture. Within the ABB IRC5 controller, it sits upstream of the drive unit — typically the ABB DSQC 663 drive module or the ABB 3HAC025338-001 axis computer — filtering the AC mains input before power is conditioned and distributed to servo amplifiers and motor drive stages. This upstream filtering is essential: without it, high-frequency switching noise generated by the IRC5's internal IGBT-based inverters can propagate back onto the facility power grid, increasing reactive power demand and triggering nuisance trips in upstream protection devices.

In a fully integrated production cell, the 3HAC024322-001 works in concert with the ABB DSQC 1000 main computer board, which coordinates motion trajectories and I/O sequencing. The ABB 3HAC044168-001 power supply unit provides regulated DC rails to the controller's logic and communication subsystems, while the ABB DSQC 652 digital I/O board manages discrete signal exchange with field devices — all of which benefit from the stable, low-noise power environment that the EMI filter maintains.

For facilities running mixed automation architectures, the 3HAC024322-001 is equally relevant in environments where ABB ACS880 series variable frequency drives (VFDs) operate in parallel with IRC5 robot controllers. VFDs are prolific sources of common-mode and differential-mode EMI; when an EMI filter is correctly specified and installed at each drive input, the aggregate noise floor across the control panel drops significantly, improving signal integrity for Profibus DP, EtherNet/IP, and PROFINET communication modules that link PLCs, HMIs, and SCADA systems.

Integration with Siemens S7-1500 or Allen-Bradley ControlLogix PLCs — common in hybrid automation cells — is straightforward. The EMI filter's passive design introduces no protocol dependencies, making it universally compatible across control platforms. Field-level sensors, including ABB's own 2TLA series safety modules and third-party photoelectric or inductive proximity sensors, deliver more consistent signal quality when the power environment is clean, reducing false triggers and improving overall equipment effectiveness (OEE).

In high-utilization production environments, EMI-related energy losses are often underestimated. Conducted interference on the AC supply line increases the RMS current drawn by drive systems without contributing to useful mechanical work — a direct source of wasted energy that accumulates across every operating hour. The ABB 3HAC024322-001 addresses this at the source by attenuating common-mode and differential-mode noise before it enters the IRC5 power conversion chain.

The downstream effects are measurable. Drive electronics operating in a low-noise power environment run cooler, reducing the duty cycle of cooling fans and lowering the thermal load on the controller enclosure. This directly extends the service life of capacitors, IGBTs, and gate driver circuits within the drive unit — components whose degradation is strongly correlated with thermal cycling. Fewer thermal events mean fewer unplanned maintenance interventions, which translates to higher production uptime and more predictable maintenance scheduling.

From a production rhythm perspective, EMI-induced drive faults are a leading cause of micro-stoppages in robotic cells. Each fault event — even one that self-clears — interrupts the motion program, forces a re-homing sequence, and introduces latency into the production cycle. By eliminating the root cause of these faults, the 3HAC024322-001 contributes to tighter cycle time consistency, which is a prerequisite for lean production and just-in-time (JIT) delivery commitments.

For facilities implementing ISO 50001 energy management systems or pursuing carbon reduction targets, the 3HAC024322-001 represents a low-cost, high-impact intervention. Its passive operation requires no programming, no configuration, and no ongoing maintenance — it simply performs, continuously, across the full service life of the IRC5 controller it protects.

Q1: What energy efficiency benefit does the ABB 3HAC024322-001 provide in an IRC5 robot cell? The 3HAC024322-001 suppresses conducted EMI at the AC power input of the IRC5 controller, reducing reactive current draw, lowering thermal stress on drive electronics, and minimizing EMI-induced drive faults. The net result is lower energy waste per production cycle, reduced cooling load, and improved drive component longevity — all contributing to a measurable improvement in energy efficiency at the cell level.

Q2: Is the 3HAC024322-001 compatible with both single-cabinet and dual-cabinet IRC5 configurations? Yes. The 3HAC024322-001 is designed for use within the ABB IRC5 platform and is compatible with both single-cabinet and dual-cabinet controller configurations. It is also applicable in IRC5 Compact variants where the same power input filtering requirement exists. Always verify the specific cabinet revision and power rating against ABB's hardware documentation before installation.

Q3: What is the recommended replacement interval, and how does NANKMOS support the replacement process? EMI filter modules in continuous industrial service are typically evaluated during scheduled preventive maintenance cycles — commonly every 3 to 5 years depending on operating environment and load conditions. NANKMOS maintains ready stock of the 3HAC024322-001 to support both planned replacements and emergency procurement. Each unit is pre-shipment tested and ships with a 12-Month Warranty, ensuring a reliable replacement process with minimal lead time impact on production schedules.

Q4: What testing and quality assurance steps are performed before shipment? Every ABB 3HAC024322-001 unit in NANKMOS inventory undergoes pre-shipment functional verification to confirm electrical integrity and compliance with ABB's original manufacturing specifications. Units are inspected for physical condition, connector integrity, and correct part number identification before dispatch. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions, providing procurement teams with confidence in both product quality and supply chain reliability.
