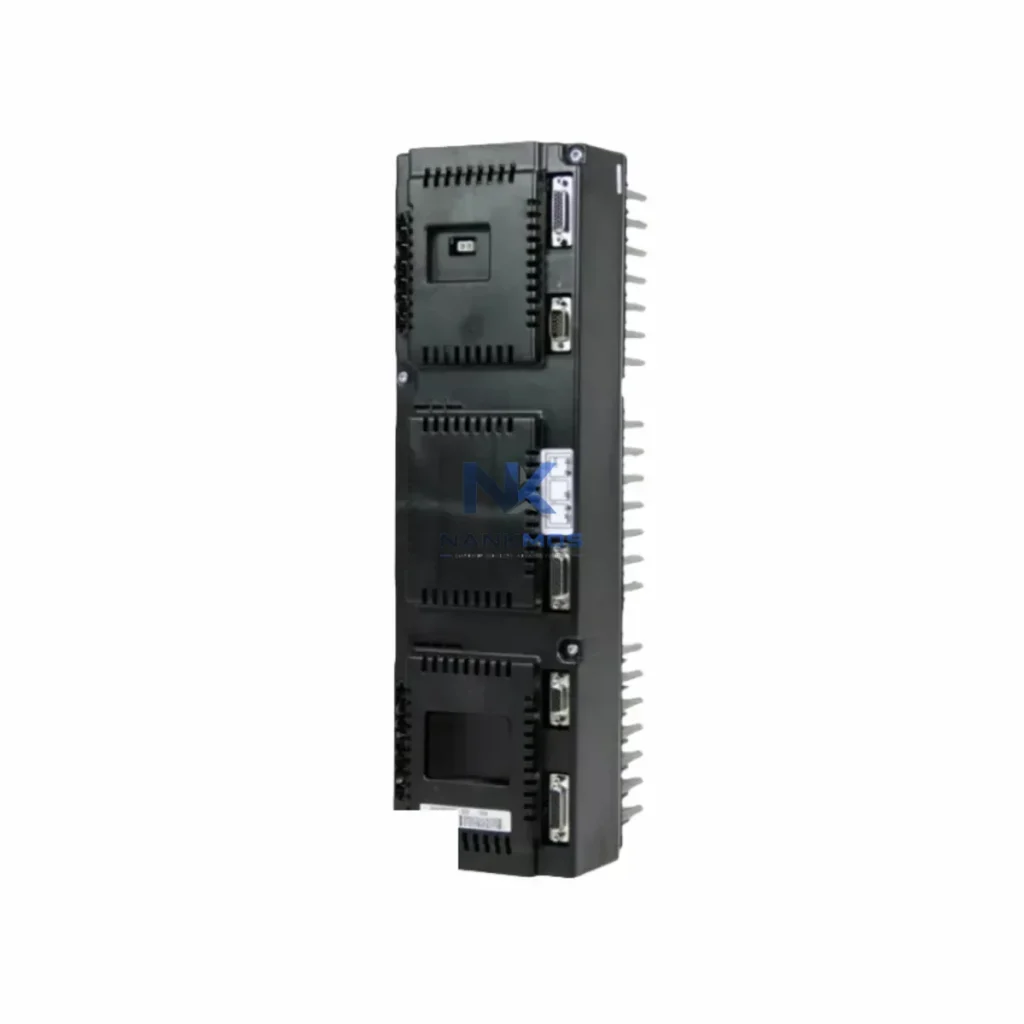

ABB 3HAC025338-003/06C Servo Drive Module

Product Details

3HAC025338-003/06C Product Description

The ABB 3HAC025338-003/06C is a precision servo drive module engineered for seamless integration within the ABB IRC5 robot controller architecture. Designed to deliver consistent torque regulation, real-time axis feedback, and deterministic motion control, this module occupies a critical position in the drive layer of multi-axis robotic systems. Whether deployed in automotive body-in-white welding cells, precision assembly lines, or high-throughput palletizing stations, the 3HAC025338-003/06C ensures that motion commands from the IRC5 controller are translated into accurate, repeatable mechanical output across all six robot axes.

NANKMOS maintains verified stock of this module with full pre-shipment functional testing and a 12-Month Warranty, supporting engineering teams that require rapid replacement cycles and minimal production downtime. Each unit undergoes load simulation and signal integrity verification before dispatch, ensuring drop-in compatibility with existing IRC5 cabinet configurations.

The 3HAC025338-003/06C does not operate in isolation — it is one node in a tightly coupled IRC5 control architecture where every layer depends on the performance of adjacent modules. Understanding its system context is essential for engineers specifying replacement parts or planning capacity expansions.

At the control layer, the IRC5 main computer module (such as the DSQC1000 or DSQC679 main computer board) generates real-time motion trajectories and axis interpolation commands. These are passed down through the IRC5 internal drive bus to the servo drive layer, where the 3HAC025338-003/06C converts digital motion references into precise current and voltage waveforms delivered to the robot's servo motors. The integrity of this signal chain is fundamental — any latency or noise at the drive level propagates directly into positional error at the tool center point.

The power layer feeding the 3HAC025338-003/06C is typically managed by the DSQC609 or DSQC374 drive power supply units, which regulate DC bus voltage and provide the energy reservoir for dynamic braking and regenerative deceleration. Proper coordination between the power supply and the servo drive ensures that high-inertia payloads can be decelerated safely without overvoltage faults on the DC bus.

On the I/O layer, the IRC5 architecture integrates distributed I/O modules such as the DSQC652 digital I/O board and DSQC651 analog I/O board, which handle gripper control signals, conveyor synchronization inputs, and safety interlock feedback. These I/O signals are coordinated by the IRC5 controller in parallel with servo motion commands, enabling complex pick-and-place sequences where mechanical motion and peripheral device control must be precisely synchronized.

The communication layer of the IRC5 system supports multiple industrial fieldbus protocols through plug-in adapter modules. The DSQC688 PROFINET adapter and DSQC667 DeviceNet adapter allow the IRC5 to participate in plant-wide automation networks, receiving production orders from SCADA systems or PLCs and reporting cycle completion and fault status upstream. The 3HAC025338-003/06C's drive performance directly affects the cycle time data reported through these communication channels.

At the HMI layer, the FlexPendant (teach pendant, part number 3HAC028357-001) provides the operator interface for jogging, program execution, and fault acknowledgment. Drive faults originating in the 3HAC025338-003/06C are surfaced through the FlexPendant's event log with specific error codes, enabling rapid diagnosis without requiring external test equipment.

The safety layer is implemented through the IRC5's integrated safety controller, which monitors axis position, speed, and torque limits in real time. The servo drive module interfaces with this safety system to execute safe stop functions (SS1, SS2, STO) in compliance with IEC 62061 and ISO 13849 requirements, ensuring that the robot can be safely halted in response to light curtain or emergency stop signals without mechanical damage.

For redundancy and maintenance planning, engineering teams managing large IRC5 fleets typically maintain a buffer stock of servo drive modules to support rapid swap-out during scheduled maintenance windows. NANKMOS supports this strategy with verified, pre-tested 3HAC025338-003/06C units available for immediate dispatch, backed by a 12-Month Warranty that covers the full replacement cycle period for most annual maintenance programs.

Automotive Manufacturing: In body-in-white welding and assembly cells, IRC5-controlled robots equipped with the 3HAC025338-003/06C servo drive deliver the sub-millimeter repeatability required for spot welding, seam sealing, and component placement. The drive module's ability to maintain torque consistency across high-duty-cycle operations is critical in automotive lines running three-shift production schedules.

Electronics Assembly: Precision electronics manufacturing lines use IRC5 robots for PCB handling, component insertion, and optical inspection positioning. The 3HAC025338-003/06C supports the fine motion resolution required for these applications, where positional accuracy at the micron level determines product yield rates.

Food and Beverage Packaging: In hygienic packaging environments, IRC5 robots handle primary and secondary packaging tasks including pick-and-place, case packing, and palletizing. The servo drive module's reliable performance under continuous operation conditions supports the high throughput demands of food production lines.

Pharmaceutical and Life Sciences: Cleanroom-compatible IRC5 installations in pharmaceutical manufacturing rely on the servo drive layer for precise liquid dispensing, vial handling, and inspection system positioning. The 3HAC025338-003/06C's deterministic motion control supports the validation requirements of GMP-regulated production environments.

Metal Fabrication and Foundry: In arc welding, plasma cutting, and die casting extraction applications, the servo drive module must maintain performance under elevated ambient temperatures and electromagnetic interference. The IRC5 architecture's shielded drive bus and the 3HAC025338-003/06C's robust signal processing ensure reliable operation in these demanding environments.

Logistics and Warehousing: High-speed sortation and depalletizing systems using IRC5 robots depend on the servo drive layer for rapid acceleration and deceleration profiles that maximize throughput while protecting fragile goods. The 3HAC025338-003/06C's dynamic response characteristics support the fast cycle times required in e-commerce fulfillment centers.

Q1: Is the 3HAC025338-003/06C compatible with all IRC5 cabinet variants, including the Panel Mounted Controller (PMC) and Dual Cabinet Controller? The 3HAC025338-003/06C is designed for the ABB IRC5 drive system architecture and is compatible with Single Cabinet, Dual Cabinet, and Panel Mounted Controller configurations. However, specific cabinet variants may use different drive module mounting arrangements or power supply interfaces. Engineers should verify the drive module slot configuration and firmware revision of the target IRC5 cabinet before installation. NANKMOS technical support can assist with compatibility verification based on the robot serial number and cabinet type.

Q2: What is the recommended procedure for replacing the 3HAC025338-003/06C in a production environment to minimize downtime? The recommended replacement procedure involves first performing a controlled shutdown of the IRC5 system and discharging the DC bus capacitors per ABB safety guidelines. The faulty drive module is then extracted from the drive bay and the replacement 3HAC025338-003/06C is installed in the same slot. Since the IRC5 controller stores axis configuration parameters in the main computer module rather than the drive module itself, no axis recalibration is typically required after a like-for-like drive replacement. A functional test run at reduced speed is recommended before returning the robot to full production speed. NANKMOS pre-tested units are verified to be drop-in compatible, minimizing commissioning time.

Q3: What does the 12-Month Warranty from NANKMOS cover for the 3HAC025338-003/06C, and what is the process for warranty claims? The NANKMOS 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions for a period of 12 months from the date of shipment. Each unit is pre-shipment tested under load simulation conditions to verify servo regulation performance and signal integrity before dispatch. In the event of a warranty claim, NANKMOS provides a replacement unit or repair service with priority processing to minimize production impact. Warranty claims are initiated through [email protected] with the order reference number and a description of the observed fault. Units showing evidence of physical damage from improper installation or operation outside specified parameters are not covered under the standard warranty terms.
