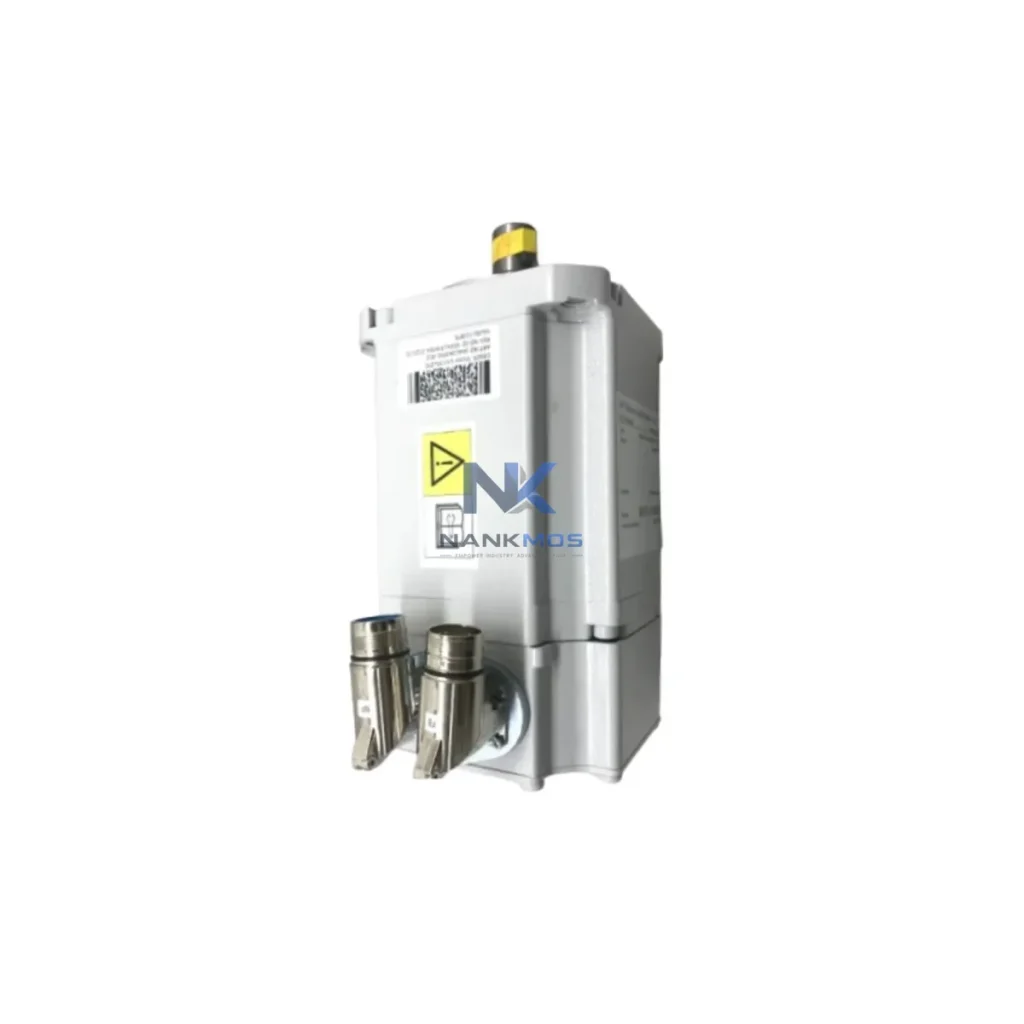

ABB 3HAC028954-004/03 AC Servo Motor

Product Details

3HAC028954-004/03 Product Description

The ABB 3HAC028954-004/03 is a precision AC servo motor engineered for seamless integration within ABB's IRC5 robot control architecture. Designed to operate as a system-matched axis drive component, this motor delivers consistent torque output, high positional accuracy, and deterministic motion response across multi-axis robotic platforms including the IRB 6640, IRB 6650S, IRB 7600, and related heavy-payload robot families. Its role within the control hierarchy extends beyond simple actuation — it functions as a tightly coupled element of the servo loop, communicating axis feedback through the IRC5 drive module stack and contributing directly to system-level motion coherence, cycle repeatability, and long-term mechanical reliability.

In modern industrial automation deployments, servo motor selection is not an isolated decision. The 3HAC028954-004/03 is specified as part of a coordinated control architecture where the IRC5 controller, axis computer boards, drive units, resolver feedback circuits, and mechanical transmission systems must operate as a unified system. Substituting a non-matched motor introduces resolver calibration drift, torque ripple inconsistencies, and potential axis fault conditions that degrade overall robot performance. This unit is factory-matched to ABB's servo drive topology and validated for use within the IRC5 cabinet's drive chain, ensuring full compatibility with the DSQC series axis computers and the IRC5 FlexPendant-based commissioning workflow.

The 3HAC028954-004/03 servo motor operates within a layered automation architecture where each component tier contributes to overall system performance. At the control layer, the IRC5 main computer — typically built around the DSQC 639 or DSQC 1000 main computer board — executes motion programs and dispatches axis commands through the drive communication bus. These commands are received by the axis computer modules (such as the DSQC 668 or DSQC 601), which translate high-level motion instructions into real-time current and torque references for the drive units.

At the drive layer, the IRC5 drive module stack — comprising individual drive units matched to each robot axis — converts the axis computer's torque references into three-phase AC current waveforms that energize the 3HAC028954-004/03 stator windings. The resolver embedded in the motor shaft provides continuous angular position feedback to the axis computer, closing the servo loop and enabling sub-millimeter positional accuracy across the robot's working envelope. This feedback path is critical: any interruption or degradation in resolver signal quality — caused by cable damage, connector corrosion, or motor winding insulation breakdown — will trigger axis fault codes and halt robot operation.

At the power layer, the IRC5 power supply unit (PSU) — such as the DSQC 609 or DSQC 661 — provides regulated DC bus voltage to the drive modules. Stable DC bus voltage is a prerequisite for consistent servo motor torque output; voltage ripple or transient sags caused by undersized power supply capacity will manifest as velocity jitter and positioning error accumulation over extended duty cycles. For high-payload robot configurations, the IRC5 dual-cabinet layout distributes drive and power functions across two enclosures, with the drive cabinet housing the axis drive modules and the controller cabinet managing the main computer, I/O, and fieldbus communication.

At the communication layer, the IRC5 system integrates with plant-level SCADA and PLC systems via DeviceNet, PROFIBUS, EtherNet/IP, or PROFINET fieldbus interfaces — typically implemented through DSQC 651 or DSQC 688 fieldbus adapter boards. These communication modules allow the robot controller to receive production triggers, report axis status, and synchronize motion with upstream conveyor systems, vision inspection stations, and collaborative robot cells. The 3HAC028954-004/03, as a servo axis component, contributes to the overall system's motion determinism, which is a key parameter for fieldbus-synchronized multi-robot production lines.

At the I/O layer, the IRC5 I/O system — built on DSQC 651 digital I/O boards or ABB's Anybus-based I/O modules — manages safety interlocks, gripper control signals, and process feedback from end-of-arm tooling. Servo motor health monitoring, including winding temperature and resolver integrity, feeds into the IRC5 diagnostic system, enabling predictive maintenance workflows that reduce unplanned downtime. Complementary components such as the SMB (Serial Measurement Board, 3HAC031670-001) manage resolver signal conditioning and battery-backed position memory, ensuring that axis calibration data is preserved across power cycles.

Automotive Manufacturing: In automotive body-in-white welding lines, ABB IRB 6640 and IRB 6700 robots equipped with 3HAC028954-004/03 servo motors perform high-speed spot welding, arc welding, and material handling tasks with cycle times measured in seconds. The servo motor's torque consistency directly affects weld gun positioning accuracy and seam quality. Replacement with a system-matched unit minimizes recalibration time and restores production throughput without requiring full robot re-mastering.

Foundry and Heavy Industry: In die casting and forging environments, IRB 7600 robots handle high-temperature workpieces in harsh ambient conditions. The 3HAC028954-004/03 is designed for the mechanical stress profiles of heavy-payload axis joints, where sustained torque output and thermal stability are critical for maintaining positional accuracy across extended production shifts.

Palletizing and Logistics: In end-of-line palletizing systems, servo motor reliability directly determines line availability. A failed axis motor on a palletizing robot can halt an entire packaging line. Maintaining a stocked replacement unit of the 3HAC028954-004/03 as part of a critical spare parts inventory strategy reduces mean time to repair (MTTR) and supports continuous production commitments.

Process Industry and Energy: In power generation, petrochemical, and water treatment facilities where robotic inspection and maintenance systems are deployed, the IRC5 platform's diagnostic capabilities — enabled by healthy servo axis components — support remote monitoring and predictive maintenance programs aligned with IEC 62443 industrial cybersecurity and functional safety frameworks.

Q1: Is the ABB 3HAC028954-004/03 compatible with all IRC5 controller variants? The 3HAC028954-004/03 is designed for use with IRC5 single-cabinet and dual-cabinet controller configurations. Compatibility is determined by the specific robot model and axis assignment. Before installation, verify the axis configuration in the IRC5 system parameters and confirm resolver cable routing matches the original factory specification. If the robot has been upgraded from an S4C+ to IRC5 platform, axis motor compatibility must be re-validated against the updated drive module configuration.

Q2: What commissioning steps are required after replacing the servo motor? After mechanical installation and electrical reconnection, the IRC5 system requires axis calibration (fine calibration or revolution counter update) using the FlexPendant. If the SMB battery has been disconnected during the replacement process, a full revolution counter update is mandatory before resuming production. It is recommended to perform a low-speed test cycle across the full axis range of motion to verify resolver feedback integrity and confirm absence of axis fault codes before returning the robot to automatic mode.

Q3: What warranty and supply terms apply to this unit? All units supplied by NANKMOS carry a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify electrical integrity and resolver signal quality. Global express shipping is available with typical lead times of 3–7 business days depending on destination. For critical production environments, we recommend maintaining at least one replacement unit in local spare parts inventory to support rapid response to axis motor failures. Contact [email protected] or +86 18359268345 for availability confirmation and volume pricing.
