3HAC032124-005 IRB64001-63HAC8009-1 IRB64003HAC8009-1 Product Description

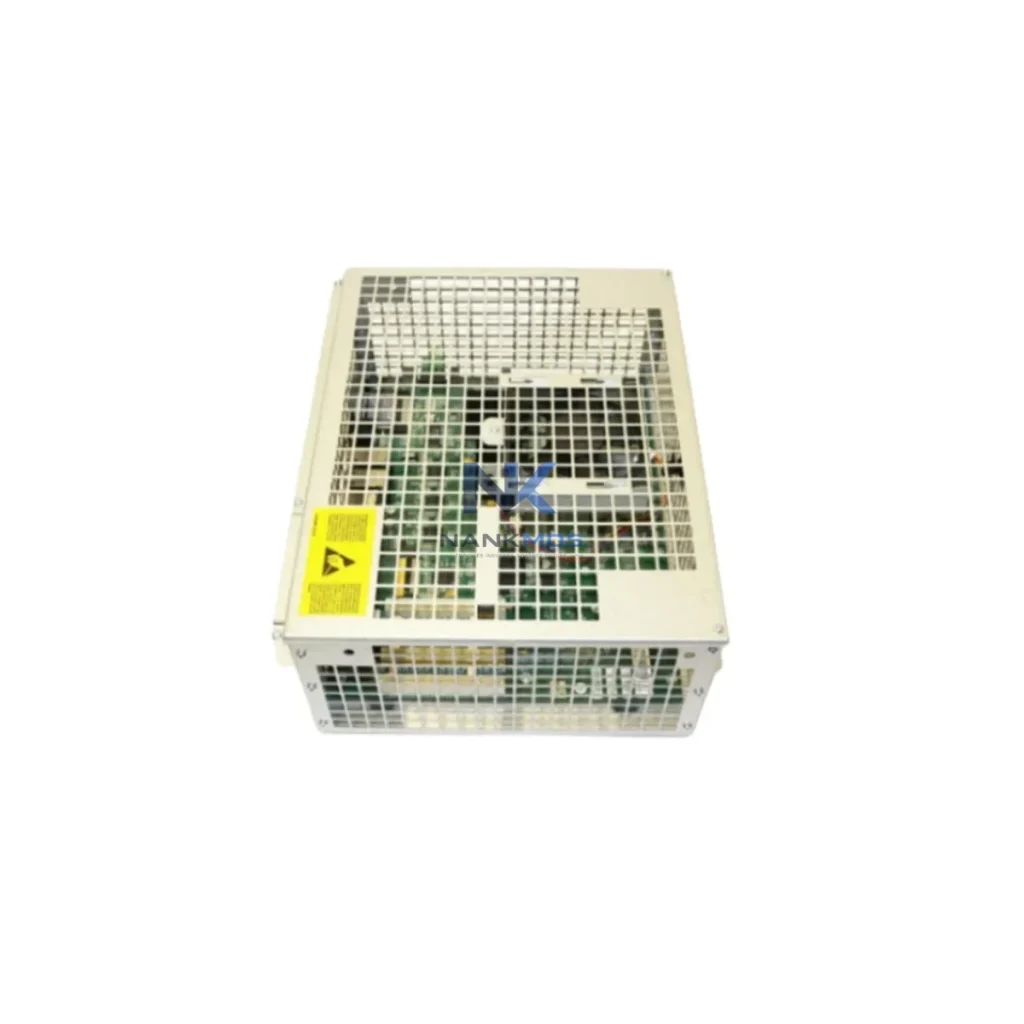

The ABB 3HAC032124-005 servo drive card is not a standalone component — it is a precision motion-layer element embedded within the ABB S4C+ robot controller architecture. Its role becomes fully apparent only when viewed within the complete drive and control stack of the IRB 6400 platform.

At the control layer, the ABB DSQC 500 main computer board orchestrates all motion sequences, issuing axis-level commands that flow through the internal backplane to each servo drive slot. The 3HAC032124-005 receives these commands and translates them into precise current waveforms that energize the servo motors on each robot joint. This tight coupling between the DSQC 500 and the drive card ensures deterministic motion timing — a critical requirement in high-cycle welding, palletizing, and material handling applications.

Power delivery to the 3HAC032124-005 originates from the ABB DSQC 374 or DSQC 508 drive unit, which rectifies and conditions the AC mains supply into a regulated DC bus. The servo drive card draws from this bus to generate the variable-frequency, variable-amplitude output needed for smooth axis acceleration and deceleration profiles. Any instability in the DC bus — caused by aging capacitors in the drive unit — will manifest as torque ripple or axis fault codes, making the drive unit and the 3HAC032124-005 functionally interdependent components that should be evaluated together during maintenance cycles.

Signal integrity across the motion layer is maintained by the ABB DSQC 328A I/O board, which handles digital and analog I/O signals from end-effectors, safety interlocks, and peripheral sensors. When the 3HAC032124-005 detects an overcurrent or encoder feedback anomaly, it raises a fault signal that propagates through the I/O layer to the safety supervision circuit — typically the ABB DSQC 400 safety board — which can trigger an emergency stop without requiring software intervention. This hardware-level fault propagation is a key element of the IRB 6400's redundant safety architecture.

For multi-robot cells or production lines where several IRB 6400 units operate in coordinated motion, the ABB DSQC 352 serial measurement board provides encoder position data back to the main computer, allowing the controller to maintain synchronization across axes. The 3HAC032124-005 works in concert with this measurement chain — any replacement of the servo drive card should be followed by encoder calibration and axis mastering procedures to restore positional accuracy.

At the communication layer, the ABB DSQC 378B fieldbus adapter enables the S4C+ controller to interface with DeviceNet or Profibus networks, allowing the robot cell to receive production commands from a PLC or SCADA system. While the 3HAC032124-005 itself operates on the internal backplane bus, its motion outputs are ultimately governed by the production schedule transmitted over these fieldbus networks — making network stability a prerequisite for consistent servo performance.

In cabinet-level integration, the ABB DSQC 609 power supply board provides regulated 24 VDC logic power to the controller's digital circuits, including the servo drive card's control logic section. A degraded DSQC 609 can cause intermittent drive card resets even when the drive hardware itself is fully functional, which is why power supply health should always be verified before replacing the 3HAC032124-005 in a fault-diagnosis workflow.

For facilities managing fleets of IRB 6400 robots, maintaining a spare 3HAC032124-005 alongside spare DSQC 500, DSQC 374, and DSQC 328A boards creates a complete critical-spares kit that covers the three most common failure modes in the S4C+ platform: control board failure, drive unit degradation, and I/O board fault. This spares strategy minimizes mean time to repair (MTTR) and supports the 12-Month Warranty coverage period with documented replacement protocols.

The ABB 3HAC032124-005 servo drive card supports a broad range of industrial automation environments where the IRB 6400 robot platform is deployed:

Automotive Manufacturing: In body-in-white welding lines, the IRB 6400 performs high-speed spot welding with precise axis positioning. The 3HAC032124-005 maintains the torque consistency required for repeatable weld nugget quality across thousands of cycles per shift. Drive card replacement during scheduled maintenance windows — rather than reactive replacement after failure — is standard practice in automotive plants operating on OEE-driven maintenance programs.

Petrochemical and Process Industries: In hazardous-area material handling applications, the IRB 6400 operates within explosion-protected enclosures. The servo drive card's reliable fault-detection and emergency-stop integration with the DSQC 400 safety board ensures that axis faults do not result in uncontrolled motion in proximity to flammable materials.

Metal Fabrication and Foundry: High-temperature environments in die casting and forging operations place thermal stress on all electronic components. The 3HAC032124-005, rated for operation within the S4C+ cabinet's thermal management envelope, provides consistent axis control even in ambient conditions approaching the upper operating limit, provided cabinet cooling systems are maintained.

Packaging and Consumer Goods: In high-throughput packaging lines, the IRB 6400 performs pick-and-place, case packing, and palletizing tasks at cycle rates that demand rapid axis acceleration and deceleration. The servo drive card's ability to deliver precise current profiles during dynamic motion sequences directly determines throughput consistency and product handling quality.

Shipbuilding and Heavy Industry: Large-scale welding and cutting applications in shipyards rely on the IRB 6400's payload capacity and reach. In these environments, the 3HAC032124-005 supports extended-duty-cycle operation, and its compatibility with the S4C+ controller's diagnostic software allows maintenance engineers to trend axis current draw over time — an early indicator of mechanical wear in gearboxes or bearings.

Q1: Is the ABB 3HAC032124-005 compatible with all IRB 6400 variants, and does it require any configuration after installation? The 3HAC032124-005 is designed for the IRB 6400 platform operating under the S4C+ controller. Compatibility depends on the specific robot variant (IRB 6400/2.4-120, /2.8-150, etc.) and the drive rack slot assignment. After physical installation, axis mastering and encoder calibration must be performed using ABB RobotStudio or the FlexPendant teach pendant to restore positional accuracy. NANKMOS supplies the 3HAC032124-005 with a pre-shipment functional test report, and our technical team can advise on variant-specific installation requirements.

Q2: How does the 12-Month Warranty apply, and what does it cover for the 3HAC032124-005? NANKMOS provides a 12-Month Warranty on the 3HAC032124-005 covering manufacturing defects and functional failures under normal operating conditions. The warranty period begins from the date of shipment. In the event of a covered failure, NANKMOS will provide a replacement unit or repair service. The warranty does not cover damage resulting from incorrect installation, operation outside specified electrical parameters, or physical damage during handling. All units undergo pre-shipment functional testing, and test records are available upon request.

Q3: What is the recommended inventory strategy for facilities operating multiple IRB 6400 robots? For facilities with three or more IRB 6400 units, NANKMOS recommends maintaining at least one spare 3HAC032124-005 per robot cell as part of a critical-spares program. Pairing this with spare DSQC 500 main computer boards and DSQC 374 drive units creates a comprehensive spares kit that addresses the most statistically frequent failure modes in the S4C+ platform. NANKMOS supports bulk procurement with volume pricing and can provide staggered delivery schedules aligned with planned maintenance windows. Contact [email protected] for fleet-level procurement consultation.
