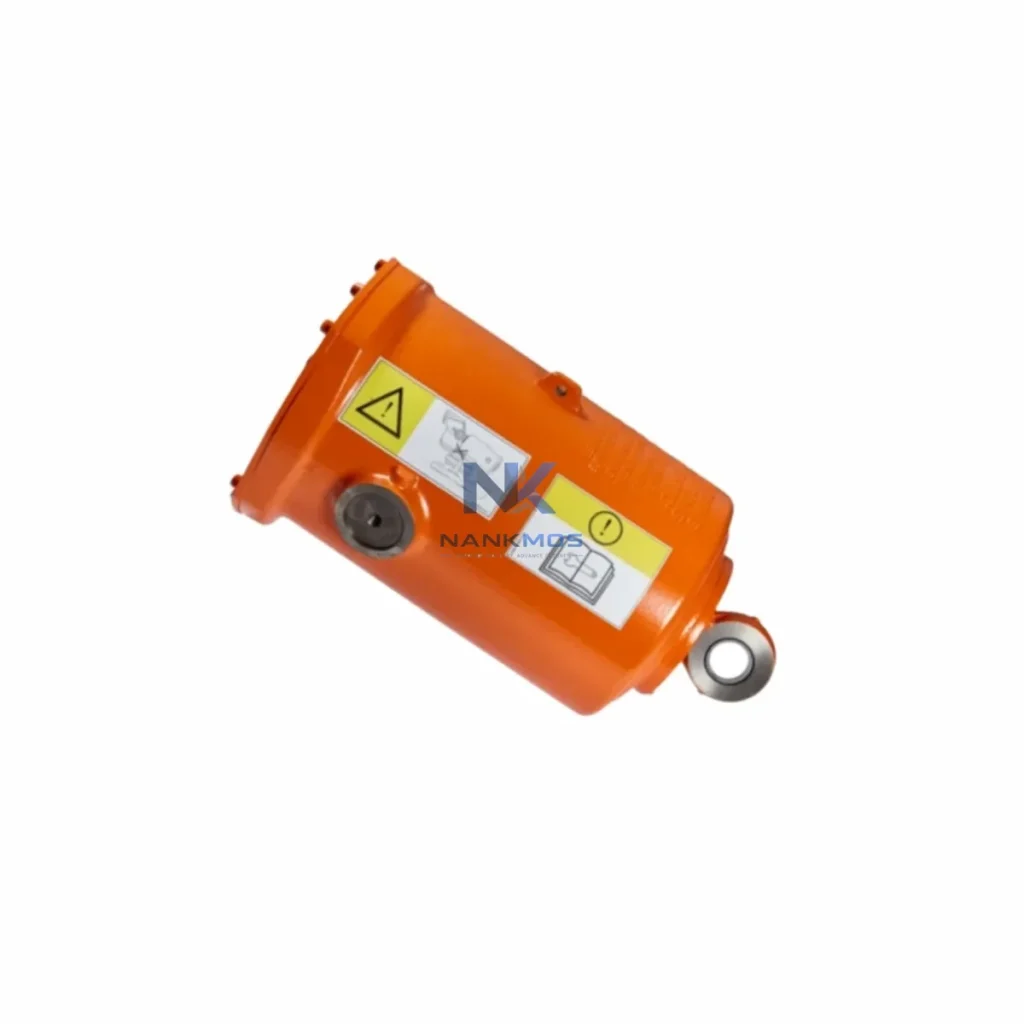

ABB 3HAC034526-003 IRB66603HAC034526-003 IRB7603HAC034526-00

Product Details

3HAC034526-003 IRB66603HAC034526-003 IRB7603HAC034526-003 Product Description

The ABB 3HAC034526-003 is a precision-engineered AC servo motor designed for seamless integration into ABB's IRB 6660 and IRB 760 industrial robot platforms. As a factory-matched motion component, it operates within ABB's layered robot control architecture — delivering consistent torque output, high-resolution feedback, and deterministic axis response across demanding production environments. Whether deployed in automotive body-in-white welding lines, press-tending cells, or heavy-payload material handling systems, the 3HAC034526-003 is engineered to sustain multi-shift operational cycles with minimal maintenance intervention.

In modern industrial automation, a servo motor is never a standalone component. The 3HAC034526-003 functions as a critical node within a tightly coupled motion control stack — interfacing with the IRC5 controller, the DSQC series drive units, and the robot's internal resolver feedback loop. Its mechanical and electrical parameters are factory-calibrated to match the IRB 6660's axis load envelope, ensuring that torque curves, inertia ratios, and thermal dissipation profiles remain within the robot's certified operating window. This system-matched design eliminates the integration risk associated with aftermarket substitutions and preserves the robot's original motion accuracy and repeatability specifications.

The 3HAC034526-003 servo motor achieves its full performance potential only when deployed within a coherent ABB robot control architecture. At the control layer, the IRC5 Robot Controller (single or dual cabinet) manages all motion planning, path interpolation, and axis coordination through ABB's QuickMove and TrueMove motion algorithms. The controller communicates axis commands to the DSQC639 or DSQC668 drive units, which regulate current delivery to the 3HAC034526-003 with microsecond-level precision.

At the power layer, the DSQC609 power supply unit conditions incoming three-phase AC power and distributes regulated DC bus voltage to the drive modules. Stable bus voltage is critical for maintaining servo torque linearity during high-acceleration axis movements — a requirement that is especially demanding in the IRB 6660's press-tending and spot-welding duty cycles.

The feedback layer relies on the motor's integrated resolver, which transmits absolute position data back to the DSQC374 or DSQC633 measurement board within the IRC5 cabinet. This closed-loop resolver chain ensures that axis position errors are detected and corrected within each servo cycle, maintaining the IRB 6660's ±0.05 mm repeatability specification across the full working envelope.

At the communication layer, the IRC5 controller connects to plant-level SCADA and MES systems via DSQC688 Ethernet/IP or DSQC679 DeviceNet gateway modules, enabling real-time production data exchange, remote diagnostics, and coordinated multi-robot cell management. For safety-rated I/O, the DSQC643 safety I/O board integrates emergency stop, safeguard input, and enabling device circuits directly into the robot's motion supervision logic.

At the HMI layer, the FlexPendant (IRC5) provides operators with direct axis jogging, program editing, and servo status monitoring — including motor temperature, resolver offset, and drive fault codes. For cell-level supervision, the RobotStudio offline programming environment allows engineers to simulate axis load profiles and validate 3HAC034526-003 thermal margins before committing to production schedules.

For multi-robot installations, the IRC5 MultiMove option enables coordinated motion across up to four robot arms sharing a single controller, with the 3HAC034526-003 maintaining synchronised axis timing across all coordinated motion groups. This architecture is particularly effective in tandem press lines and collaborative welding fixtures where path synchronisation between robots is safety-critical.

Automotive Manufacturing: The IRB 6660 with 3HAC034526-003 servo motors is widely deployed in automotive body-in-white press-tending lines, where high payload capacity (up to 205 kg) and short cycle times demand sustained servo torque output across thousands of daily press strokes. The motor's thermal stability and resolver accuracy ensure consistent blank positioning and die protection throughout multi-shift production.

Metal Fabrication & Stamping: In heavy stamping and forging cells, the 3HAC034526-003 supports the IRB 6660's ability to handle large, irregular workpieces with precise axis control. The motor's IP65 protection rating ensures reliable operation in environments with metal particulate, coolant mist, and elevated ambient temperatures.

Petrochemical & Energy: For inspection and maintenance robots deployed in petrochemical facilities, the 3HAC034526-003's sealed construction and resolver-based feedback (which is inherently immune to encoder optical contamination) provide reliable axis control in environments where airborne hydrocarbons and humidity would compromise optical encoder systems.

Foundry & Metallurgy: In die-casting and investment casting cells, the IRB 6660 operates in high-temperature, high-vibration environments. The 3HAC034526-003's Class F insulation and robust mechanical construction sustain axis performance in foundry conditions where standard servo motors would require frequent replacement.

Packaging & Palletising: High-throughput packaging lines utilise the IRB 6660's speed and payload capacity for end-of-line palletising. The 3HAC034526-003 enables the rapid acceleration and deceleration profiles required for cycle times under 10 seconds per pallet layer, while maintaining axis repeatability for consistent stack geometry.

Q1: Is the ABB 3HAC034526-003 compatible with both the IRB 6660 and IRB 760 platforms, and does it require recalibration after replacement? The 3HAC034526-003 is factory-specified for both the IRB 6660 and IRB 760 robot families. After mechanical installation, axis calibration is required using ABB's standard calibration pendulum or CalibWare software via the FlexPendant. Resolver offset values must be updated in the IRC5 controller's SMB (Serial Measurement Board) memory. Our team provides full calibration documentation and parameter reference sheets with each unit to streamline the recommissioning process.

Q2: How does the 12-Month Warranty apply, and what does pre-shipment testing cover? Every 3HAC034526-003 unit is subject to pre-shipment functional testing, including insulation resistance verification, resolver signal integrity check, and mechanical rotation inspection. The 12-Month Warranty covers manufacturing defects and component failures under normal operating conditions from the date of shipment. Warranty claims are processed with full technical support, and replacement units are dispatched from stocked inventory to minimise robot downtime.

Q3: What is the recommended maintenance interval for the 3HAC034526-003, and how does it integrate with ABB's predictive maintenance architecture? ABB recommends servo motor inspection at 20,000-hour intervals or as indicated by the IRC5 controller's maintenance log. The IRC5's integrated condition monitoring tracks cumulative axis load, motor temperature trends, and resolver signal quality — flagging anomalies before they result in unplanned downtime. For facilities using ABB Ability™ Connected Services, motor health data can be streamed to cloud-based analytics dashboards, enabling predictive replacement scheduling aligned with planned maintenance windows rather than reactive breakdown response.
