3HAC034644-003 3HAC062339-004 IRB66003HAC058993-003 Product Description

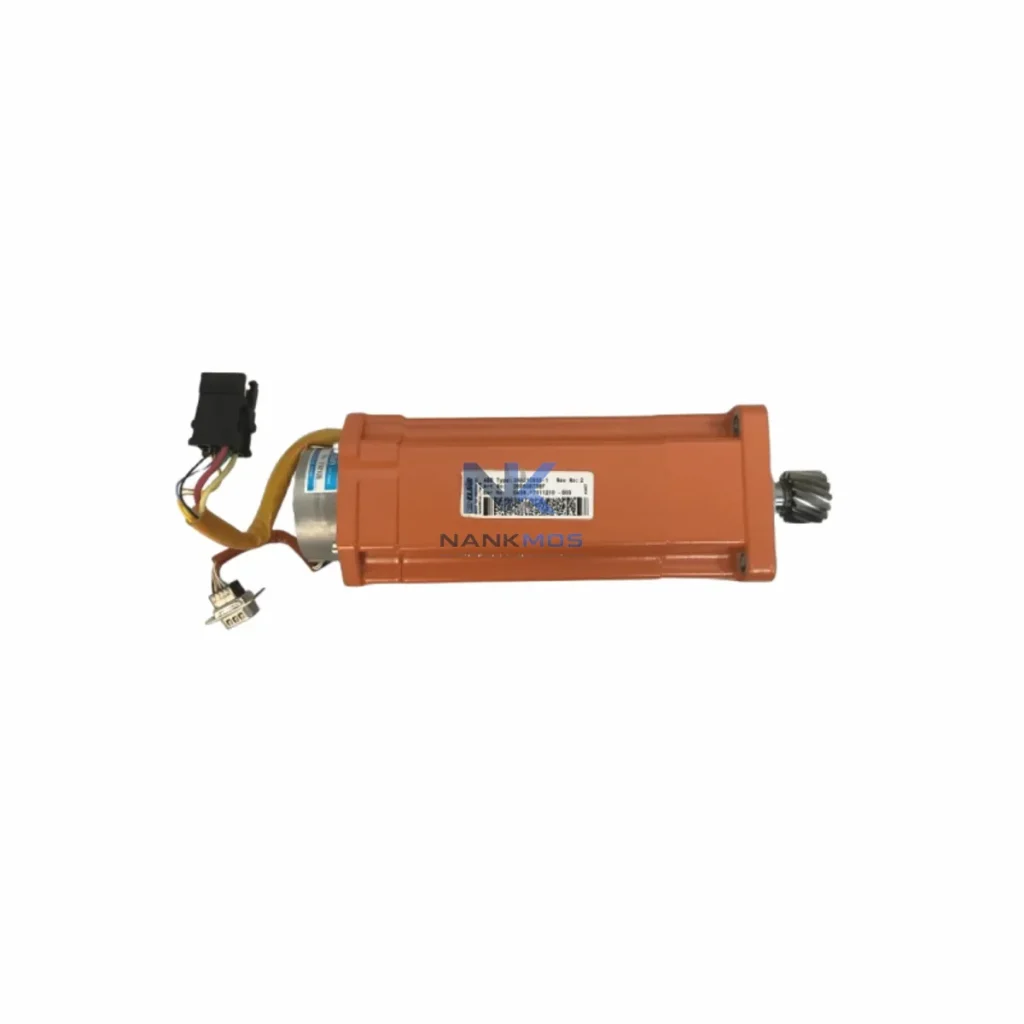

The ABB 3HAC034644-003 is a precision industrial drive motor unit engineered for the IRB6600 robot series, one of ABB's most robust heavy-payload robotic platforms deployed across automotive, metal fabrication, foundry, and general manufacturing environments. Designed to deliver consistent torque output and positional accuracy under demanding duty cycles, this drive motor integrates seamlessly into ABB's IRC5 controller architecture, enabling real-time axis control, servo feedback, and closed-loop motion management across multi-robot workcells. As smart factory deployments increasingly demand transparent, data-rich automation infrastructure, the 3HAC034644-003 serves as a critical node in the connected motion control chain — from field-level servo actuation through to SCADA dashboards and MES reporting layers.

In modern industrial environments, robot drive motors are no longer isolated mechanical components. They are active participants in the plant-wide data ecosystem. The 3HAC034644-003 interfaces with the IRC5 drive module and communicates axis status, thermal load, torque demand, and fault codes upstream through ABB's internal SREA (Serial Robot Encoder Architecture) and DeviceNet or EtherNet/IP-compatible backplane, depending on the controller configuration. This data stream feeds directly into ABB RobotStudio monitoring panels, third-party SCADA platforms such as Ignition or Wonderware, and edge gateway devices that aggregate multi-axis telemetry for predictive maintenance analysis.

Alternate compatible part references include 3HAC062339-004 and 3HAC058993-003, which serve as cross-reference designations across different IRB6600 axis configurations and regional service documentation. Procurement teams should verify axis assignment (typically Axis 1–3 for primary joints) and motor frame size against the robot's mechanical unit specification sheet before ordering.

In a fully integrated smart factory deployment, the 3HAC034644-003 drive motor operates as the terminal actuator in a layered data architecture. At the field level, the motor receives motion commands from the IRC5 drive module, which itself is orchestrated by the IRC5 main computer running ABB RobotWare. Axis position and torque data are continuously sampled by the SMB (Serial Measurement Board) and relayed back to the controller at millisecond intervals, enabling closed-loop servo correction and real-time path accuracy.

This servo telemetry is then aggregated by the IRC5's internal fieldbus adapter — typically an ABB DSQC688 EtherNet/IP adapter or a DSQC679 DeviceNet module — and transmitted over the plant Ethernet backbone to a SCADA gateway or edge computing node. Industrial Ethernet switches such as the Hirschmann RS20 or Phoenix Contact FL SWITCH 2008 provide the managed Layer 2 switching infrastructure that ensures deterministic packet delivery between robot controllers, PLCs, and supervisory systems. At the PLC level, a Siemens S7-1500 or Allen-Bradley ControlLogix may coordinate multi-robot sequencing, reading axis status tags from the IRC5 via EtherNet/IP explicit messaging.

Remote I/O modules — such as the ABB AC500 I/O expansion or Beckhoff EtherCAT terminals — extend digital and analog signal collection from peripheral sensors, safety curtains, and gripper actuators into the same data fabric. HMI panels running ABB CP600 or Siemens TP1200 Comfort display real-time robot status, cycle counts, and alarm histories on the shop floor. Upstream, an OPC-UA server (embedded in the IRC5 or provided by a Kepware KEPServerEX gateway) publishes structured robot data to MES and ERP platforms, enabling production KPI dashboards and shift reporting without manual data entry.

For predictive maintenance, edge gateway devices such as the Moxa UC-8112 or Advantech WISE-5000 series collect vibration, temperature, and current draw data from the drive motor's operating environment, correlating anomalies with axis load profiles to flag early bearing wear or winding degradation before unplanned downtime occurs. This complete data chain — from servo actuation through protocol conversion, network transmission, SCADA visualization, and edge analytics — positions the 3HAC034644-003 not merely as a replacement part, but as a foundational element of a transparent, data-driven robotic workcell.

Many industrial sites operating legacy IRB6600 installations face a common set of connectivity challenges: robot controllers that speak proprietary serial protocols cannot natively publish data to modern OPC-UA or MQTT brokers; drive motor fault codes are trapped inside the IRC5 and never surface in the plant SCADA; and maintenance teams rely on manual inspection cycles rather than condition-based alerts. The 3HAC034644-003, when paired with updated IRC5 firmware and a properly configured fieldbus adapter, resolves these data gaps at the source.

Protocol fragmentation — where one robot cell uses DeviceNet, another uses PROFIBUS, and the plant backbone runs EtherNet/IP — is addressed through protocol gateway devices that translate between fieldbus standards without requiring controller replacement. Data silos are eliminated when the IRC5's OPC-UA interface is enabled, allowing SCADA platforms to subscribe to axis data tags in real time rather than polling at fixed intervals. Remote monitoring becomes viable when the robot's alarm and fault log is streamed to a cloud-connected edge node, enabling maintenance engineers to diagnose axis faults, encoder errors, or drive overtemperature events from off-site without dispatching a technician to the factory floor.

Production line transparency improves when cycle time data, axis utilization rates, and fault frequency metrics are visualized on plant dashboards, enabling operations managers to identify bottlenecks, schedule preventive maintenance windows, and benchmark robot performance across shifts. System expansion — adding new IRB6600 units or integrating collaborative robots alongside existing heavy-payload cells — is simplified when the network architecture is built on open, standards-based protocols from the outset, with the 3HAC034644-003 serving as a proven, in-stock component that minimizes lead time risk during capacity scale-up.

Q: What communication protocols does the ABB IRC5 controller support when using the 3HAC034644-003 drive motor? A: The IRC5 controller supports DeviceNet, EtherNet/IP, PROFIBUS, PROFINET, and Modbus TCP via optional fieldbus adapter modules (e.g., DSQC688, DSQC679). OPC-UA is available through RobotWare options or third-party gateway software such as Kepware, enabling integration with SCADA, MES, and cloud analytics platforms.

Q: Can the 3HAC034644-003 drive motor data be monitored remotely for predictive maintenance? A: Yes. When the IRC5 is configured with an EtherNet/IP or OPC-UA interface, axis telemetry including torque load, thermal status, and fault codes can be streamed to edge gateways or cloud platforms. Combined with external vibration and current sensors, this enables condition-based maintenance scheduling and remote fault diagnosis without on-site intervention.

Q: Is the 3HAC034644-003 compatible with cross-reference part numbers 3HAC062339-004 and 3HAC058993-003? A: These part numbers are cross-reference designations used across different IRB6600 axis configurations and regional ABB service documentation. Compatibility depends on the specific axis assignment and mechanical unit revision. We recommend verifying against your robot's mechanical unit specification sheet or contacting our technical team for confirmation before ordering.

Q: What does the 12-month warranty cover, and how is it validated? A: All units supplied by NANKMOS carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing. Warranty claims are supported by shipment documentation and test records. Contact [email protected] for warranty service or RFQ inquiries.
