ABB 3HAC038210-002 mtd500 Motor Drive Unit

Product Details

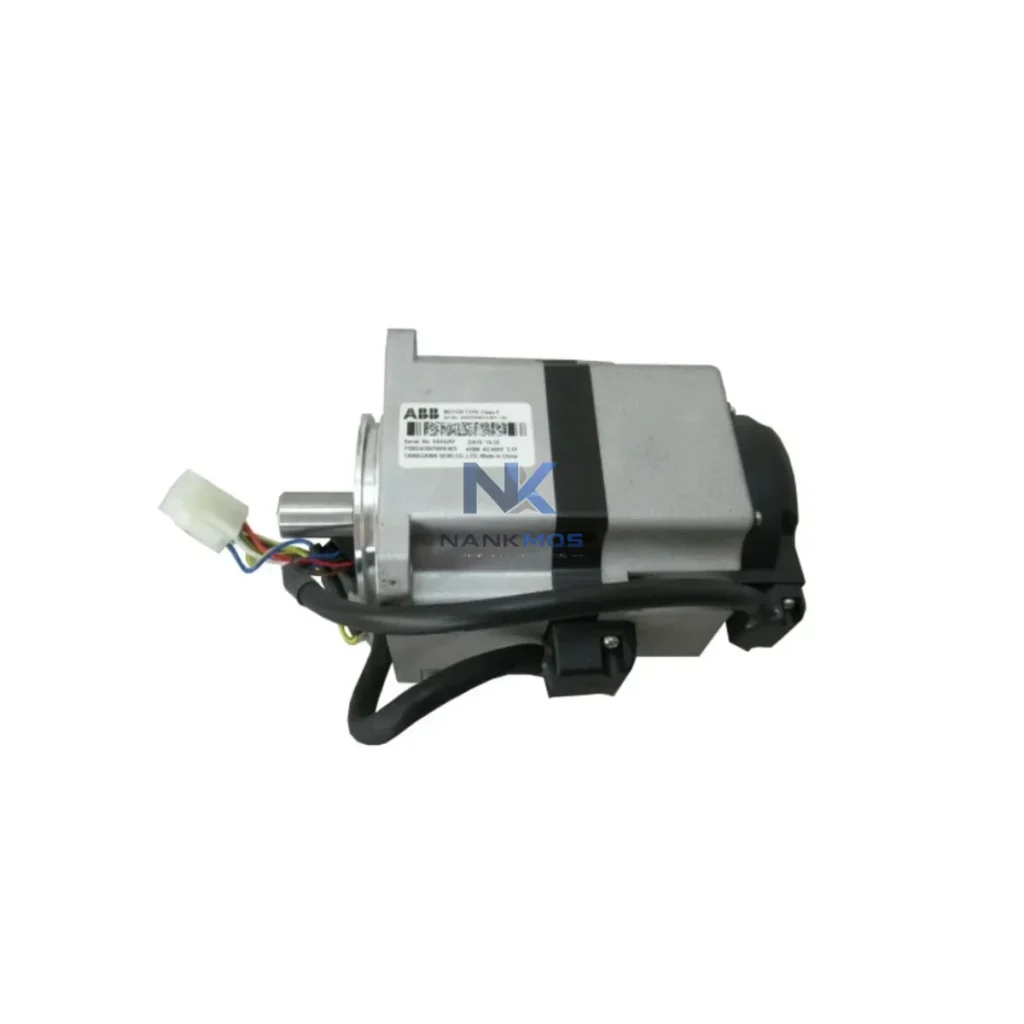

3HAC038210-002 mtd500 Product Description

The ABB 3HAC038210-002 MTD500 Motor Drive Unit is a precision-engineered servo drive module designed for seamless integration within ABB's IRC5 robot controller architecture. As a core component of the motion control layer, the MTD500 governs axis-level torque, velocity, and position regulation for IRB-series industrial robots, ensuring deterministic signal response and high-fidelity motion execution across multi-axis configurations. Its role within the control hierarchy extends beyond standalone drive functionality — it operates as a synchronized node within a layered automation platform that spans the control layer, I/O layer, communication layer, power layer, and maintenance layer, delivering system-wide coherence and long-term operational reliability.

Sourced directly from verified supply channels and subjected to pre-shipment functional testing, every 3HAC038210-002 unit shipped by NANKMOS is backed by a 12-Month Warranty, ensuring engineering confidence from commissioning through sustained production operation.

The 3HAC038210-002 MTD500 does not operate in isolation. Within a complete ABB IRC5-based automation cell, it functions as one of several coordinated drive modules mounted within the IRC5 drive rack. A fully configured IRC5 cabinet typically integrates multiple MTD500 or MTD250 axis drive units — one per robot axis — all sharing a common DC bus supplied by the IRC5 power unit modules such as the DSQC661 or DSQC662. These power supply units regulate the DC bus voltage that feeds each drive module, and their health directly determines the stability of the entire motion control layer.

At the control layer, the DSQC1000 or DSQC1018 main computer unit executes the RobotWare motion kernel, issuing real-time axis commands to each MTD500 via the internal drive communication bus. The integrity of this bus — and the synchronization between the main computer and each drive node — is fundamental to achieving coordinated multi-axis motion, particularly in high-speed pick-and-place, arc welding, or palletizing applications where path accuracy is critical.

The I/O layer, typically implemented through DSQC652 digital I/O units or DSQC651 analog I/O modules mounted within the IRC5 cabinet, provides the signal interface between the robot controller and external PLC systems, safety relays, and field devices. These I/O modules communicate with the main computer over the internal panel bus, and their configuration must be consistent with the robot program's I/O signal mapping to avoid commissioning errors.

For applications requiring fieldbus connectivity to an external SCADA or DCS platform, the DSQC688 DeviceNet gateway or DSQC378B Profibus adapter extends the IRC5 architecture into the plant-level communication layer, enabling the robot cell to receive production commands, report status, and participate in coordinated line control alongside PLCs such as the ABB AC500 series or Siemens S7-300/S7-400 systems.

At the HMI layer, the DSQC679 FlexPendant teach pendant provides the operator interface for program editing, manual jogging, and fault diagnostics. Its connection to the IRC5 controller via the teach pendant cable and internal Ethernet link means that pendant availability and firmware version must be matched to the RobotWare release running on the main computer — a compatibility consideration that directly affects commissioning efficiency.

Safety architecture within the IRC5 platform is managed by the DSQC400 or DSQC643 safety board, which monitors emergency stop circuits, safeguard inputs, and enabling device signals. The MTD500 drive responds to safety-state commands from this board, entering a controlled stop state when a safety event is detected — ensuring that the motion control layer is fully integrated with the cell's protective layer without requiring external safety relays for basic E-stop functionality.

For maintenance and spare parts planning, stocking the 3HAC038210-002 alongside complementary components such as the 3HAC025338-001 battery unit, 3HAC044075-001 SMB board, and 3HAC026254-001 axis computer ensures that the IRC5 system can be restored to full operation rapidly following a drive or control board fault — minimizing unplanned downtime in production-critical environments.

Automotive Body Shop & Welding Lines: In automotive manufacturing, IRB 6640 and IRB 6700 robots equipped with MTD500 drive modules perform resistance spot welding, MIG welding, and body panel handling at cycle times measured in seconds. The MTD500's ability to maintain precise torque control during high-inertia load changes — such as those encountered when a welding gun contacts the workpiece — is essential for weld quality consistency. Multi-robot cells in this environment rely on synchronized IRC5 controllers communicating over Ethernet/IP or Profinet, with each MTD500 node contributing to the coordinated motion sequence.

Electronics Assembly & Precision Handling: IRB 1600 and IRB 2600 robots in electronics assembly applications demand sub-millimeter repeatability across thousands of daily cycles. The MTD500's closed-loop servo control, operating within the IRC5 motion kernel's real-time execution environment, delivers the positional accuracy required for PCB handling, component insertion, and optical inspection positioning. Thermal stability of the drive module under continuous duty cycles is a key reliability factor in this application context.

Petrochemical & Process Plant Automation: In hazardous area applications where robots are deployed for drum handling, valve actuation, or sampling in petrochemical facilities, the IRC5 controller and its drive modules must operate reliably within temperature-controlled enclosures. The MTD500's compatibility with the IRC5 cabinet's thermal management system — including the cabinet fan assembly and heat exchanger options — supports deployment in ambient conditions up to 45°C, with appropriate derating applied for continuous high-load cycles.

Palletizing & Logistics: High-throughput palletizing lines using IRB 4600 or IRB 6640 robots place significant demands on the drive layer during rapid acceleration and deceleration cycles. The MTD500's regenerative braking capability — returning energy to the DC bus during deceleration — reduces net power consumption and thermal load on the power supply modules, extending the service life of both the drive and the DSQC661/662 power units in high-cycle applications.

Metal Fabrication & Cutting: Robotic plasma cutting and laser cutting applications require smooth, continuous path motion at variable feed rates. The MTD500's velocity loop bandwidth and its integration with the IRC5 path interpolation engine ensure that the robot TCP follows the programmed cutting path with minimal contour error, even during direction reversals and speed transitions — directly affecting cut quality and material yield.

Q1: Is the ABB 3HAC038210-002 MTD500 compatible with all IRC5 cabinet variants, and what axis positions does it support?The 3HAC038210-002 MTD500 is designed for use within the ABB IRC5 Single Cabinet and IRC5 Dual Cabinet configurations. It is a slot-mounted axis drive module that occupies a defined position within the IRC5 drive rack, with each slot corresponding to a specific robot axis (axes 1–6 for a standard 6-axis IRB robot). Compatibility with a specific axis position depends on the motor power rating of that axis — the MTD500 is rated for mid-range axis loads and is typically deployed on axes 2, 3, or 4 of IRB 2600, IRB 4600, and IRB 6640 robots. Always verify the axis drive assignment against the IRC5 cabinet wiring diagram and the robot's electrical documentation before installation. NANKMOS technical support can assist with axis-specific compatibility confirmation prior to order.

Q2: What commissioning steps are required when replacing a 3HAC038210-002 MTD500 in an operational IRC5 system?Drive module replacement in an IRC5 system follows a defined procedure: (1) Power down the IRC5 cabinet and discharge the DC bus capacitors per ABB safety guidelines. (2) Remove the faulty MTD500 from its rack slot, noting the axis assignment and cable connections. (3) Install the replacement 3HAC038210-002 in the same slot, reconnecting motor power cables, resolver/encoder cables, and the drive bus connector. (4) Power up the IRC5 and allow the main computer to perform drive initialization and parameter loading from the system configuration. (5) Execute a calibration verification routine using the FlexPendant to confirm axis zero positions and motion accuracy. In most IRC5 configurations, drive parameters are stored on the main computer and are automatically loaded to the replacement drive during initialization — no manual parameter entry is required, simplifying the replacement process significantly.

Q3: What does the 12-Month Warranty cover for the 3HAC038210-002, and what is NANKMOS's stock availability policy for this part?The 12-Month Warranty provided by NANKMOS covers manufacturing defects and functional failures under normal operating conditions for a period of 12 months from the date of shipment. Each unit undergoes pre-shipment functional testing to verify drive initialization, communication bus response, and basic motion control functionality before dispatch. In the event of a warranty claim, NANKMOS will assess the returned unit and provide a replacement or repair resolution within an agreed service timeline. Regarding stock availability: NANKMOS maintains inventory of critical IRC5 drive components including the 3HAC038210-002 to support rapid dispatch for maintenance and breakdown scenarios. Lead times and current stock status can be confirmed by contacting [email protected] or +86 18359268345 prior to order placement.
