3HAC043166-004 IRB46003HAC043166-004 3HAC046336-004 Product Description

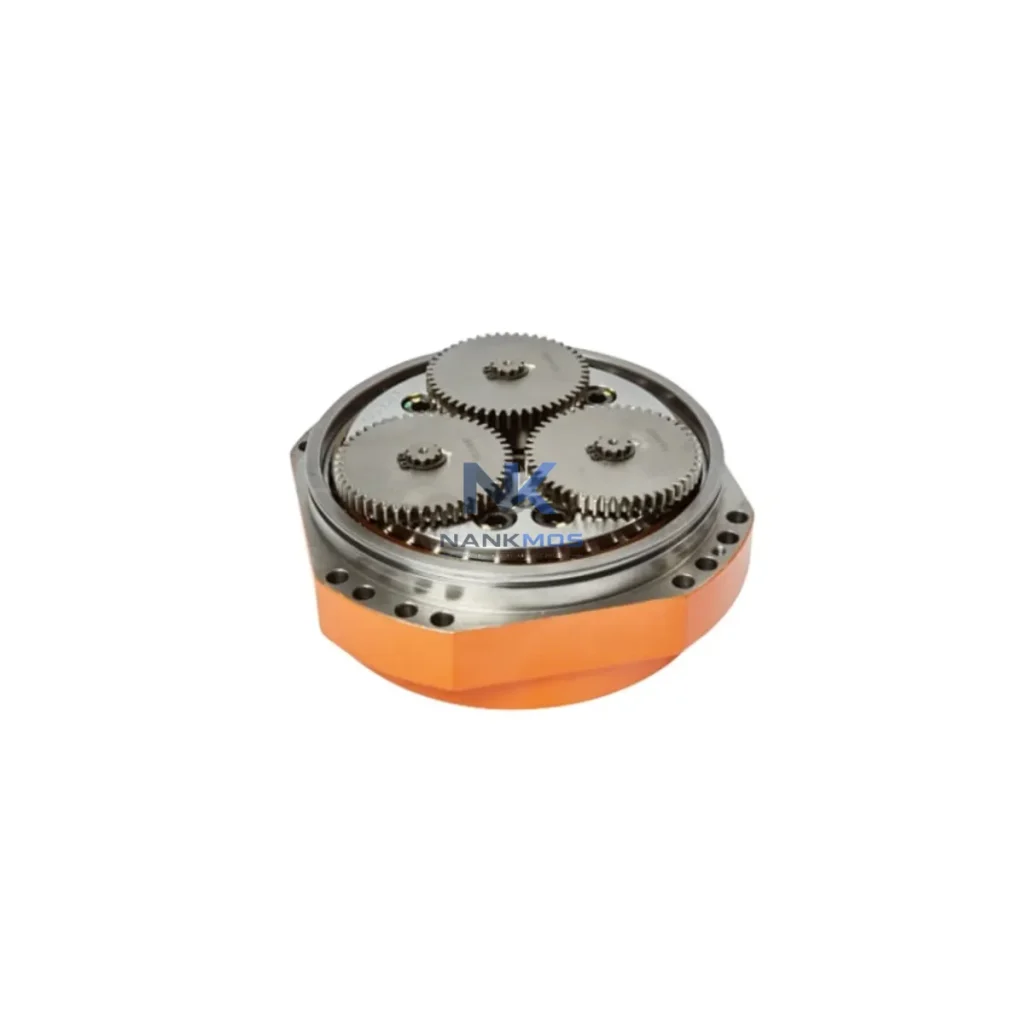

The ABB 3HAC043166-004 is a precision RV-100N-161 reduction gear engineered as a system-matched joint drive component for the ABB IRB 4600 industrial robot series. Within a fully integrated robotic automation architecture, this reduction gear serves as the mechanical transmission core at the joint axis level — directly interfacing with the servo motor output, the robot arm structural frame, and the motion control feedback loop managed by the IRC5 controller. Its role is not limited to torque conversion; it defines the positional accuracy, repeatability, and long-term mechanical stability of the entire robot cell.

In modern industrial automation deployments — spanning automotive body welding, semiconductor wafer handling, petrochemical valve actuation, and precision assembly lines — the reduction gear is the critical link between electrical command signals and physical motion execution. The 3HAC043166-004 is designed to maintain sub-arc-minute backlash tolerances across extended duty cycles, ensuring that the IRC5 motion planner receives consistent mechanical response without positional drift or resonance-induced error accumulation.

The 3HAC043166-004 reduction gear does not operate in isolation. Its performance is inseparable from the broader ABB robotic automation platform. In a complete IRB 4600 robot cell, the following components form the system architecture within which this gear operates:

The ABB IRC5 Controller (3HAC025338-001 or equivalent) serves as the central motion management unit, issuing interpolated axis commands to each joint drive. The ABB DSQC662 Drive Unit converts controller-level current commands into servo motor torque, which is then transmitted through the 3HAC043166-004 reduction gear to the robot arm. The ABB 3HAC046336-004 — a closely related gear assembly used in adjacent axis configurations of the IRB 4600 — shares the same RV gear platform, enabling standardized maintenance procedures across multiple joints.

At the power layer, the ABB DSQC609 Power Supply Unit provides regulated DC bus voltage to the drive system, ensuring stable torque delivery even under dynamic load changes. The ABB 3HAC026253-001 Motor Unit directly couples to the input shaft of the 3HAC043166-004, and its encoder feedback signal is routed back to the IRC5 axis computer for closed-loop position control. The ABB SMB (Serial Measurement Board), typically the 3HAC031670-001, manages resolver and encoder signal conditioning across all six axes, maintaining synchronization between the mechanical position of each reduction gear output and the controller's internal motion model.

For system-level diagnostics, the ABB FlexPendant (3HAC028357-001) provides real-time joint load monitoring, gear temperature trending, and axis calibration routines — all of which depend on the mechanical integrity of the 3HAC043166-004 to produce meaningful diagnostic data. In redundant or high-availability robot cell designs, a spare 3HAC043166-004 is maintained in the local inventory buffer alongside the ABB 3HAC044168-001 Axis Computer and ABB DSQC679 Teach Pendant to minimize unplanned downtime during scheduled maintenance windows.

This system-level integration approach — where the reduction gear is treated as a coordinated element of the IRC5 motion architecture rather than a standalone mechanical part — is the foundation of contextual integration engineering. Every replacement or upgrade of the 3HAC043166-004 must be validated against the IRC5 axis calibration database to ensure positional repeatability is restored to OEM specification.

Automotive Manufacturing: In body-in-white welding lines, the IRB 4600 equipped with the 3HAC043166-004 reduction gear handles high-cycle spot welding and seam tracking tasks. The gear's low backlash characteristic is critical for maintaining TCP (Tool Center Point) accuracy across thousands of weld cycles per shift, directly impacting weld quality and dimensional consistency of vehicle body panels.

Semiconductor & Electronics Assembly: In cleanroom-compatible robot cells, the sealed grease-packed design of the 3HAC043166-004 prevents particulate contamination while maintaining the sub-millimeter repeatability required for PCB handling, chip placement, and optical inspection positioning.

Petrochemical & Energy: In hazardous area robot deployments for valve actuation, pipeline inspection, and sample handling, the mechanical robustness of the RV-100N-161 gear design ensures reliable operation under thermal cycling, vibration, and chemical exposure conditions typical of refinery and offshore environments.

Metal Processing & Foundry: For high-temperature material handling in die casting and forging lines, the IRB 4600's joint drive system — anchored by the 3HAC043166-004 — maintains positional accuracy despite thermal expansion effects on the robot structure, supported by the IRC5's real-time thermal compensation algorithms.

Packaging & Palletizing: In high-speed consumer goods packaging lines, the reduction gear's torsional stiffness enables rapid acceleration and deceleration profiles without mechanical resonance, supporting cycle times that meet modern packaging line throughput requirements.

Q1: Is the 3HAC043166-004 directly interchangeable with the 3HAC046336-004 used in other IRB 4600 axis positions?A: While both gears share the RV-100N platform and are used within the IRB 4600 series, they are assigned to specific axis positions with distinct mounting configurations and torque ratings. Direct substitution without axis-specific validation against the IRC5 calibration file is not recommended. Always verify the axis assignment and gear ratio against the robot's mechanical documentation before installation.

Q2: What is the recommended maintenance interval and warranty coverage for the 3HAC043166-004?A: The 3HAC043166-004 carries a 12-Month Warranty covering manufacturing defects and premature failure under normal operating conditions. ABB recommends grease replenishment inspection at 20,000-hour intervals or per the IRC5 predictive maintenance schedule. Our supply includes pre-shipment functional testing and documentation of gear backlash measurement to confirm OEM specification compliance before dispatch.

Q3: How does replacing the 3HAC043166-004 affect the IRC5 axis calibration and system integration?A: Reduction gear replacement requires a full axis calibration procedure using the ABB CalibWare or equivalent calibration tool via the FlexPendant. The IRC5 controller stores axis offset data that must be updated to reflect the new gear's mechanical zero position. Failure to recalibrate after replacement will result in positional error accumulation and potential collision risk. Our technical team provides contextual integration support documentation to guide engineers through the post-replacement calibration workflow.
