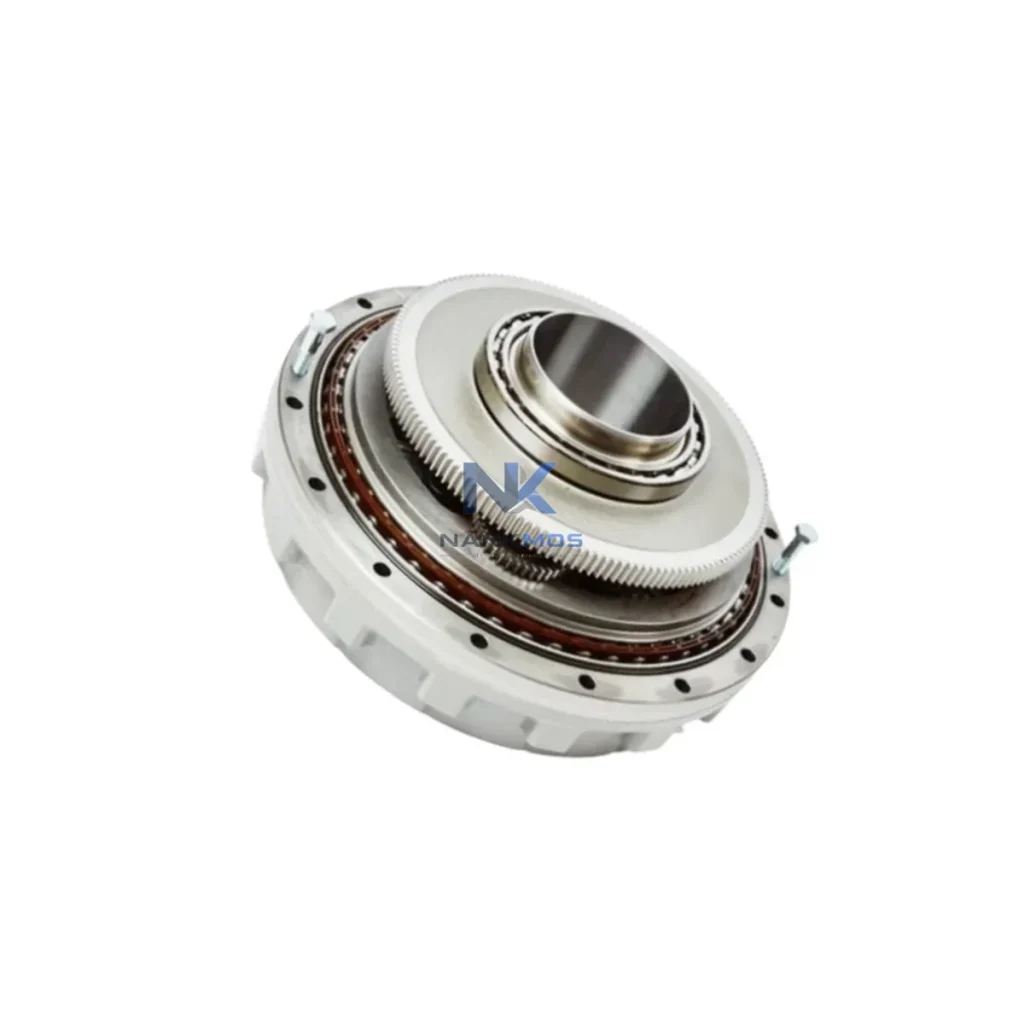

3HAC048318-001 IRB67003HAC048318-001 3HAC043074-003 Product Description

The ABB 3HAC048318-001 is a high-precision reduction gear engineered for the IRB 6700 series industrial robot — ABB's flagship heavy-duty manipulator platform widely deployed in automotive body-in-white welding, palletizing, machine tending, and material handling lines. As smart factories evolve toward fully connected production environments, the mechanical integrity of each robot joint becomes a critical node in the broader automation data chain. The 3HAC048318-001 reduction gear directly governs the torque transmission and positional accuracy of the IRB 6700's primary axis, making it a foundational component for maintaining motion fidelity across the entire robotic cell.

In a connected factory architecture, the IRB 6700 robot controller — typically the ABB IRC5 or OmniCore C30 — continuously monitors servo feedback signals from each joint axis. The reduction gear's mechanical performance directly influences the quality of encoder data returned to the drive unit, which is then transmitted via DeviceNet, PROFIBUS-DP, or EtherNet/IP to the plant-level SCADA system. Any degradation in gear backlash or torque ripple is immediately reflected in axis deviation alarms logged by the robot controller and surfaced on the operator HMI panel — enabling real-time diagnostics without manual inspection.

Understanding the 3HAC048318-001 within a smart factory data flow begins at the joint level. The reduction gear transmits mechanical torque from the servo motor to the robot arm, while the ABB MU (Measurement Unit) mounted on the axis captures real-time position and speed data. This signal travels through the robot's internal DSQC633 I/O board to the IRC5 controller cabinet, where the DSQC679 main computer processes axis states and generates motion commands.

From the IRC5 controller, robot status data — including joint load, cycle count, axis temperature, and error codes — is exported via EtherNet/IP or PROFIBUS-DP to the plant PLC, typically a Siemens S7-1500 or Allen-Bradley ControlLogix. The PLC aggregates robot cell data alongside signals from peripheral devices: Cognex vision systems for part verification, Keyence laser sensors for position confirmation, and Pilz safety relays for zone monitoring. All data streams converge at the industrial Ethernet switch — such as a Hirschmann RS20 or Moxa EDS-308 — which routes traffic to the SCADA server.

At the SCADA layer, platforms such as Ignition by Inductive Automation or ABB Ability™ Manufacturing Operations Management visualize robot cell KPIs: OEE, mean time between failures (MTBF), joint wear index, and production throughput. When the 3HAC048318-001 reduction gear approaches end-of-life based on accumulated load cycles, the predictive maintenance module triggers a work order in the MES system — ensuring planned replacement before unscheduled downtime occurs. This closed-loop data architecture transforms a mechanical spare part into an active participant in the factory's digital twin.

For remote diagnostics, the IRC5 controller's ABB Remote Service module transmits encrypted robot health data to the cloud via a 4G/LTE industrial router or site VPN gateway. Maintenance engineers can review joint torque trends, axis calibration drift, and gear wear indicators from any location — reducing on-site service visits and accelerating mean time to repair (MTTR).

One of the most persistent challenges in robot-intensive manufacturing is the disconnect between mechanical component health and the plant's digital monitoring infrastructure. When a reduction gear like the 3HAC048318-001 begins to wear, the symptoms — increased backlash, axis oscillation, positional drift — often go undetected until a production fault occurs. This creates a data gap: the robot controller may log axis deviation warnings, but without integration to the SCADA or MES layer, these alarms remain siloed in the robot teach pendant and never reach the maintenance team's dashboard.

NANKMOS addresses this gap by supplying OEM-grade ABB spare parts that maintain the mechanical baseline required for accurate servo feedback. A worn or counterfeit reduction gear introduces noise into the encoder signal chain, causing false alarms, reduced path accuracy, and ultimately corrupted production data. By replacing with a genuine 3HAC048318-001, the robot's axis performance returns to factory specification — restoring the integrity of the data flowing from joint encoder to SCADA historian.

For sites running mixed robot fleets or legacy IRC5 cabinets alongside newer OmniCore systems, protocol translation via an AnyBus Communicator or HMS X-gateway ensures that robot health data can be unified into a single SCADA namespace — eliminating data islands and enabling cross-cell performance benchmarking. Combined with structured preventive maintenance schedules and NANKMOS's in-stock supply chain, production teams can plan gear replacements during scheduled downtime windows rather than reacting to emergency failures.

Q1: How does the 3HAC048318-001 reduction gear affect robot communication and data accuracy?The reduction gear governs the mechanical precision of the IRB 6700's joint axis. Wear or backlash in the gear directly degrades encoder feedback quality, introducing positional errors that propagate through the servo loop to the IRC5 controller and ultimately to SCADA data historians. Replacing with a genuine ABB 3HAC048318-001 restores axis accuracy and ensures clean, reliable data transmission across the robot's fieldbus network.

Q2: Is the 3HAC048318-001 compatible with both IRC5 and OmniCore C30 controllers?Yes. The 3HAC048318-001 is designed for the IRB 6700 mechanical platform, which is supported by both the IRC5 and OmniCore C30 controller families. The controller communicates with the robot's servo drives via internal CAN bus and external fieldbus protocols (EtherNet/IP, PROFIBUS-DP, DeviceNet), all of which remain fully compatible with this reduction gear.

Q3: Can remote diagnostics detect reduction gear wear before failure?Yes. ABB's IRC5 controller continuously monitors axis torque load, speed deviation, and positional error. When integrated with ABB Remote Service or a third-party SCADA platform via EtherNet/IP, these parameters can be trended over time to identify early-stage gear wear. NANKMOS recommends establishing baseline torque signatures after installation to enable predictive maintenance thresholds.

Q4: What is NANKMOS's supply and warranty policy for the 3HAC048318-001?NANKMOS maintains in-stock inventory of the ABB 3HAC048318-001 reduction gear with same-week shipping capability for urgent production recovery. Every unit is covered by a 12-month warranty against manufacturing defects and includes pre-shipment functional verification. For volume orders or scheduled maintenance contracts, contact our team at [email protected] or +86 18359268345.
