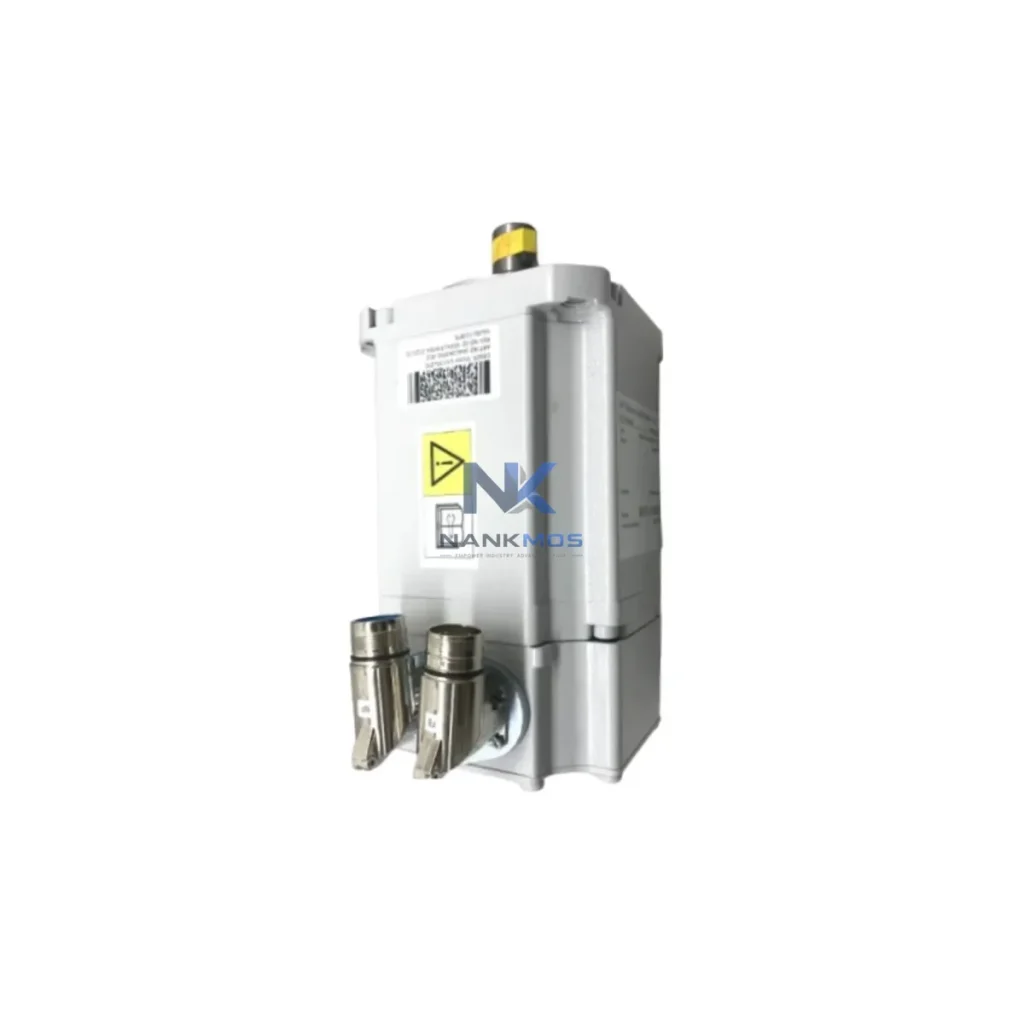

ABB 3HAC050383-001 IRB1600 Servo Motor

Product Details

3HAC050383-001 IRB1600 Product Description

The ABB 3HAC050383-001 servo motor is not a standalone component — it is a precision-engineered axis drive element designed to operate within the full ABB IRC5 robot control architecture. Understanding its role requires examining the complete system stack: from the IRC5 controller cabinet and its DSQC562 main computer board, through the DSQC374 drive unit that governs axis torque and velocity profiles, to the 3HAC025338-001 axis computer that manages real-time motion interpolation. Each layer of this architecture depends on signal integrity and mechanical precision at the motor level, making the 3HAC050383-001 a foundational element of system performance.

At the power layer, the IRC5 drive system relies on a regulated DC bus supplied through the DSQC609 power supply unit, which conditions incoming three-phase AC into stable drive voltage for all axis motors simultaneously. The 3HAC050383-001 draws from this shared bus, meaning power quality directly affects torque consistency and positional repeatability. In multi-robot cells or coordinated motion applications, the DSQC1000 MultiMove controller extends this architecture across multiple IRB1600 arms, with each axis motor — including the 3HAC050383-001 — synchronized through the IRC5 motion bus for deterministic cycle execution.

At the I/O and signal layer, the DSQC652 digital I/O board manages discrete signals for gripper control, safety interlocks, and process triggers that coordinate with axis motion. The 3HAC050383-001's resolver feedback is processed by the axis computer and cross-referenced against the robot's kinematic model in real time, enabling the IRC5 to maintain sub-millimeter path accuracy across the IRB1600's full 1.45-meter reach envelope. For applications requiring fieldbus integration, the DSQC688 DeviceNet gateway or DSQC679 PROFIBUS adapter connects the IRC5 to upstream PLCs — such as ABB AC500 or Siemens S7-300 series — enabling coordinated production line sequencing where the IRB1600's motion is triggered and monitored by the plant-level control system.

At the HMI and programming layer, the FlexPendant (3HAC028357-001) provides the operator interface for jogging, program execution, and axis calibration. When replacing or commissioning a 3HAC050383-001 motor, the FlexPendant's calibration routines — including revolution counter update and fine calibration — are essential steps that restore the robot's positional reference after any axis motor exchange. This process integrates directly with the IRC5's SMB (Serial Measurement Board, 3HAC031670-001), which stores axis calibration data and communicates resolver positions to the drive system.

For maintenance and redundancy planning, stocking the 3HAC050383-001 alongside complementary spare parts — including the DSQC374 drive unit, 3HAC025338-001 axis computer, and SMB board — creates a complete axis-level spare parts kit that minimizes unplanned downtime. In high-utilization environments such as automotive body shops, electronics assembly lines, or food and beverage packaging systems, mean-time-to-repair (MTTR) is directly tied to spare parts availability. Pre-tested, in-stock units with verified 12-Month Warranty coverage eliminate the lead-time risk associated with OEM procurement channels.

The IRB1600 platform — and by extension the 3HAC050383-001 axis motor — is deployed across a wide range of industrial sectors where compact reach, high repeatability, and system integration depth are critical requirements.

In automotive manufacturing, IRB1600 robots perform arc welding, material handling, and assembly tasks within tight cell geometries. Axis 1 and Axis 2 motors carry the highest duty cycle loads in these applications, making motor condition a primary maintenance focus. In electronics and semiconductor assembly, the IRB1600's path accuracy supports PCB handling, component placement assist, and inspection positioning, where the 3HAC050383-001's resolver feedback precision directly determines process yield. In food and beverage packaging, the robot operates in wash-down-adjacent environments where IP54 motor protection and reliable axis performance reduce contamination risk from mechanical failures.

In metal fabrication and machine tending, the IRB1600 loads and unloads CNC machining centers in coordinated sequences triggered by the plant PLC via DeviceNet or PROFIBUS. The 3HAC050383-001 sustains the repetitive high-torque axis movements required for consistent part positioning. In process industries including chemical and pharmaceutical manufacturing, the robot's deterministic motion — governed by the IRC5 and executed through axis motors like the 3HAC050383-001 — supports validated process sequences where motion deviation is a compliance concern.

Q1: Is the 3HAC050383-001 compatible with all IRB1600 variants, and does it require any drive parameter reconfiguration after replacement? The 3HAC050383-001 is designed for IRB1600 Axis 1 and Axis 2 positions across the standard IRB1600 payload variants (6 kg and 10 kg). After physical replacement, the IRC5 controller requires a revolution counter update via the FlexPendant and, in some cases, a fine calibration procedure using the robot's calibration marks. Drive parameters stored in the DSQC374 drive unit do not typically require manual reconfiguration, as the IRC5 reads motor identity from the SMB board. Always verify the robot's configuration file (system parameters) matches the installed motor specification before returning the system to production.

Q2: How does stocking the 3HAC050383-001 as a spare part integrate into a broader predictive maintenance and inventory strategy for multi-robot installations? In facilities operating multiple IRB1600 units, a centralized spare parts strategy should include at minimum one 3HAC050383-001 per four to six robots in continuous operation. Pairing this motor with the DSQC374 drive unit and SMB board creates a complete axis-level replacement kit. Condition monitoring via the IRC5's built-in diagnostics — accessible through RobotStudio or the FlexPendant service panel — can provide early warning of resolver drift or winding degradation, allowing planned replacement during scheduled maintenance windows rather than emergency shutdowns. All units supplied carry a 12-Month Warranty with pre-shipment functional verification.

Q3: What are the key considerations for integrating a replacement 3HAC050383-001 into an existing IRC5 system connected to a plant-level SCADA or PLC network? When the IRB1600 is integrated into a plant network via PROFIBUS, DeviceNet, or EtherNet/IP through the IRC5's fieldbus adapter, motor replacement does not affect the fieldbus configuration or PLC program — provided the IRC5 system parameters and robot program remain unchanged. The primary integration step is restoring the robot's calibration reference, after which the IRC5 resumes normal communication with the upstream PLC. For systems using ABB's RobotWare SafeMove safety module, axis position supervision zones should be re-verified post-calibration to confirm safe speed and position limits remain valid within the cell geometry.
